Alusthetic Threshold Drain End Cap

Alusthetic Threshold Drain End Cap

A replacement or finishing end cap for Alusthetic threshold drain systems, used to close the end of a channel run or provide a side outlet connection.

Compatible with both Full Height 100mm and Mini Range 60mm systems. Choose blank versions for sealed ends or outlet versions for drainage discharge connections.
£4.72
£4.72
Tax included. Shipping calculated at checkout.

500 in stock

AS-THR-END

Expected delivery date:
19 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

Alusthetic Threshold Drain End Cap

Alusthetic Threshold Drain End Cap

Description

The Alusthetic Threshold Drain End Cap is designed to terminate channel drain runs neatly while helping control water flow direction within the drainage layout. It is used at the end of threshold drainage channels where the run needs closing off, or where a side outlet connection is required to discharge collected surface water into suitable pipework.

This multi listing covers both Alusthetic Full Height 100mm threshold drains and the Mini Range 60mm threshold drains. It allows you to choose the correct end cap to match the channel depth already installed on site.

Blank versions are used when the end of the channel run needs sealing with no outlet connection. These are common on straight runs where water discharges from the opposite end or through a bottom outlet connector.

Outlet versions are used where a horizontal side discharge is required. Full Height 100mm systems use a 50mm outlet version, while Mini Range 60mm systems use a 40mm outlet version. This gives flexibility when connecting into nearby drainage pipework or adapting to restricted installation areas.

Manufactured from PVC to match the channel body, the end cap clips into the compatible Alusthetic drain profile. For improved watertightness, PVC adhesive can be used where required.

Always select the correct version for your channel height. Full Height and Mini components are not interchangeable due to different profile depths.

Key Features

  • Compatible with Alusthetic Full Height 100mm and Mini 60mm channels
  • Blank version closes the end of a drain run
  • Outlet versions allow side discharge into pipework
  • Full Height outlet version uses 50mm connection
  • Mini Range outlet version uses 40mm connection
  • PVC construction for corrosion resistant service
  • Useful for new installations, extensions or repairs
  • Helps create cleaner and more controlled drainage layouts

Material Composition

Manufactured from PVC to match the Alusthetic threshold drain channel body. PVC is lightweight, corrosion resistant and suitable for external drainage applications with minimal maintenance.

Product Specifications

Product type: Threshold drain end cap
Compatibility: Alusthetic Threshold Drain systems
Compatible ranges: Full Height 100mm, Mini Range 60mm
Material: PVC
Use: End termination or side outlet discharge connection

Version options:
Blank
With 50mm Outlet (Full Height 100mm only)
With 40mm Outlet (Mini Range 60mm only)

Full Height system compatibility:
Channel height: 100mm
Channel width: 65mm

Mini Range compatibility:
Channel height: 60mm
Channel width: 65mm

About this collection

Threshold Channel Drains

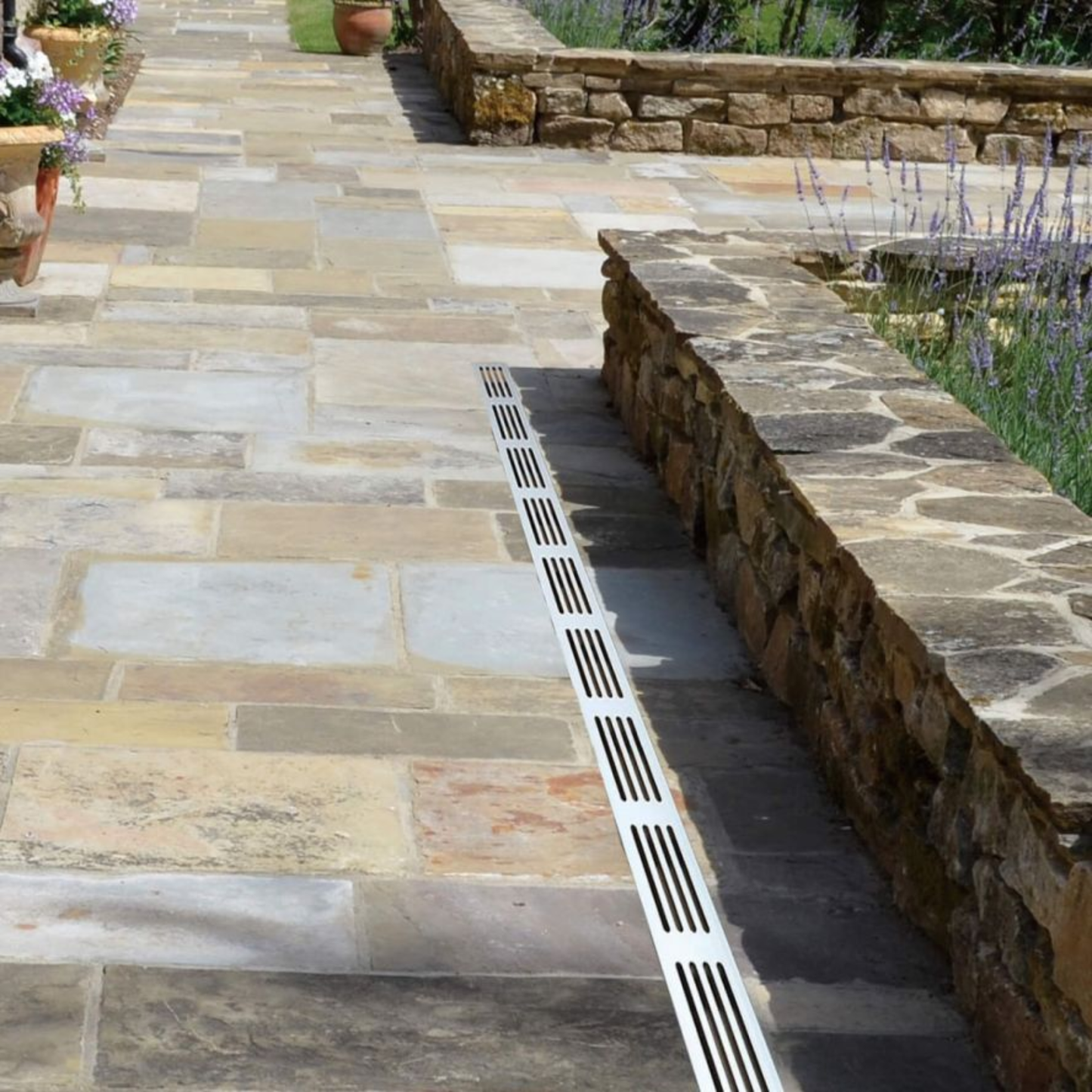

Channel drain covers and threshold drainage systems are designed to collect and direct surface water away from entrances, patios, driveways and paved areas. Ideal for domestic and commercial use, they help reduce standing water while maintaining clean, usable surfaces.
View Collection

FAQs

See All

How do I know which end cap I need?

Check your installed channel height. Full Height systems are 100mm deep, while Mini systems are 60mm deep.

What is the blank version used for?

The blank end cap closes the end of the drainage run where no outlet is needed.

Can I use the 50mm outlet on the Mini system?

No. The 50mm outlet version is for the Full Height 100mm system only. Mini systems use the 40mm outlet version.

Are Full Height and Mini end caps interchangeable?

No. They are different depths and should be matched to the correct channel profile.

Should I use adhesive when fitting?

Clip fit installation is typical, but PVC adhesive can be used where a tighter or more watertight joint is preferred,.
