600mm Diameter Ductile Iron Manhole Cover and Frame B125

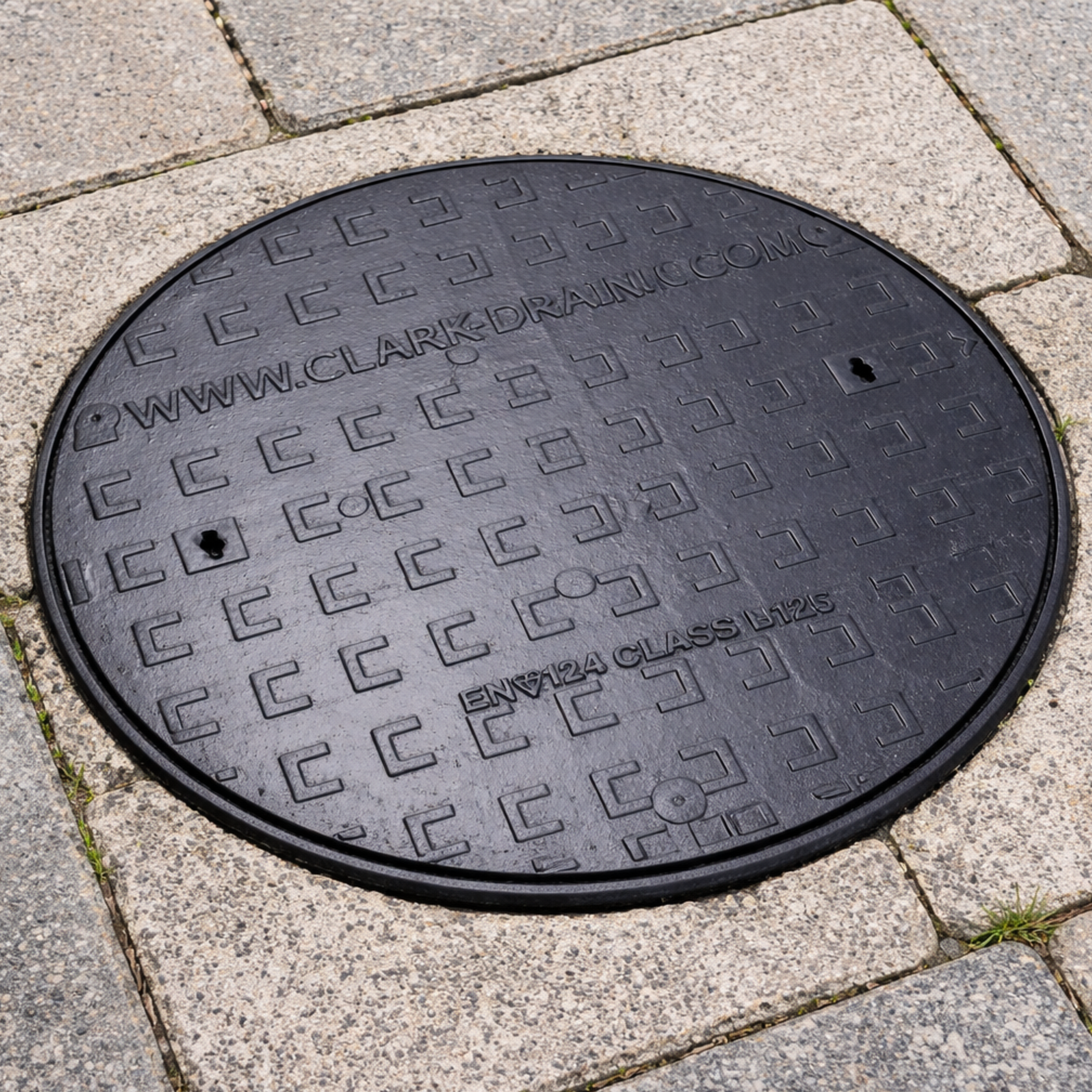

This 600mm diameter ductile iron manhole cover and frame is a solid top B125 rated access cover designed for round chamber openings in domestic and light commercial environments. It is regularly used on private driveways, pedestrian areas, paved access routes and service locations where a durable visible lid is preferred.

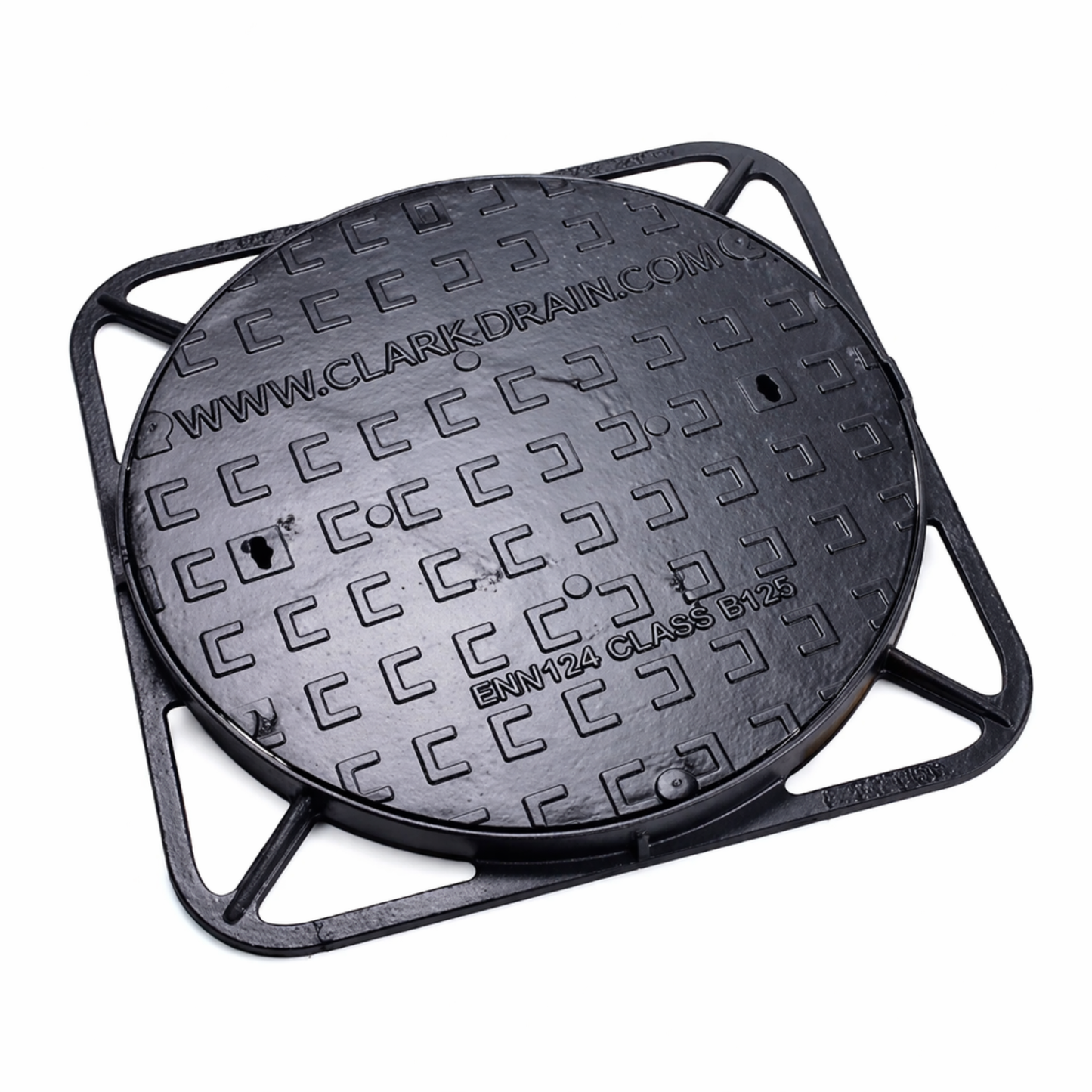

The circular cover sits within a square 680 x 680mm frame, making it a practical solution for many existing round access chambers while allowing installation into square formed surrounds. The solid top visible lid provides straightforward future access without disturbing paving or surrounding finishes.

Manufactured from spheroidal graphite ductile iron, the CD 759 KMB offers strong load performance with improved toughness and crack resistance compared with older cast iron designs. When installed on a full mortar or concrete bed, it is well suited to repeated car traffic and routine pedestrian use.

A skeletal frame design helps reduce unnecessary weight while maintaining structural support where needed. This can assist handling during installation while still delivering the rigidity expected from a trafficked cover.

Integral lifting key holes are included for controlled removal using compatible lifting keys. A locking version is also available where added security or restricted access is required.

B125 loading is intended for BS EN 124 Group 2 applications such as driveways, pedestrian zones and private areas with occasional vehicle traffic. It should not be used in highways, delivery yards or regularly trafficked heavy vehicle areas where D400 or above would normally be required.

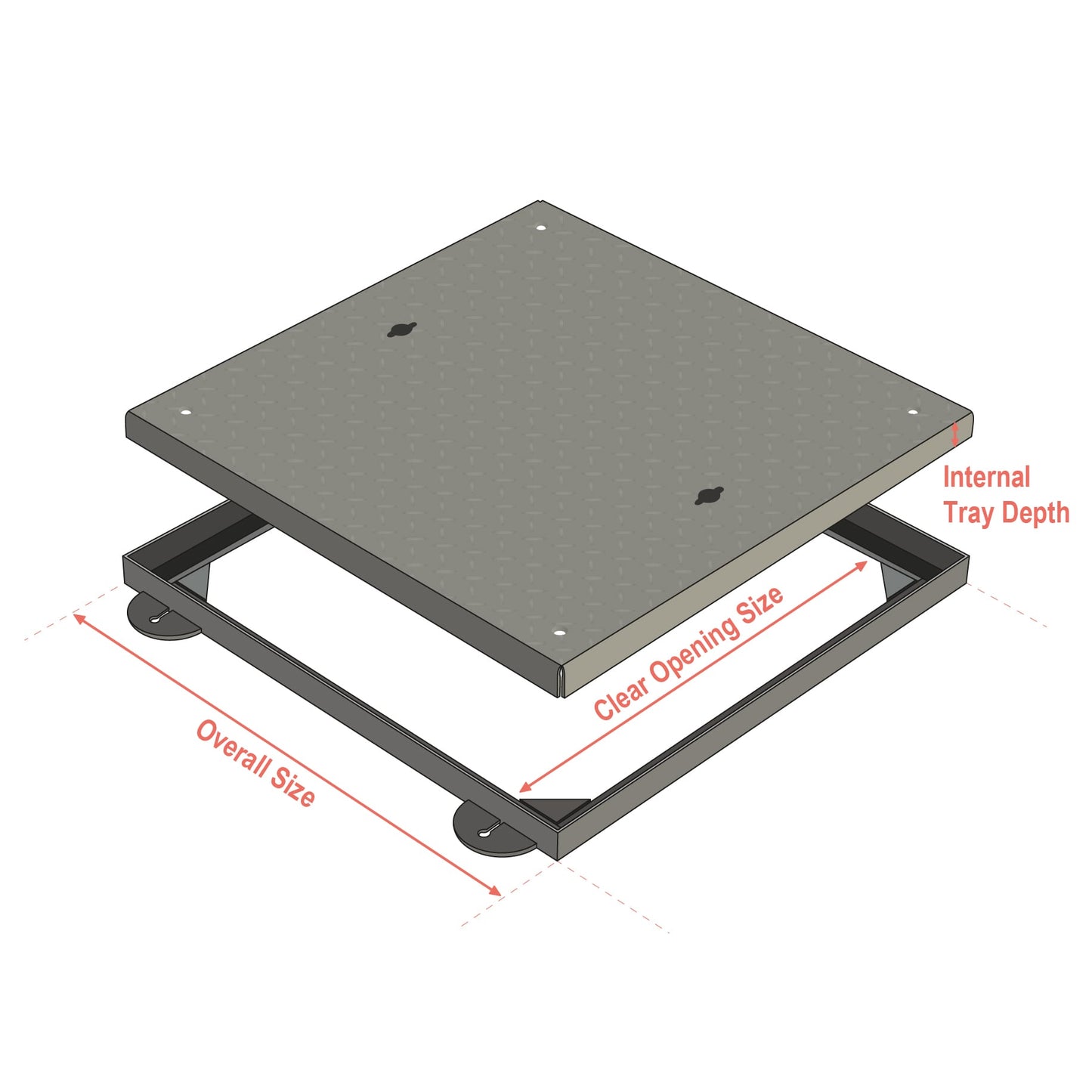

When replacing an existing cover, always measure the clear opening of the chamber first, then confirm external frame size and depth.

• B125 rated for driveways and pedestrian areas
• 600mm diameter clear opening for round chambers
• 680 x 680mm square frame for stable installation
• Solid top visible lid for easy maintenance access
• Skeletal frame design to reduce unnecessary weight
• Integral lifting key holes for safer removal
• Ductile iron construction for long service life
• Locking version available

Manufactured from spheroidal graphite iron grade EN-GJS-500-7 to BS EN 1563:2011. This ductile iron grade combines strength with improved flexibility and impact resistance, making it a common material for access covers in trafficked areas.

Product code: CD 759 KMB
Clear opening: 600mm diameter
Overall frame size: 680mm x 680mm
Frame depth: 40mm
Product weight: 32kg
Cover weight: 22.5kg
Material: EN-GJS-500-7 ductile iron
Load class: B125
Standard: BS EN 124-2:2015
Polished skid resistance value: 45+
Cover type: Solid top circular cover with square frame
Finish: Black surface coating
Application: Pedestrian and driveway
