750 x 600mm Sealed & Locking Recessed Manhole Cover 5 Tonne or 10 Tonne

The 750 x 600mm sealed and locking recessed manhole cover is designed for installations where both access and odour control are required, with the option to select between 5 tonne and 10 tonne load ratings depending on application.

Manufactured from galvanised steel, the cover and frame provide a rigid and durable structure suited to internal floors such as kitchens, basements and service areas. The factory fitted double neoprene sealing gasket works with the screw locking system to compress the lid onto the frame, helping prevent odours escaping from the drainage system.

The 5 tonne option is intended for pedestrian areas and internal use. The 10 tonne option is suitable for external applications such as driveways where light vehicle loading is expected. Selecting the correct load rating is important, as using a lower rated cover in trafficked areas can lead to failure.

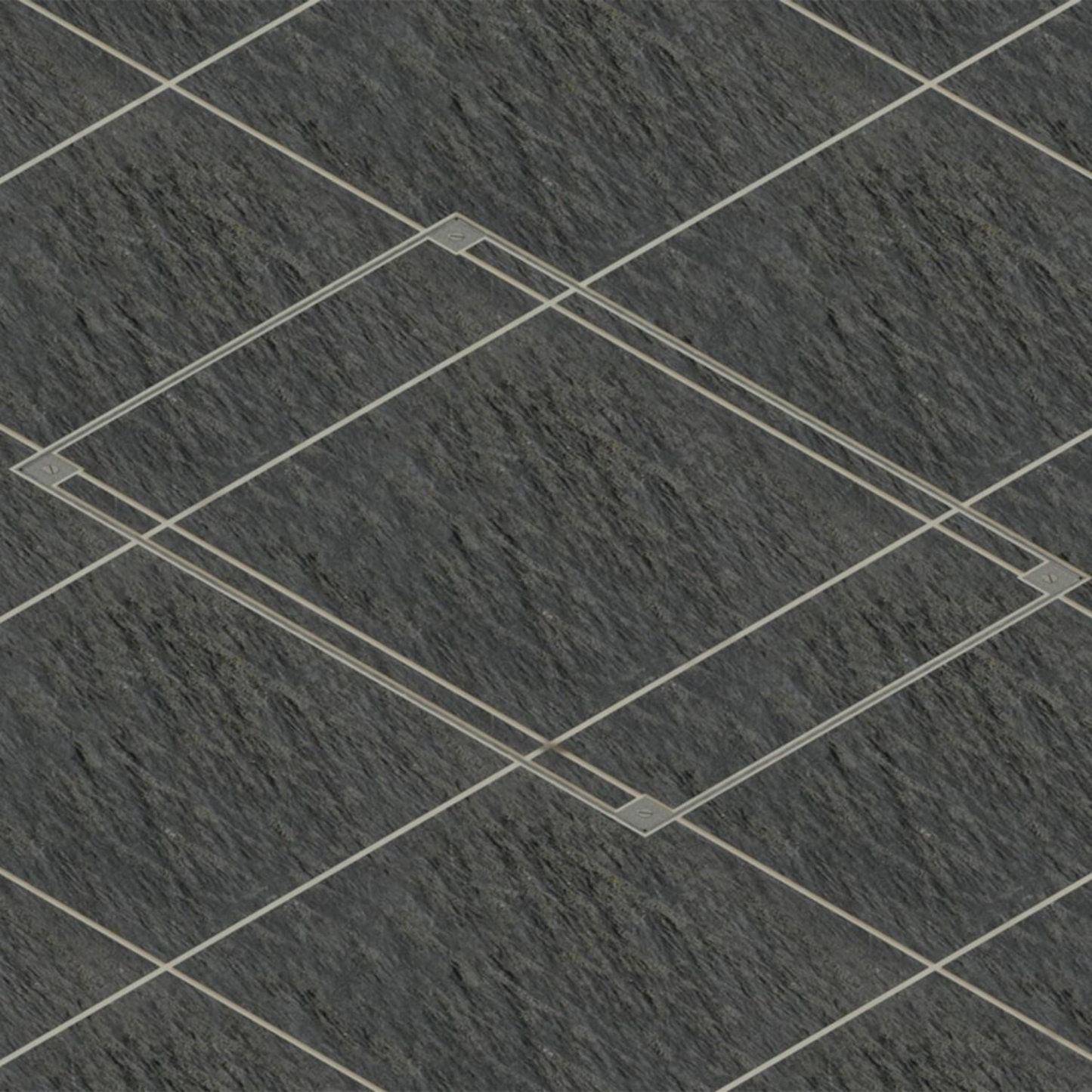

The recessed tray allows for concrete or screed infill, maintaining a flush finish with the surrounding surface while preserving access to the chamber below. This format also provides an alternative to standard T26G3 covers where a double sealed system is required.

• Available in 5 tonne and 10 tonne load ratings for correct application selection
• 750 x 600mm clear opening suits larger rectangular inspection chambers
• Double neoprene sealing gasket improves odour control performance
• Four screw locking system secures the cover and enhances sealing
• Recessed 43mm tray suitable for concrete or screed infill
• Fully galvanised steel construction improves strength and durability
• Suitable for internal use and external applications depending on load rating
• Compatible with COM02285 lifting keys for safe access

This cover is manufactured from galvanised mild steel for both the tray and frame. The galvanised finish provides resistance to general corrosion, while the steel construction improves rigidity and long term performance. The double neoprene seal provides improved sealing compared to standard single gasket designs.

Product type: Sealed and locking recessed manhole cover
Suitable location: Internal and external (load dependent)
Clear opening: 750mm x 600mm
Overall frame size: 856mm x 706mm
Tray depth (recess depth): 43mm
Frame depth: 51mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Double neoprene seal
Locking: Four screw locking
Load rating: 5 tonne or 10 tonne (variant selection)
Lifting method: Lifting keys required
Fixings supplied: Not specified
Weight: 25kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3
Options: COM02285 lifting keys available separately
