300 x 300mm Sealed & Locking Solid Top Manhole Cover

This 300 x 300mm sealed and locking solid top manhole cover range is designed for installations where a standard plain seated cover does not provide enough control. Each option combines a galvanised steel lid and frame with an integrated seal and four screw locking system to help restrict odours, debris and unwanted lid movement.

Unlike a recessed cover, the lid remains visible after installation and does not accept infill materials. The raised tread steel lid provides grip underfoot and a durable finish for regularly used access points. The compact 300mm x 300mm clear opening suits many smaller drainage chambers, rodding points and inspection access locations.

All options share the same 40mm overall frame depth, making selection simpler where installation depth is fixed or when replacing an existing shallow cover. The correct variant can then be selected by loading requirement.

The Pedestrian option is suited to foot traffic areas, internal floors and landscaped spaces. The 5 Tonne option is commonly used on domestic driveways and light vehicles. The 10 Tonne option is intended for more demanding private traffic areas and lightly trafficked service locations.

A common ordering mistake is choosing by size only. The chamber opening and the real traffic loading must both be checked before ordering.

• Integrated seal helps restrict odours, debris and surface contamination
• Four screw locking lid helps secure the cover to the frame
• Pedestrian, 5 Tonne and 10 Tonne load options available
• Galvanised steel construction provides durable load-bearing performance
• Raised tread lid improves grip underfoot in wet conditions
• 300mm x 300mm clear opening suits smaller access chambers
• 40mm overall depth suits many replacement and new installations
• Two lifting keyholes allow removal using suitable lifting keys
• Visible solid top lid gives quick access point identification
• Suitable where security and odour control are needed beyond plain seated covers

Manufactured from mild steel and hot dip galvanised for corrosion protection in normal external environments. Steel provides structural strength, while the galvanised finish helps protect exposed metal surfaces in service.

Product type: Sealed and locking solid top manhole cover
Suitable location: Internal or external

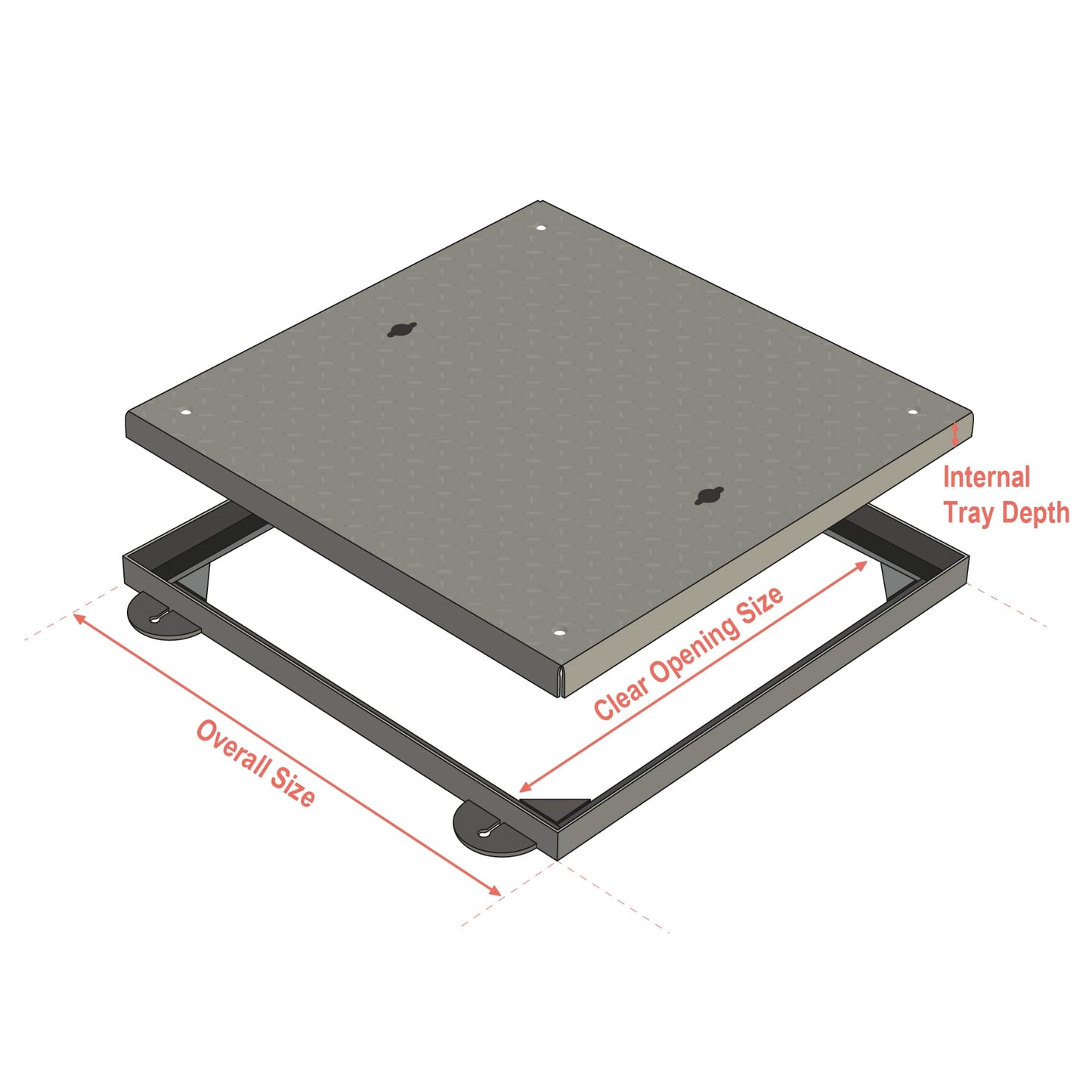

Clear opening: 300mm x 300mm
Overall frame size: 430mm x 430mm
Overall depth: 40mm
Material: Mild steel
Finish: Hot dip galvanised
Seal type: Integrated odour-reducing seal
Locking: Four screw locking lid
Load rating: Pedestrian / 5 Tonne / 10 Tonne
Lifting method: Keyhole lifting points, keys sold separately
Fixings supplied: Integrated screw fixings
Weight: Approx. 9kg
Standards: FACTA stated on original product data
Options:
EG-ST-3030PS, Pedestrian, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
EG-ST-3030LS, 5 Tonne, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
EG-ST-3030MS, 10 Tonne, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
