Broken manhole lids are a common issue, especially on older concrete covers. Cracks usually appear gradually, but once they do, load capacity is compromised and failure under vehicle traffic is only a matter of time.
This project highlights why replacing a lid based on surface measurements alone often leads to problems, and how correct measuring avoids an expensive mistake.
The Initial Problem
The customer needed a replacement lid for an existing concrete manhole frame. The original lid had cracked and was no longer safe for light vehicle traffic.
Initial measurements were provided based on what could be seen at surface level. These included overall length, width, depth and corner radius.
On review, it was clear that the concrete frame sides were sloping, a common feature on older installations. Measuring across these sloped faces does not give a true indication of the lid size required.
This is where many lid only replacements go wrong.
Why Surface Measurements Are Not Enough
Concrete manhole frames often taper inward.
If measurements are taken only at the top edge, the replacement lid may foul on the frame as it drops into place. If measured too tight, the lid will not seat properly. If measured too loose, it will rock or drop too far.
In this case, the upstand position was critical.
To account for this, the effective lid size was reduced slightly from the initial figures, and clearance was allowed to deal with uneven concrete edges.
 |
 |
Correct Measurement Approach
To resolve this, guidance was provided showing how to measure both:
- The top opening of the frame
- The internal bearing ledge where the lid actually sits
These measurements establish where the upstand must locate.
Additional allowance was made to prevent binding on irregular concrete, a small but essential adjustment on older frames.
Corner radii were also rechecked, as radius errors are another common cause of poor fit.
 |
 |
Drawing Approval and Manufacture
Once revised measurements were confirmed, a technical drawing was produced showing the final lid dimensions, upstand position and corner radius.
This drawing was issued for approval before manufacture. Only once approved was production authorised.
This stage is critical. It removes guesswork and ensures the finished lid matches the real opening, not an assumption.
The Result

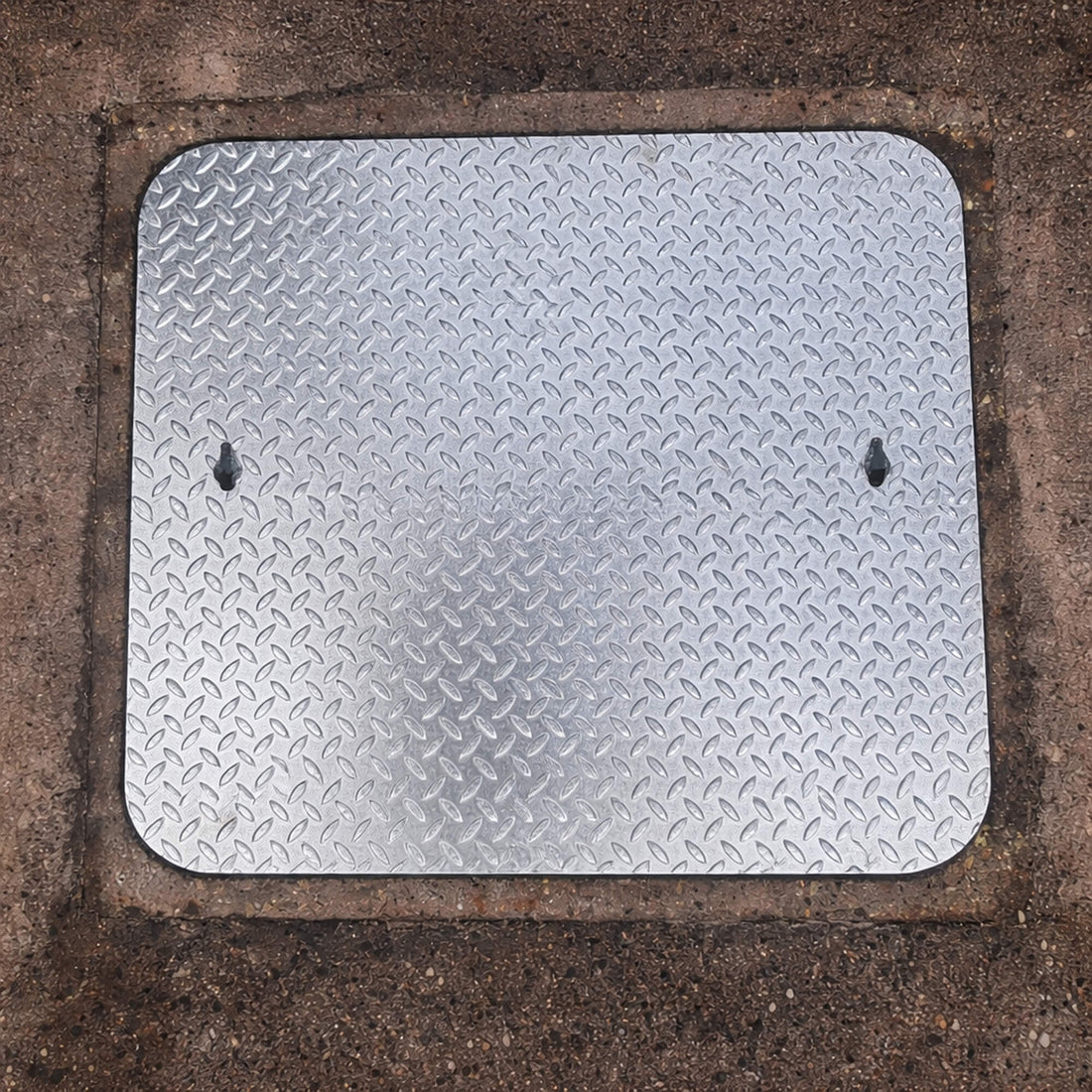

The replacement lid was delivered within the agreed lead time and installed without modification.
The lid seated correctly, carried the required load and restored safe access to the chamber. The customer confirmed the fit was exact, with no movement or gaps.
This outcome is typical when lid only replacements are approached properly.
Key Takeaways
Replacing a broken manhole lid is possible, but it is rarely a straight copy exercise.
- Sloping frames distort surface measurements
- Upstand position matters more than visible size
- Corner radii must be measured accurately
- Clearance must be allowed for concrete irregularities
When these points are addressed, bespoke lid replacement works well. When they are ignored, lids fail to fit and the process becomes costly.
