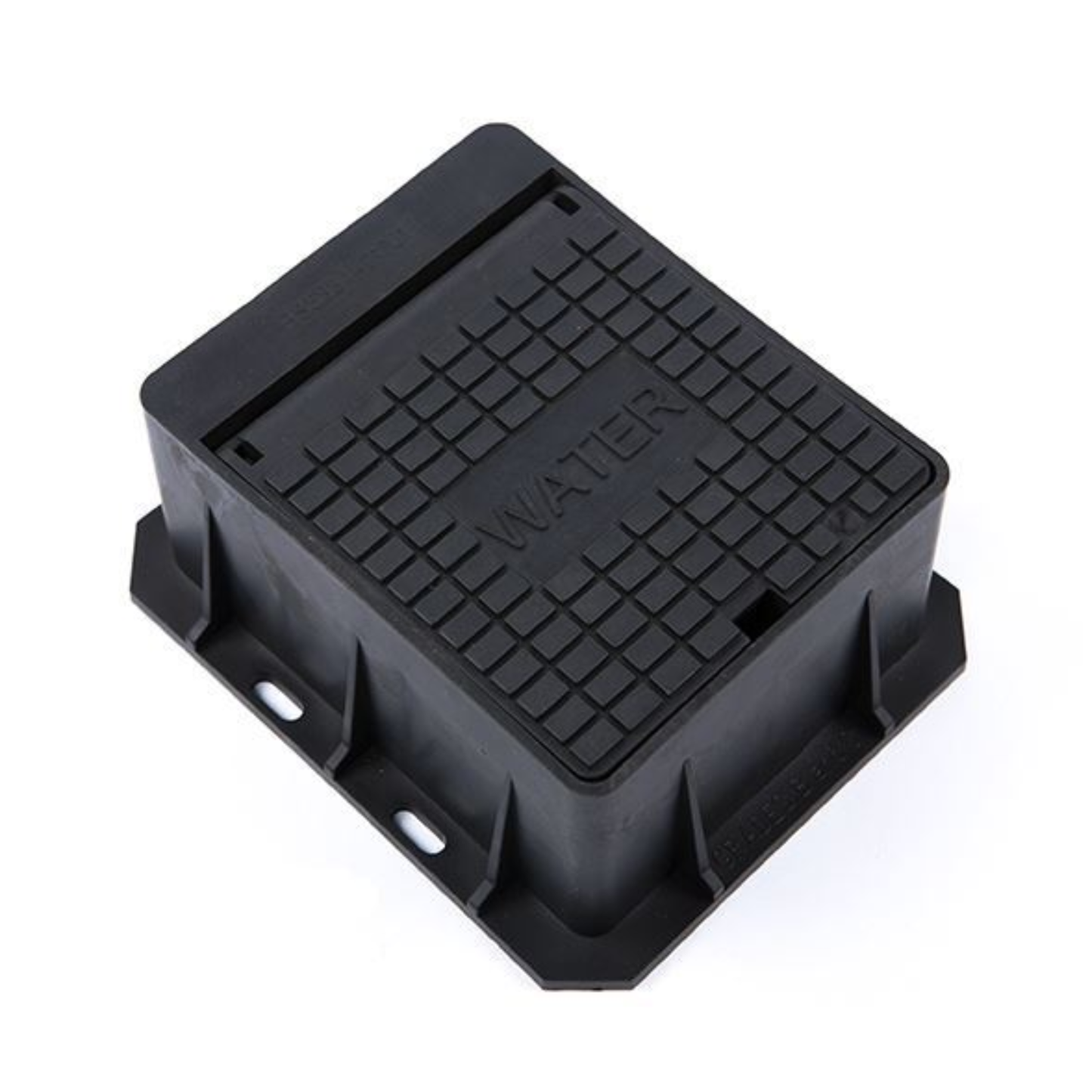

100mm Hinged & Locking Surface Box Cover

The CD 880 surface box cover is a compact utility access cover designed for water stop taps and service valves where regular ground level access is required. It is commonly used in pedestrian areas such as pavements, landscaped areas, pathways and roadside verges.

The hinged lid allows the cover to open without being fully removed, which reduces handling time during inspection or valve operation. A locking screw provision helps keep the lid closed during normal use and limits unintended opening.

Manufactured from polypropylene Grade AP9, this unit offers a lightweight and corrosion resistant alternative to traditional metal boxes. It is suitable for wet ground conditions and routine external installations where rust resistance and easy handling are useful.

The lid is badged Water for clear service identification, helping contractors locate the correct utility quickly. An integral steel plate is included for remote sensing device applications.

This model is rated Grade C2 for light duty, no vehicle traffic. It can achieve Grade B2 for occasional vehicle use when installed in a C35 concrete surround. It should not be used in regularly trafficked carriageways or heavy vehicle areas.

Hinged lid speeds up access for valve checks and shut off operation

Locking screw provision helps keep the lid secure in daily use

Water badged lid identifies the service below clearly

Polypropylene construction resists rust and moisture

Lightweight 0.5kg unit is easy to transport and install

Grade C2 rating suits pedestrian and light duty locations

Can achieve Grade B2 with correct C35 concrete surround installation

Integral steel plate supports remote sensing device use

Compact footprint suits stop tap and small valve chambers

Manufactured from polypropylene Grade AP9 with an integral steel plate. Polypropylene is widely used for utility surface boxes because it is durable, lightweight and unaffected by rust in normal buried and external environments.

Product type: Hinged and locking surface box cover
Suitable location: External
Clear opening: 100.5mm diameter
Overall frame size: 176mm x 147mm
Frame depth: 75mm
Material: Polypropylene Grade AP9
Finish: Black moulded finish
Seal type: None
Locking: Locking screw provision
Load rating: Grade C2 light duty, no vehicles / Grade B2 occasional vehicles with C35 concrete surround
Lifting method: Hinged lid opening
Fixings supplied: Integrated locking provision
Weight: 0.5kg

Standards: BS 5834-2:2011 load testing requirements
