220–300mm Square to Round Grass & Gravel Recessed Manhole Cover 3.5 Tonne

This square to round recessed manhole cover is designed for installations where the chamber opening is circular but the surrounding finish is square, such as paving or landscaping layouts. The integrated adaptor can be cut to suit chamber openings between 220mm and 300mm diameter, removing the need to cut paving around a circular lid.

The recessed tray allows the selected infill to sit flush with the surrounding surface. The grass top version supports soil and turf using drainage holes and membrane layers to allow water to pass through while encouraging growth. The gravel top version incorporates an EcoGrid reinforcement layer, designed to stabilise loose aggregate and prevent movement under foot or light vehicle loading.

The 80mm tray depth is suited to shallow landscaping build-ups. It provides sufficient depth for turf establishment or contained aggregate without excessive build-up height.

Manufactured from polypropylene, the unit is corrosion resistant and lightweight, making it suitable for external ground conditions and straightforward to install. It is rated for light domestic vehicle use, but not for frequent or heavy traffic.

Selection should always be based on the clear opening range of the chamber, ensuring the adaptor can be correctly trimmed to suit.

• Adjustable clear opening from 220mm to 300mm diameter
• Square to round design avoids cutting paving around circular chambers
• 80mm tray depth suits shallow turf or gravel installations
• Choice of grass top or gravel top with EcoGrid reinforcement
• EcoGrid option stabilises loose aggregate under load
• Polypropylene construction is lightweight and corrosion resistant
• Integral lifting points allow straightforward access
• Suitable for gardens and light domestic driveway applications

Manufactured from polypropylene (Grade AP9), providing a corrosion resistant and lightweight solution for external installations. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an integrated EcoGrid structure to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 220–300mm diameter
Overall frame size: 438mm x 438mm
Tray depth (recess depth): 80mm
Frame depth: 93mm
Material: Polypropylene
Finish: Black
Seal type: None
Locking: No
Load rating: 3.5 tonne (35kN)
Lifting method: Integral lifting points
Fixings supplied: No
Weight: 6kg
Standards: Not stated
Options:

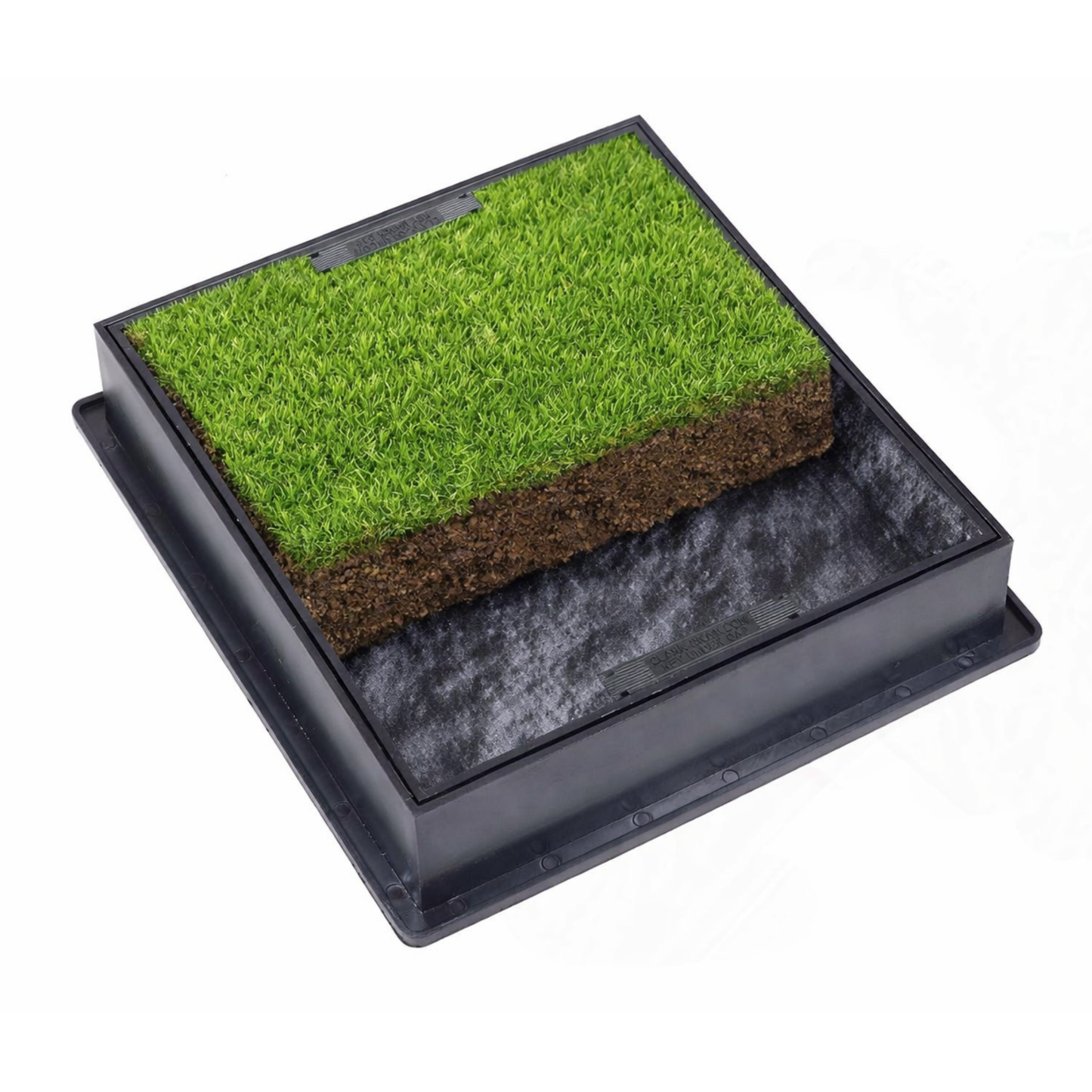

CD 300SR-GT, Grass Top, 220–300mm diameter clear opening, 438mm x 438mm overall frame size

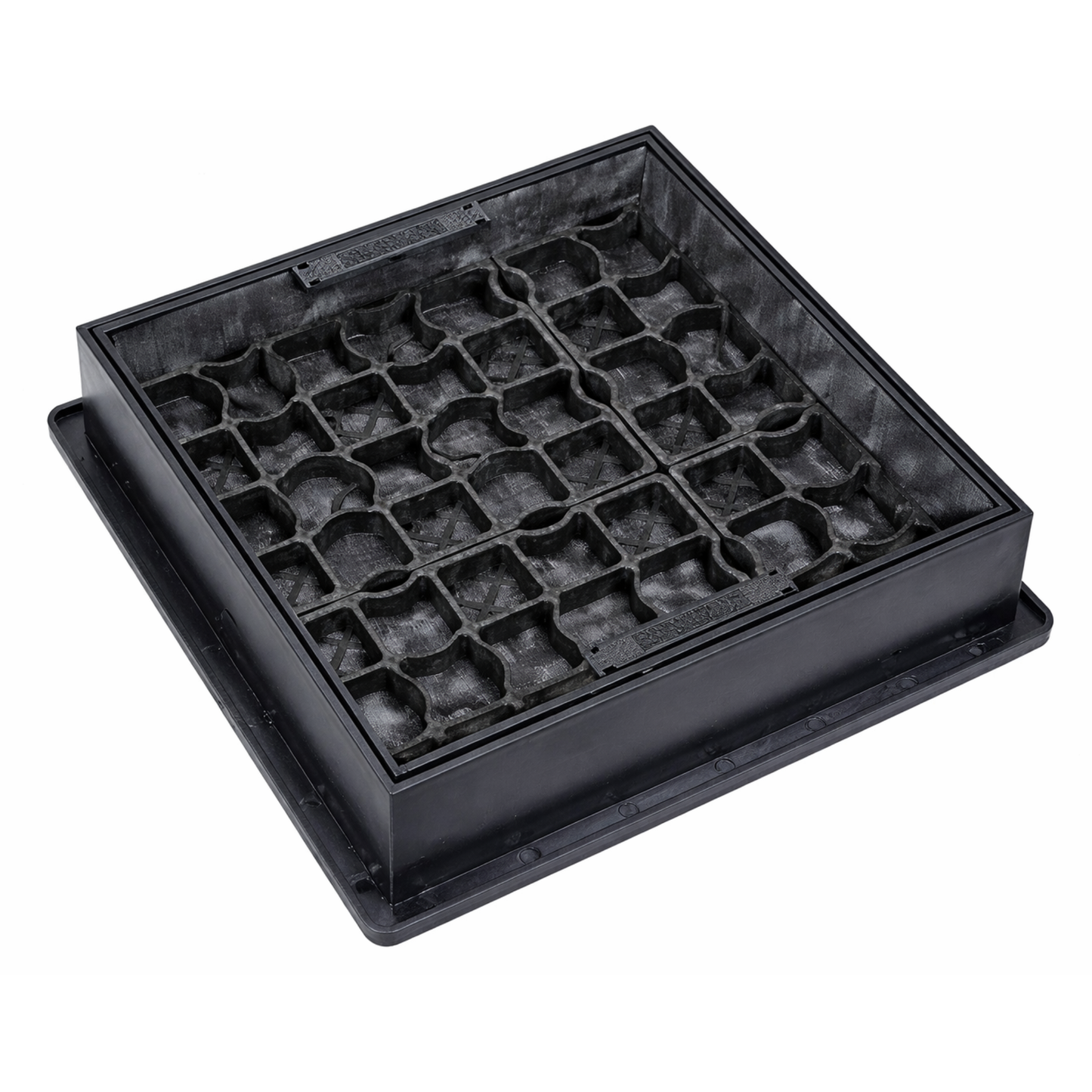

CD 300SR-GT-EG, Gravel Top, 220–300mm diameter clear opening, 438mm x 438mm overall frame size
