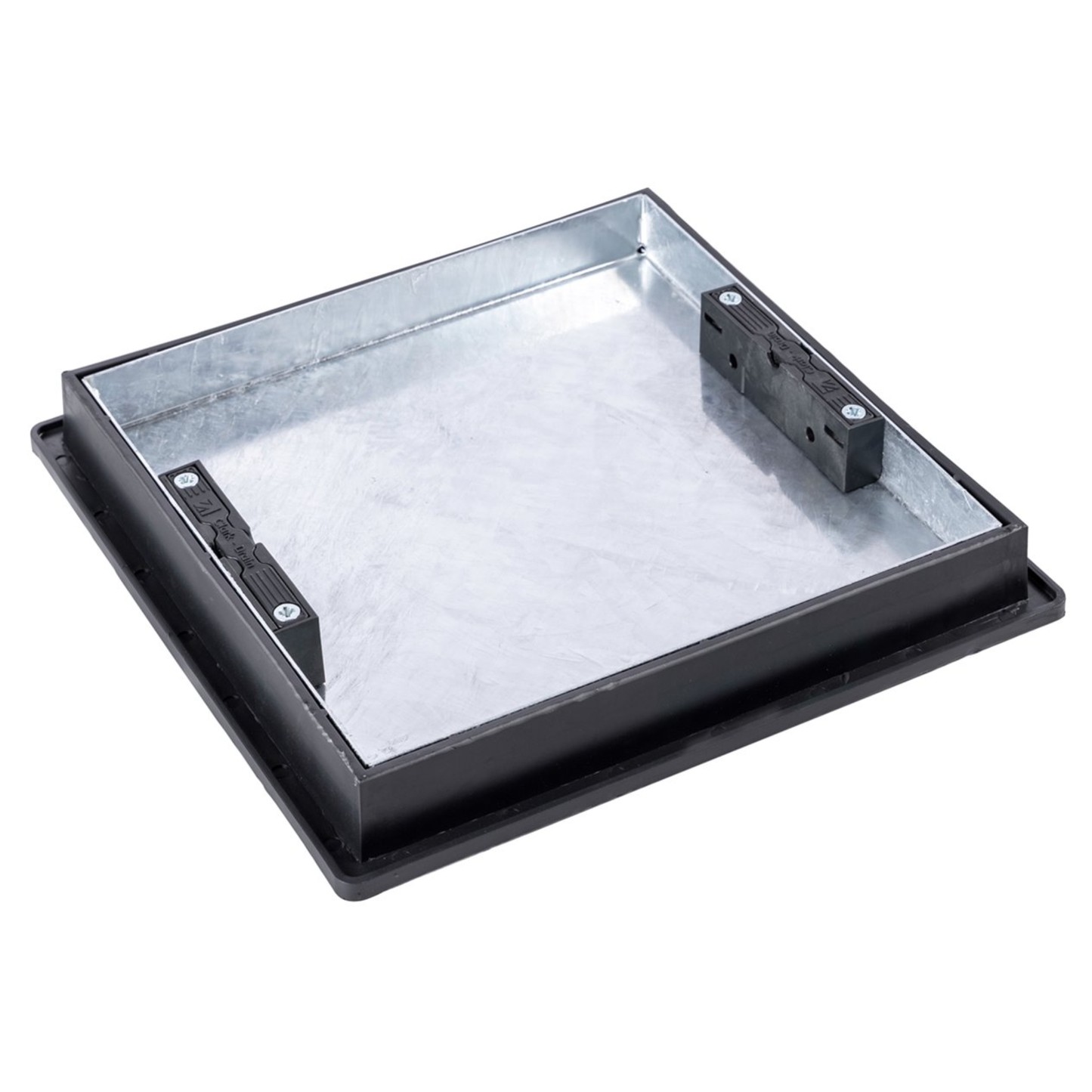

• recessed manhole cover tray and frame

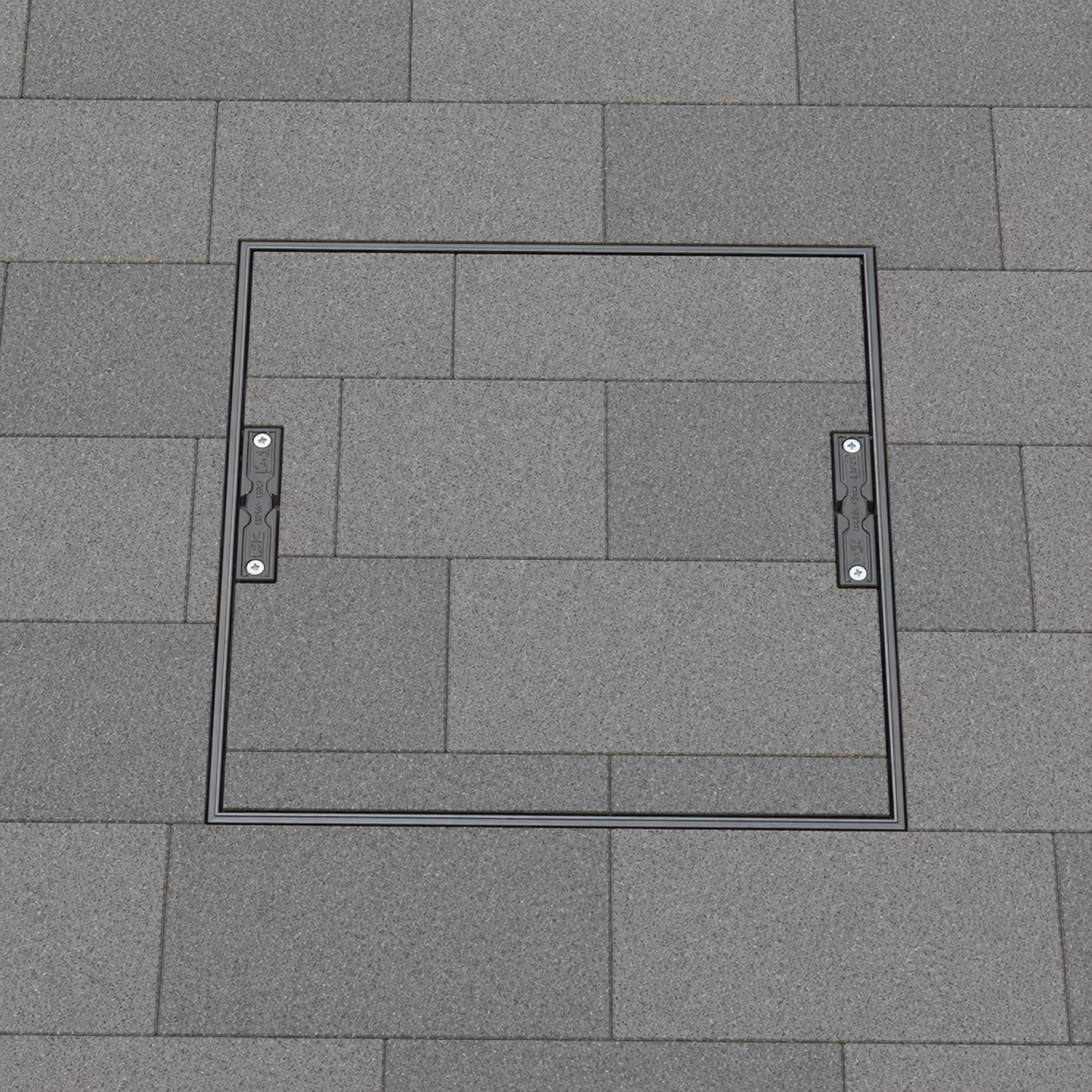

  • recessed manhole cover installed in pavement

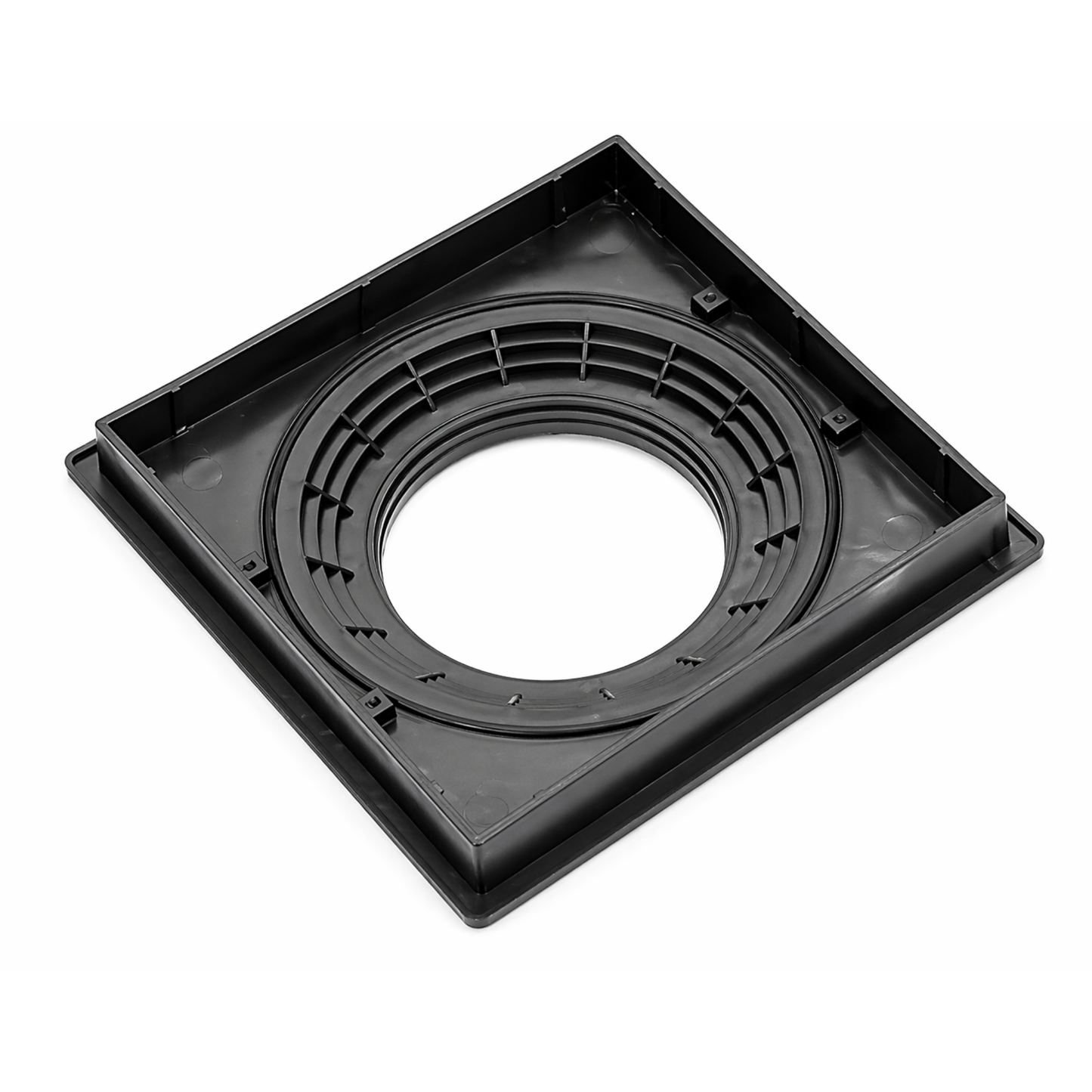

  • black plastic square to round manhole frame on white background

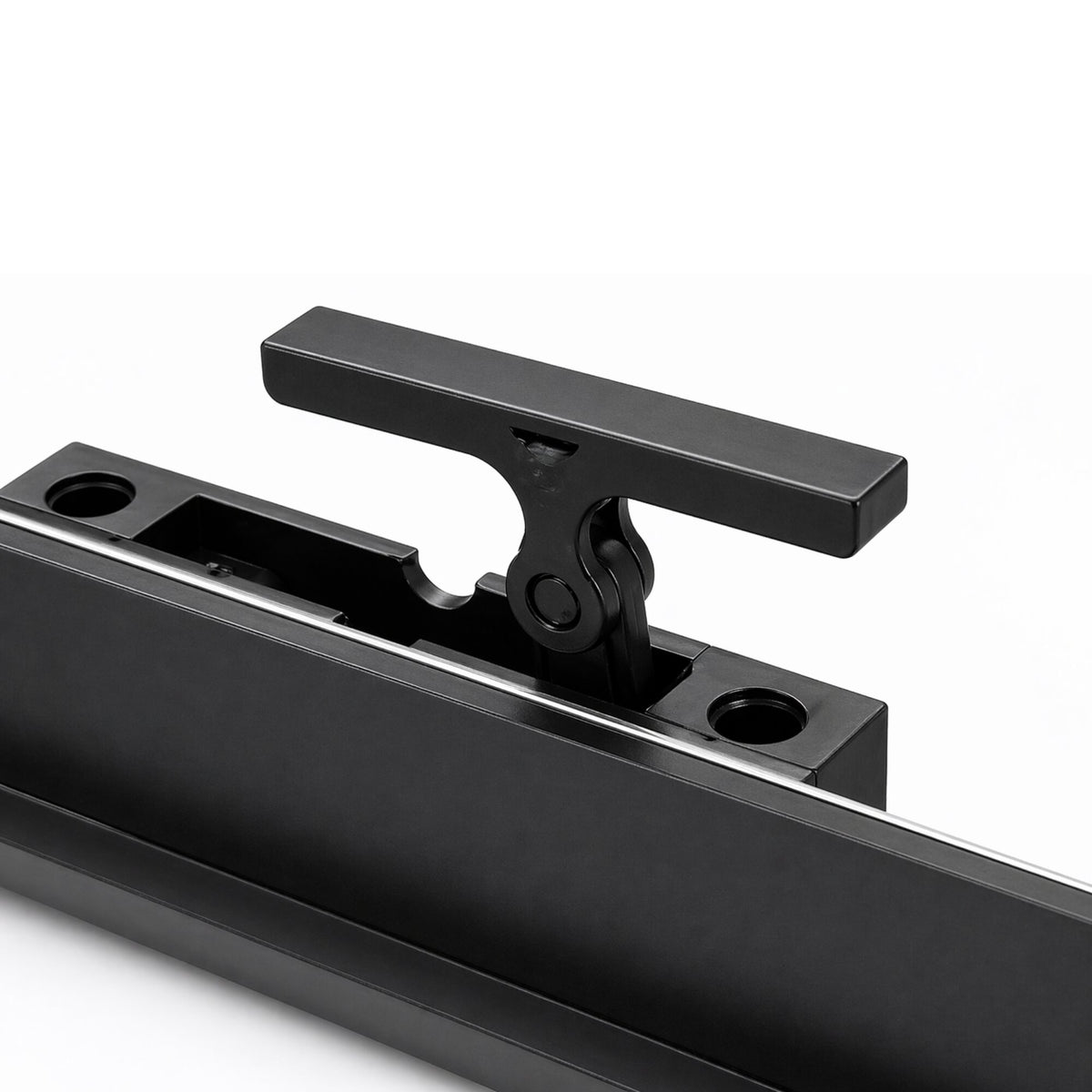

  • close up of manhole cover black plastic lifting handles

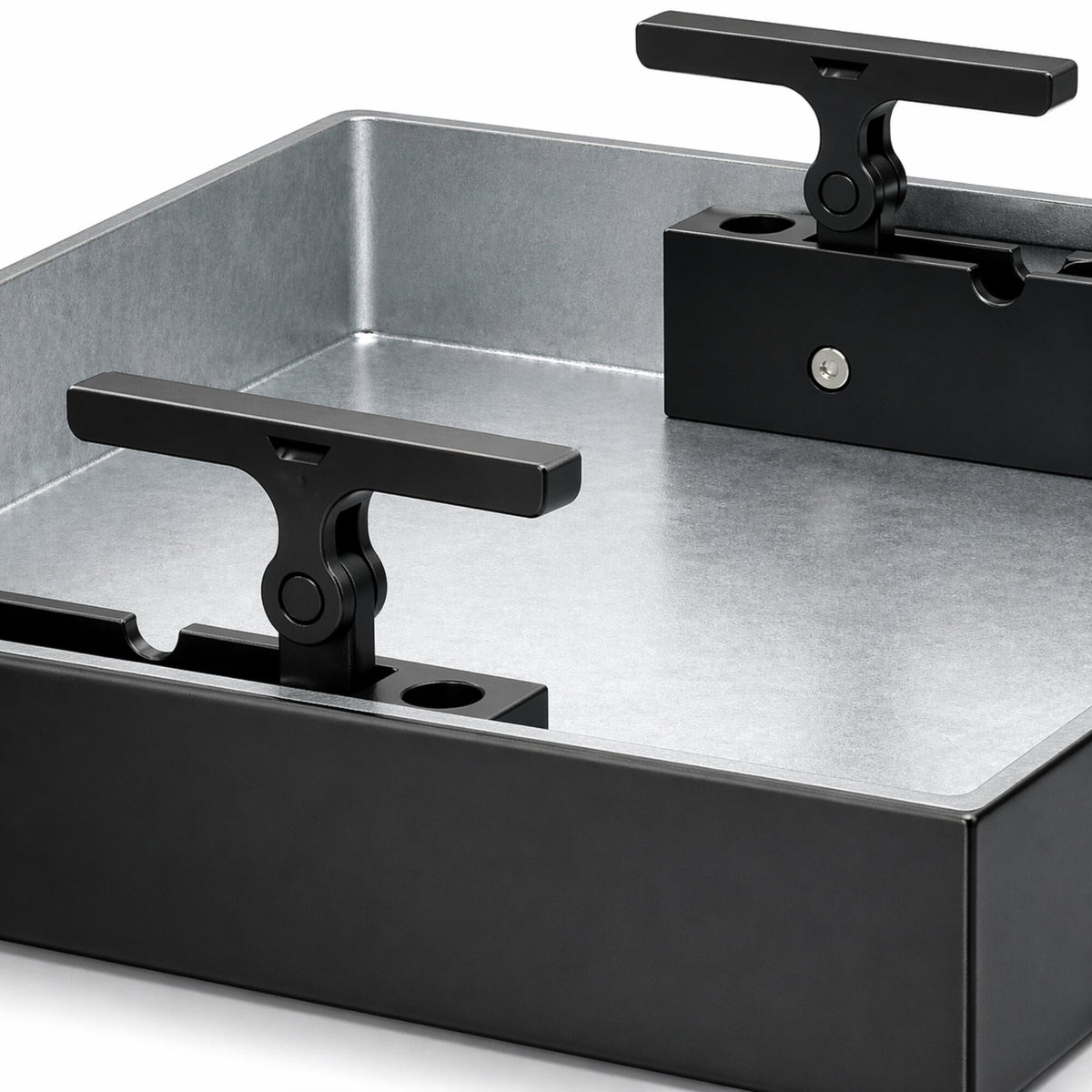

  • close up of manhole cover lifting handle
  • manhole cover measurement graphic
1 6

220–300mm Square to Round Sealed & Locking Recessed Manhole Cover

220–300mm Square to Round Sealed & Locking Recessed Manhole Cover

Clear Opening: 220–300mm diameter
Tray Depth: 43.5mm
External Dimensions: 440mm x 440mm x 52mm

Sealed and locking recessed manhole cover with adjustable square to round adaptor for variable chamber sizes. Designed for internal floors and light duty external areas where odour control and secure access are required.

The integrated gasket and screw locking system provide a tighter seal than standard recessed covers, helping restrict odours and surface water ingress.

£60.50
£60.50
Tax included. Shipping calculated at checkout.

25 in stock

T1G3

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

220–300mm Square to Round Sealed & Locking Recessed Manhole Cover

recessed manhole cover tray and frame

Description

The 220–300mm square to round sealed and locking recessed manhole cover is designed for installations where a standard recessed tray does not provide sufficient control over odours or moisture. It combines a galvanised steel recessed tray with a polypropylene frame and a cut-to-size adaptor, allowing it to suit chamber openings between 220mm and 300mm.

This type of cover is typically used in internal environments such as kitchens, utility rooms and basements, where drainage systems can allow odours to pass into occupied spaces. The factory fitted rubber gasket works with the four screw locking system to compress the lid onto the frame, improving the seal and reducing odour escape.

Externally, it is suitable for pedestrian areas such as patios where some protection against surface water and debris is required. It should not be used in trafficked areas due to its 5 tonne load rating.

A common issue when specifying covers is selecting the wrong clear opening. The adjustable adaptor helps avoid this by allowing the unit to be cut on site to suit the chamber, reducing ordering errors and simplifying installation.

Key Features

  • Adjustable 220–300mm adaptor reduces risk of incorrect sizing on site
  • Rubber gasket seal helps prevent odours escaping from drainage systems
  • Four point screw locking secures the cover and improves sealing performance
  • Recessed tray accepts concrete or screed for a flush internal finish
  • 5 tonne load rating suitable for pedestrian areas and light external use
  • Polypropylene frame resists corrosion in damp or internal environments
  • Integrated lifting points allow safe removal without separate keys
  • Moulded grouting flange helps secure the frame during installation

Material Composition

The tray is manufactured from galvanised mild steel for structural strength and resistance to general corrosion. The frame and adjustable adaptor are made from polypropylene, which is lightweight, non-corrosive and stable in damp ground conditions. This combination reduces overall weight while maintaining durability.

Product Specifications

Product type: Sealed and locking recessed manhole cover (square to round)
Suitable location: Internal and external pedestrian areas
Clear opening: 220–300mm diameter
Overall frame size: 440mm x 440mm
Tray depth (recess depth): 43.5mm
Frame depth: 52mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Integrated lifting points
Fixings supplied: Not specified
Weight: 7.5kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: Cut-to-size square to round adaptor

Sealed & Locking Recessed Manhole Covers

About this collection

Sealed & Locking Recessed Manhole Covers

Sealed and locking manhole covers are recessed access covers designed to restrict odours, surface water and debris entering or escaping the chamber. They are commonly used in internal floors, patios and enclosed areas where a standard recessed cover is not sufficient.

View Collection

FAQs

See All

What size chamber does this cover fit?

It fits chamber openings between 220mm and 300mm diameter. The adaptor is cut on site to match the exact size.

Can this be used in a driveway?

No. This cover is rated to 5 tonnes and is only suitable for pedestrian areas. A higher load rated cover is required for vehicles.

Is this suitable for indoor use?

Yes. It is commonly used internally where odour control is required, such as kitchens and utility rooms.

What can be used as infill in the tray?

The tray is designed for concrete or screed infill. It is not deep enough for block paving or thicker finishes.

Do I need lifting keys to open the cover?

No. The cover includes integrated lifting points, so separate lifting keys are not required.
