220 to 300mm Plain Seated Solid Top Manhole Cover, 3.5 Tonne

This 220 to 300mm plain seated solid top manhole cover is designed for domestic driveway applications where a lightweight, corrosion-resistant access cover is required. The square outer frame gives a neat visible finish, while the stepped circular spigot below allows the unit to adapt to a range of common round chamber risers.

Manufactured from polypropylene Grade AP9, the cover provides a practical alternative to steel where rust resistance, easier handling and low maintenance are priorities. The solid top lid remains visible after installation and does not require any recessed infill materials. Clark Drain states the cover is ideal for tarmac, grass and gravel areas.

The unique stepped spigot reducer is designed to suit chamber openings from 220mm to 300mm diameter and is noted as a suitable partner for Clark Drain CD U353 and CD U355 chamber risers. The rotatable square frame can also be aligned with surrounding paving for a tidier finished appearance.

This model has a fixed 35kN load rating, classed for domestic driveway use. It is suitable for cars and similar light vehicles in private settings, but it is not intended for public highways or heavy commercial traffic.

A common mistake is assuming all plastic covers fit the same chambers. Always check the chamber diameter range, frame size and installation depth before ordering.

• Solid top visible lid provides straightforward access to shallow chambers
• Adjustable stepped spigot suits 220mm to 300mm diameter chamber risers
• 3.5 Tonne / 35kN load rating suitable for domestic driveway use
• Polypropylene Grade AP9 construction resists corrosion and will not rust
• Lightweight 4kg design helps handling during installation

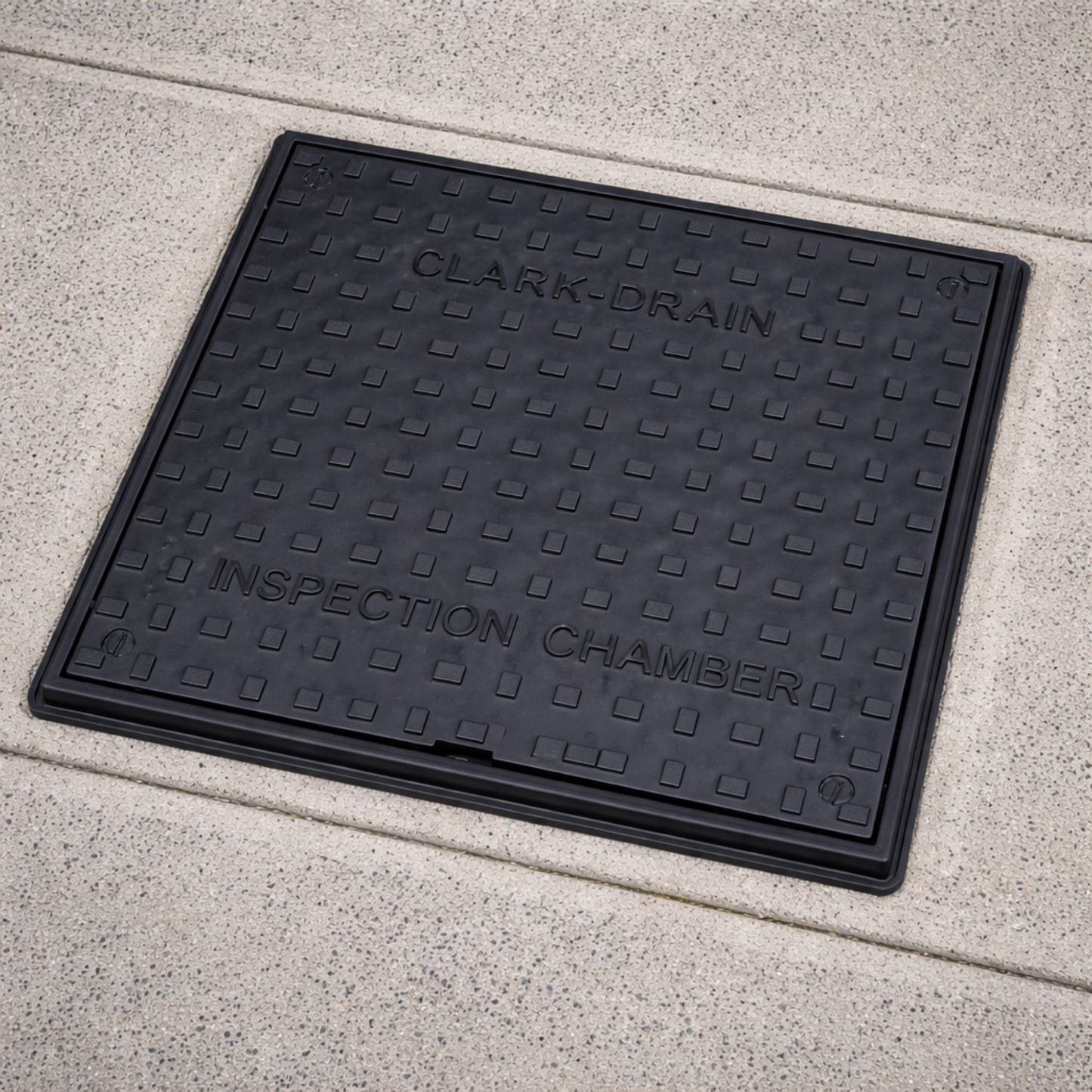

• Rotatable square frame can align with paving lines for a neater finish
• Slip-resistant tread pattern improves underfoot grip
• Four locking screws help secure the lid within the frame
• Suitable for tarmac, gravel and grass surrounds
• Made in Britain according to manufacturer data sheet

Manufactured from polypropylene Grade AP9. This material is lightweight, corrosion resistant and unaffected by rust, making it well suited to external domestic installations and shallow inspection chamber systems.

Product type: Plain seated solid top manhole cover
Suitable location: External
Clear opening: 220mm to 300mm diameter
Overall frame size: 438mm x 438mm
Overall depth: 37mm frame depth, 97mm including spigot
Material: Polypropylene Grade AP9
Finish: Black moulded finish
Seal type: Plain seated
Locking: Four locking screws
Load rating: 3.5 Tonne / 35kN
Lifting method: Manual lift after screw removal
Fixings supplied: Integrated locking screws
Weight: 4kg
Standards: Load tested to 35kN held for 30 seconds
Options: CD 300, 220mm to 300mm diameter clear opening, 438mm x 438mm overall frame size
