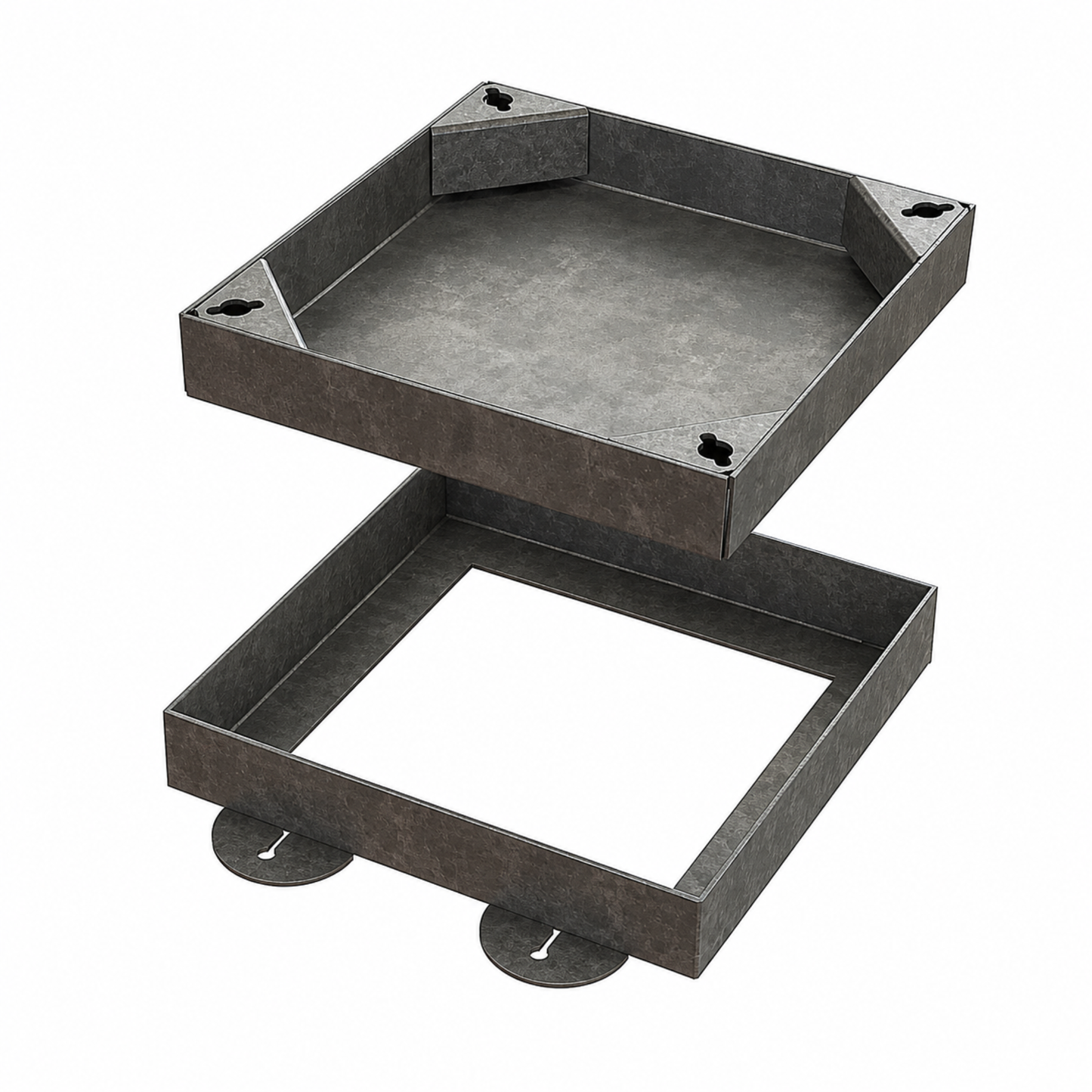

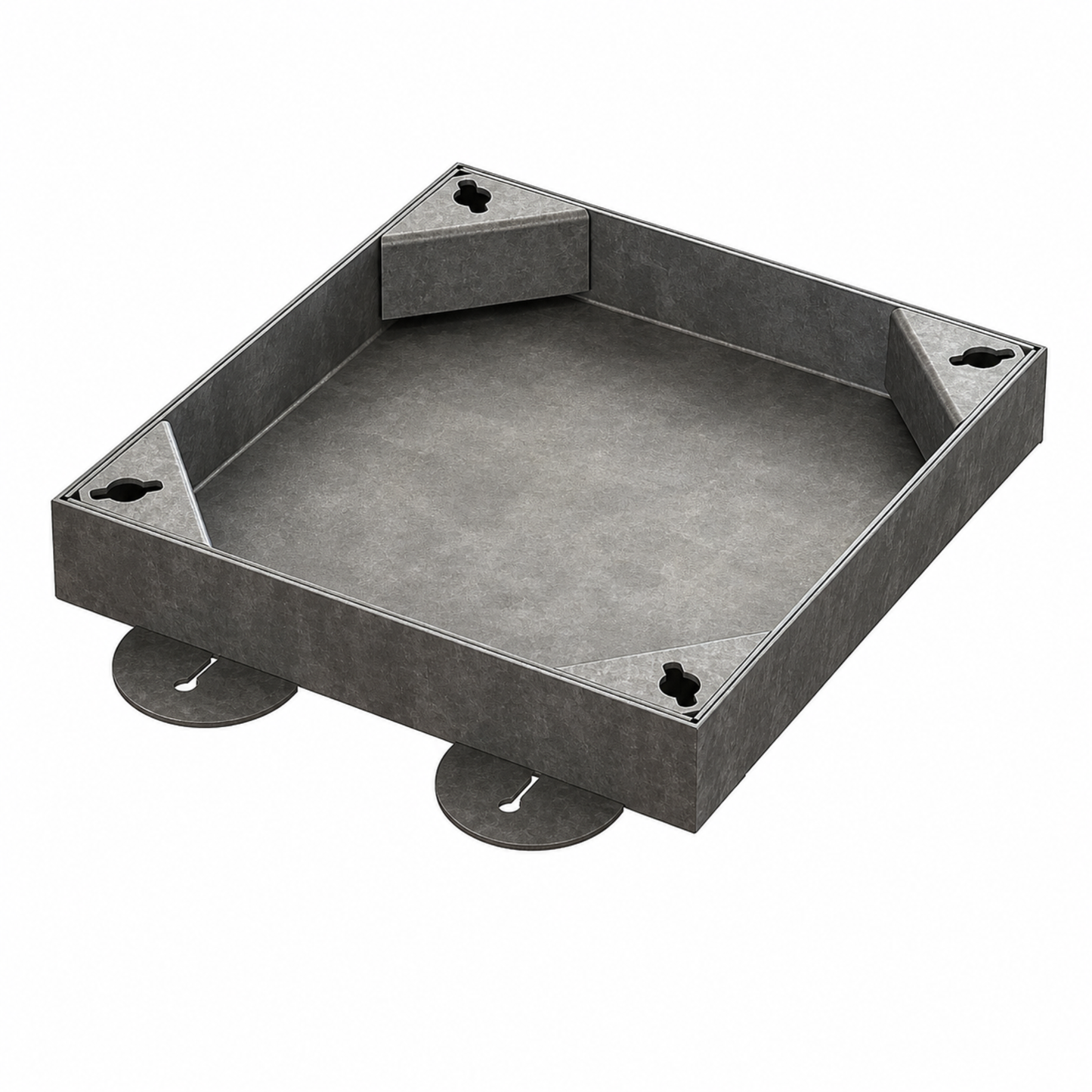

300 x 300mm Block Paving Recessed Manhole Cover 10 Tonne, 60mm Tray

300 x 300mm Block Paving Recessed Manhole Cover 10 Tonne, 60mm Tray

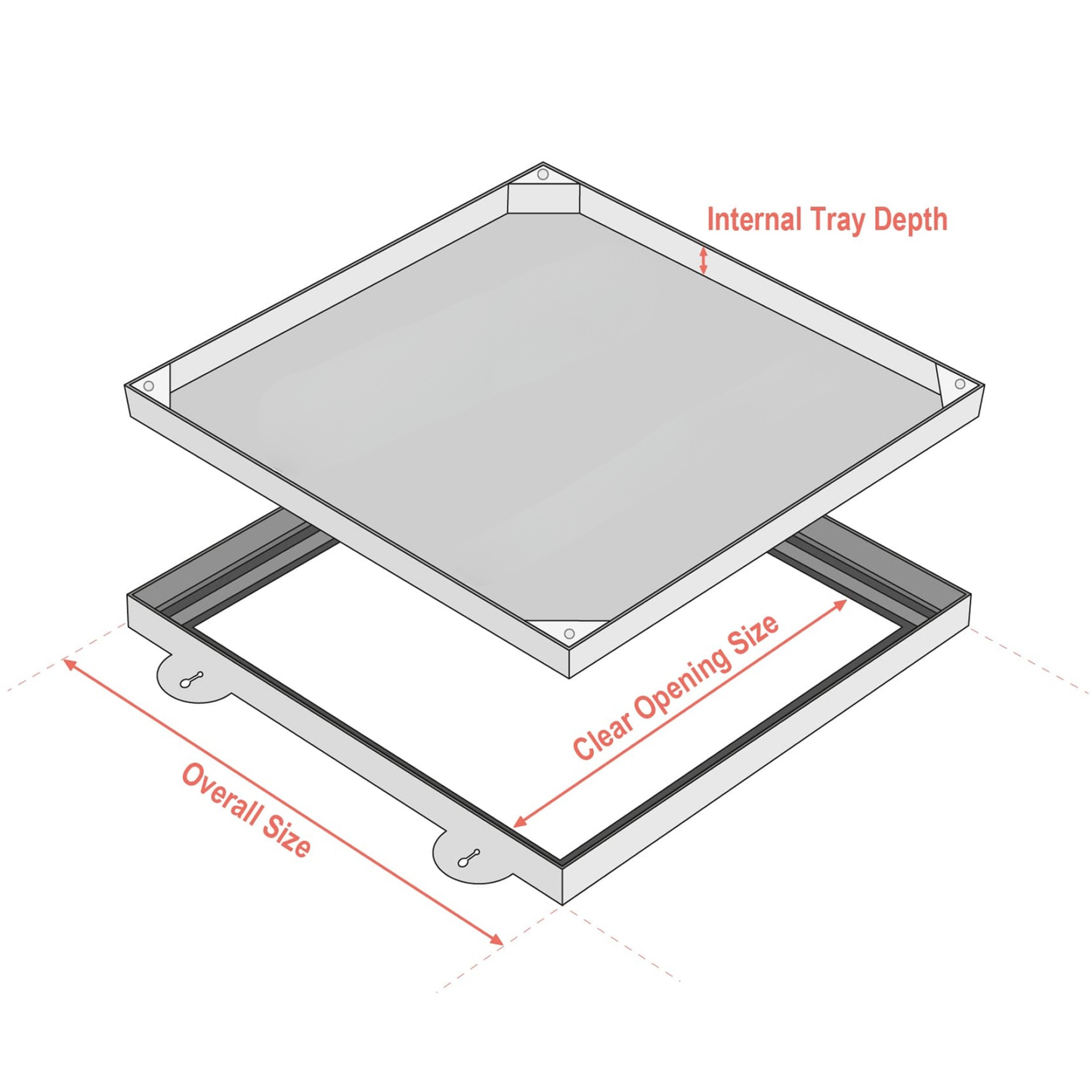

Clear Opening: 300mm x 300mm
Tray Depth: 60mm
External Dimensions: 406mm x 406mm x 66mm

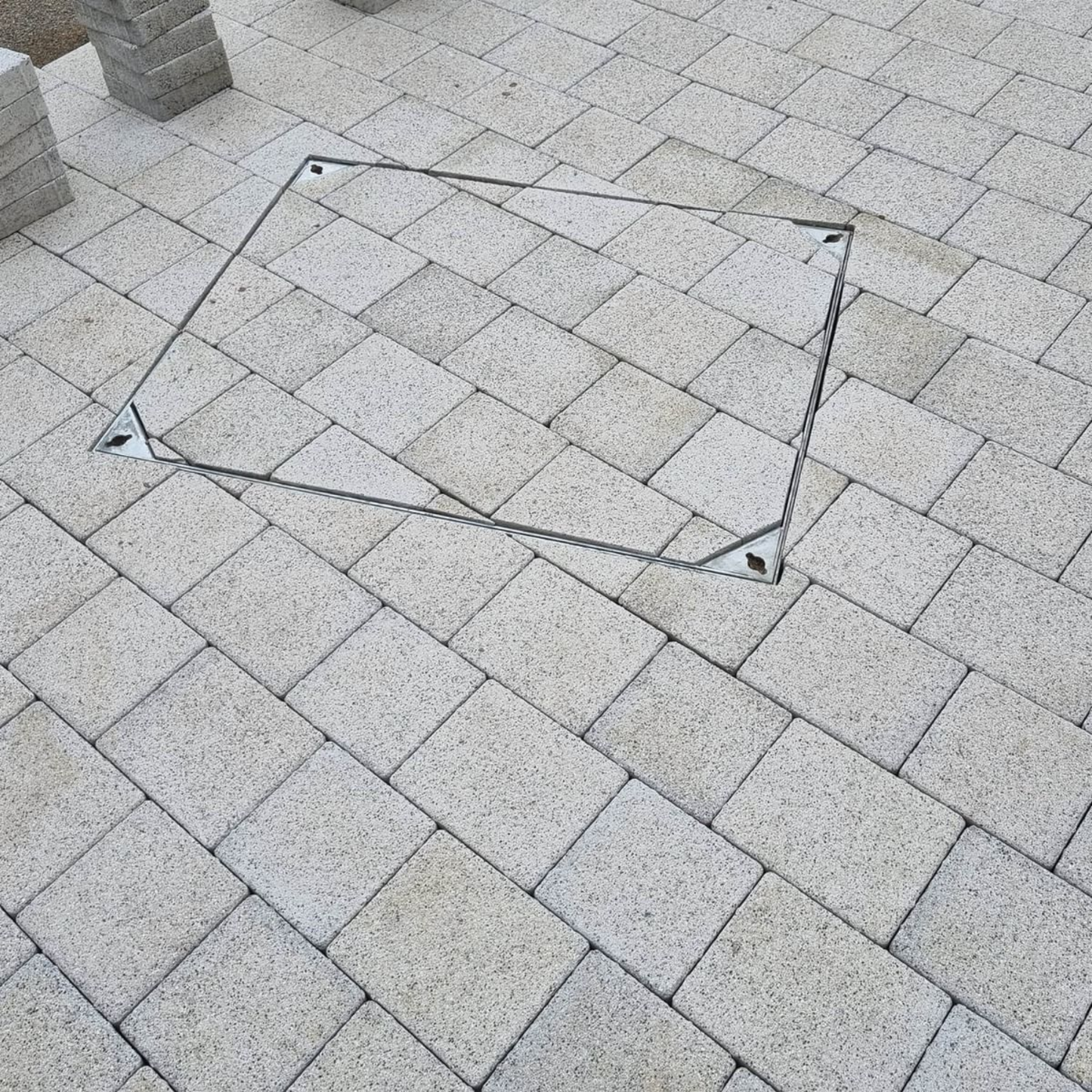

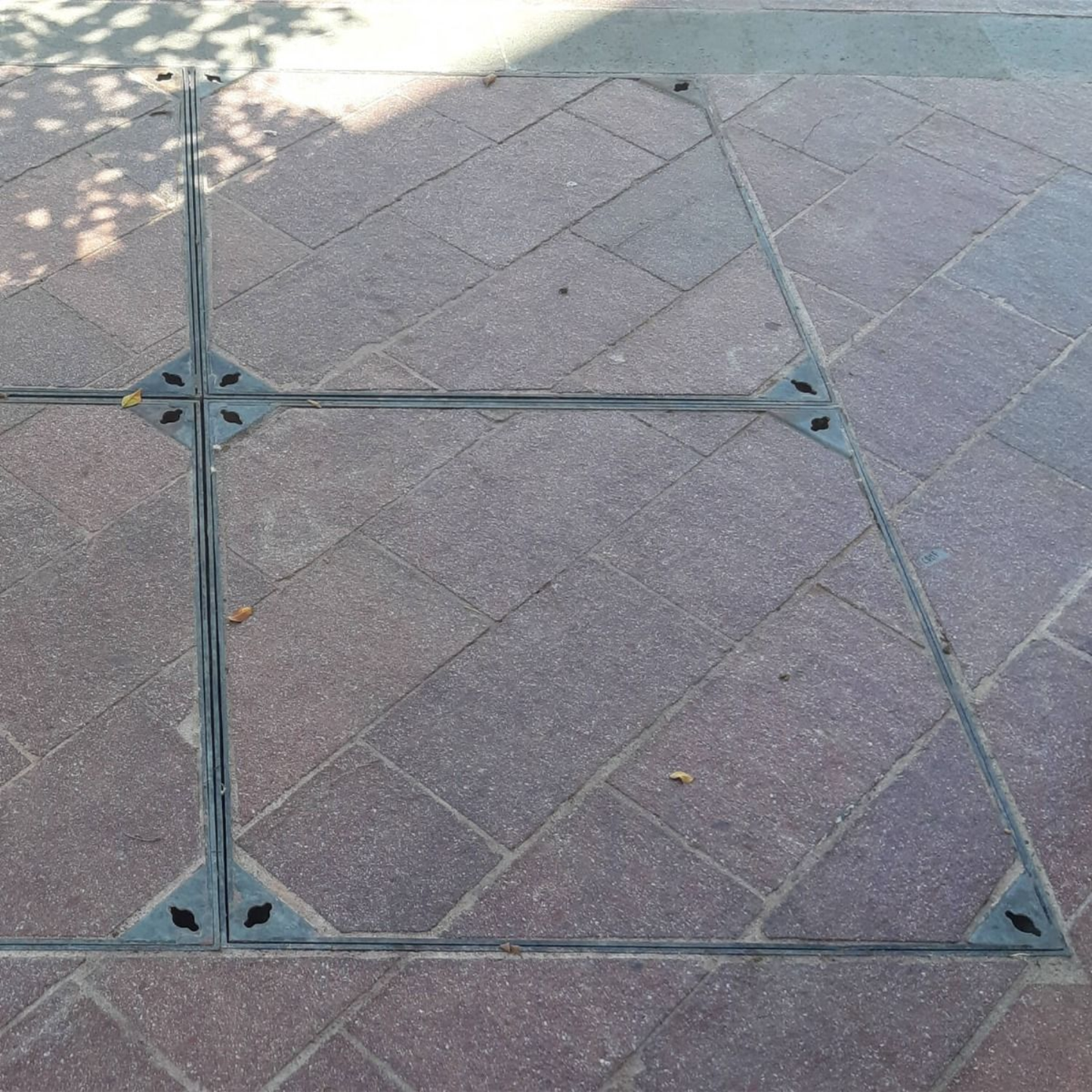

Recessed manhole cover designed for block paving, slabs and screed infill. Suitable for patios, driveways and paved areas where a flush finish is required.

The 60mm tray depth suits typical paving build-ups, allowing the cover to sit level with the surrounding surface while maintaining access to the chamber below.

£93.60
£93.60
Tax included. Shipping calculated at checkout.

16 in stock

EG3030/60

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

300 x 300mm Block Paving Recessed Manhole Cover 10 Tonne, 60mm Tray

300 x 300mm Block Paving Recessed Manhole Cover 10 Tonne, 60mm Tray

Description

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains continuous. It is typically used over inspection chambers in patios, driveways and paved areas where a visible cover would disrupt the layout.

The 10 tonne load rating makes it suitable for domestic driveways and areas with occasional light vehicle traffic. Loads are transferred through the galvanised steel frame into the surrounding structure, rather than relying on the paving infill for strength.

The 60mm tray depth is intended to suit standard block paving and bedding layers. Matching the tray depth to the paving build-up is important to avoid high or low finished levels and to maintain a stable, supported infill.

This cover is non-sealed and intended for external use only. It should not be used in internal areas or where odour or water sealing is required.

Key Features

  • 10 tonne load rating suitable for domestic driveways and light vehicle traffic
  • 60mm tray depth supports standard block paving and slab build-ups
  • Recessed lid allows paving to continue across the cover without interruption
  • Galvanised steel construction provides strength in external environments
  • Frame transfers loads into surrounding ground, not through the infill
  • Lift-out cover allows straightforward access for inspection and maintenance
  • Compatible with standard lifting keys for safe removal
  • Designed for patios, driveways and general paved areas

Material Composition

Manufactured from galvanised steel to provide structural strength and resistance to corrosion in typical external ground conditions. Suitable for general outdoor use but not for aggressive or chemically exposed environments.

Product Specifications

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 300mm x 300mm
Overall frame size: 406mm x 406mm
Tray depth (recess depth): 60mm
Frame depth: 66mm (excluding fixing lugs)
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Not specified
Standards: FACTA AAA, BS EN material and galvanising references
Options: Bespoke sizes available

Block Paving Recessed Manhole Covers

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

What does the 300 x 300mm clear opening refer to?

It is the usable access size of the chamber below. Always measure the opening in the ground, not the existing cover.

Is this suitable for a driveway?

Yes. The 10 tonne rating makes it suitable for domestic driveways and light vehicle use.

Can this cover be used indoors?

No. This is a non-sealed cover intended for external use only. Internal applications require a sealed cover.

Will standard block paving fit within the tray?

Yes. The 60mm tray is designed to suit typical block paving and bedding layers. Always confirm your full build-up depth before installation.

Does the paving inside the tray carry the load?

No. The structural load is carried by the frame and transferred into the surrounding ground. The infill is purely for finish.
