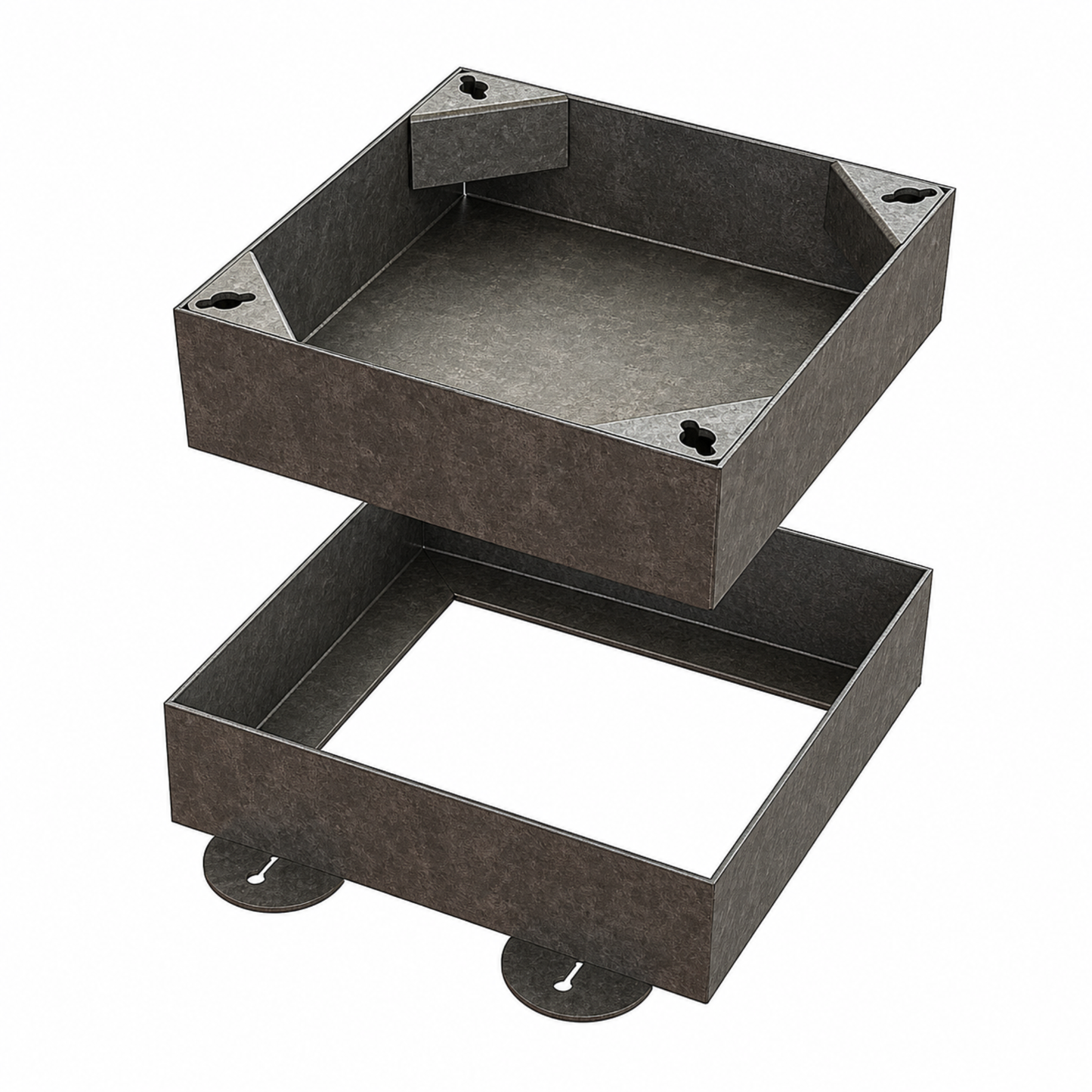

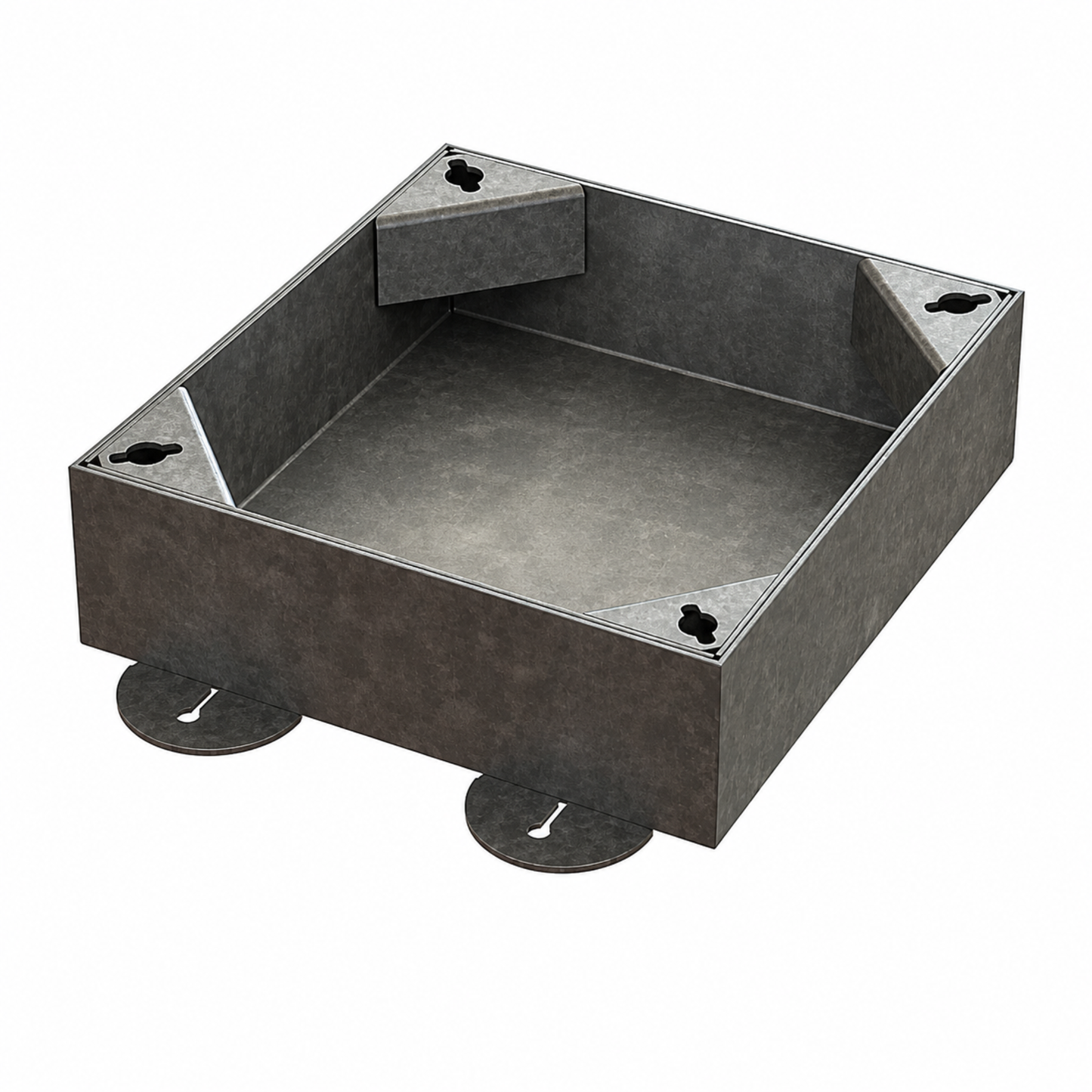

300 x 300mm Block Paving Recessed Manhole Cover 10 Tonne, 100mm Tray

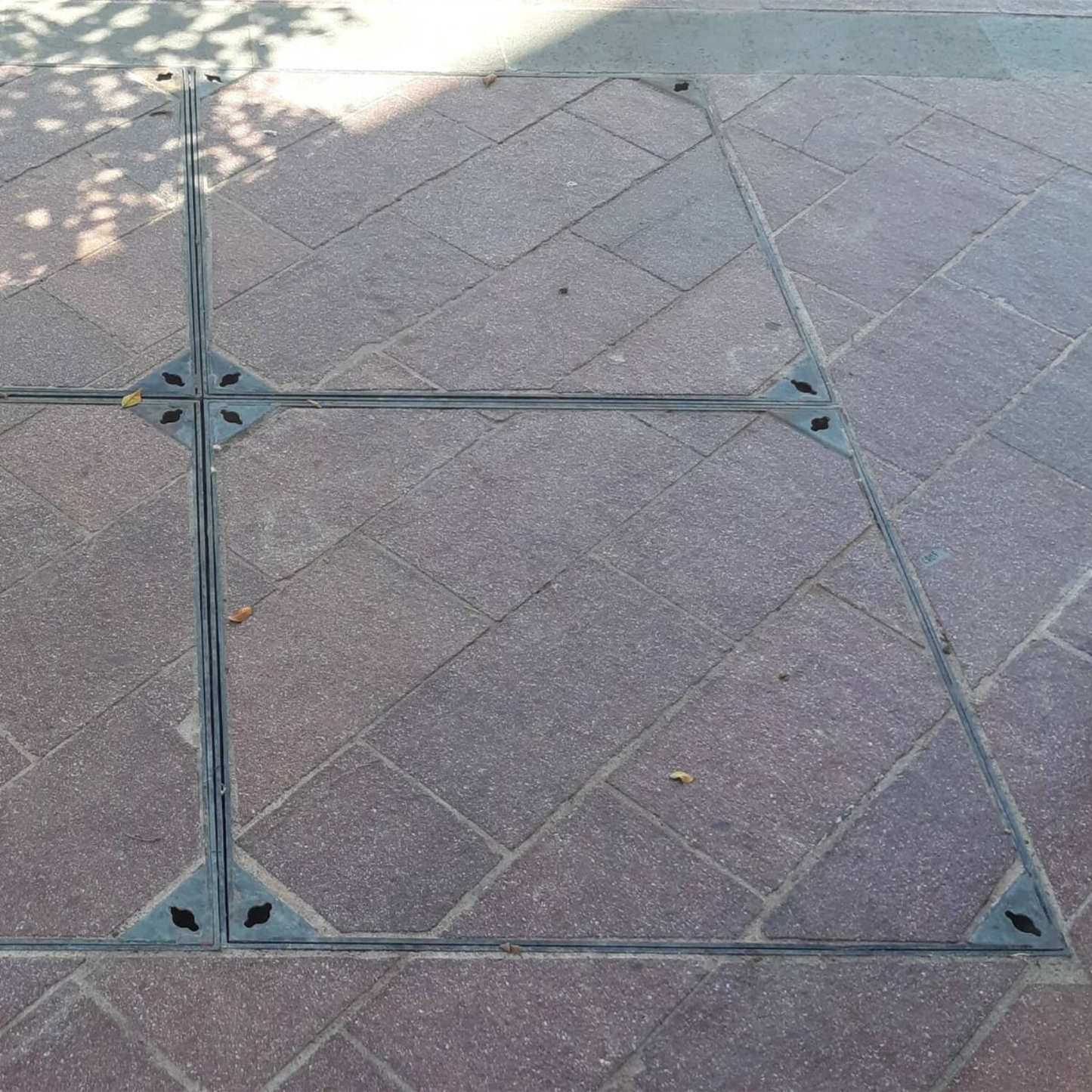

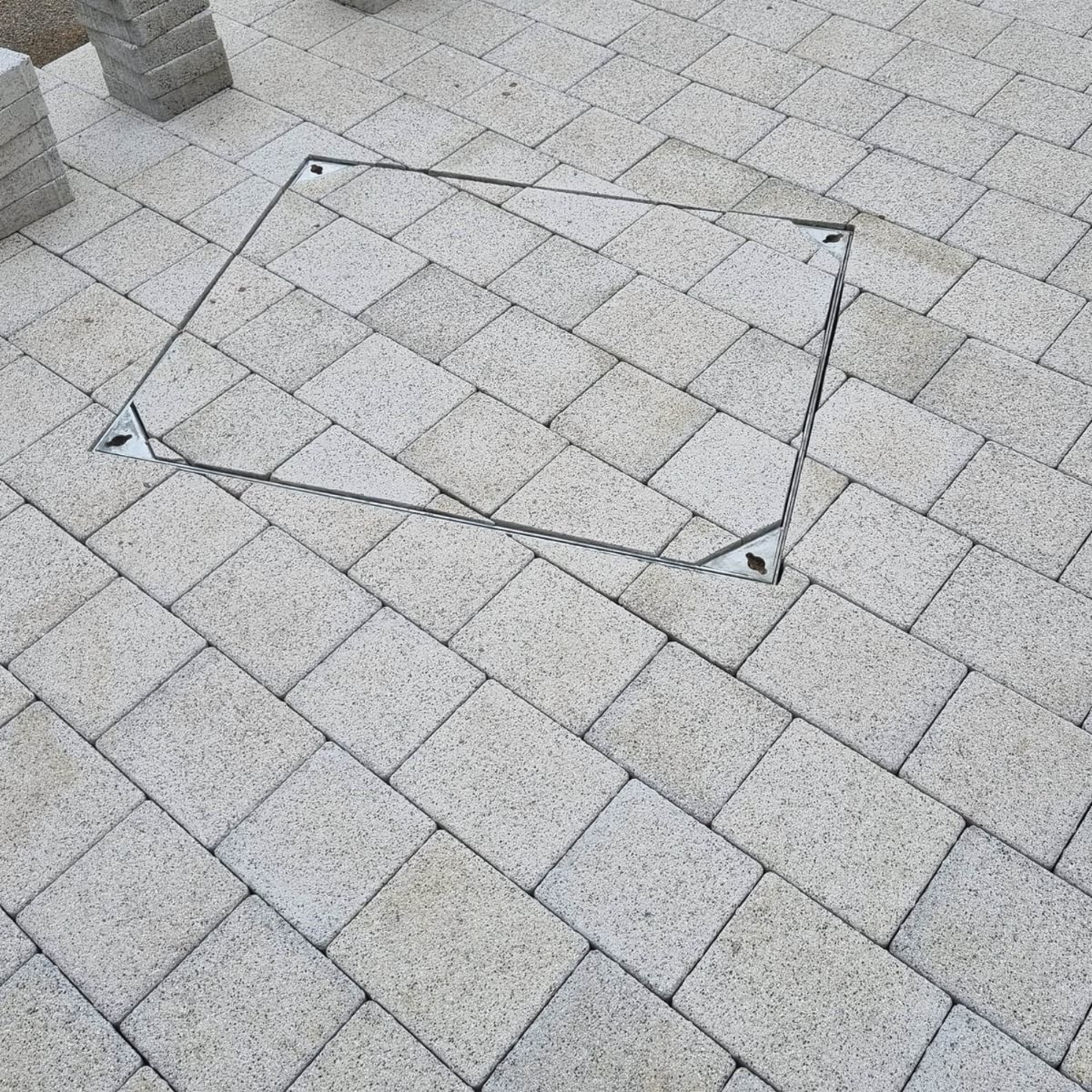

This block paving recessed manhole cover is designed for installations where a deeper infill is required to match surrounding ground levels. The recessed tray allows block paving, slabs or other surface materials to be installed within the lid so the finished surface remains continuous.

With a 10 tonne load rating, it is suitable for domestic driveways and areas with occasional light vehicle traffic. The structural load is carried by the galvanised steel frame and transferred into the surrounding ground, rather than through the infill material.

The increased 100mm tray depth provides flexibility where deeper construction layers are present. This is commonly required on raised patios, stepped levels or where additional bedding and sub-base material is used. Selecting the correct tray depth avoids weak infill or uneven finishes.

This cover is non-sealed and intended for external applications only. It should not be used in internal areas or where water or odour sealing is required.

• 10 tonne load rating suitable for domestic driveways and light vehicle traffic
• 100mm tray depth accommodates deeper paving and build-up requirements
• ecessed lid allows paving to continue without visible interruption
• Galvanised steel construction provides durability in external environments
• Frame transfers loads into surrounding structure, not through the infill
• Ideal for raised patios or areas with thicker construction layers
• Lift-out design allows access for inspection and maintenance
• Compatible with standard lifting keys for safe removal

Manufactured from galvanised steel to provide structural strength and resistance to corrosion in typical external ground conditions. Suitable for general outdoor use but not for aggressive or chemically exposed environments.

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 300mm x 300mm
Overall frame size: 406mm x 406mm
Tray depth (recess depth): 100mm
Frame depth: 106mm (excluding fixing lugs)
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Not specified
Standards: FACTA AAA, BS EN material and galvanising references
Options: Bespoke sizes available
