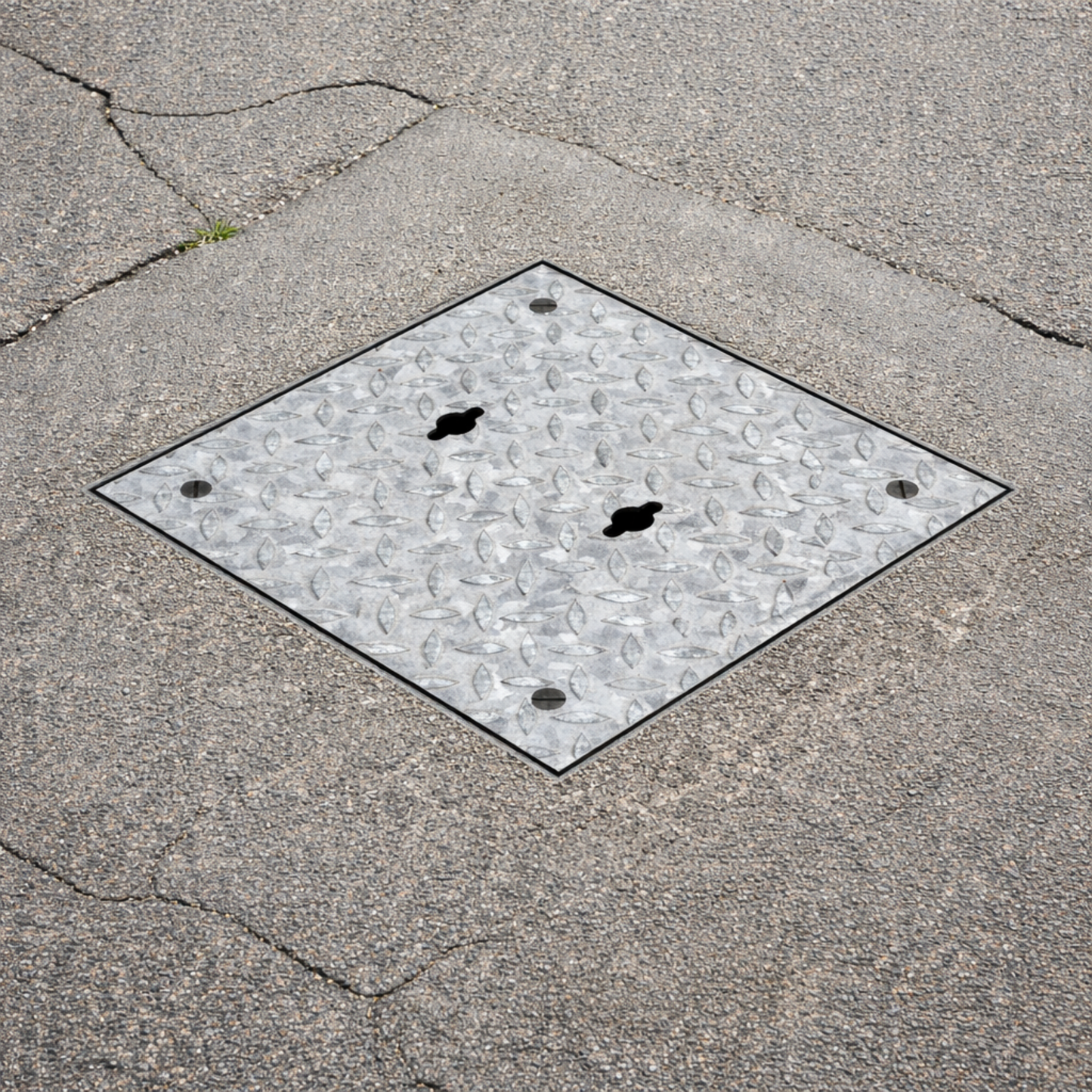

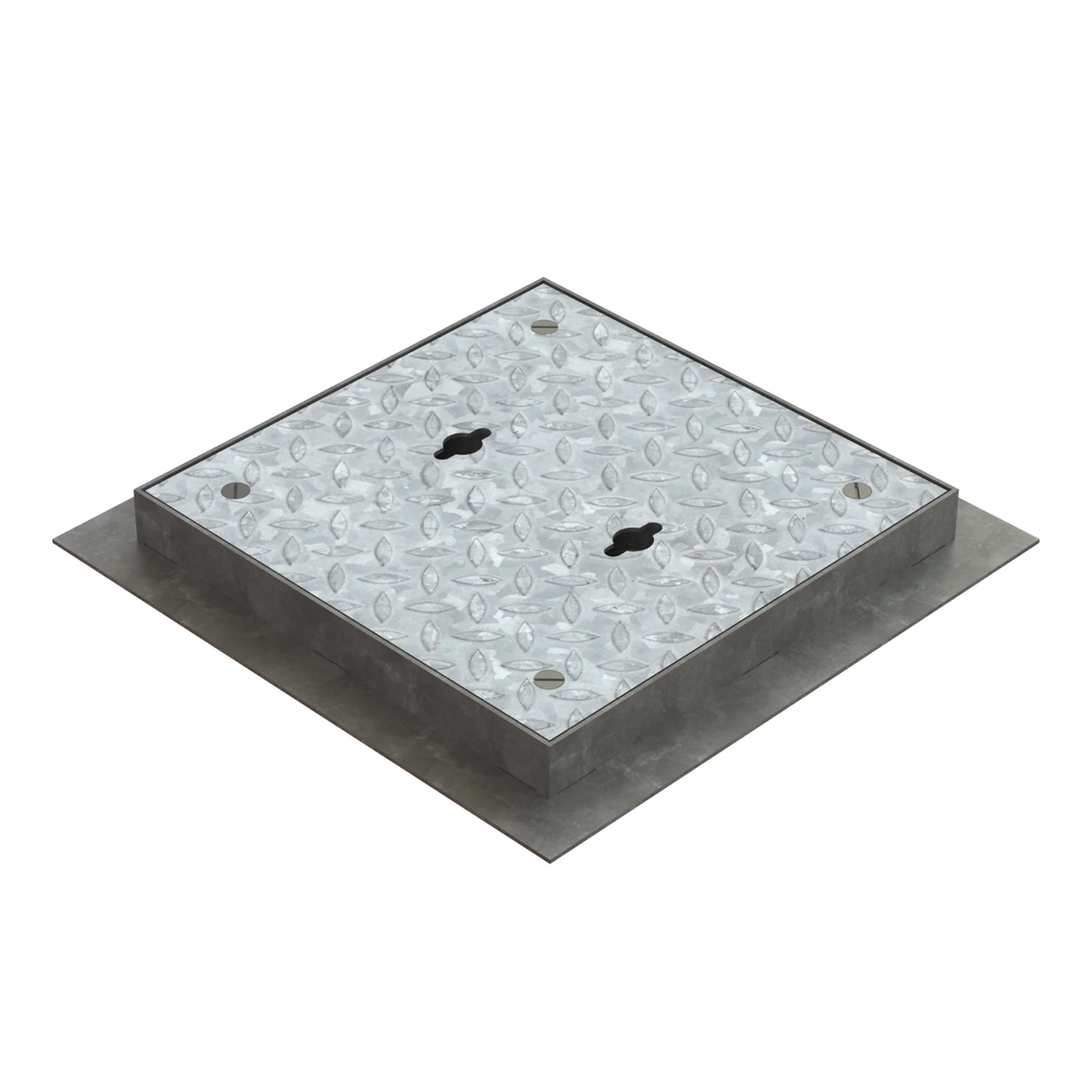

300 x 300mm Plain Seated Solid Top Manhole Cover

This 300 x 300 plain seated solid top manhole cover is designed for chambers and inspection points where straightforward access, visible location and reliable load performance are the main priorities. Unlike a recessed cover, the lid remains exposed after installation and does not require block paving, concrete or tile infill.

Manufactured from galvanised mild steel, the cover provides a durable steel lid and frame assembly with a compact footprint and shallow 40mm overall depth. This can be useful where construction depth is limited or when replacing older shallow frame covers.

The lid is secured with four fixing screws to help keep the cover stable under use and reduce movement in service. Integrated lifting keyholes allow the lid to be removed when access is required for inspection, rodding or maintenance.

This multi-option listing allows the correct load rating to be selected for site conditions. The Pedestrian option is intended for foot traffic only, such as paths, gardens and landscaped areas. The 5 Tonne option is commonly used on domestic driveways and occasional light vehicle areas. The 10 Tonne option is suited to more demanding private access areas, service yards and regular light commercial traffic.

A common mistake is choosing by size alone. The clear opening must match the chamber access, but the load rating must also reflect the real traffic using the cover.

Solid top visible lid allows quick chamber identification and future access

Plain seated design offers a straightforward, robust alternative to recessed covers

Pedestrian, 5 Tonne and 10 Tonne variants suit different loading requirements

Galvanised steel construction provides strength with corrosion protection for external use

Four screw fixing lid helps minimise movement and improves cover security

Lifting keyholes allow safe removal using suitable lifting keys

Shallow 40mm overall depth can suit restricted depth installations

300mm x 300mm clear opening suits smaller inspection chambers and access points

Flush lid profile gives a neat finish within paved and hard landscaped areas

Suitable where durability and access matter more than concealed appearance

Manufactured from mild steel with a hot dip galvanised finish. Steel provides good structural strength and rigidity, while galvanising helps protect exposed metal surfaces in normal external environments. As with any galvanised steel cover, aggressive chemical or chlorinated environments should use a more suitable material grade.

Product type: Plain seated solid top manhole cover
Suitable location: External
Clear opening: 300mm x 300mm
Overall frame size: 430mm x 430mm
Overall depth: 40mm
Material: Mild steel
Finish: Hot dip galvanised
Seal type: Plain seated
Locking: Four screw fixing lid
Load rating: Pedestrian / 5 Tonne / 10 Tonne (variant dependent)
Lifting method: Keyhole lifting points, keys sold separately
Fixings supplied: Integrated screw fixings
Weight: Approx. 9kg
Standards: FACTA stated on original product data
Options:
EG-ST-3030P, Pedestrian, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
EG-ST-3030L, 5 Tonne, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
EG-ST-3030M, 10 Tonne, 300mm x 300mm clear opening, 430mm x 430mm overall frame size
