300 x 300mm Grass & Gravel Recessed Manhole Cover 3.5 Tonne

300 x 300mm Grass & Gravel Recessed Manhole Cover 3.5 Tonne

Clear Opening: 300mm x 300mm
Tray Depth: 100mm
External Dimensions: 406mm x 406mm x 106mm

Recessed manhole cover designed for grass or gravel infill in landscaped and light traffic areas. Used where a concealed access point is required without interrupting the surface finish.

Available in Grass Top and EcoGrid variants. Both allow drainage through the cover, with the EcoGrid option providing additional stability for gravel and loose infill.
£144.73
£144.73
Tax included. Shipping calculated at checkout.

24 in stock

EG3030/100-GT

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

300 x 300mm Grass & Gravel Recessed Manhole Cover 3.5 Tonne

300 x 300mm Grass & Gravel Recessed Manhole Cover 3.5 Tonne

Description

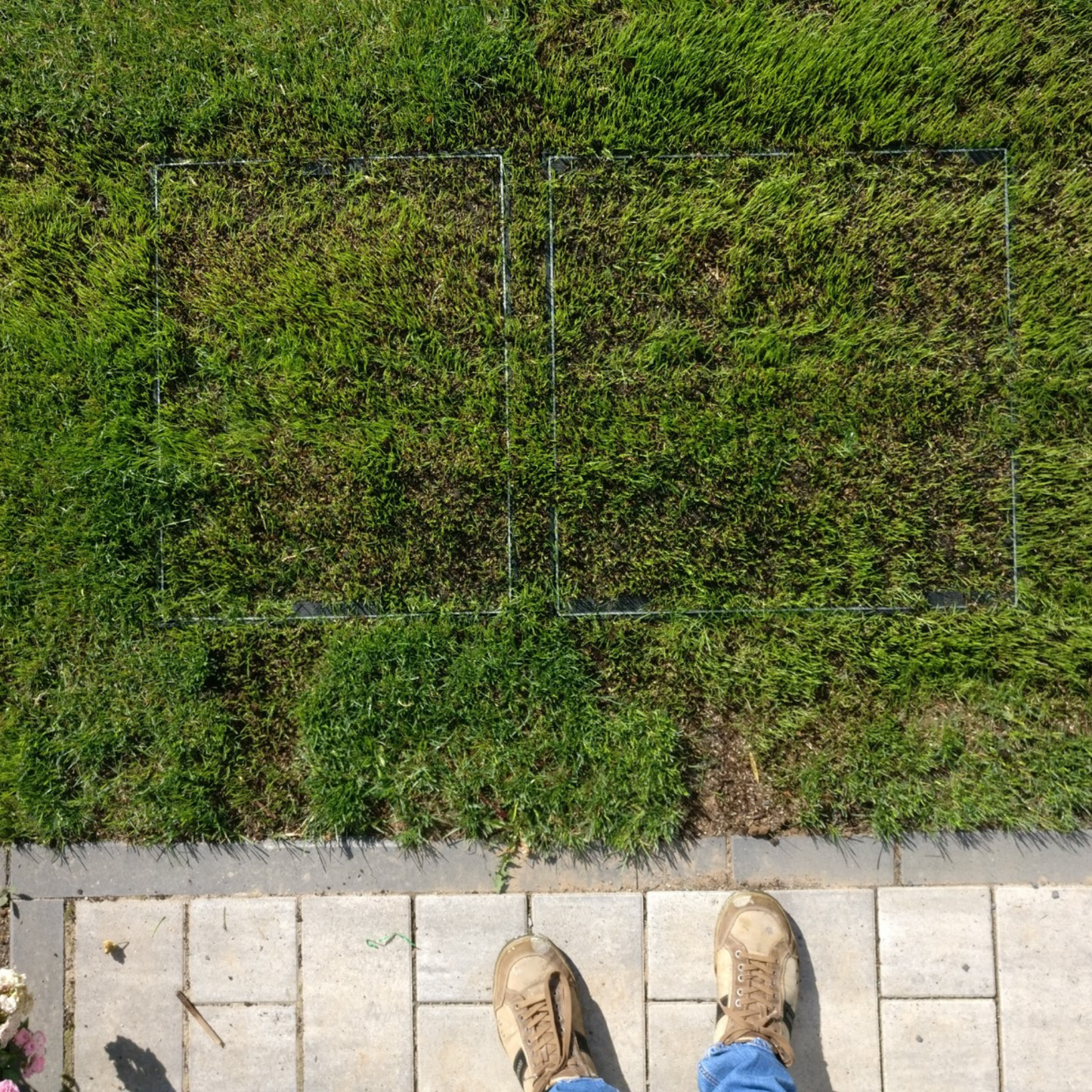

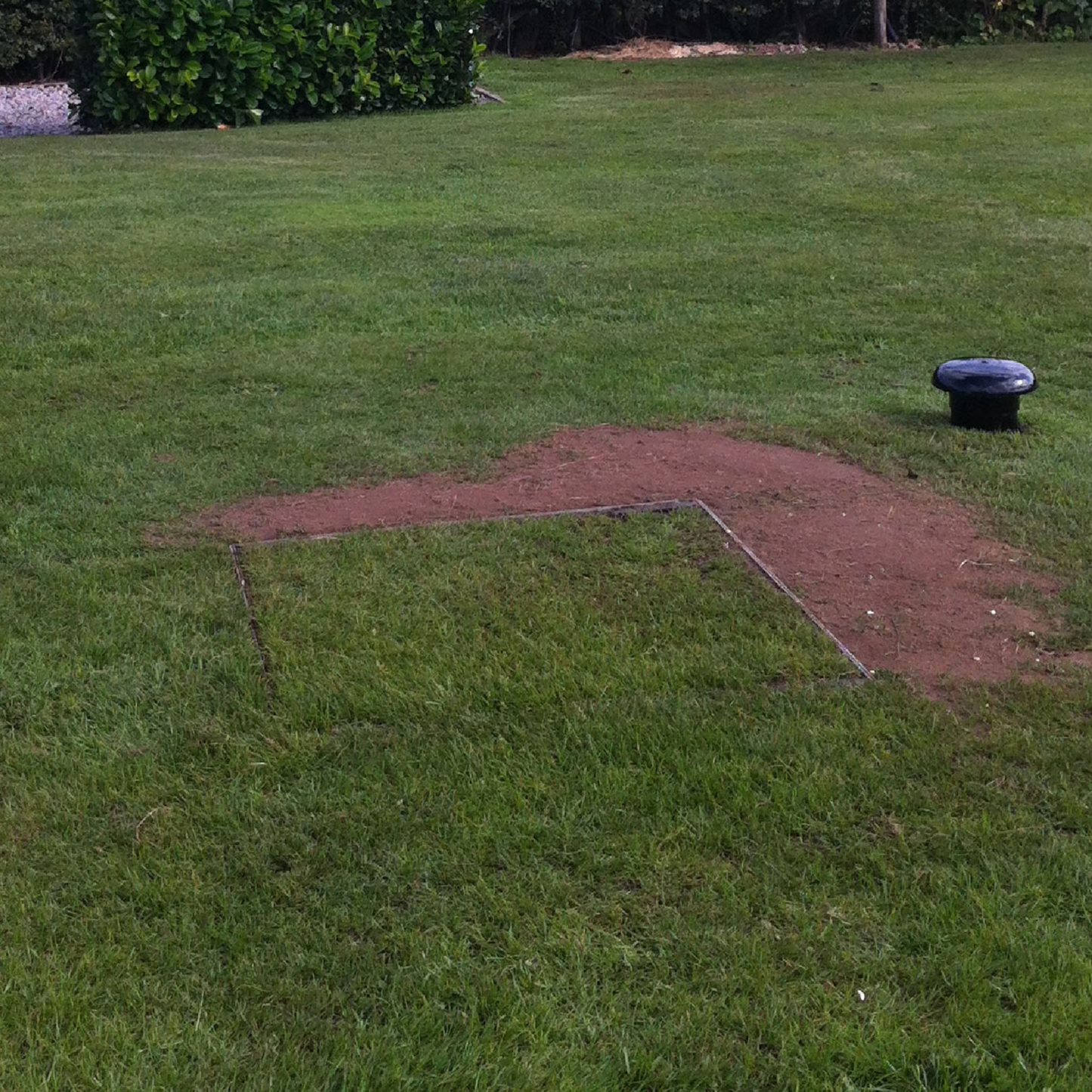

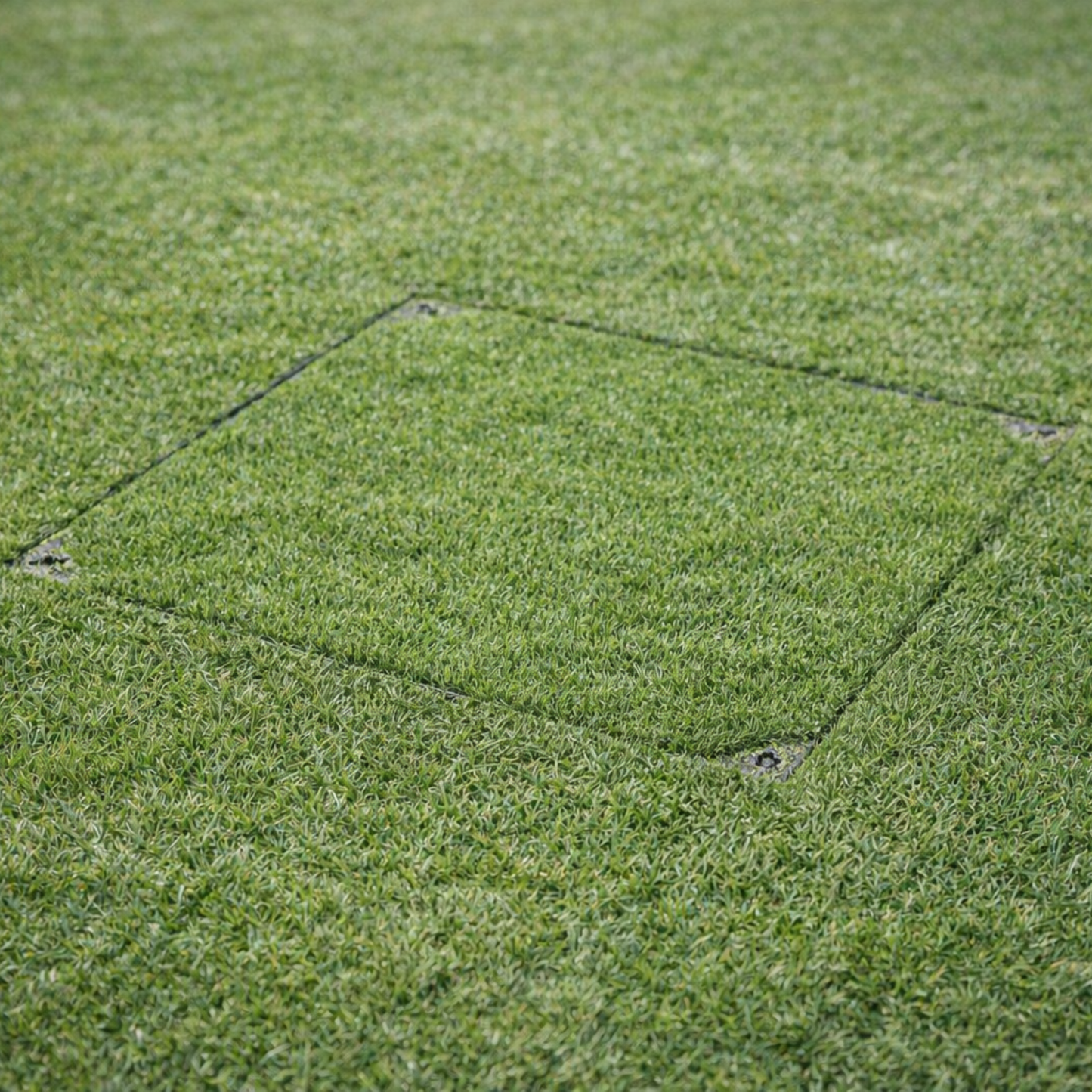

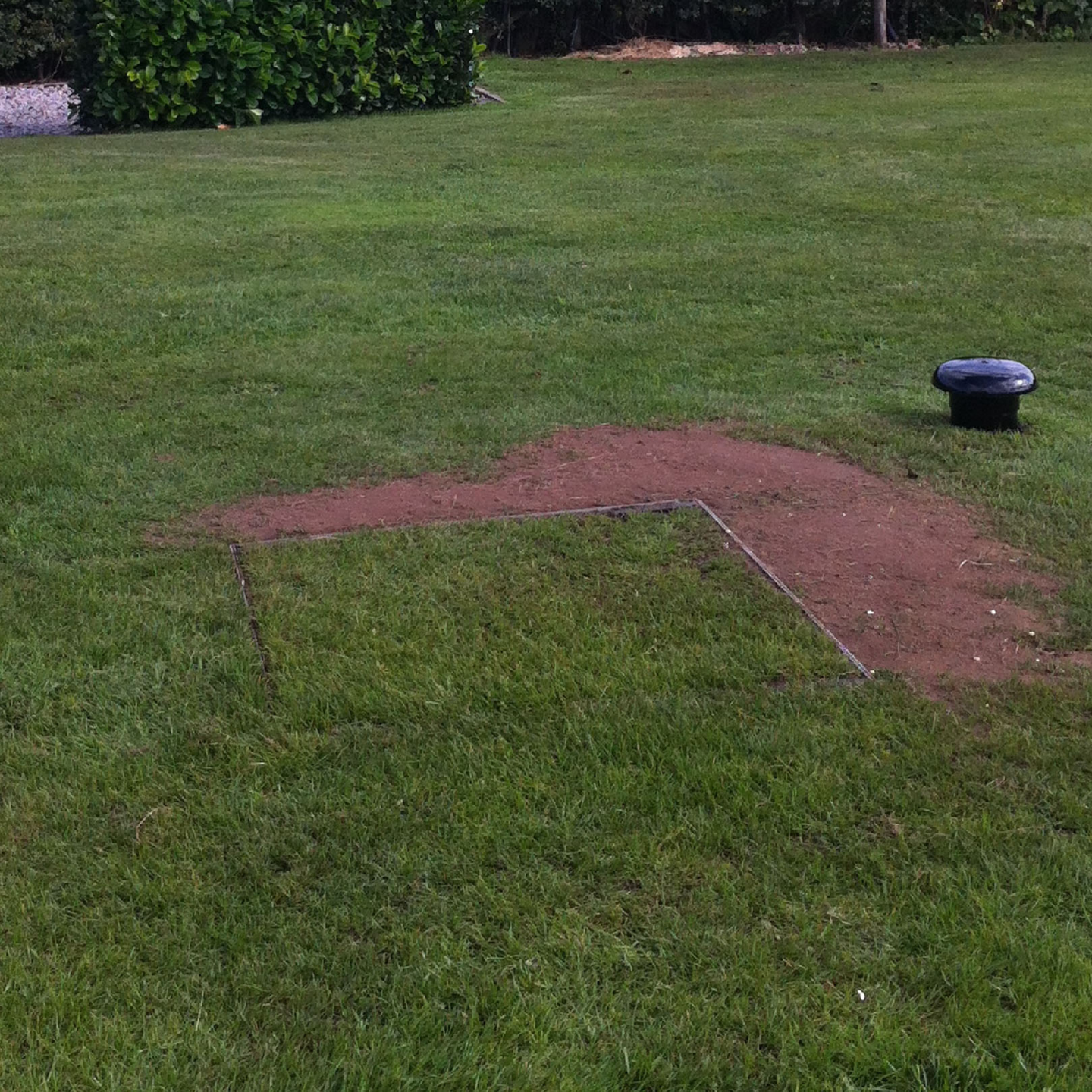

This recessed manhole cover is designed for installations where the access chamber needs to remain hidden within a soft or loose surface finish. The 100mm tray depth allows for sufficient build-up of soil, turf or gravel so the cover sits flush with the surrounding ground.

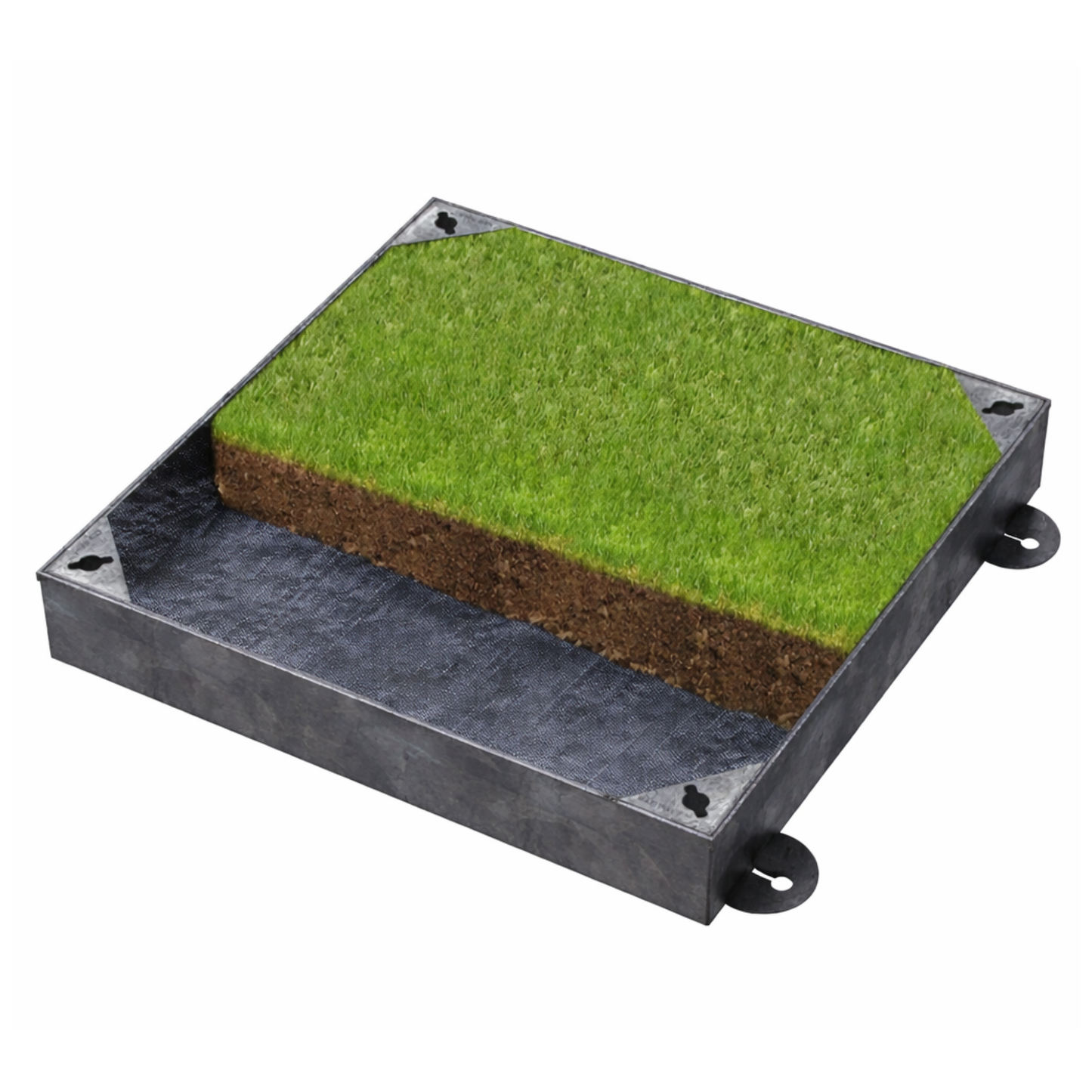

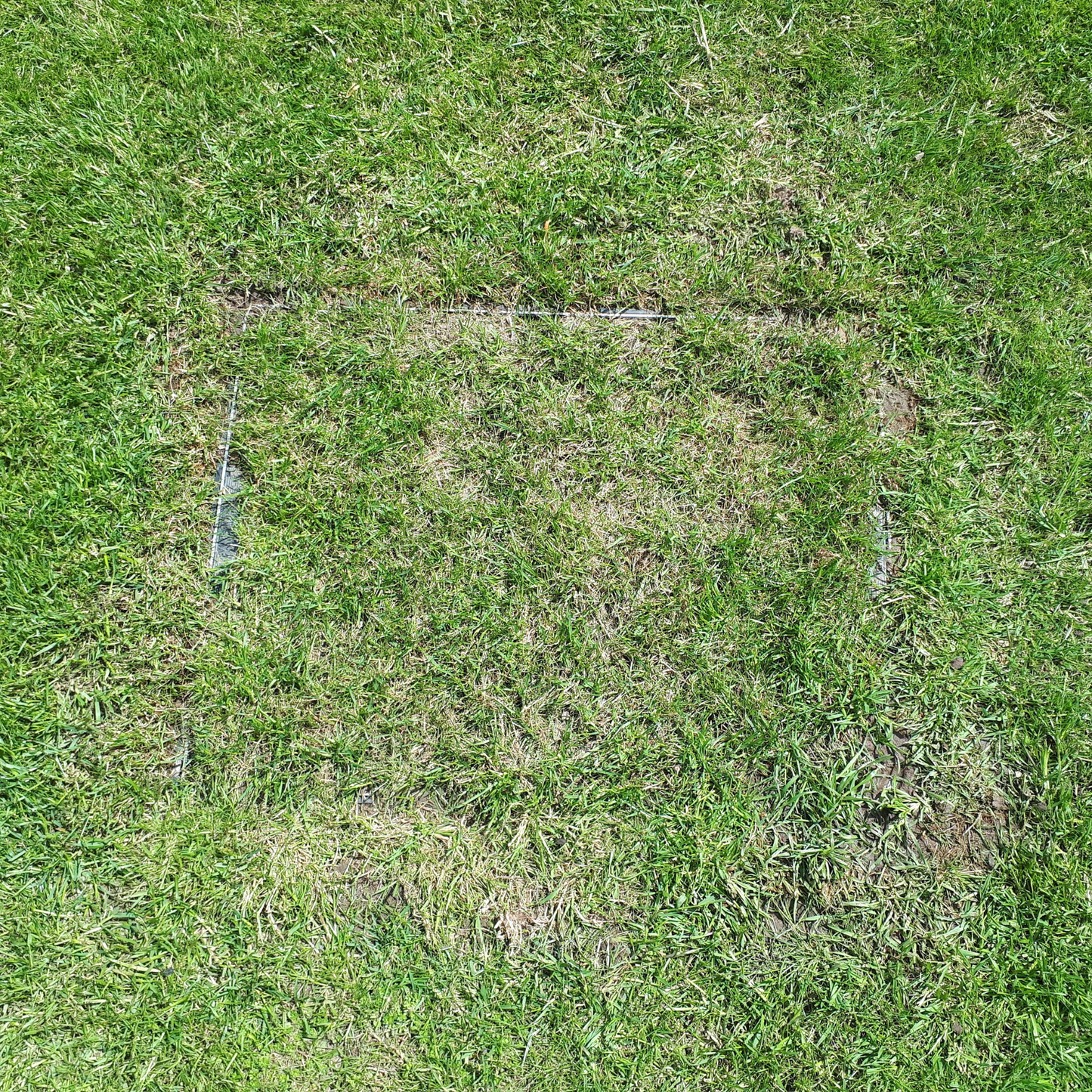

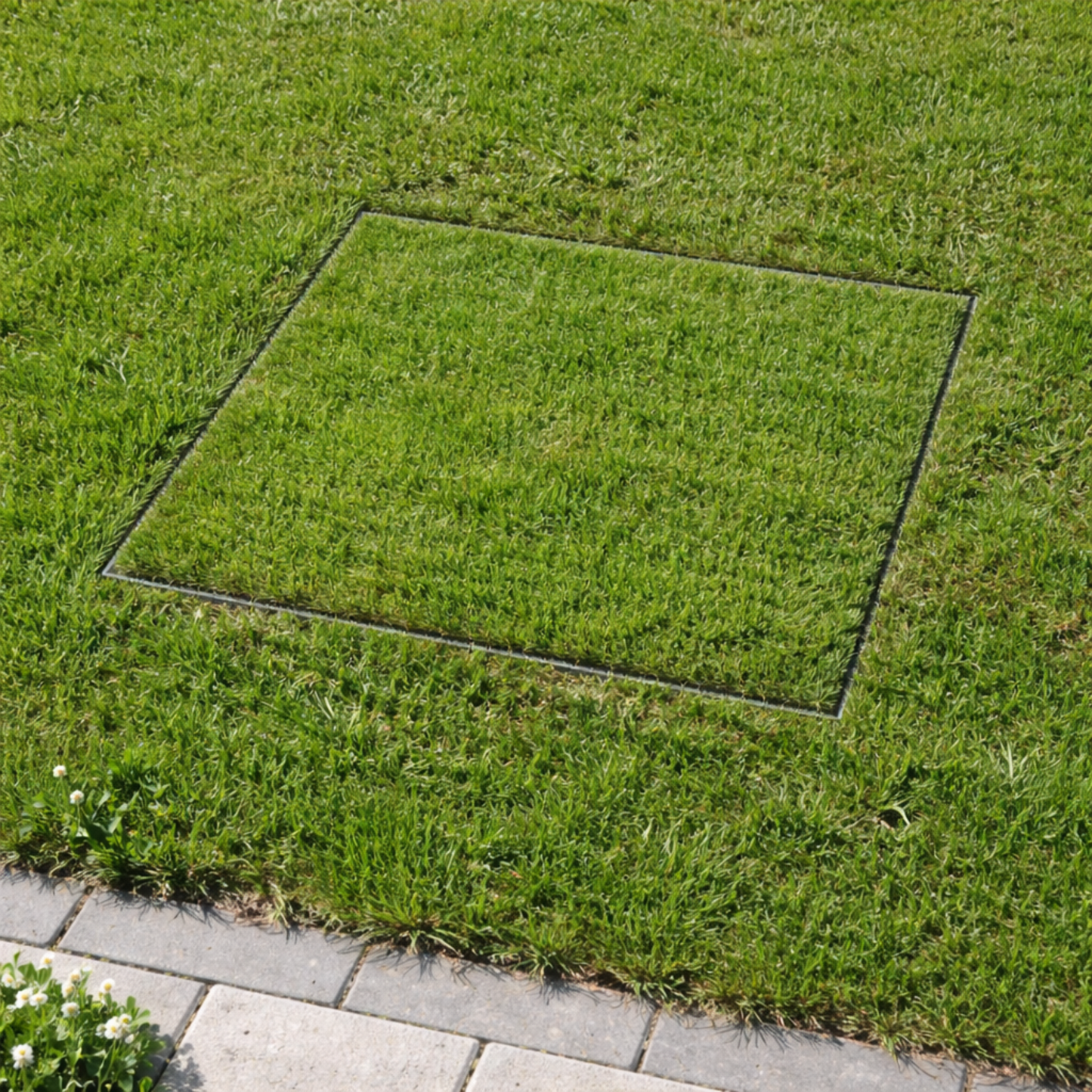

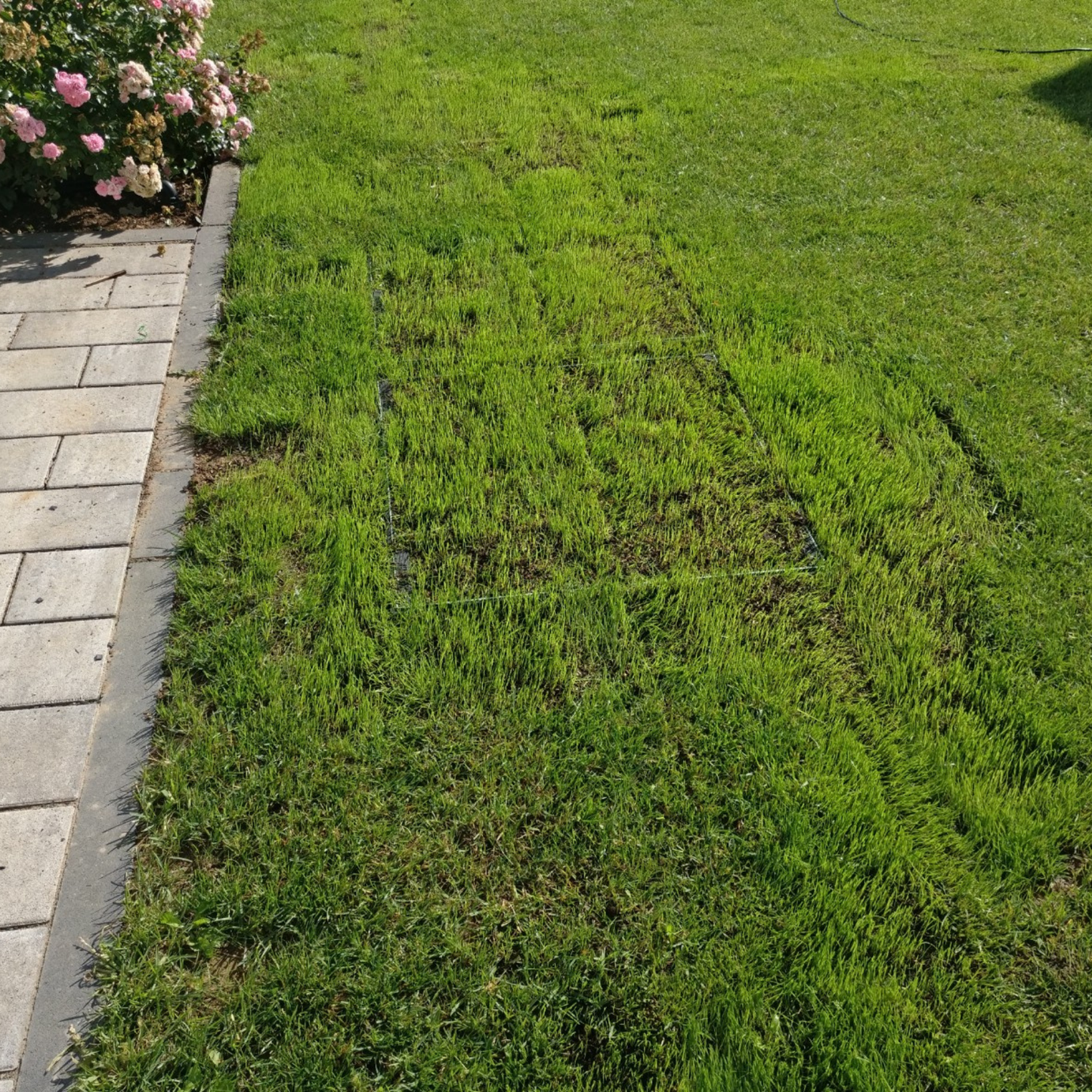

The Grass Top version uses drainage holes and membrane layers within the tray. These allow water to pass through while retaining soil, supporting grass growth directly within the cover.

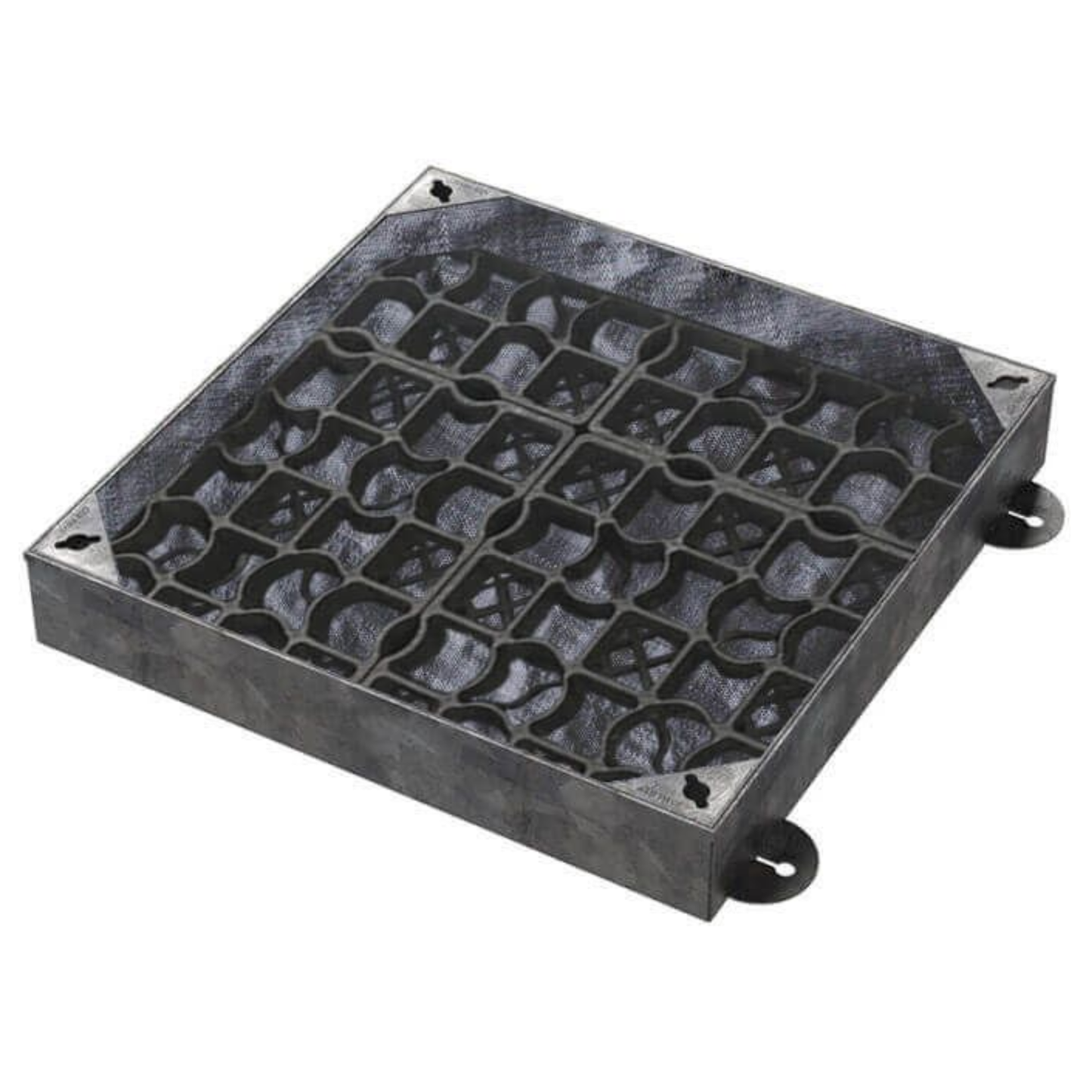

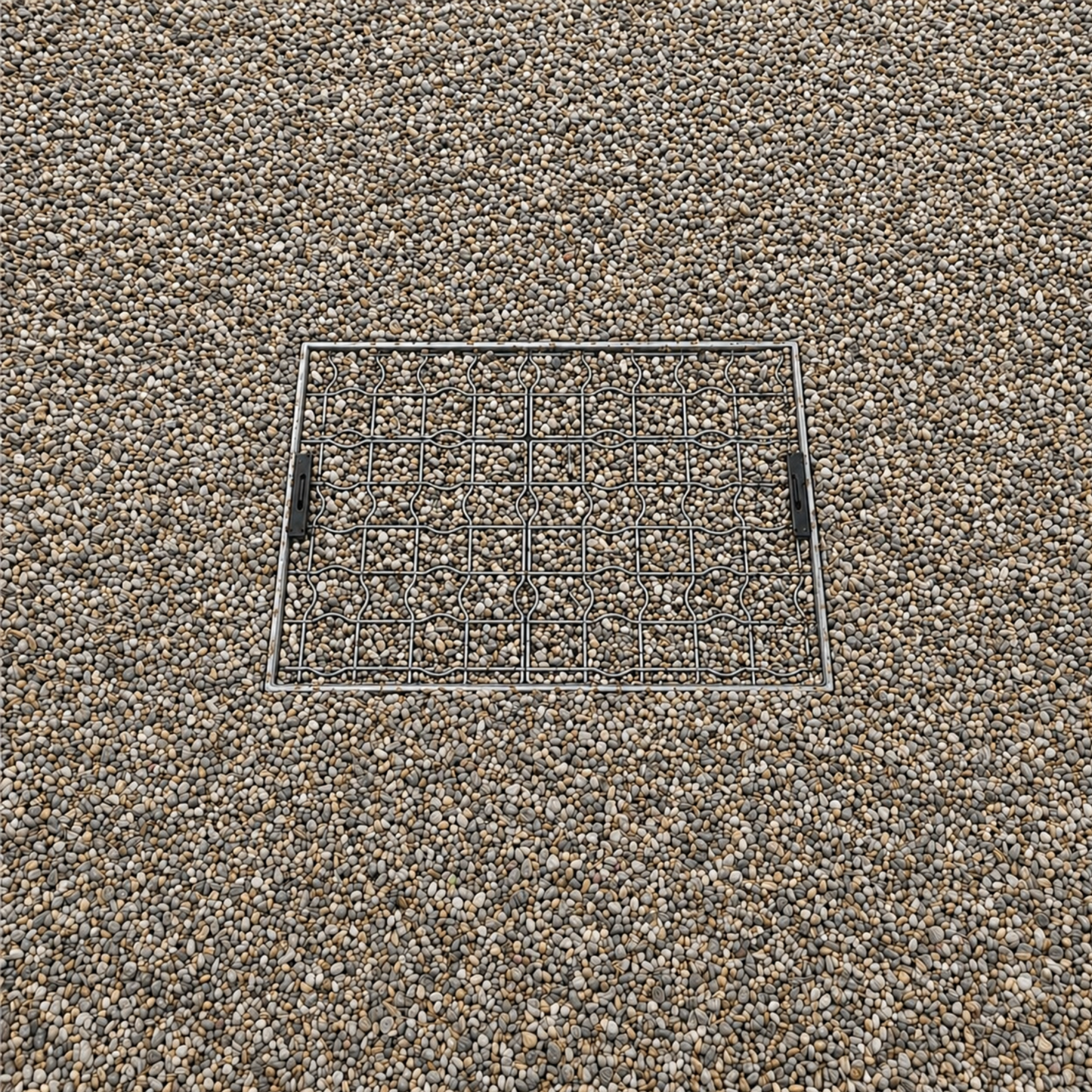

The EcoGrid option incorporates a plastic cellular grid within the tray. This stabilises gravel and loose materials, preventing migration and movement under foot or light vehicles. It is typically specified where the surrounding surface is gravel or permeable paving.

Manufactured from galvanised steel, this cover is suitable for external use only and light vehicular traffic such as domestic driveways.

A common issue is using standard recessed covers in gravel areas, which leads to unstable surfaces. The EcoGrid variant avoids this by supporting the infill within the tray.

Key Features

  • 100mm tray depth allows full soil or gravel build-up for flush finishes
  • Grass Top version supports turf growth within the recessed tray
  • EcoGrid option stabilises gravel and prevents movement under load
  • Suitable for lawns, landscaped areas and light duty driveways
  • Galvanised steel construction provides structural strength outdoors
  • Drainage holes and membranes allow water to pass through the cover
  • Flush installation maintains a continuous surface finish
  • Compatible with lifting keys for safe removal and access

Material Composition

Manufactured from galvanised steel for strength and durability in external ground conditions. The Grass Top version includes drainage holes and membrane layers to support soil retention and water flow. The EcoGrid variant adds a plastic cellular grid to stabilise loose infill such as gravel.

Product Specifications

Product type: Recessed manhole cover for grass or gravel infill
Suitable location: External
Clear opening: 300mm x 300mm
Overall frame size: 406mm x 406mm x 106mm
Tray depth (recess depth): 100mm
Frame depth: 106mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Unsealed
Locking: No
Load rating: Light vehicular duty
Lifting method: Lifting keys
Fixings supplied: No
Standards: Not specified
Options:
EG3030/100-GT, Grass Top, 300mm x 300mm clear opening, 406mm x 406mm overall frame size
EG3030/100-GT-EG, EcoGrid Gravel Top, 300mm x 300mm clear opening, 406mm x 406mm overall frame size

Grass & Gravel Recessed Manhole Covers

About this collection

Grass & Gravel Recessed Manhole Covers

Grass and gravel manhole covers are recessed access covers designed to be filled with soil, turf or loose aggregate. They are used to provide discreet inspection chamber access in lawns, landscaped areas and permeable driveways.

View Collection

FAQs

See All

What is the difference between Grass Top and Gravel Top options?

Grass Top is designed for soil and turf infill, using drainage holes and membranes to support grass growth within the tray. Gravel Top includes an integrated EcoGrid reinforcement layer which holds gravel in place and prevents movement under foot or light traffic.

Can this be used in a driveway?

Yes, for light domestic traffic. Grass Top is typically used in soft landscaped areas, while Gravel Top should be used where gravel is the finished surface or where additional stability is required.

Is this cover watertight or sealed?

No. This is an unsealed cover designed to allow water to drain through the tray and is intended for external use only.

Will grass grow inside the cover?

Yes. The Grass Top option supports soil retention and drainage to allow grass to establish within the tray.

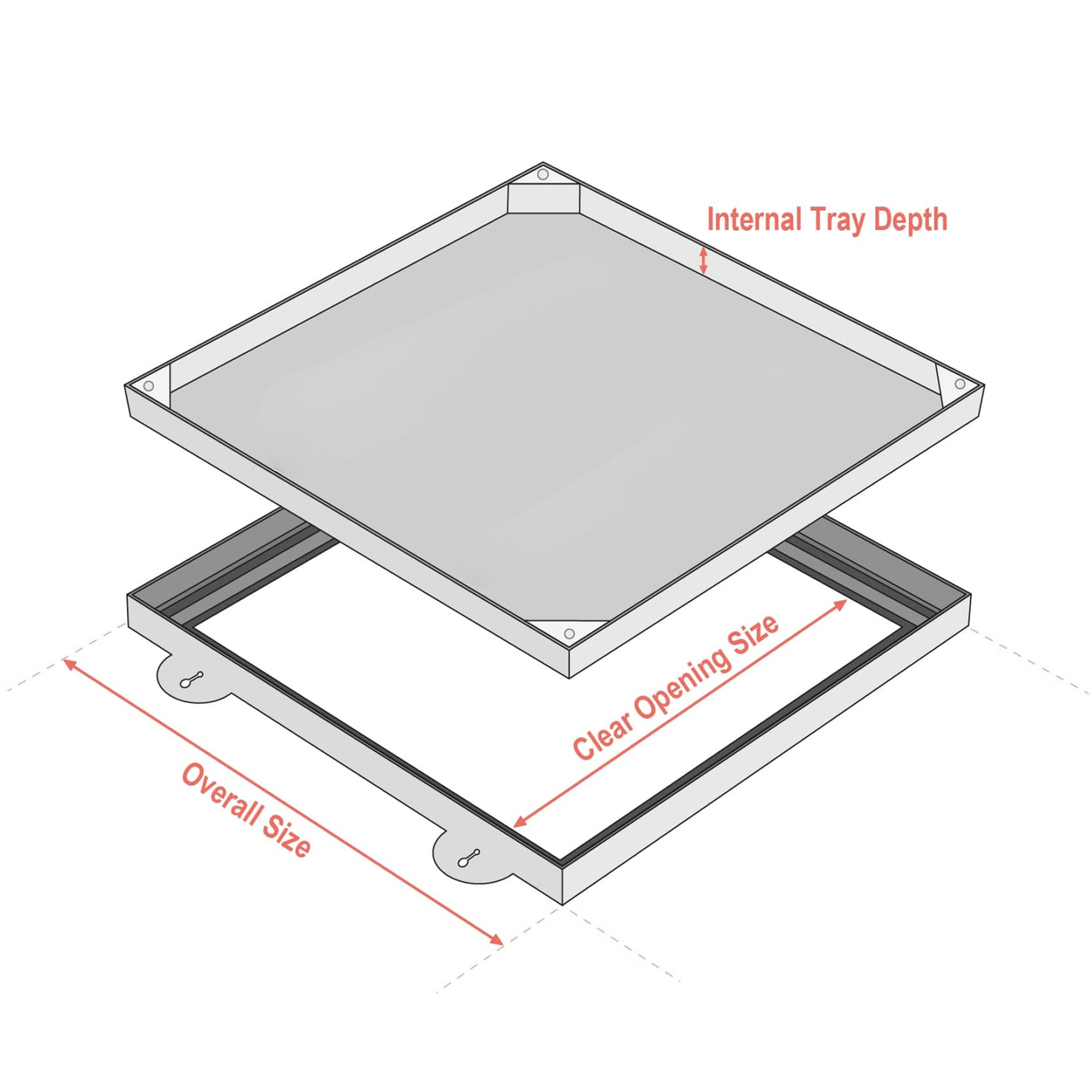

How do I select the correct size?

Measure the clear opening of the chamber. The cover must match the clear opening, not the overall frame size.
