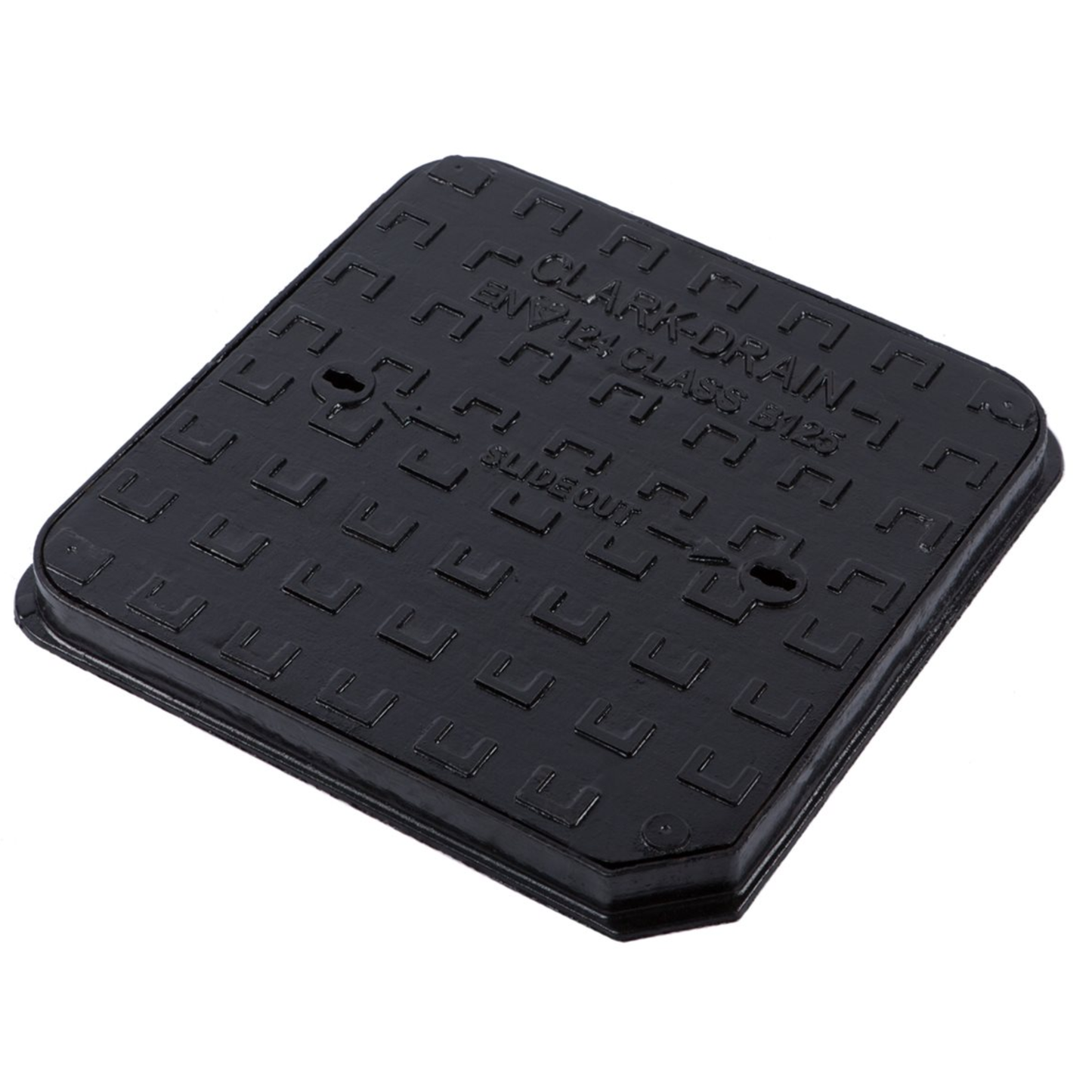

450 x 450mm Ductile Iron Manhole Cover and Frame B125

This 450 x 450mm ductile iron manhole cover and frame is a solid top slide-out B125 rated access cover designed for smaller chamber openings in domestic and light commercial settings. It is commonly used on private driveways, pavements, pedestrian routes, landscaped areas and service access points where a compact but durable cover is required.

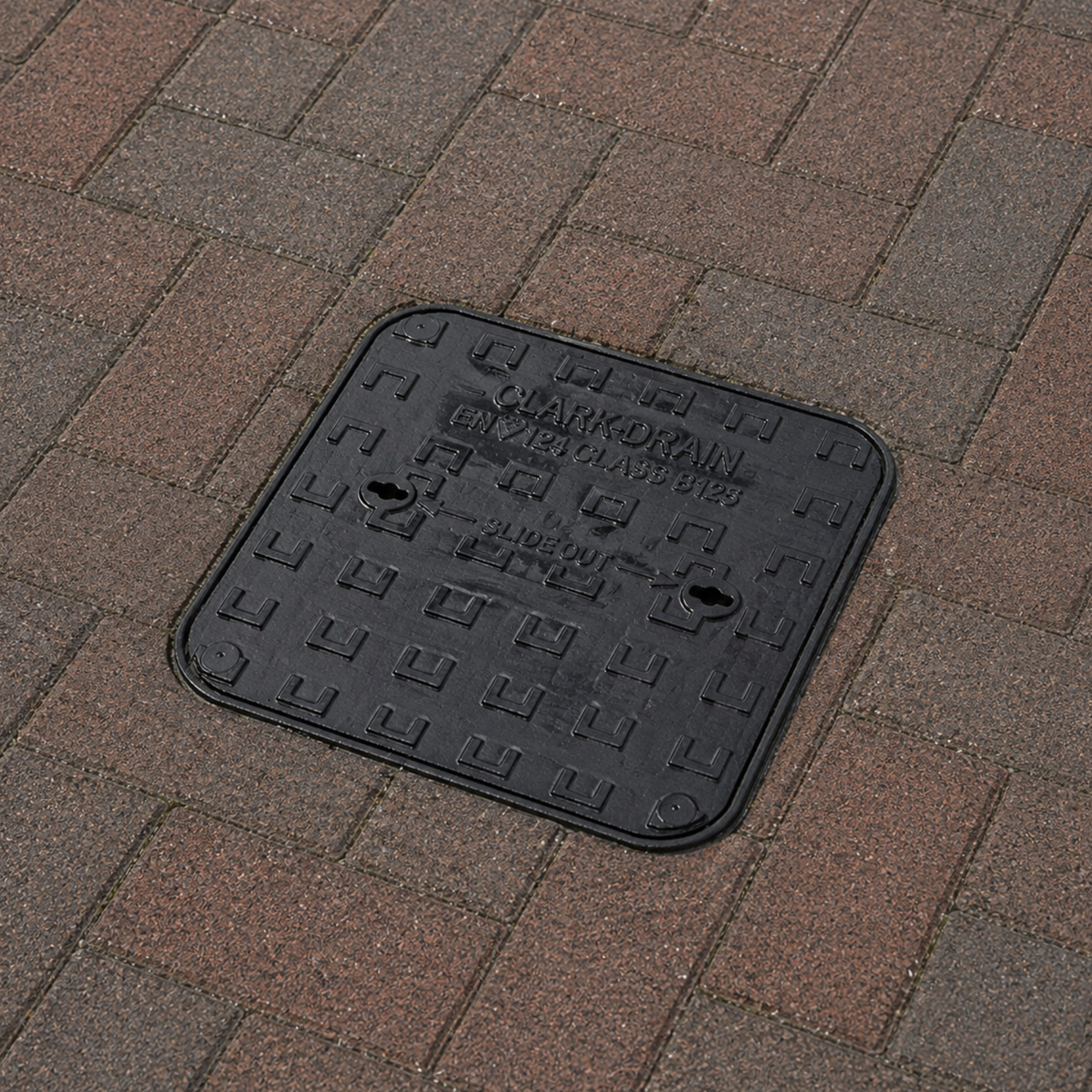

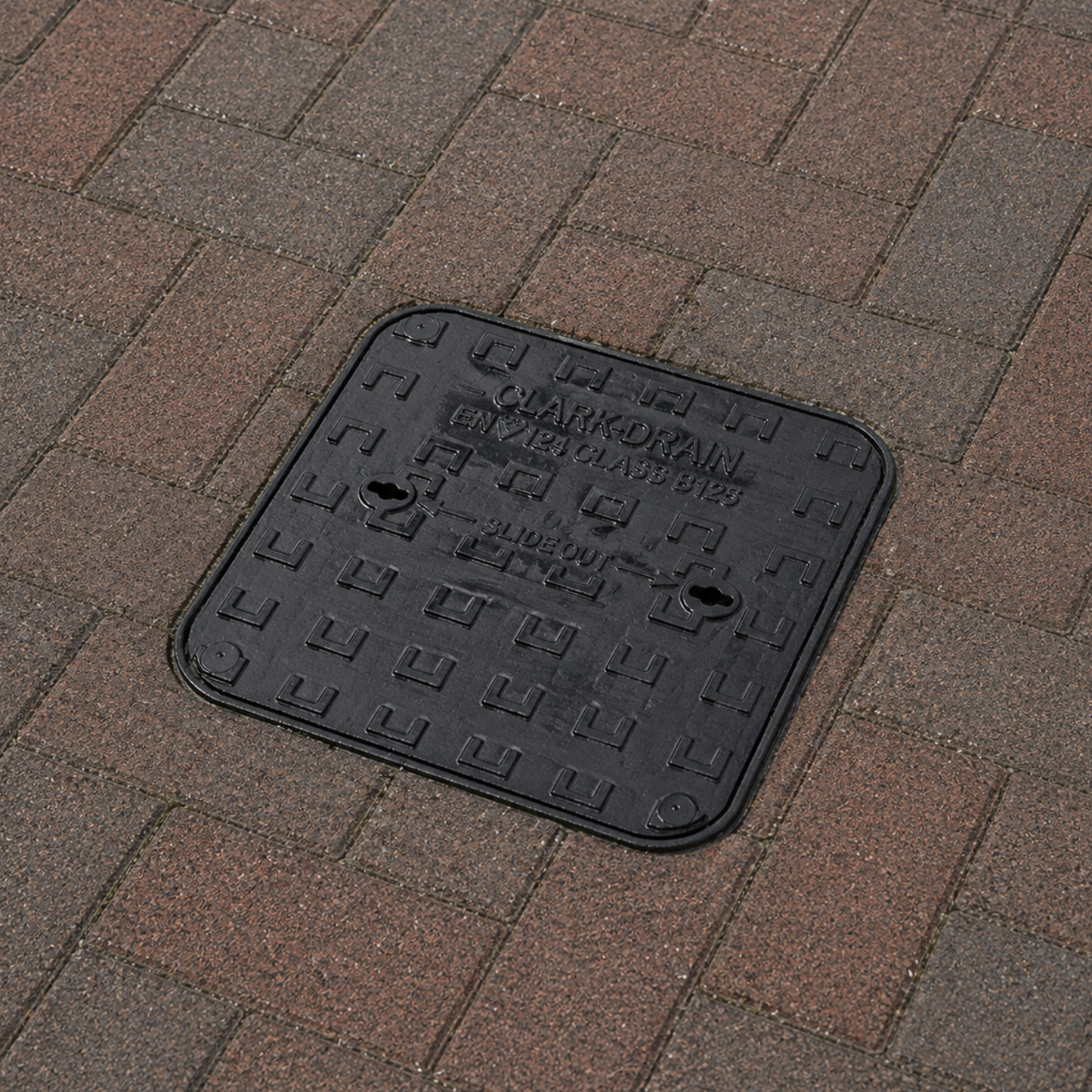

The solid top visible lid remains exposed at finished surface level, making access straightforward for routine inspection and maintenance. Where appearance is secondary to strength, reliability and quick chamber entry, this type of cover remains a practical choice.

Manufactured from spheroidal graphite ductile iron, the CD 761 KMB offers stronger impact resistance and improved structural performance compared with older grey cast iron covers. When correctly bedded on a full mortar or concrete surround, it is well suited to repeated car traffic and day to day pedestrian use.

The 450 x 450mm clear opening is a common size for inspection chambers, small drainage runs and utility points where a larger cover is unnecessary. Its more compact footprint also suits tighter paved areas where space is limited.

This model uses a slide-out lid design to reduce awkward lifting movement during opening. Integral lifting key holes are included, and the unique corner design helps ensure the cover seats back into the frame in the correct orientation after access.

B125 loading is intended for BS EN 124 Group 2 applications such as driveways, pavements and private areas with occasional vehicle traffic. It should not be used in highways, loading yards or regularly trafficked heavy vehicle areas where D400 or above would normally be required.

When replacing an existing cover, always confirm the chamber clear opening first, then check the external frame size and depth.

B125 rated for driveways, pavements and pedestrian areas

450 x 450mm clear opening for compact chamber access

Solid top slide-out lid for easier maintenance access

Integral lifting key holes for controlled removal

Unique corner design aids correct lid orientation

Ductile iron construction for strength and long service life

Black coated finish for external installations

Complete cover and frame supplied

Manufactured from spheroidal graphite iron grade EN-GJS-500-7 to BS EN 1563:2011. This ductile iron grade is widely used for access covers because it combines high strength with improved flexibility and impact resistance under load.

Product code: CD 761 KMB
Clear opening: 450mm x 450mm
Overall frame size: 510mm x 510mm
Frame depth: 40mm
Product weight: 20kg
Cover weight: 14kg
Material: EN-GJS-500-7 ductile iron
Load class: B125
Standard: BS EN 124-2:2015
Cover type: Solid top slide-out cover and frame
Finish: Black surface coating
Application: Pedestrian and driveway
