450 x 450mm Grass & Gravel Recessed Manhole Cover 3.5 Tonne

This recessed manhole cover is designed to provide concealed access within grass, landscaped and gravel surfaces. The recessed tray allows the selected infill material to sit flush with the surrounding ground, maintaining a consistent finish while keeping the inspection chamber accessible.

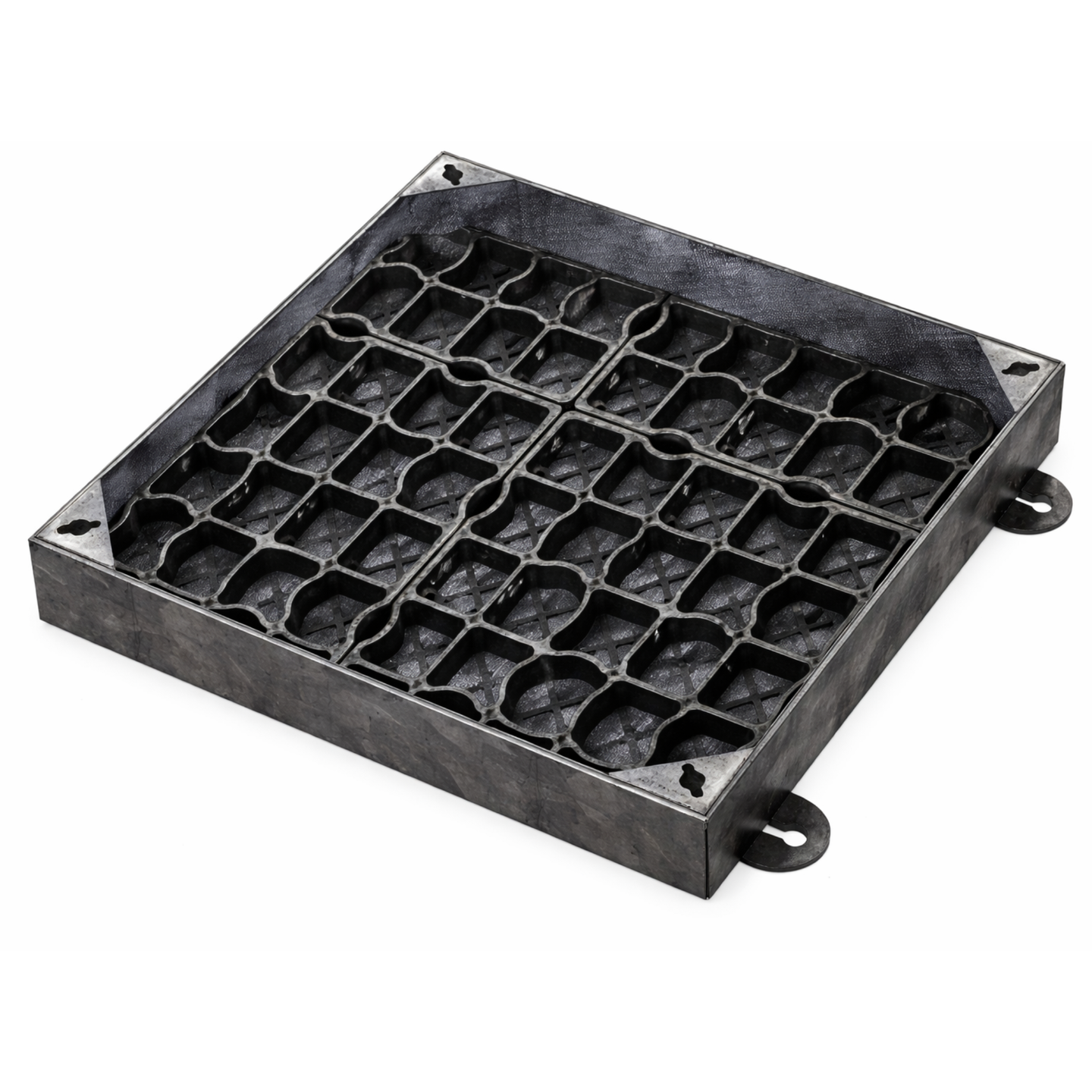

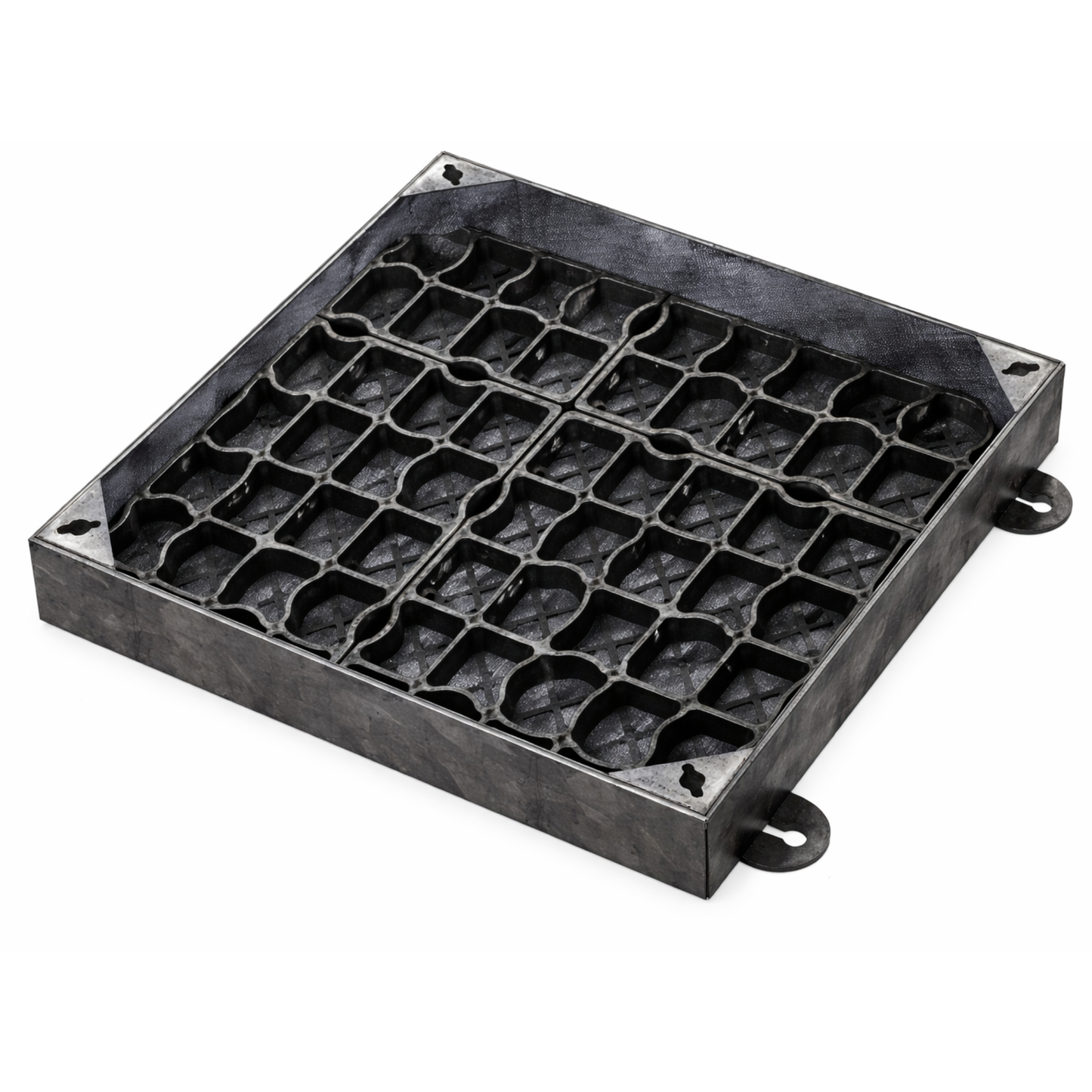

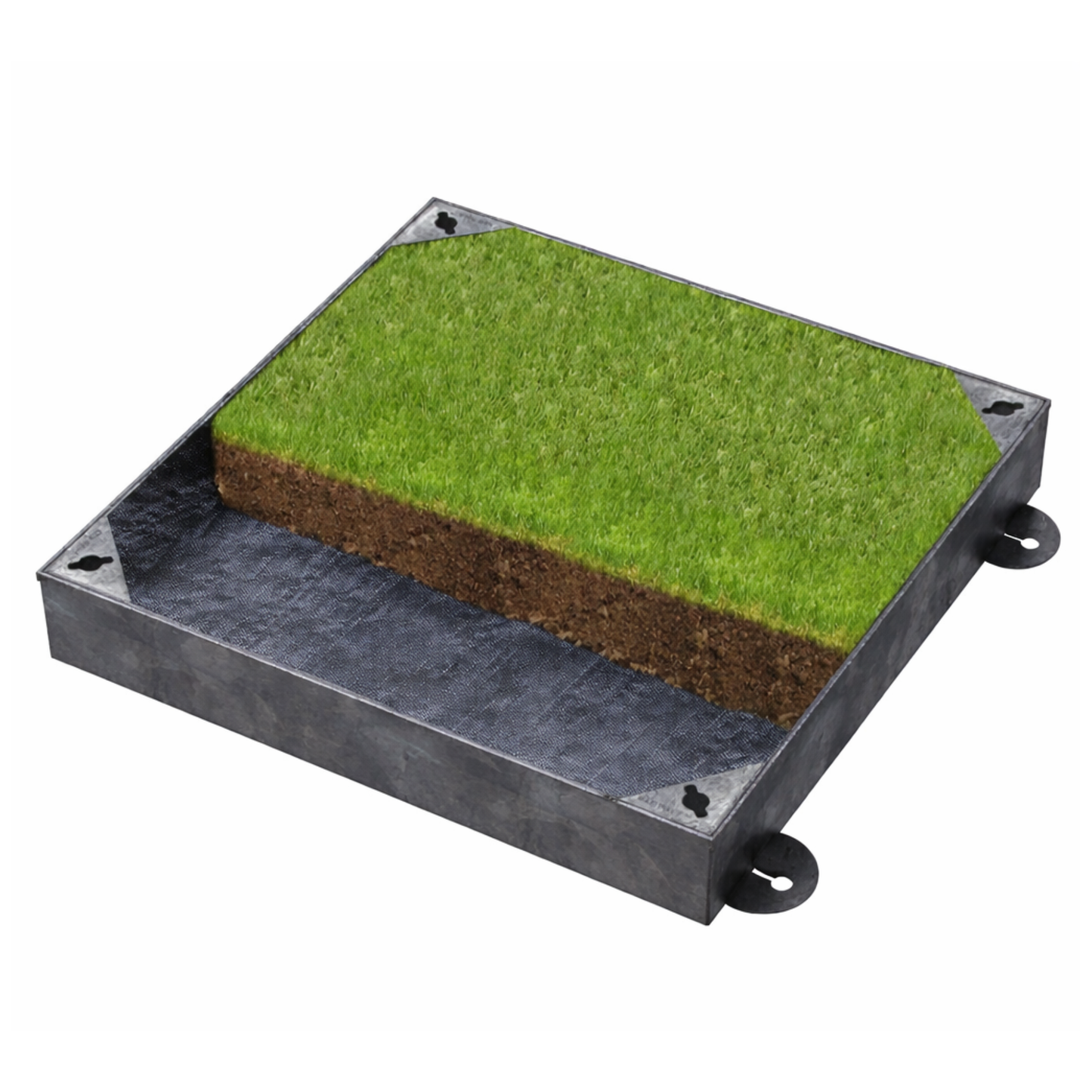

Two infill configurations are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass establishment. The EcoGrid version incorporates a stabilising grid within the tray, designed for gravel and loose aggregates where movement under foot or light vehicle loading would otherwise be an issue.

The 100mm tray depth is suited to typical landscaping build-ups. Shallower trays often result in poor turf growth or unstable aggregate. This depth provides enough material to achieve a consistent finish and maintain performance over time.

Manufactured from galvanised steel, the cover provides structural rigidity for external use. It is suitable for gardens, patios and light domestic driveways, but not for constant or heavy traffic.

Selection should always be based on the clear opening of the chamber. The overall frame size is larger and should not be used for sizing.

• 450mm x 450mm clear opening suits standard inspection chambers
• 100mm tray depth supports turf, soil or gravel build-up
• Choice of grass top or EcoGrid gravel stabilised configuration
• EcoGrid option prevents aggregate movement under foot and vehicle loading
• Galvanised steel construction provides strength in external installations
• Drainage holes and membranes support water flow and grass growth
• Suitable for lawns, landscaping and light domestic driveways
• Supplied with frame for new installations or retrofit use

Manufactured from galvanised steel to provide durability and rigidity in ground conditions. Grass top variants include drainage holes and membrane layers, while EcoGrid versions incorporate a plastic porous grid to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 450mm x 450mm
Overall frame size: 556mm x 556mm
Tray depth (recess depth): 100mm
Frame depth: 106mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 3.5 tonne (light vehicular)
Lifting method: Lifting key points
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:
EG4545/100-GT, Grass Top, 450mm x 450mm clear opening, 556mm x 556mm overall frame size
EG4545/100-GT-EG, EcoGrid Gravel Top, 450mm x 450mm clear opening, 556mm x 556mm overall frame size
