450mm Block Paving Recessed Manhole Cover 10 Tonne Square to Round

450mm Block Paving Recessed Manhole Cover 10 Tonne Square to Round

Clear Opening: 450mm diameter
Tray Depth: 80mm

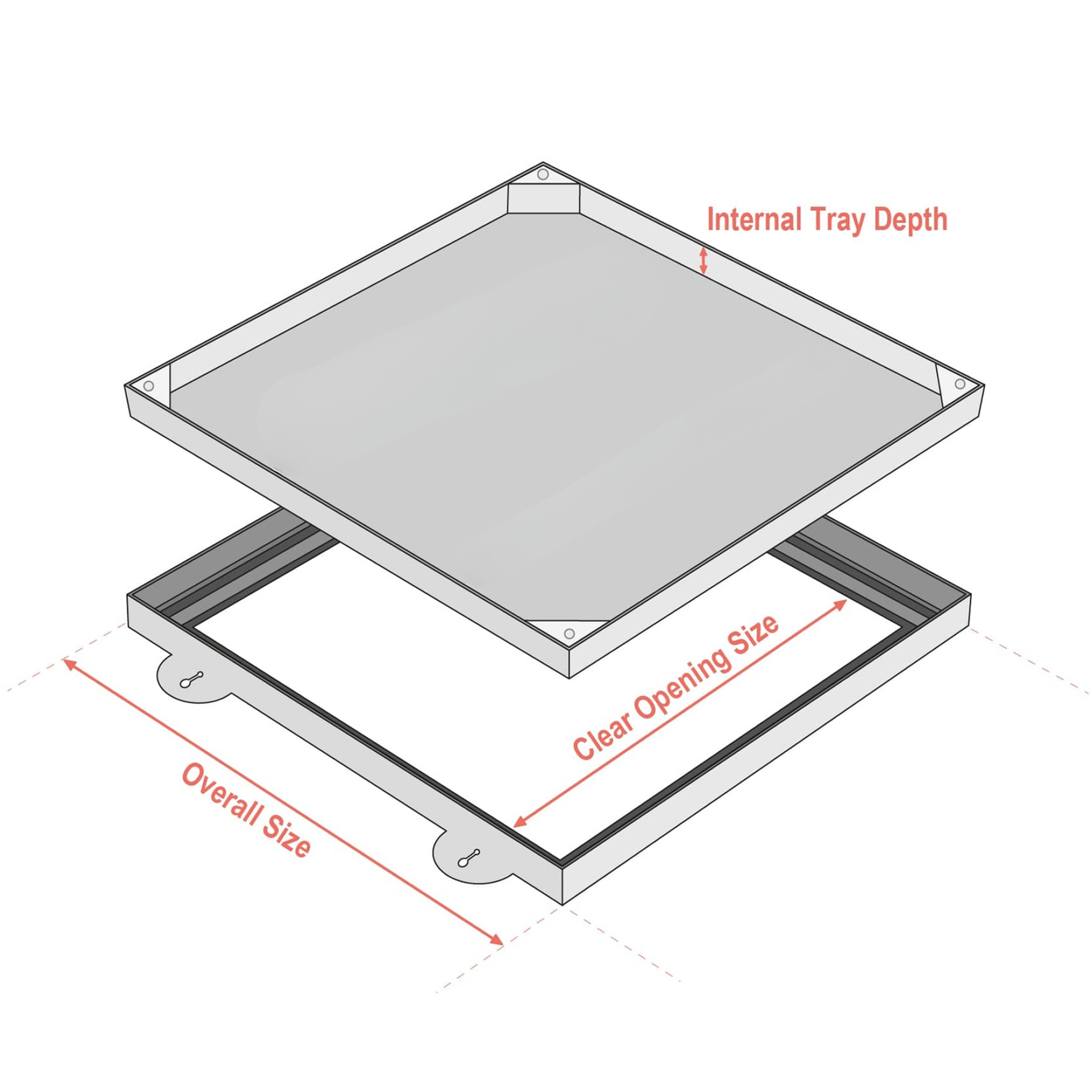

External Dimensions: 580mm x 580mm x 88mm

Square to round recessed manhole cover designed for block paving, slabs and screed infill. Suitable for patios, driveways and paved areas where a circular chamber needs to be concealed within a square finish.

The 80mm tray depth suits standard paving build-ups while maintaining a flush, consistent surface across the installation.

£59.15
£59.15
Tax included. Shipping calculated at checkout.

21 in stock

CD 450SR

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

450mm Block Paving Recessed Manhole Cover 10 Tonne Square to Round

450mm Block Paving Recessed Manhole Cover 10 Tonne Square to Round

Description

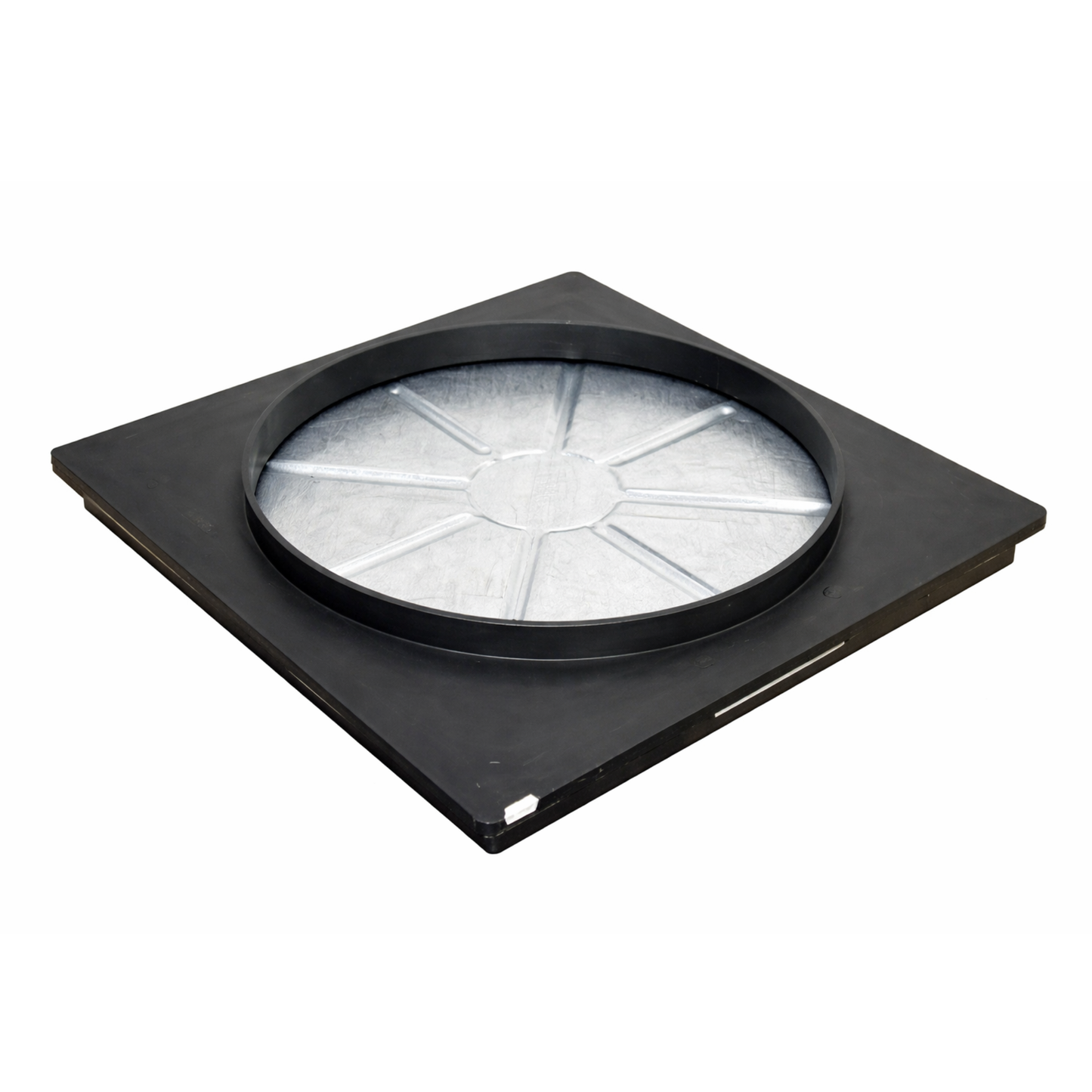

This block paving recessed manhole cover is designed to convert a circular chamber opening into a square format, allowing paving materials to be installed without cutting around a round lid. The recessed tray is filled with block paving or slabs so the finished surface remains continuous.

With a 10 tonne load rating, it is suitable for domestic driveways and areas with light vehicle traffic. The galvanised steel tray provides structural strength, while the surrounding frame transfers loads into the ground rather than through the infill material.

The square to round design removes the need for shaping paving around circular chambers, improving finish quality and reducing installation time. The tray can also be rotated within the frame to align with the paving pattern during installation.

This cover is non-sealed and intended for external applications only.

Key Features

  • Square to round design eliminates cutting paving around circular chambers
  • 450mm diameter clear opening suits standard inspection chambers
  • 10 tonne load rating suitable for domestic driveways and light vehicles
  • 80mm tray depth supports standard block paving and slab build-ups
  • Galvanised steel tray provides strength in external environments
  • Polypropylene frame offers corrosion resistance and reduced handling weight
  • Rotatable tray allows alignment with paving pattern

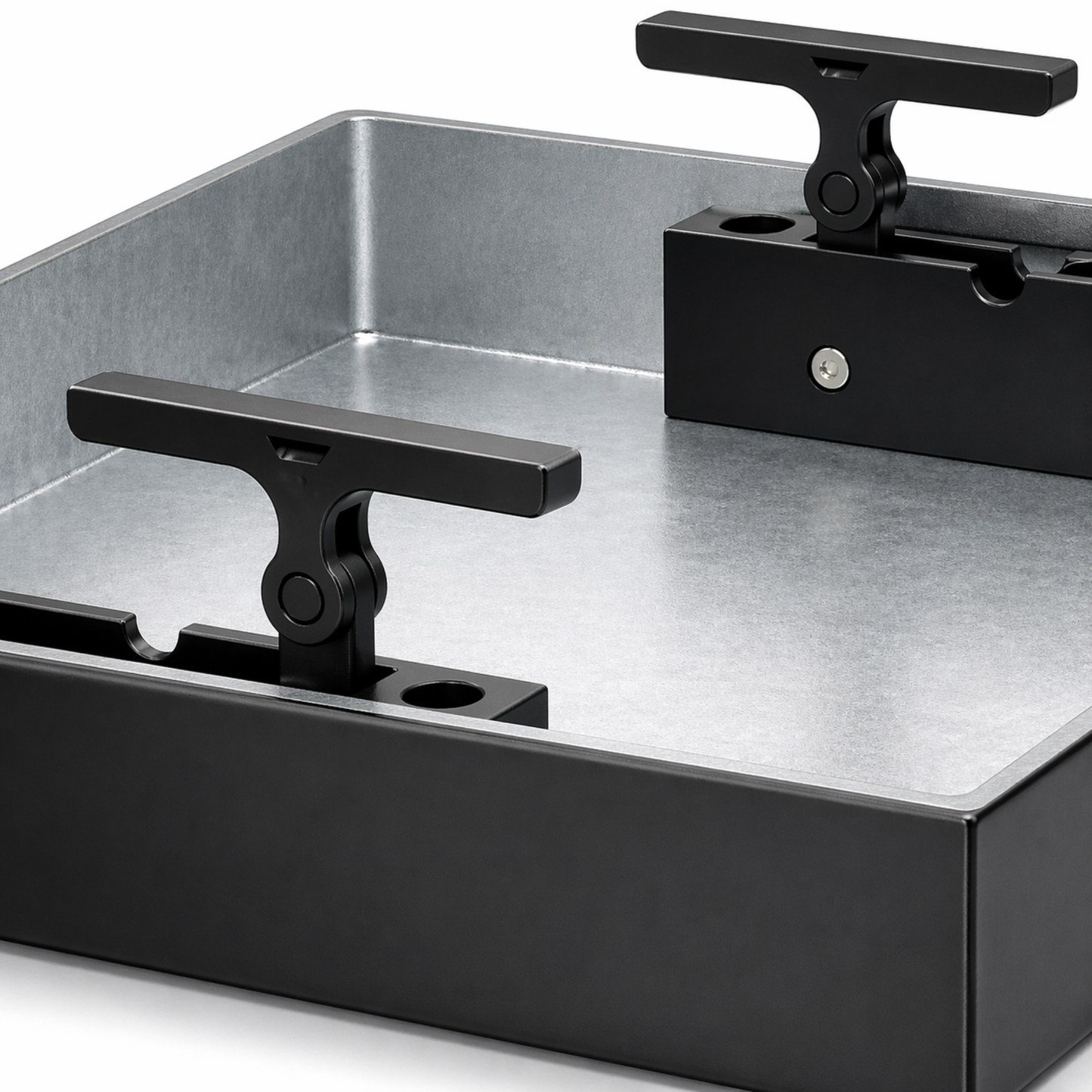

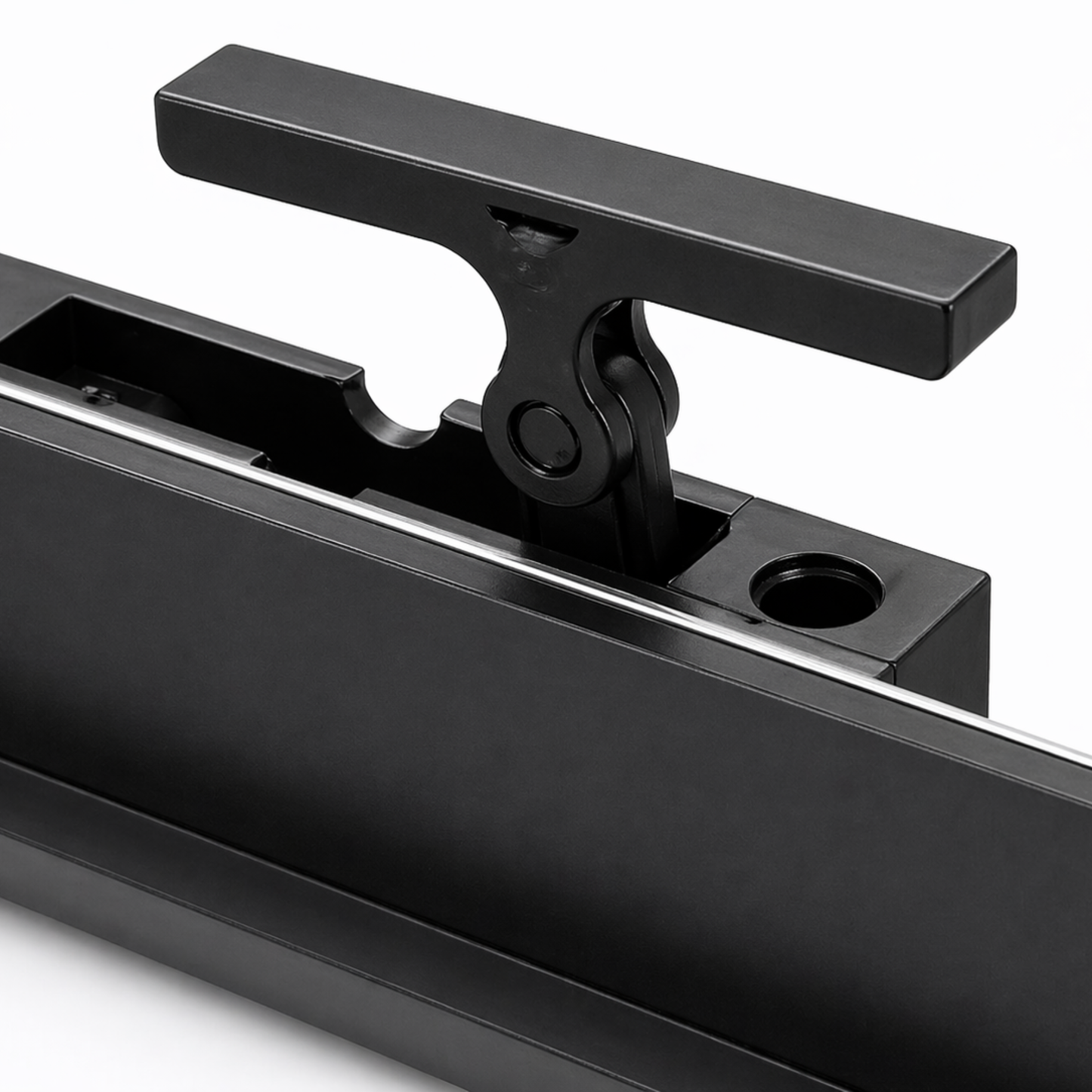

  • Integral lifting handles allow safe and straightforward removal

Material Composition

The cover combines a galvanised steel tray with a polypropylene frame (Grade AP9). This provides structural strength where required, while reducing overall weight and improving corrosion resistance in external ground conditions.

Product Specifications

Product type: Block paving recessed manhole cover (square to round)
Suitable location: External
Clear opening: 450mm diameter
Overall frame size: 580mm x 580mm
Tray depth (recess depth): 80mm
Frame depth: 88–92mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised / black polypropylene
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting handles
Fixings supplied: No
Weight: 12kg
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: Square to round configuration for circular chambers

Block Paving Recessed Manhole Covers

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

What does square to round mean on this cover?

It allows a circular chamber to be finished with a square cover, so paving can be installed cleanly without cutting around a round opening.

Is this suitable for driveway use?

Yes. It is rated to 10 tonnes and suitable for domestic driveways with light vehicle traffic.

Will this fit a standard 450mm chamber?

Yes. It is designed for 450mm diameter chamber openings.

Can the tray be aligned with paving?

Yes. The tray can be rotated within the frame to match the paving direction during installation.

Is this cover sealed?

No. It is not sealed and is intended for external use only.
