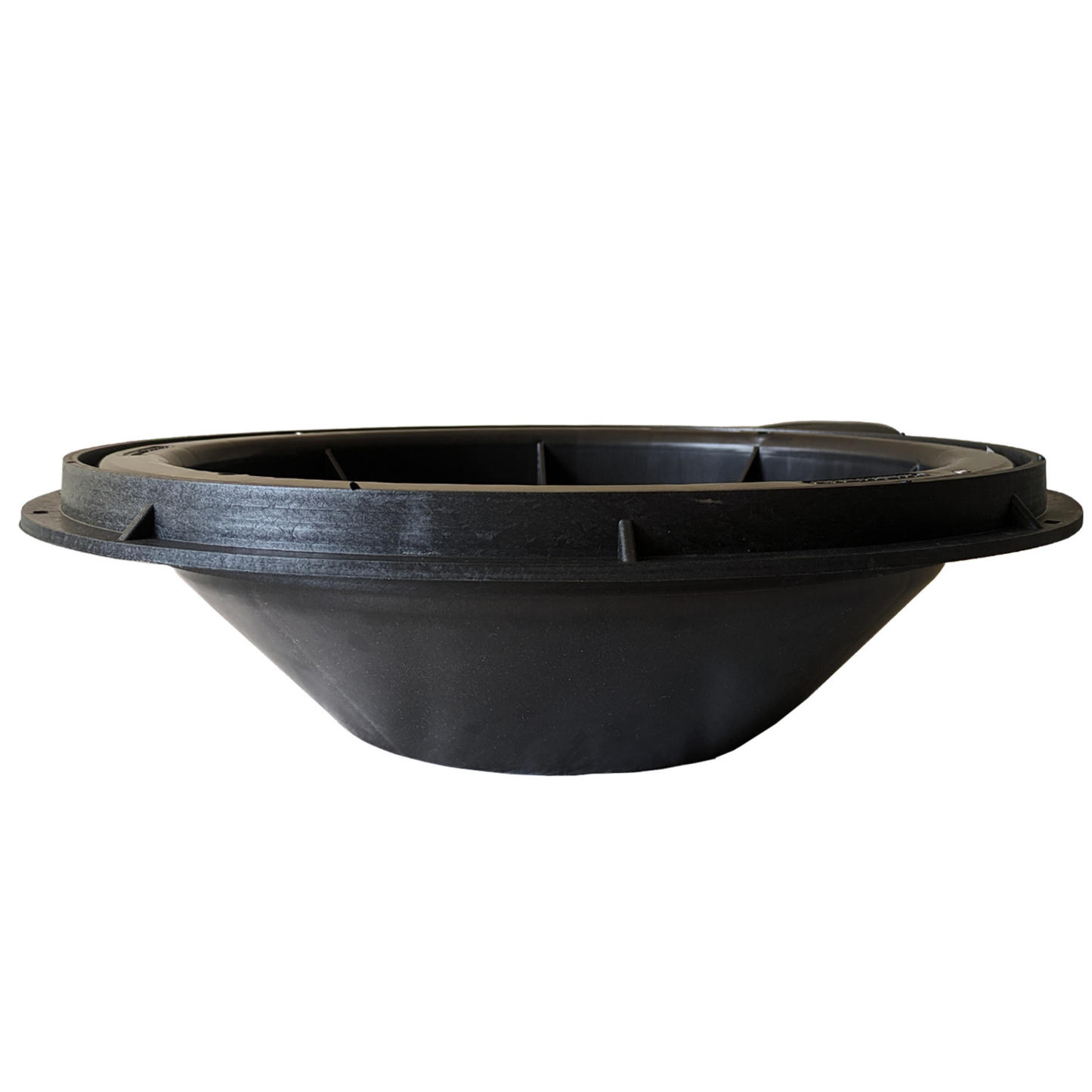

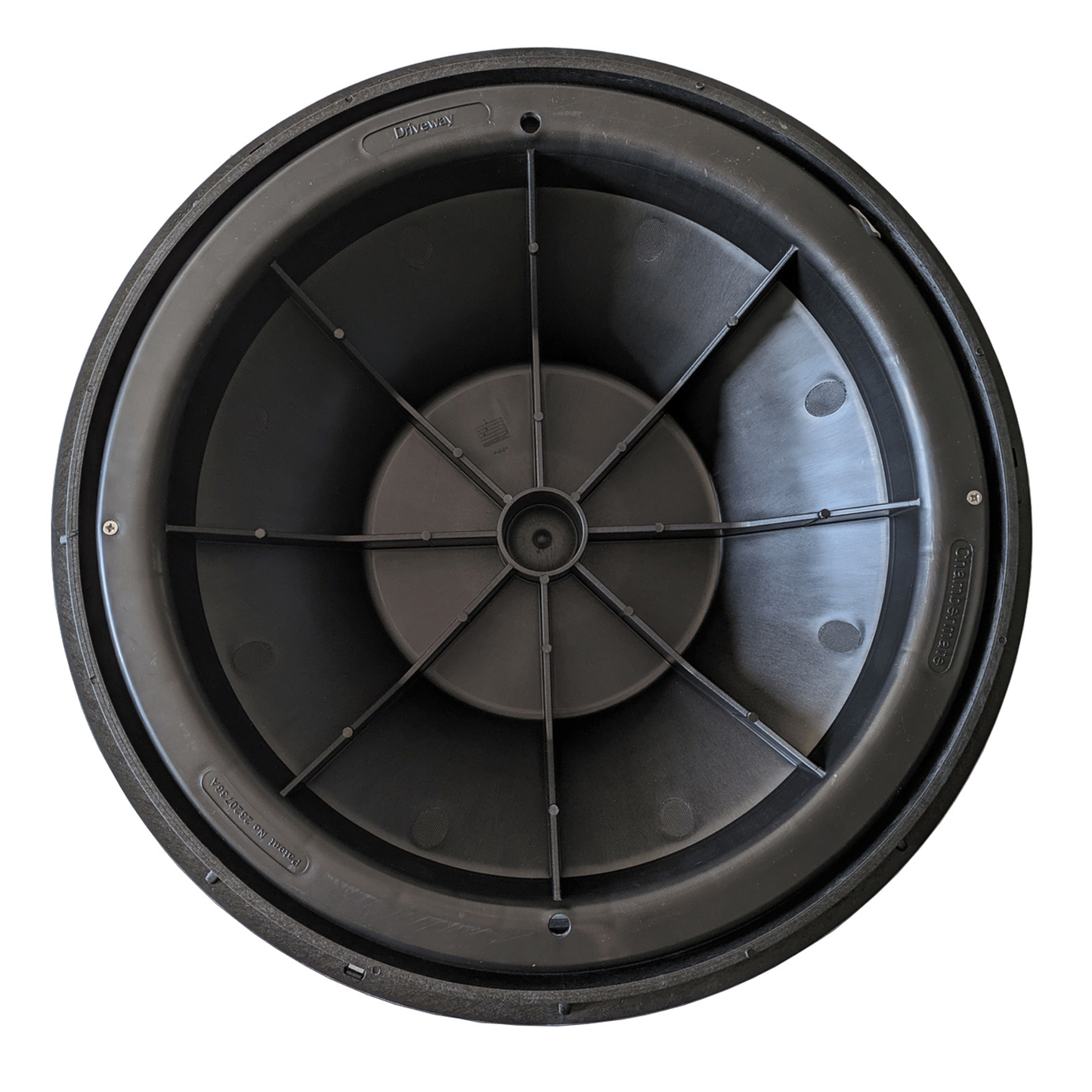

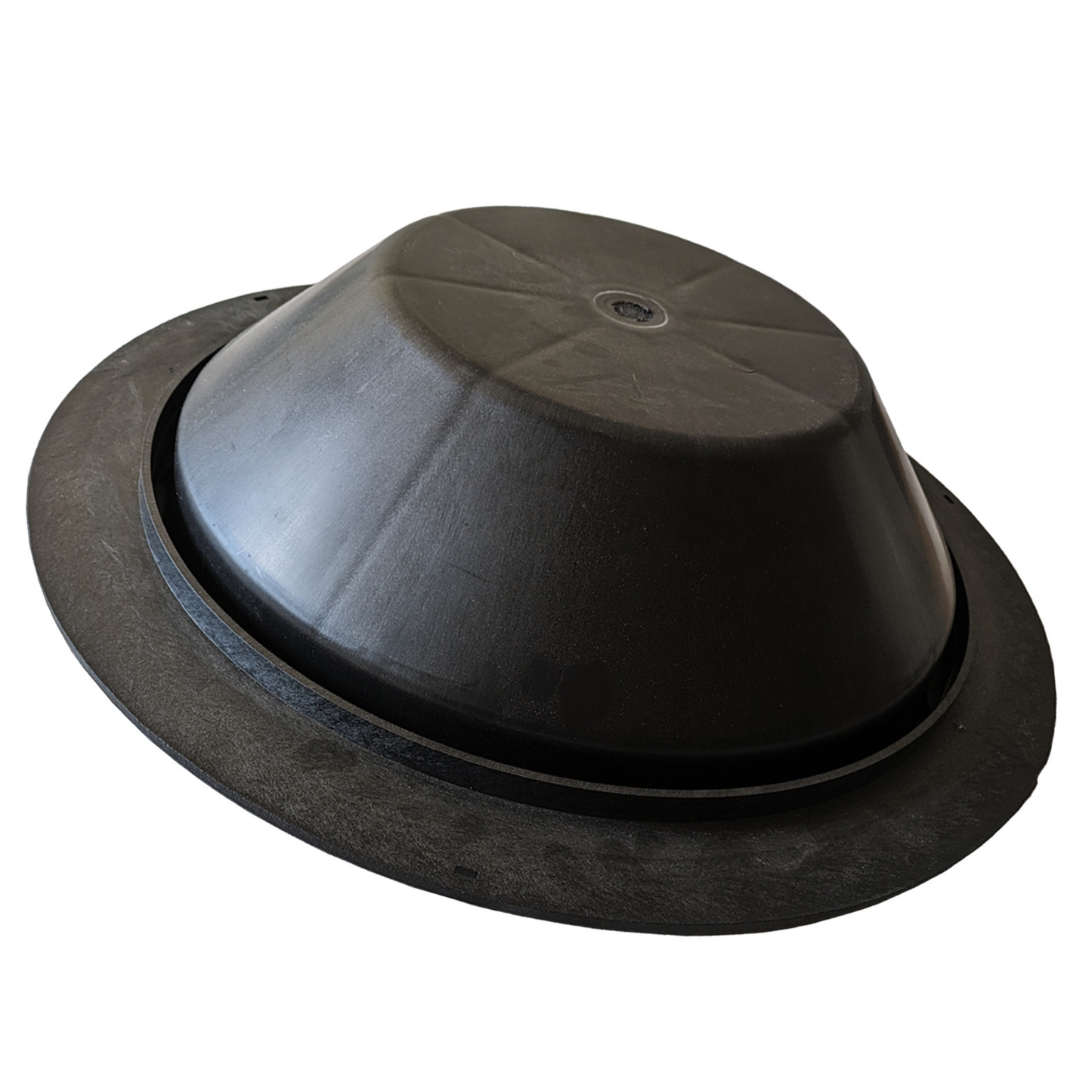

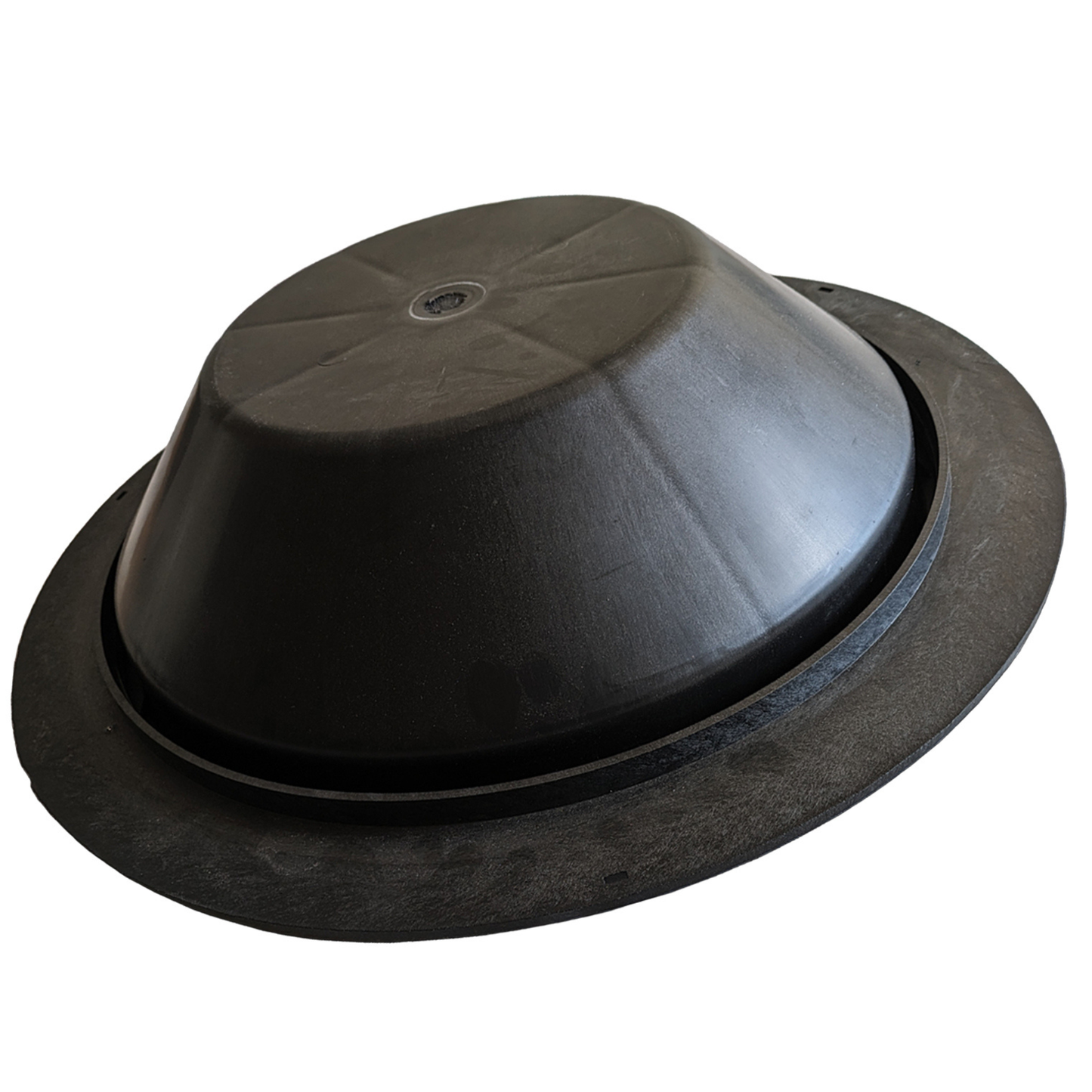

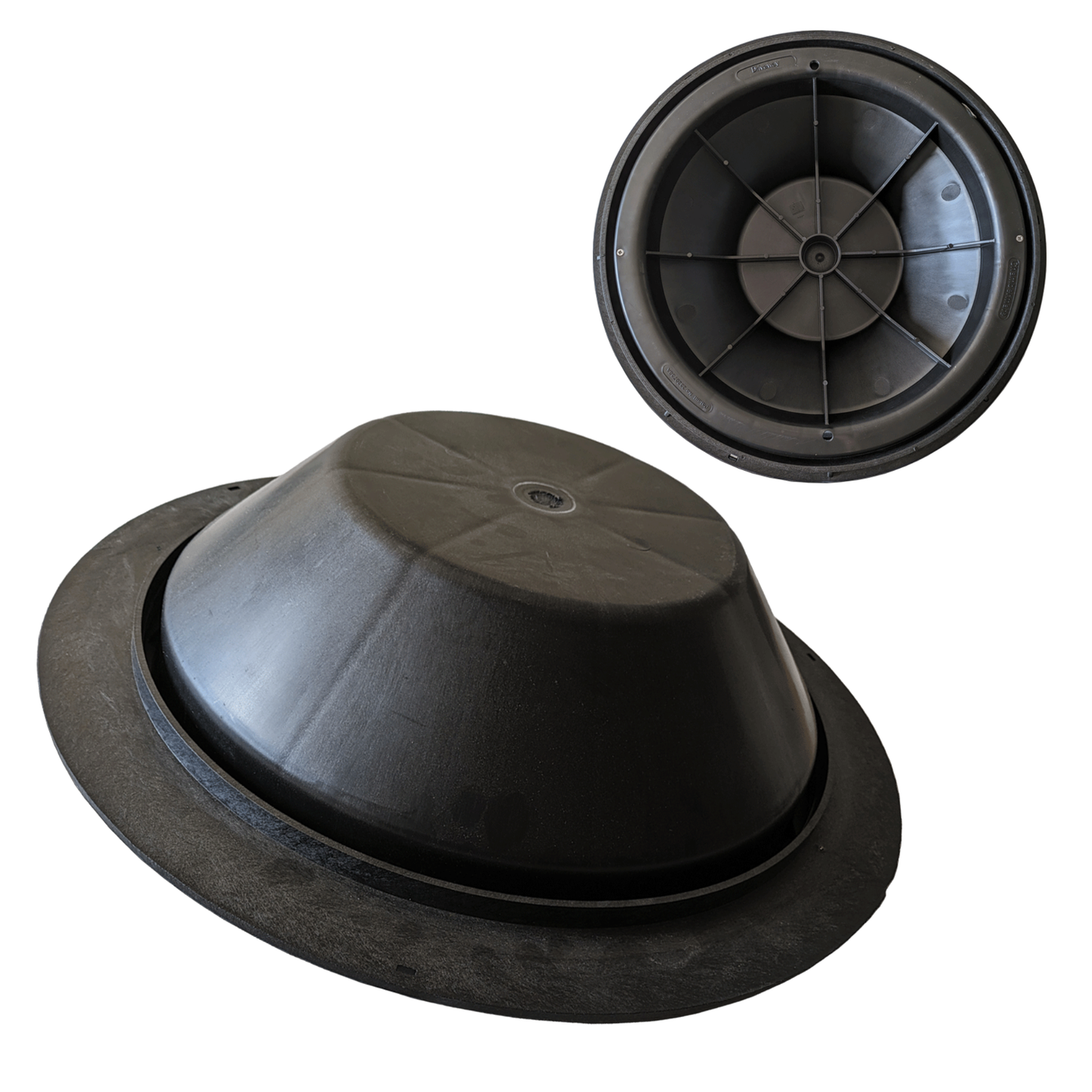

450mm Diameter Grass Top Recessed Manhole Cover 3.5 Tonne

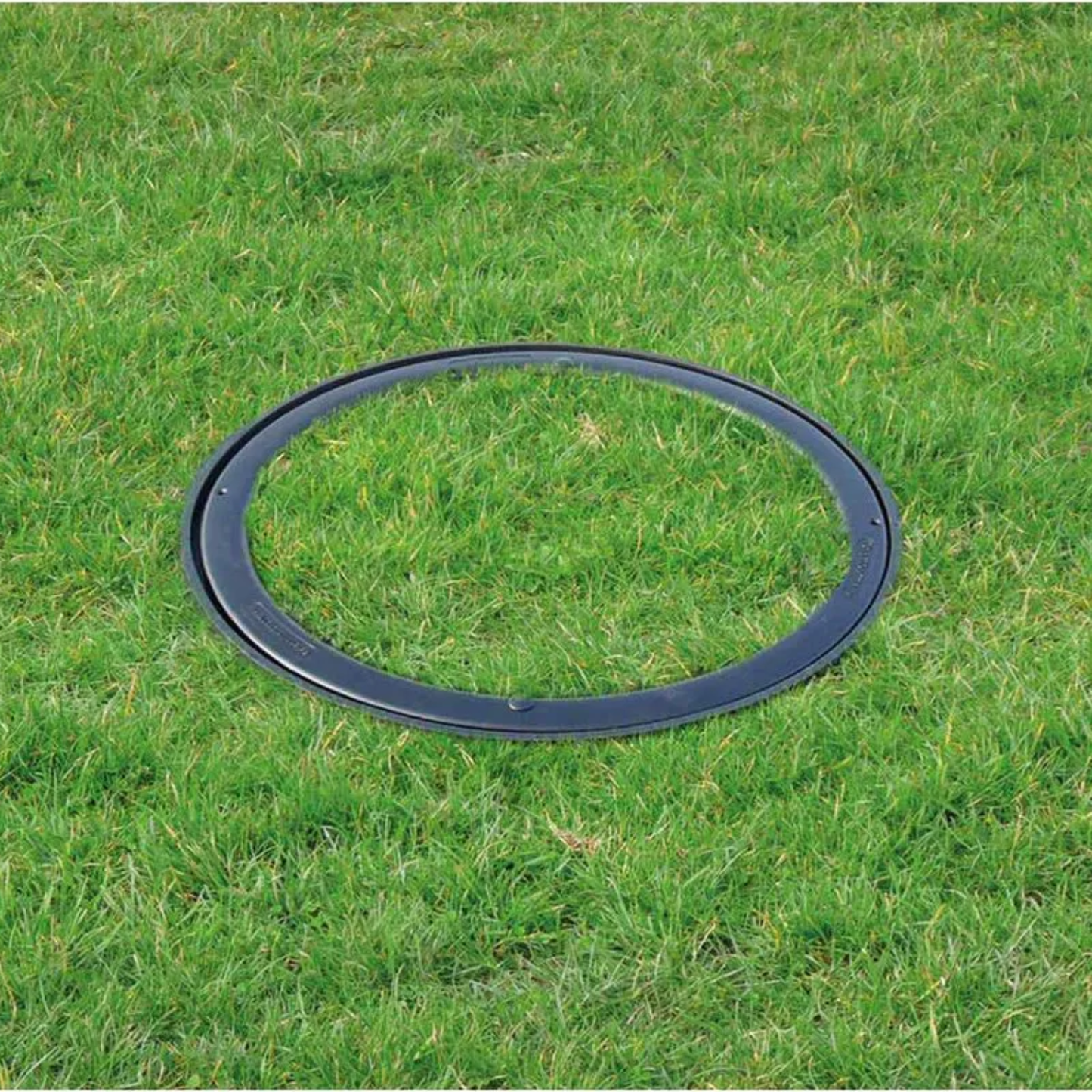

This polypropylene grass top recessed manhole cover is designed to provide access to inspection chambers in soft landscaped areas such as lawns, borders and garden spaces. The recessed tray allows soil and turf to be installed within the cover, so it becomes visually integrated into the surrounding surface.

The 150mm tray depth supports a sufficient soil profile for grass establishment. This is important, as shallow trays often lead to poor growth and visible outlines over time. The open base and perforated design allow water to drain through, helping maintain natural ground conditions.

The cover is typically used in domestic environments where loading is limited and a concealed finish is required. It is not intended for heavy traffic or commercial vehicle use.

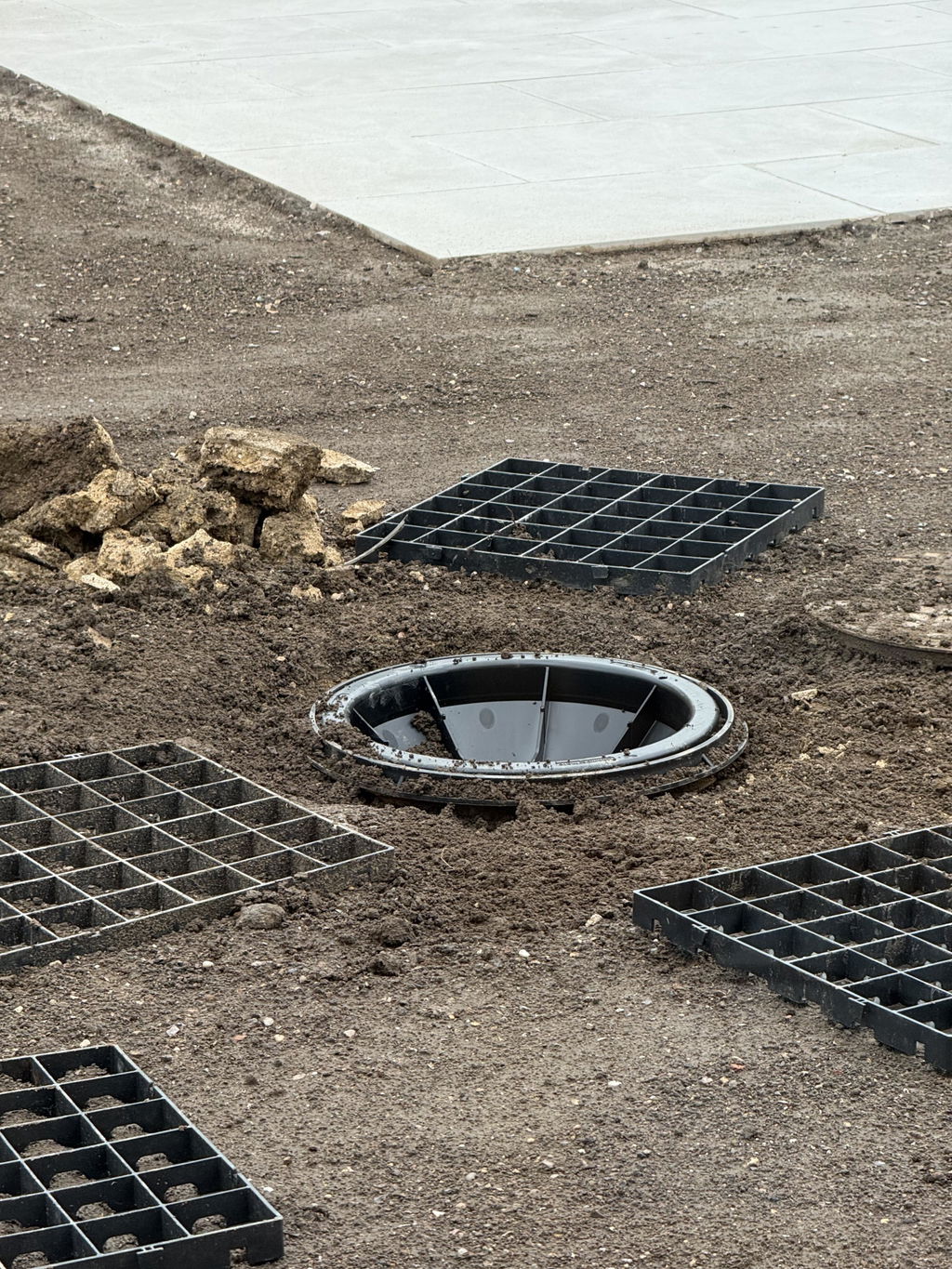

This unit can be installed into a new frame or retrofitted into many existing 450mm diameter chamber frames. Care should be taken to confirm the clear opening rather than the external cover size, as this is a common ordering mistake.

• 450mm diameter clear opening fits standard domestic inspection chambers
• 150mm deep tray supports turf growth and soil retention

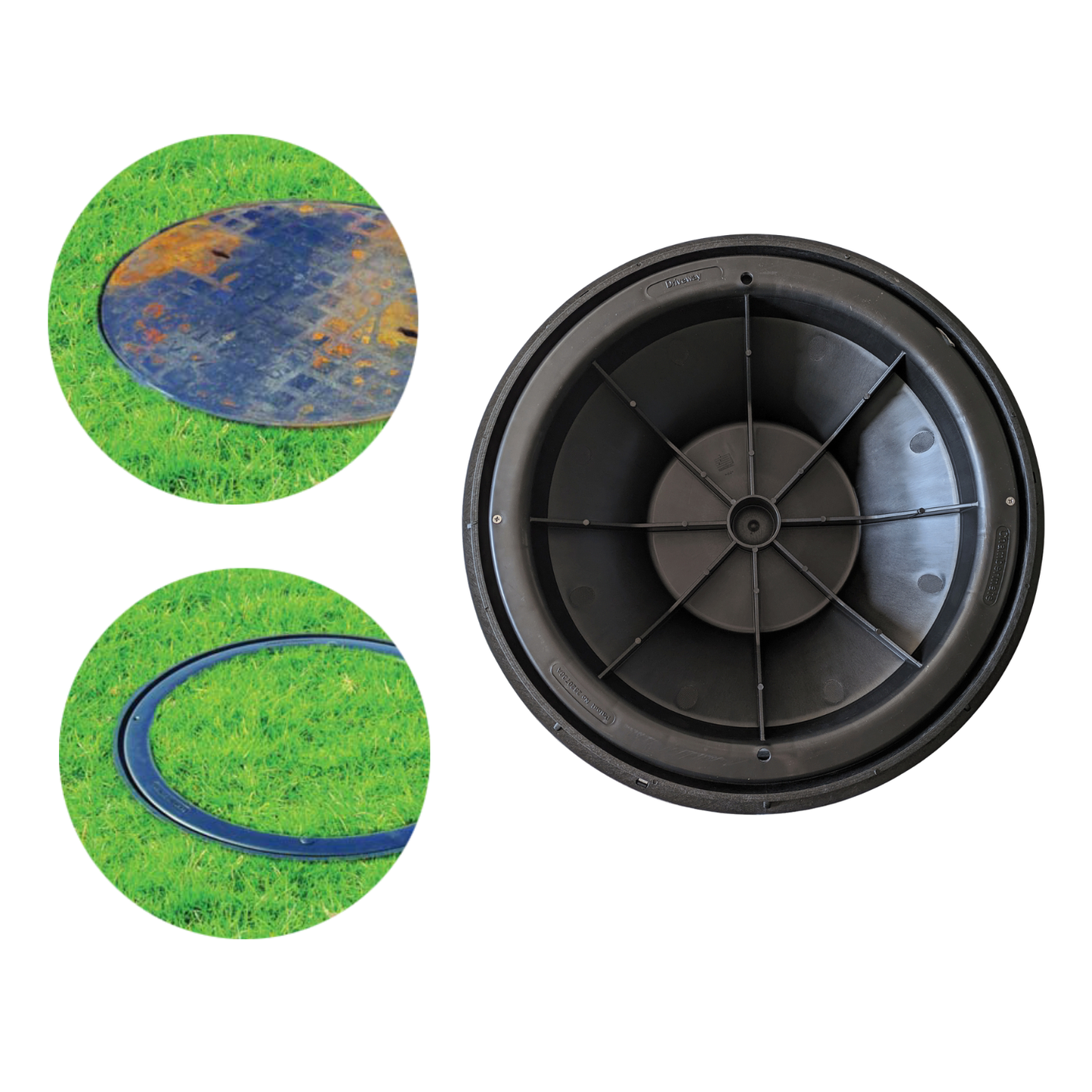

• Recessed design allows cover to blend into lawns and landscaped areas
• Polypropylene construction keeps weight low for easy handling
• Suitable for retrofit into many existing 450mm chamber frames
• Open base design allows drainage through the cover
• Single seal helps reduce debris falling into the chamber
• 35kN load rating suitable for domestic garden and light driveway use
• Supplied with frame for new installations

Manufactured from black polypropylene. This provides a lightweight, corrosion resistant structure suitable for ground contact and damp conditions without the risk of rust associated with metal covers.

Product type: Grass top recessed manhole cover
Suitable location: External, soft landscaped areas
Clear opening: 450mm diameter
Overall frame size: 550mm diameter
Tray depth (recess depth): 150mm
Frame depth: 30mm
Material: Polypropylene
Finish: Black polypropylene
Seal type: Single seal
Locking: No
Load rating: 35kN (3.5 tonne)
Lifting method: Lift out cover
Fixings supplied: No
Weight: 2kg
Standards: EN124 (classification dependent on application)
Options:
CM-450C, 450mm diameter clear opening, 550mm diameter overall frame size, 35kN
