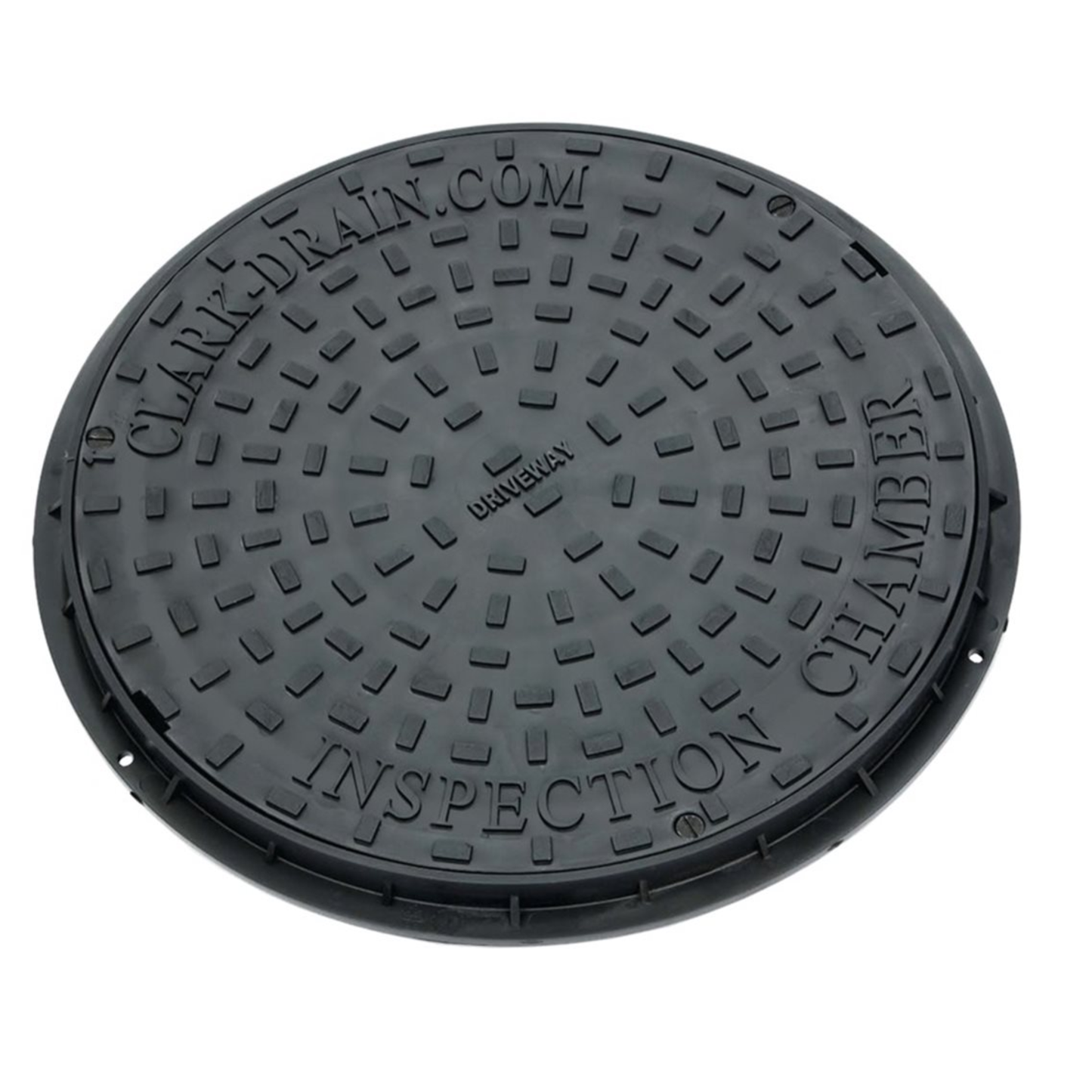

450mm Diameter Solid Top Manhole Cover, 3.5 Tonne

The CD 452 is a 450mm diameter solid top manhole cover and frame designed for shallow PPIC inspection chambers and other compatible chamber systems. It provides a visible flush access cover where fast access, secure fitting and low maintenance are preferred over a recessed infill cover.

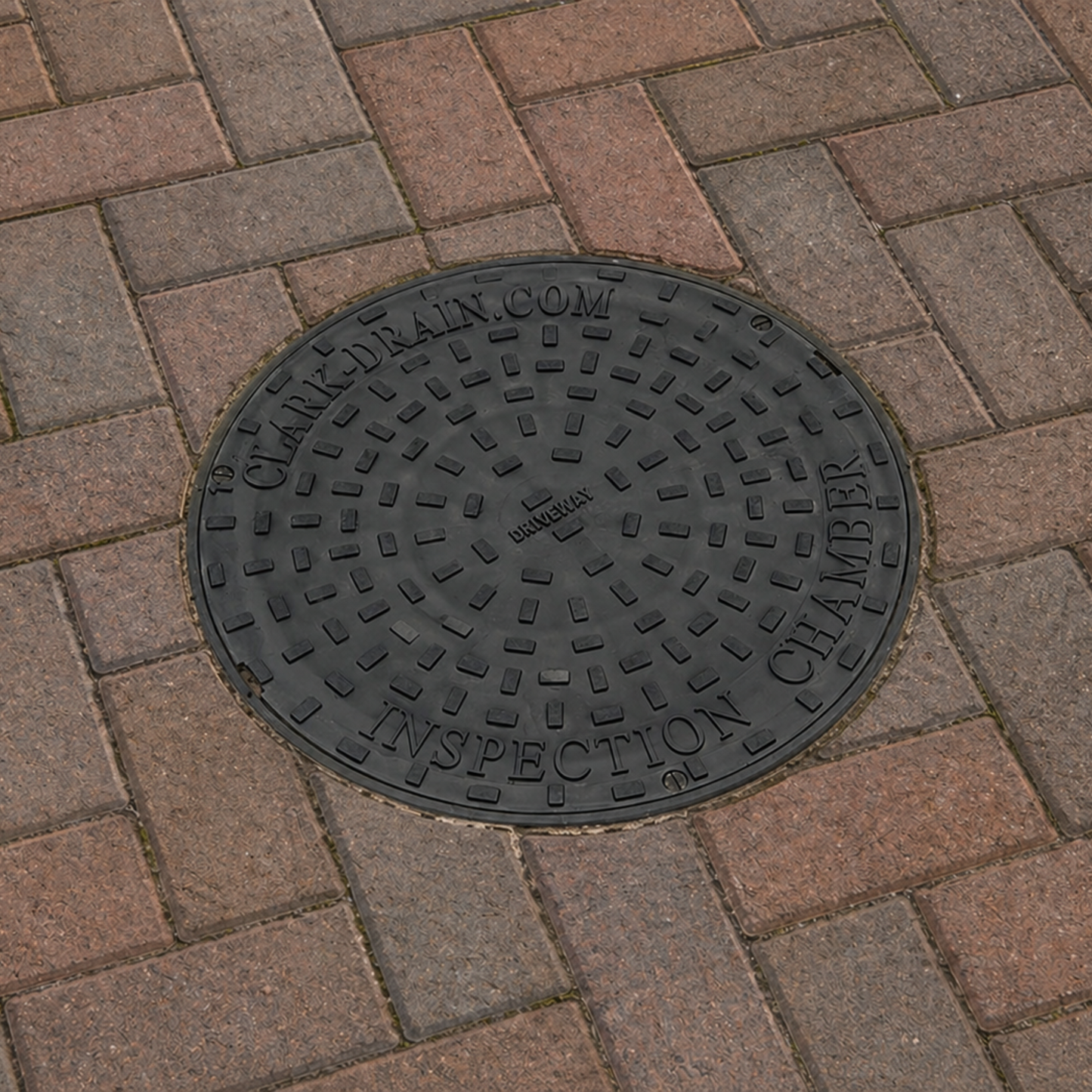

This model is commonly installed on domestic driveways, gravel areas, tarmac surfaces and landscaped settings subject to light vehicle traffic. With a 35kN load rating, it is intended for cars and similar light duty applications rather than regular heavy commercial traffic.

The polypropylene construction keeps weight lower than comparable metal covers while avoiding rust. This helps with handling during installation and future access. The slip-resistant tread pattern improves footing in wet conditions.

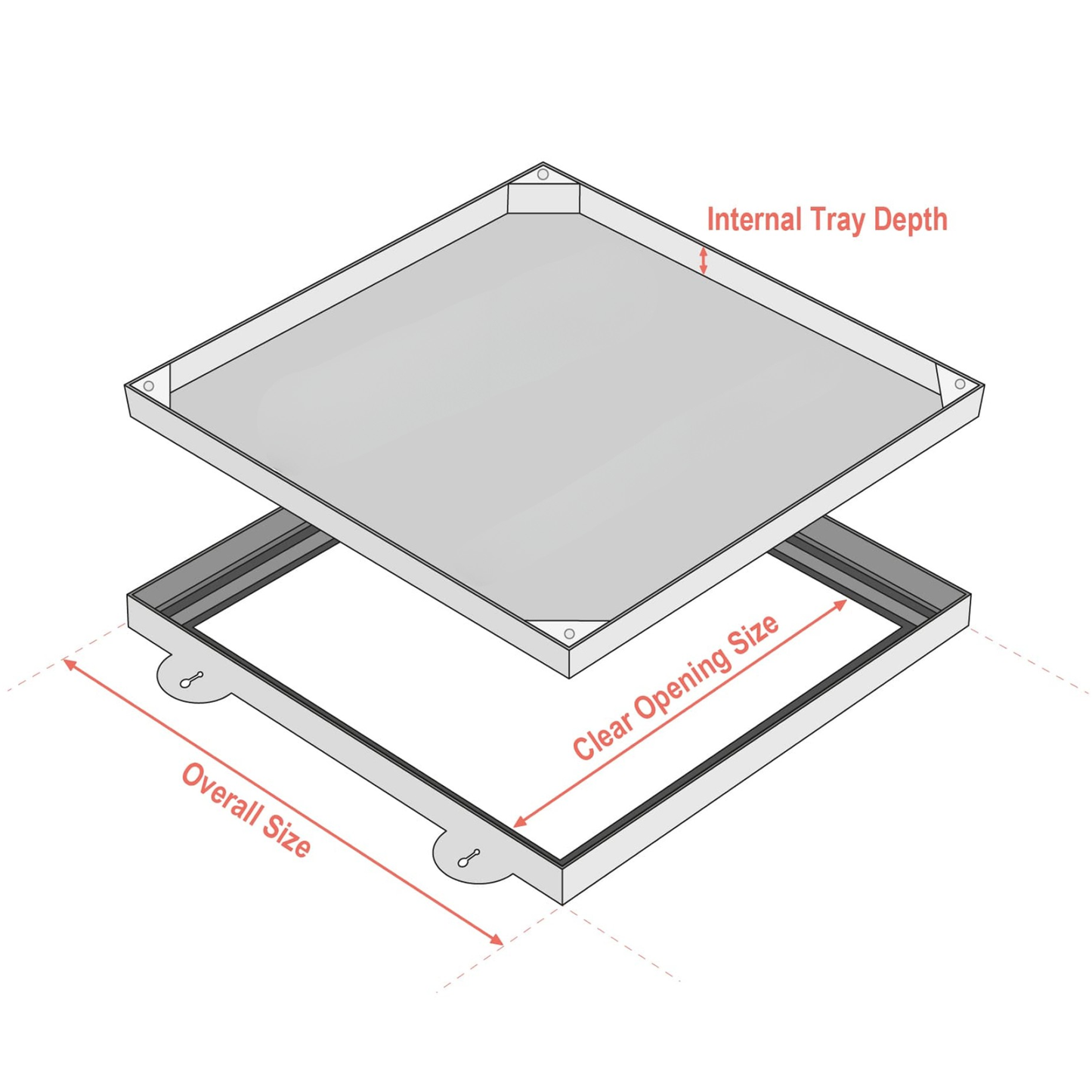

A common specification mistake is ordering by outer size only. The key measurement is the clear opening, which must match the chamber access point. The larger external frame dimension allows the cover to seat correctly onto the chamber.

Dual locking provides added security by locking the lid to the frame and the frame to the chamber.

• 450mm clear opening suits common shallow inspection chamber access sizes
• 35kN load rating suitable for domestic driveways and light vehicle use
• Dual locking design secures lid and frame assembly
• Polypropylene construction will not rust in normal ground conditions
• Lightweight design aids handling during fitting and maintenance access
• Slip-resistant tread pattern improves grip underfoot
• Solid top visible lid suits gravel, grass and tarmac finishes
• Compatible with major PPIC shallow chamber systems
• Reducer ring compatible for restricted access applications

Manufactured from black polypropylene using recyclable material content. Polypropylene offers good durability, low weight and resistance to moisture, making it widely used for chamber covers and underground drainage components.

Product type: Solid top manhole cover and frame
Suitable location: External
Clear opening: 450mm diameter
Overall frame size: 550mm diameter
Tray depth (recess depth): Not applicable
Frame depth: 80mm
Material: Polypropylene
Finish: Black
Seal type: Plain seated
Locking: Dual locking screws
Load rating: 35kN, 3.5 tonne
Lifting method: Unlock and lift cover
Fixings supplied: Integrated locking screws
Weight: Approx. 6kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3
Options: Compatible with CD 499 reducer ring
