450mm Diameter Square to Round Grass & Gravel Recessed Manhole Cover 3.5 Tonne

This square to round recessed manhole cover is designed for installations where a circular chamber needs to be concealed within a square paved or landscaped finish. The square outer frame removes the need to cut paving around a circular opening, allowing a cleaner installation.

The recessed tray allows infill to match the surrounding surface. The grass top version is designed for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and reduces movement under foot or light vehicle loading.

The 80mm tray depth is suited to shallow external build-ups. It allows for turf or aggregate finishes without excessive build height, while maintaining a flush and consistent surface.

The cover uses a galvanised steel tray with a polypropylene frame, providing structural support with corrosion resistance. It is suitable for gardens, pathways and light domestic driveways, but not for frequent or heavy traffic.

Selection should be based on the clear opening of the chamber. This unit is designed to suit standard 450mm diameter systems.

• 450mm diameter clear opening suits standard inspection chambers
• Square outer frame avoids cutting paving around circular openings
• 80mm tray depth suits shallow turf or gravel installations
• Choice of grass top or gravel top with EcoGrid reinforcement
• EcoGrid option stabilises loose aggregate under load
• Galvanised steel tray with polypropylene frame for strength and durability
• Integral lifting points allow safe access for inspection
• Suitable for gardens and light domestic driveway applications

Constructed using a galvanised steel tray for structural support combined with a black polypropylene frame for corrosion resistance. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 450mm diameter
Overall frame size: 580mm x 580mm
Tray depth (recess depth): 80mm
Frame depth: 88mm
Material: Galvanised steel tray with polypropylene frame
Finish: Black frame with galvanised tray
Seal type: None
Locking: No
Load rating: 3.5 tonne (light vehicular)
Lifting method: Integral lifting points
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:

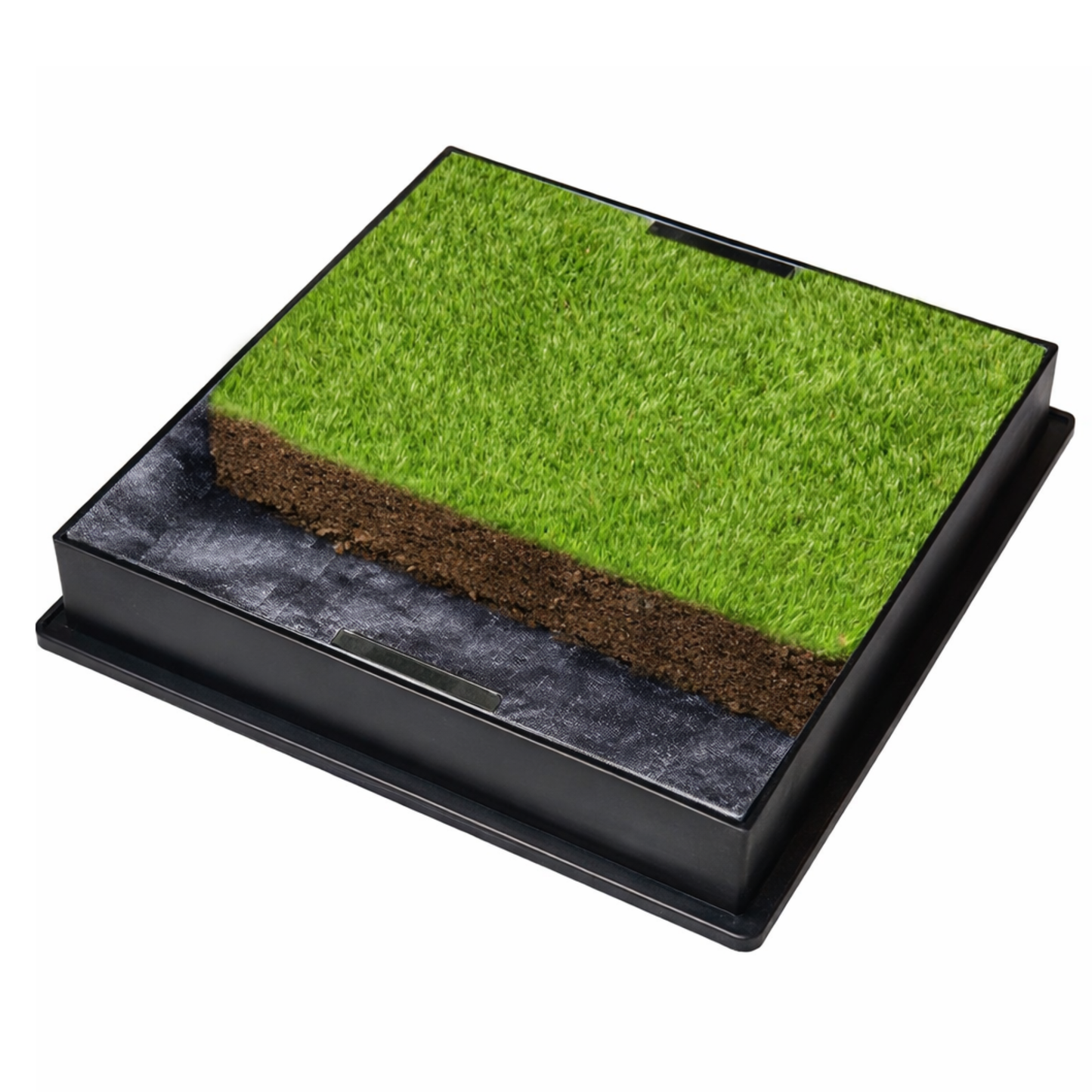

CD 450SR-GT, Grass Top, 450mm diameter clear opening, 580mm x 580mm overall frame size

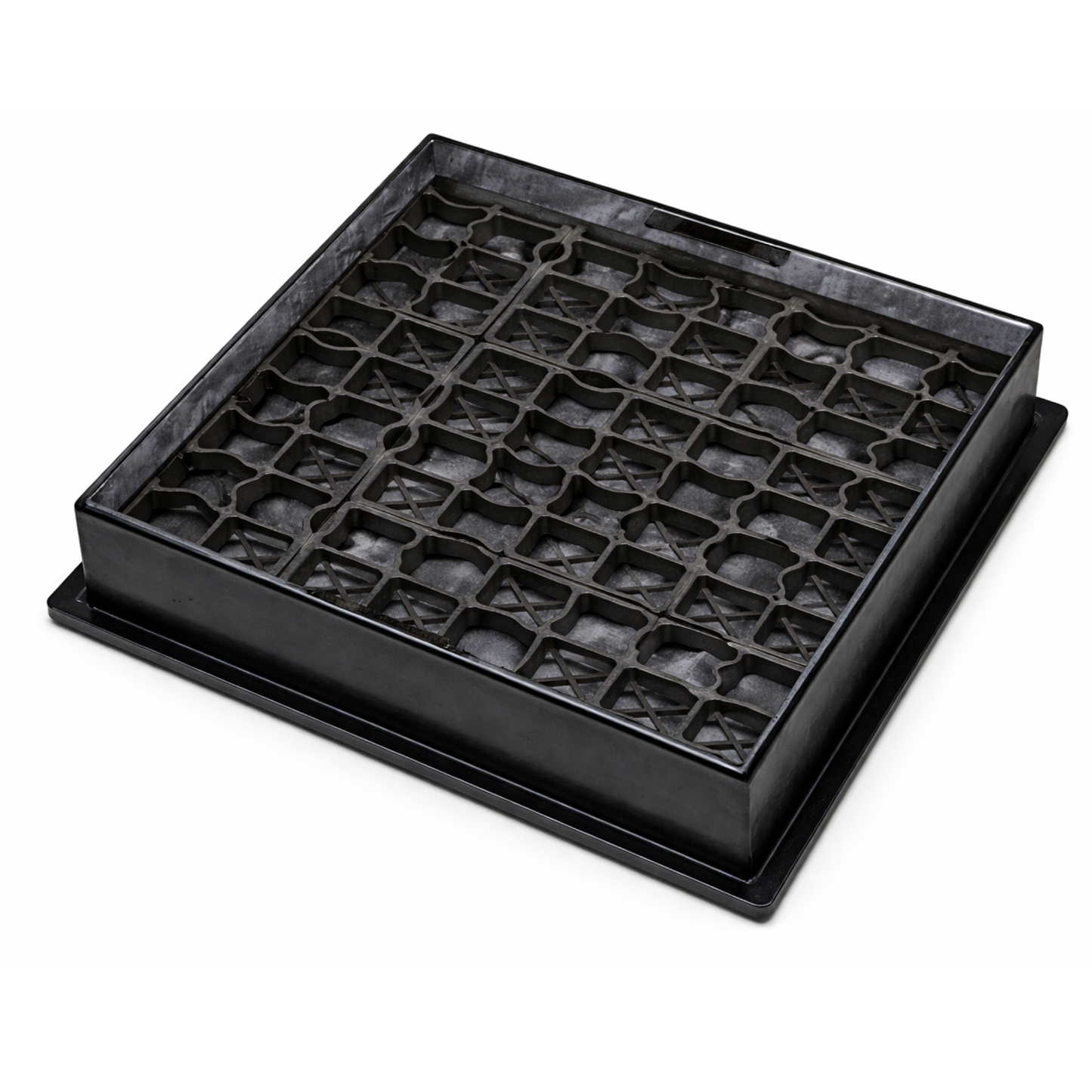

CD 450SR-GT-EG, Gravel Top, 450mm diameter clear opening, 580mm x 580mm overall frame size
