450mm Square to Round Sealed & Locking Recessed Manhole Cover

The 450mm square to round sealed and locking recessed manhole cover is designed for installations where a standard recessed cover does not provide sufficient sealing performance. It combines a galvanised steel recessed tray with a polypropylene frame, allowing for a durable but lightweight access solution.

This cover is primarily used in internal environments such as kitchens, basements and utility areas, where odour control is required. The factory fitted rubber gasket works with the screw locking system to compress the lid onto the frame, helping reduce the escape of odours from the drainage system.

It is also suitable for external pedestrian areas such as patios, where it can limit debris and surface water entering the chamber. However, it is not suitable for trafficked areas due to its 5 tonne load rating.

A common issue with chamber covers is incorrect sizing or poor sealing in internal floors. This unit is designed specifically for standard 450mm chambers, providing a consistent fit and improved sealing compared to non-locking recessed covers.

• 450mm clear opening suits standard inspection chambers without adaptors
• Rubber gasket seal helps reduce odour escape in internal environments
• Four screw locking system secures the cover and improves sealing performance
• Recessed tray allows concrete or screed infill for a flush finish
• 5 tonne load rating suitable for pedestrian areas and light external use
• Polypropylene frame resists corrosion in damp or internal conditions
• Integrated lifting handles allow safe removal without separate keys
• Moulded grouting flange helps secure the frame during installation

The tray is manufactured from galvanised mild steel for strength and durability in typical building environments. The frame is made from polypropylene, which is lightweight, non-corrosive and stable in damp conditions. This combination reduces overall weight while maintaining structural performance.

Product type: Sealed and locking recessed manhole cover (square to round)
Suitable location: Internal and external pedestrian areas

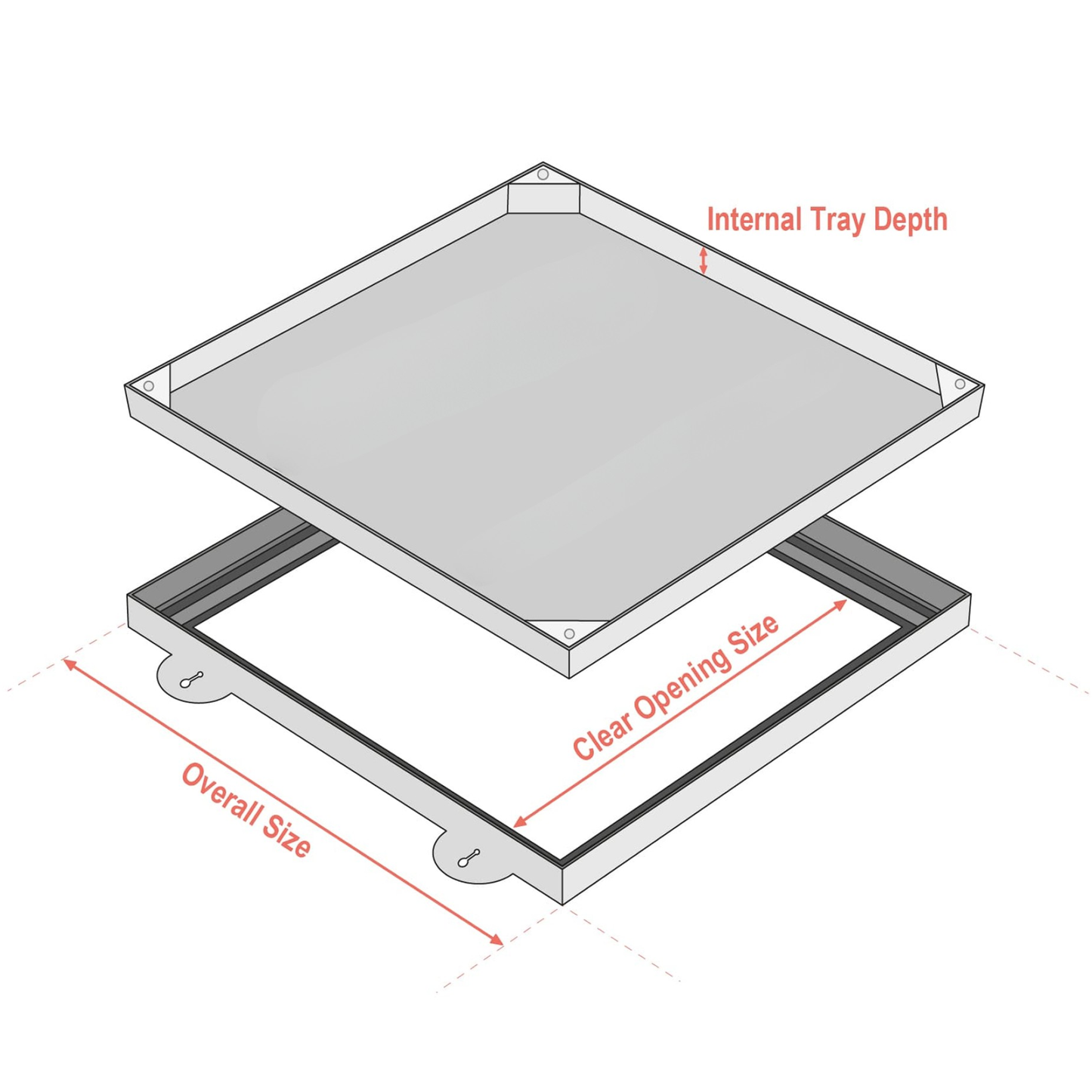

Clear opening: 450mm diameter
Overall frame size: 580mm x 580mm
Tray depth (recess depth): 43.5mm
Frame depth: 52mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Integrated lifting handles
Fixings supplied: Not specified
Weight: 10kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: None
