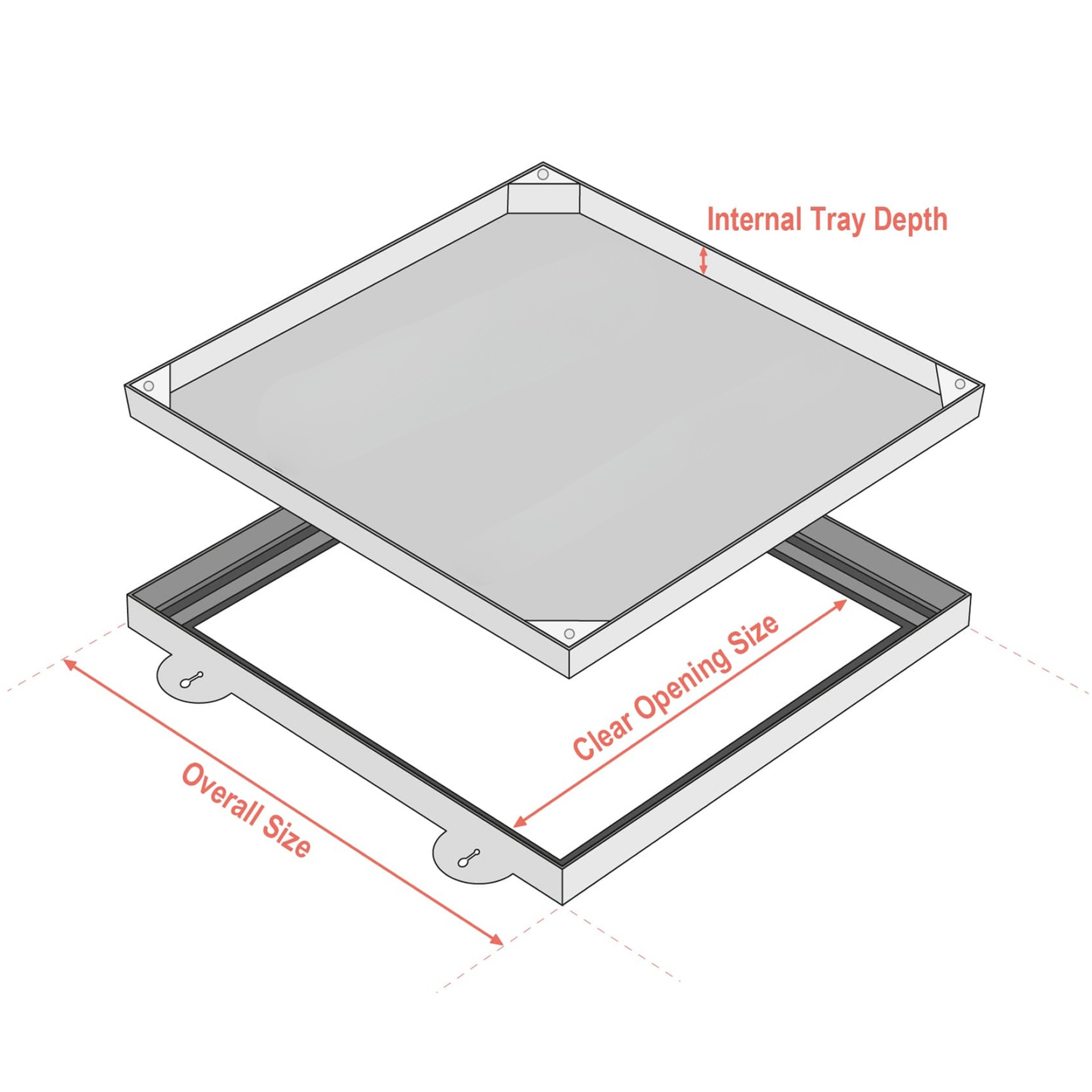

• manhole cover measurement graphic
1 2

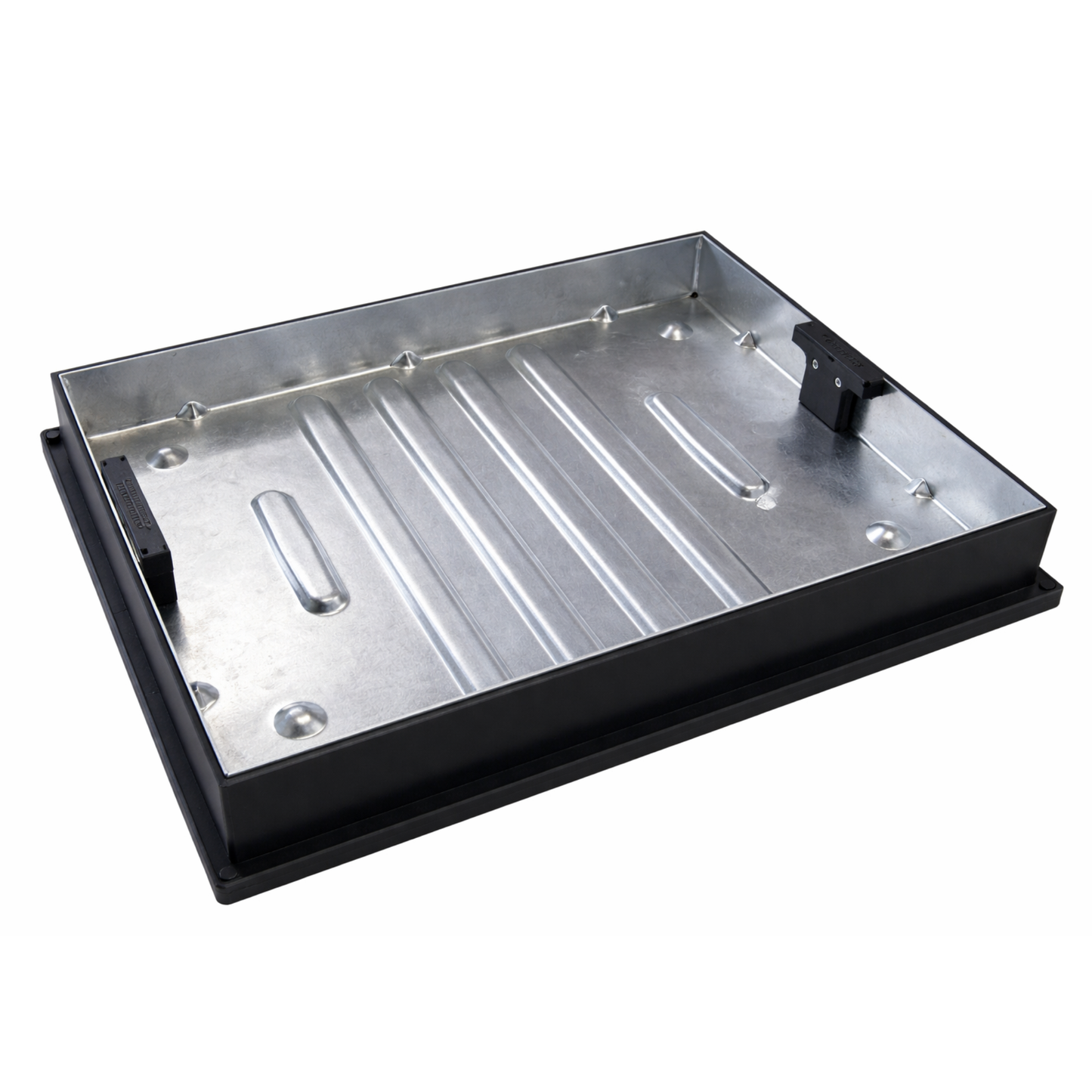

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

Clear Opening: 600mm x 450mm
Tray Depth: 65mm
External Dimensions: 695mm x 545mm x 78mm

Recessed manhole cover designed for block paving, slabs and standard paving build-ups. Suitable for patios, driveways and paved areas where a flush finish is required.

The 65mm tray depth suits typical block paving and bedding layers, allowing the cover to sit level with the surrounding surface.

£58.38
£58.38
Tax included. Shipping calculated at checkout.

38 in stock

CD 790R

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

Description

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains level and consistent. It is commonly used over inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel tray provides structural strength, while the frame transfers load into the surrounding ground rather than through the infill material.

The 65mm tray depth is suited to standard block paving and bedding layers. This makes it a practical option for most driveway and patio installations without requiring adjustments to the build-up. Selecting the correct depth helps maintain a stable infill and flush finish.

The cover combines a galvanised steel tray with a polypropylene frame, reducing weight while maintaining durability. It is non-sealed and intended for external applications.

Key Features

10 tonne load rating suitable for domestic driveways and light vehicle traffic

65mm tray depth matches standard block paving and bedding build-ups

Recessed lid allows paving to continue without visible interruption

Galvanised steel tray provides strength under load

Polypropylene frame reduces weight and improves corrosion resistance

Frame transfers load into surrounding structure, not through the infill

Integral lifting keys allow safe and straightforward removal

Suitable for patios, driveways and general paved areas

Material Composition

The cover uses a galvanised steel tray for structural strength combined with a polypropylene frame (Grade AP9) to reduce weight and improve corrosion resistance in external installations.

Product Specifications

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 600mm x 450mm
Overall frame size: 695mm x 545mm
Tray depth (recess depth): 65mm
Frame depth: 78mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised / black polypropylene
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting keys
Fixings supplied: No
Weight: 12kg
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: None

Block Paving Recessed Manhole Covers

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

Is 65mm the right depth for standard block paving?

Yes. It suits most block paving and bedding layers, making it suitable for typical driveway and patio builds.

Is this suitable for driveway use?

Yes. It is rated to 10 tonnes and suitable for domestic driveways with light vehicle traffic.

Can this be used indoors?

It can be used in non-sealed internal areas, but it will not prevent odours. For internal drainage points, a sealed cover is recommended.

Does the infill material carry any load?

No. The load is carried by the frame and transferred into the surrounding structure. The infill is only for the surface finish.

Why choose a polypropylene frame?

It reduces overall weight and improves resistance to corrosion compared to a fully steel unit.
