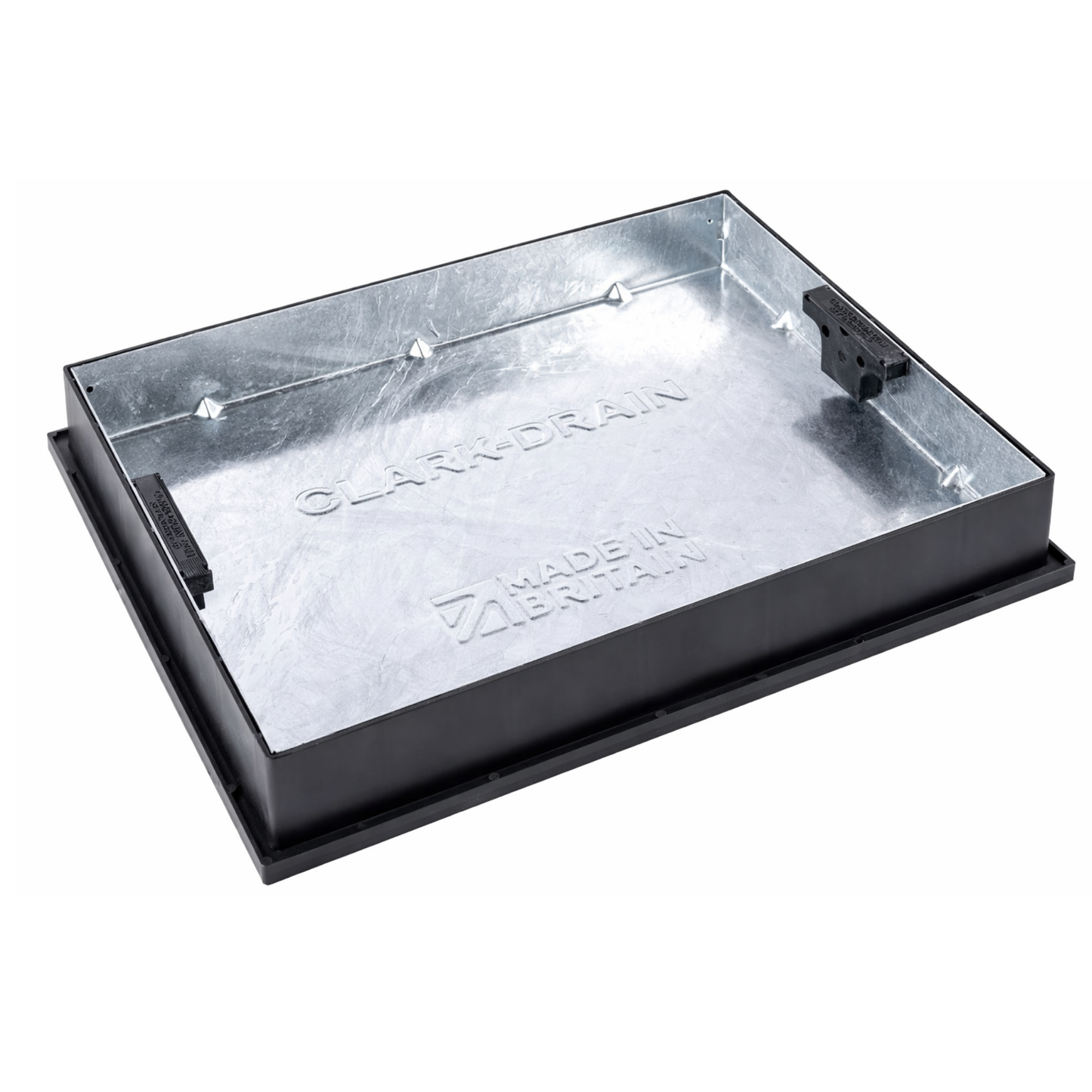

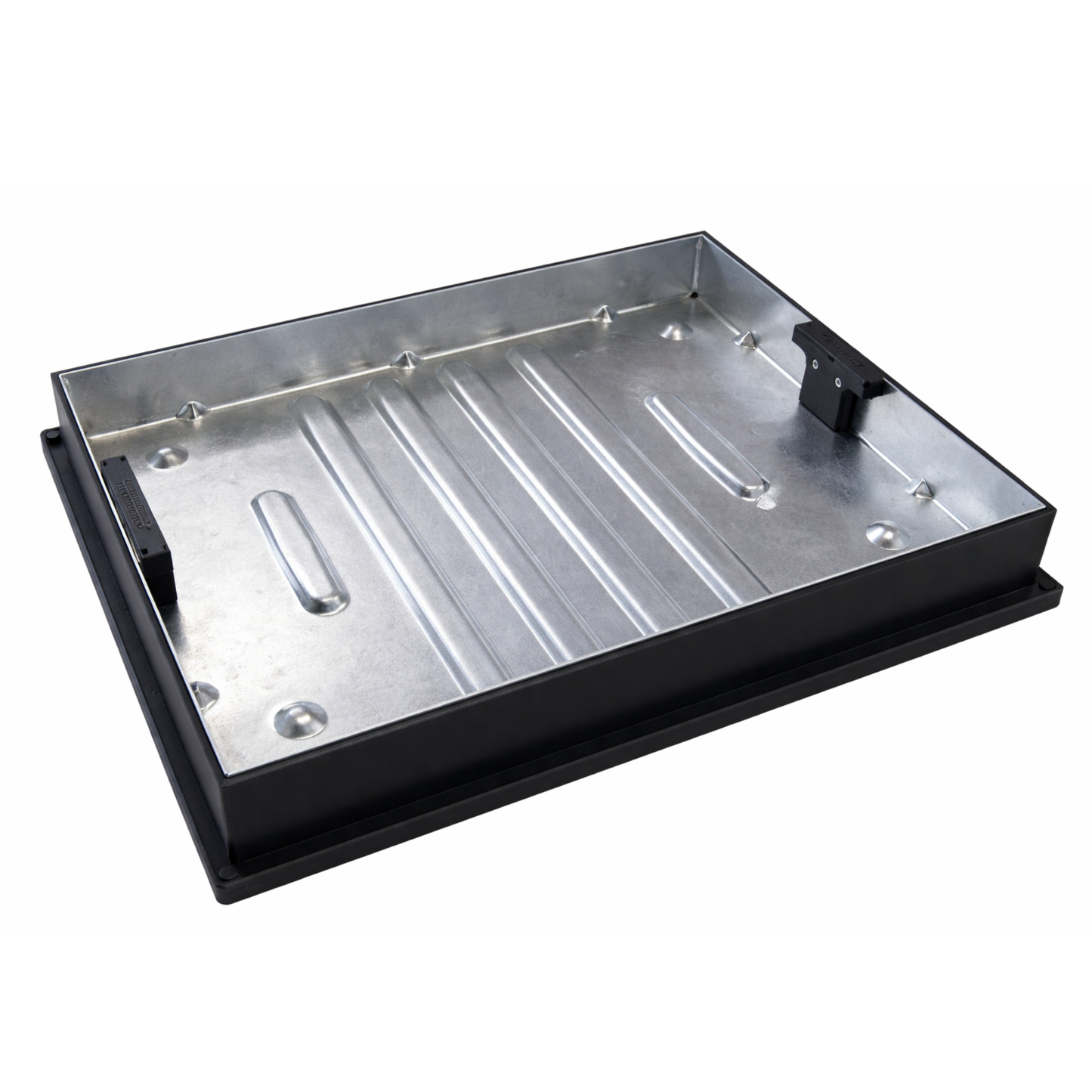

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains continuous. It is commonly used over inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel tray provides the structural strength, while the surrounding frame transfers load into the ground rather than through the infill material.

The 80mm tray depth is suited to deeper paving build-ups, including thicker slabs or installations where additional bedding layers are required. This helps avoid weak infill and ensures the finished surface sits flush with surrounding levels.

The cover combines a galvanised steel tray with a polypropylene frame, reducing overall weight while maintaining durability in external environments. It is non-sealed and intended for external use.

10 tonne load rating suitable for domestic driveways and light vehicle traffic

80mm tray depth supports deeper paving and construction build-ups

Recessed lid allows paving to continue without visible interruption

Galvanised steel tray provides structural strength under load

Polypropylene frame reduces weight and improves corrosion resistance

Frame transfers load into surrounding structure, not through the infill

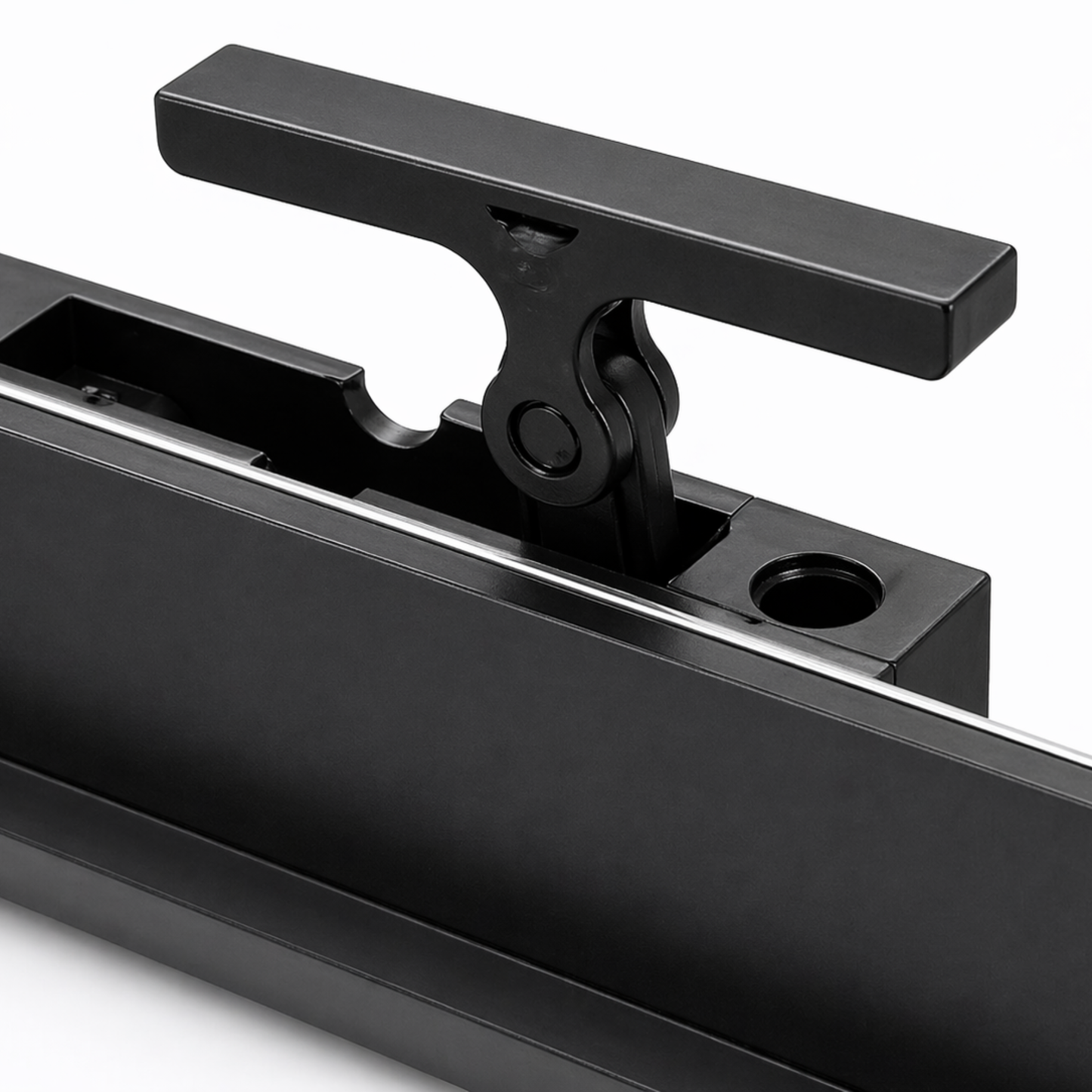

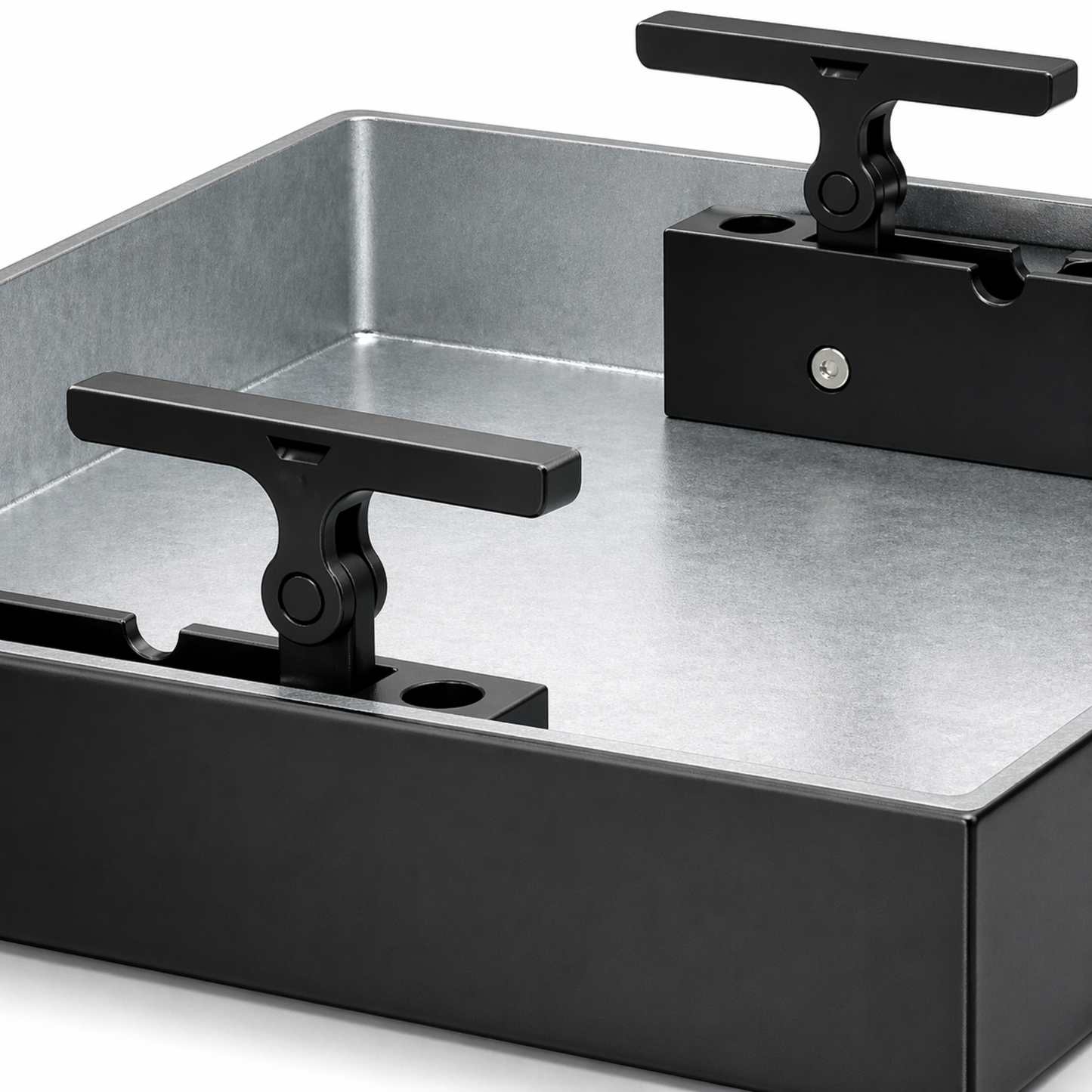

Integral lifting keys allow safe and straightforward access

Suitable for patios, driveways and general paved areas

The cover uses a galvanised steel tray for structural strength combined with a polypropylene frame (Grade AP9) to reduce weight and improve corrosion resistance in external installations.

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 600mm x 450mm
Overall frame size: 695mm x 545mm
Tray depth (recess depth): 80mm
Frame depth: 92–96mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised / black polypropylene
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting keys
Fixings supplied: No
Weight: 14.5kg
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: None
