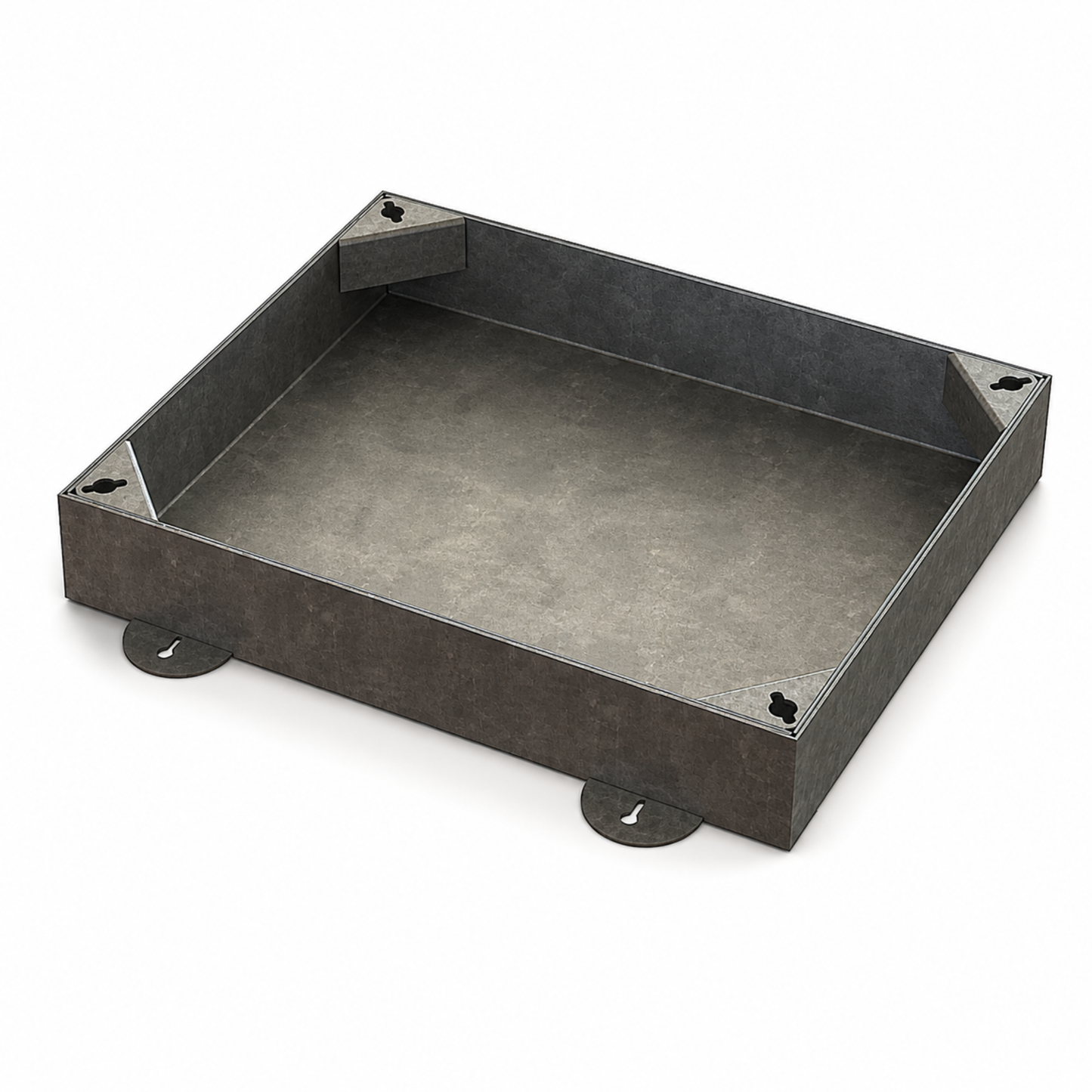

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

Clear Opening: 600mm x 450mm
Tray Depth: 100mm
External Dimensions: 706mm x 556mm x 106mm

Recessed manhole cover designed for block paving, slabs and deep paving build-ups. Suitable for patios, driveways and paved areas where a flush finish is required.

The 100mm tray depth accommodates thicker construction layers, making it suitable for raised levels or installations with increased build-up.

£155.37
£155.37
Tax included. Shipping calculated at checkout.

Hurry up! Only 10 items in stock.

EG6045/100

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne

Description

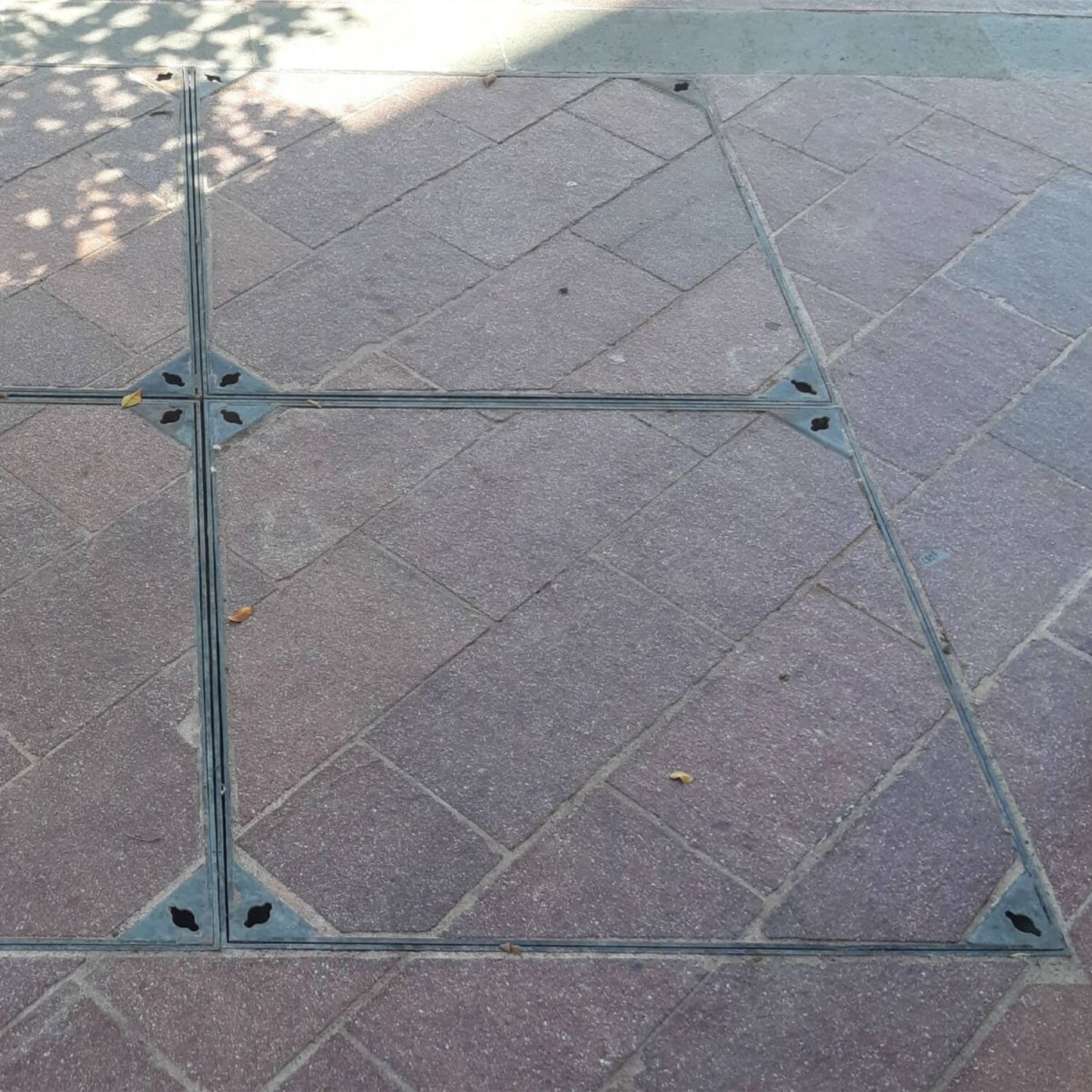

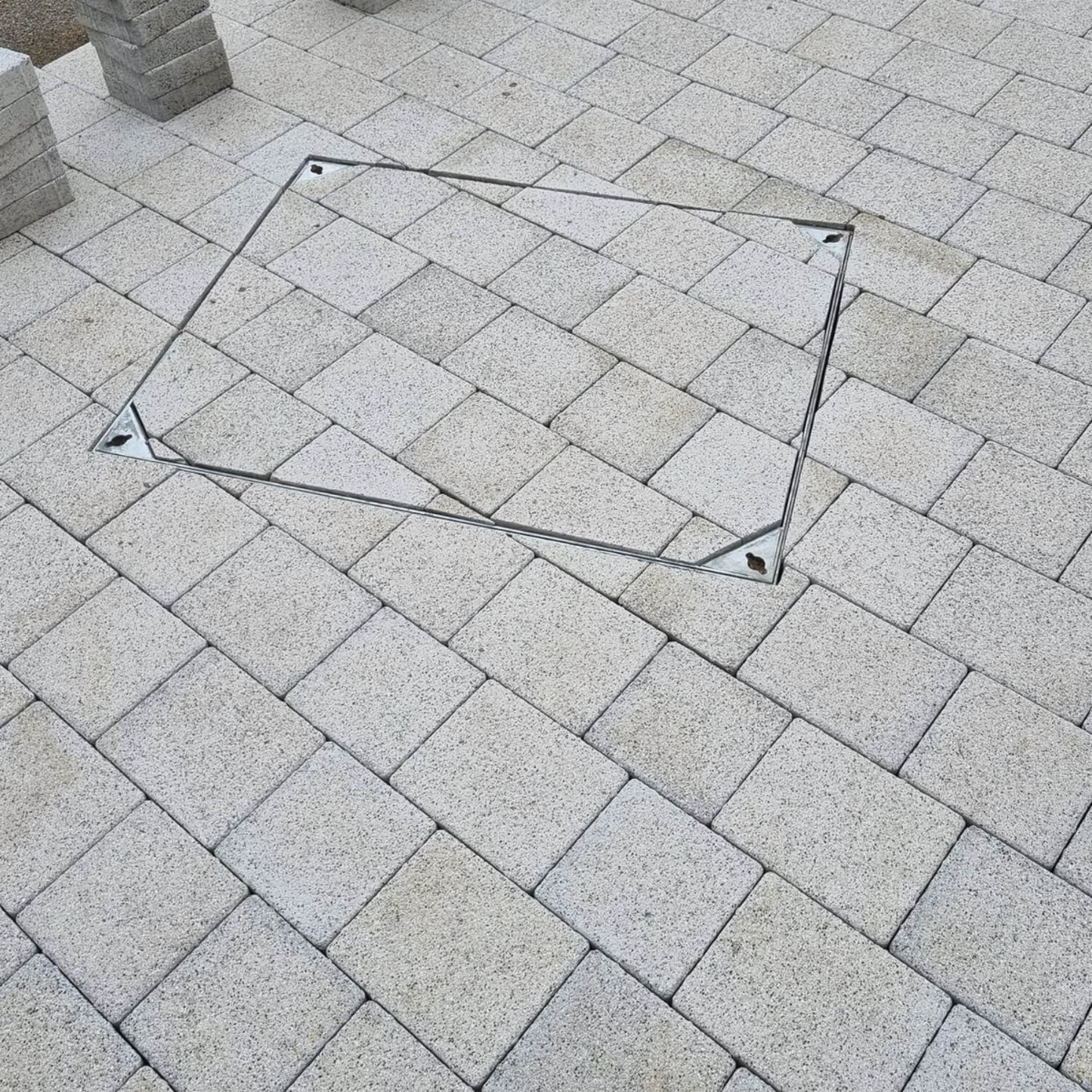

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains level and consistent. It is typically used over inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel construction provides structural strength, while the frame transfers load into the surrounding ground rather than through the infill material.

The 100mm tray depth is intended for deeper paving build-ups, including thicker slabs, increased bedding layers or raised patio constructions. This ensures the infill is properly supported and the finished surface aligns with surrounding levels.

Selecting the correct tray depth is important. Using a shallow tray in a deep build-up can lead to weak infill, while an overly deep tray can complicate installation. This version is suited to installations where depth is required.

This cover is non-sealed and intended for external use only.

Key Features

  • 10 tonne load rating suitable for domestic driveways and light vehicle traffic
  • 100mm tray depth supports deep paving and construction build-ups
  • Recessed lid allows paving to continue without visible interruption
  • Galvanised steel construction provides strength in external environments

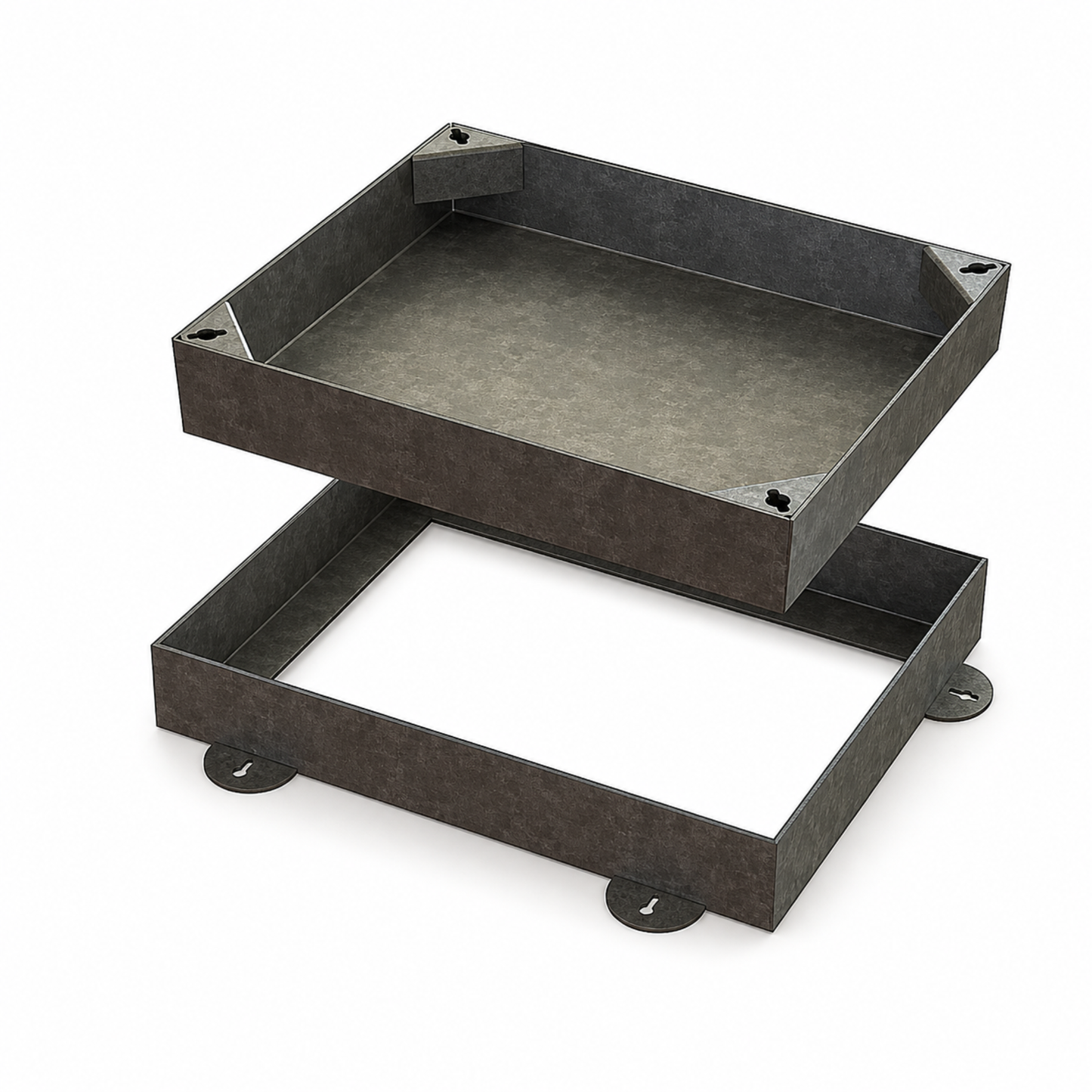

  • Frame transfers load into surrounding structure, not through the infill
  • Suitable for raised patios and areas with increased build-up depth
  • Compatible with standard lifting keys for safe removal
  • Designed for patios, driveways and general paved areas

Material Composition

Manufactured from galvanised steel to provide structural strength and resistance to corrosion in typical external ground conditions. Suitable for general outdoor use but not for aggressive or chemically exposed environments.

Product Specifications

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 600mm x 450mm
Overall frame size: 706mm x 556mm
Tray depth (recess depth): 100mm
Frame depth: 106mm (excluding fixing lugs)
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Not specified
Standards: FACTA AAA, BS EN material and galvanising references
Options: Bespoke sizes available

Block Paving Recessed Manhole Covers

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

When should I choose a 100mm tray depth?

When your paving build-up is deeper than standard, such as raised patios or thicker slab installations.

Is this suitable for driveway use?

Yes. It is rated to 10 tonnes and suitable for domestic driveways with light vehicle traffic.

Can this be used with standard block paving?

Yes, but only if your build-up requires the extra depth. Otherwise, a shallower tray may be more appropriate.

Is this cover sealed?

No. It is not sealed and is intended for external use only.

Does the infill material carry any load?

No. The load is carried by the frame and transferred into the surrounding structure. The infill is only for the surface finish.
