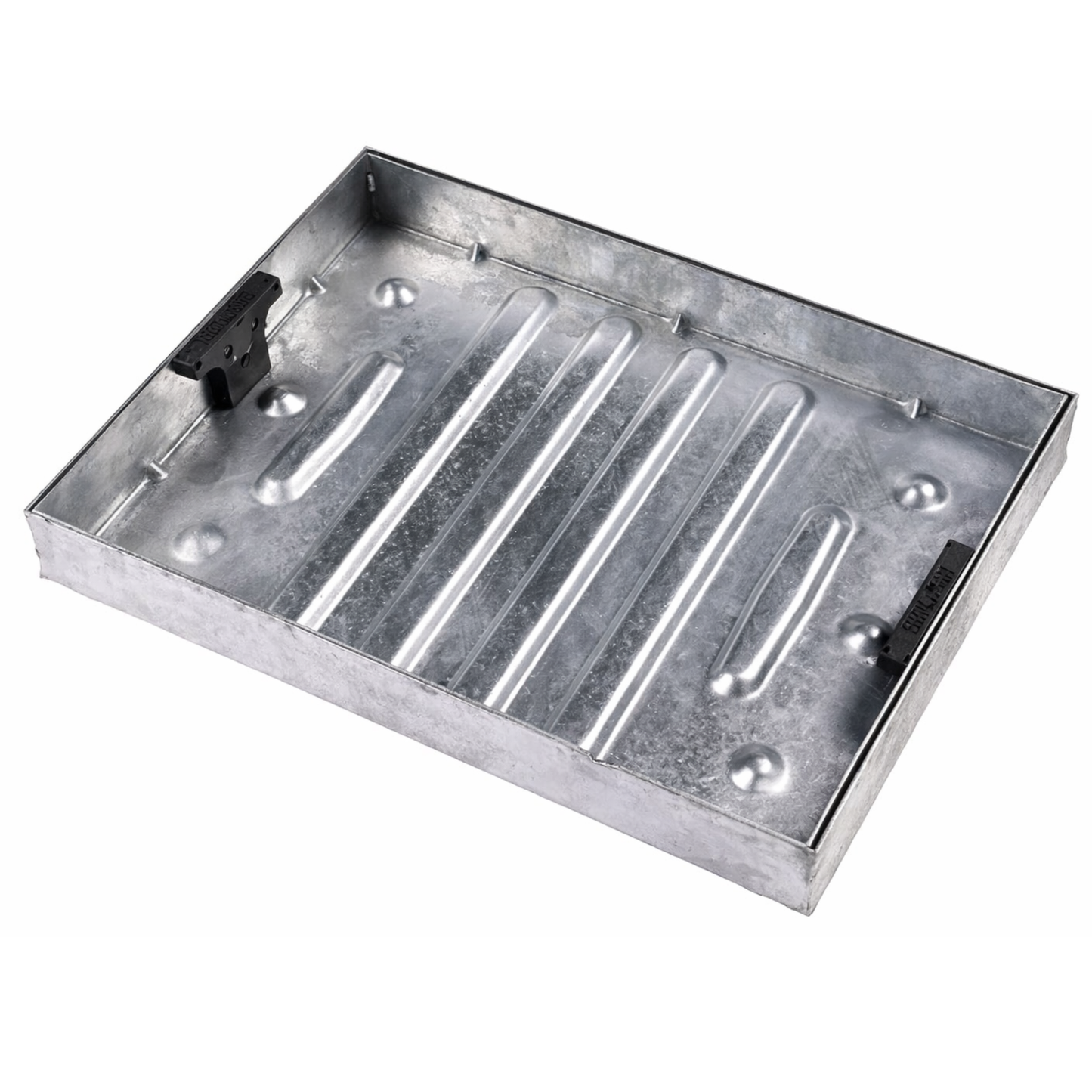

600 x 450mm Block Paving Recessed Manhole Cover 10 Tonne Galvanised Steel

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains continuous. It is typically used over inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas with light vehicle traffic. The fully galvanised steel construction provides increased rigidity compared to composite or polypropylene frame designs, helping maintain stability under load and improving bedding performance during installation.

The 80mm tray depth is suited to deeper paving build-ups, including thicker slabs or additional bedding layers. This ensures the infill sits flush with the surrounding surface without compromising support.

Unlike mixed material designs, this unit is fully steel, which can be preferred where a more rigid frame is required. It remains non-sealed and is intended for external applications only.

• 10 tonne load rating suitable for domestic driveways and light vehicle traffic
• 80mm tray depth supports deeper paving and construction build-ups
• Fully galvanised steel construction increases rigidity and bedding stability
• Recessed lid allows paving to continue without visible interruption
• Steel frame improves load transfer into surrounding structure
• Integral lifting keys allow safe and straightforward access
• Suitable for patios, driveways and general paved areas
• Designed for installations where additional frame strength is preferred

Manufactured from galvanised steel, providing increased rigidity compared to polypropylene frame designs. This improves load distribution and bedding stability in external installations. Not suitable for aggressive or chemically exposed environments.

Product type: Block paving recessed manhole cover
Suitable location: External

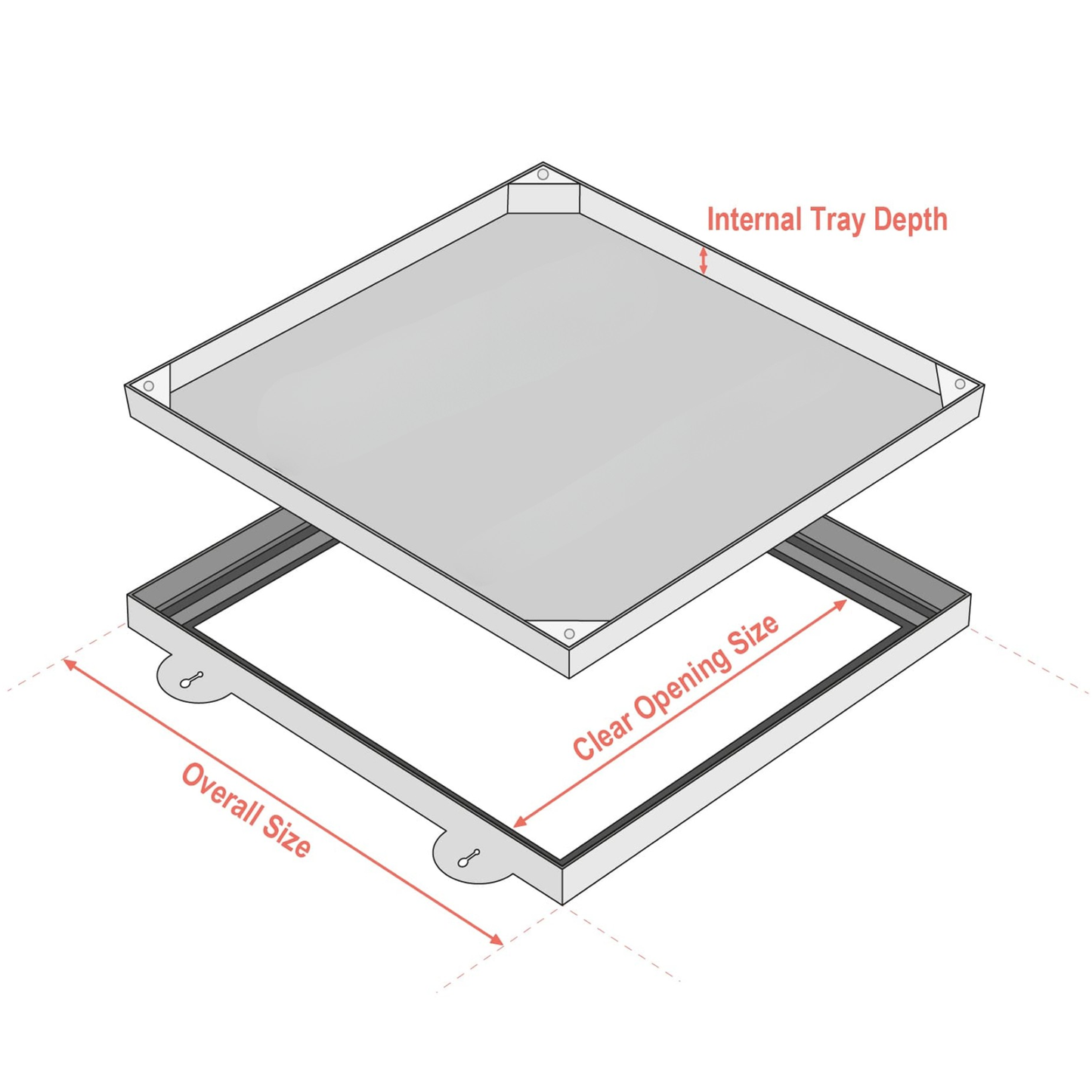

Clear opening: 600mm x 450mm
Overall frame size: 650mm x 500mm
Tray depth (recess depth): 80mm
Frame depth: 85mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting keys
Fixings supplied: No
Weight: Not specified
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3
Options: Fully galvanised steel construction
