600 x 450mm Grass & Gravel Recessed Manhole Cover 10 Tonne Fully Galvanised

This fully galvanised recessed manhole cover is designed for concealed access within grass, landscaped and gravel surfaces where additional durability is required. The recessed tray allows the selected infill to sit flush with the surrounding surface, maintaining a consistent finish while keeping access to the chamber below.

Two infill options are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and reduces movement under foot or vehicle loading.

The 80mm tray depth is suited to typical external build-ups, allowing for turf or gravel finishes without excessive build height. This helps avoid issues with shallow installations where infill becomes unstable or fails to establish properly.

Unlike mixed material versions, this unit is fully galvanised steel, including both tray and frame. This provides improved durability in exposed environments where long term corrosion resistance is required.

It is suitable for domestic driveways and similar applications with a load rating of 10 tonne when correctly installed. Always select based on the clear opening of the chamber, not the overall frame size.

• 600mm x 450mm clear opening suits standard rectangular chambers
• 80mm tray depth supports turf or gravel build-up
• Fully galvanised steel construction for increased durability
• Choice of grass top or gravel top with EcoGrid reinforcement
• EcoGrid option stabilises loose aggregate under traffic
• Drainage holes and membrane layers support water flow and grass growth
• Integral lifting keys allow safe access for maintenance
• Suitable for landscaping and domestic driveway applications

Manufactured entirely from galvanised steel, including both the tray and frame, providing increased durability compared to mixed material covers. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 600mm x 450mm
Overall frame size: 650mm x 500mm
Tray depth (recess depth): 80mm
Frame depth: 85mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting keys
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:

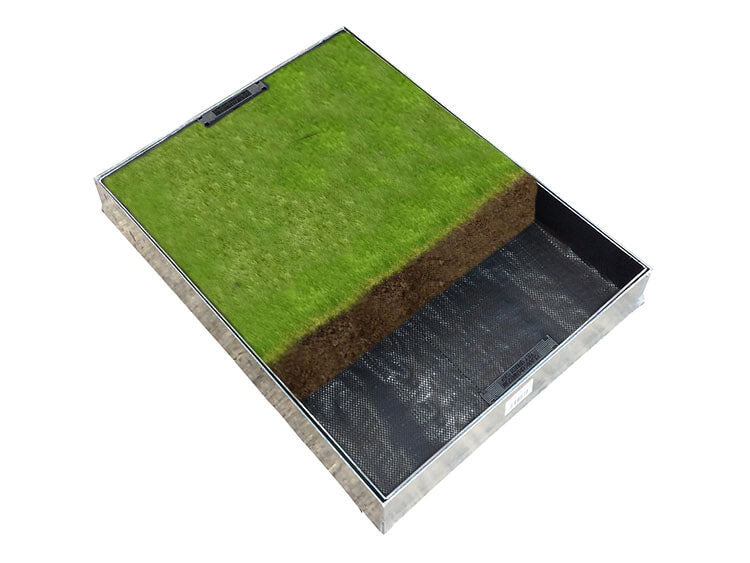

CD 790R/80/SF-GT, Grass Top, 600mm x 450mm clear opening, 650mm x 500mm overall frame size

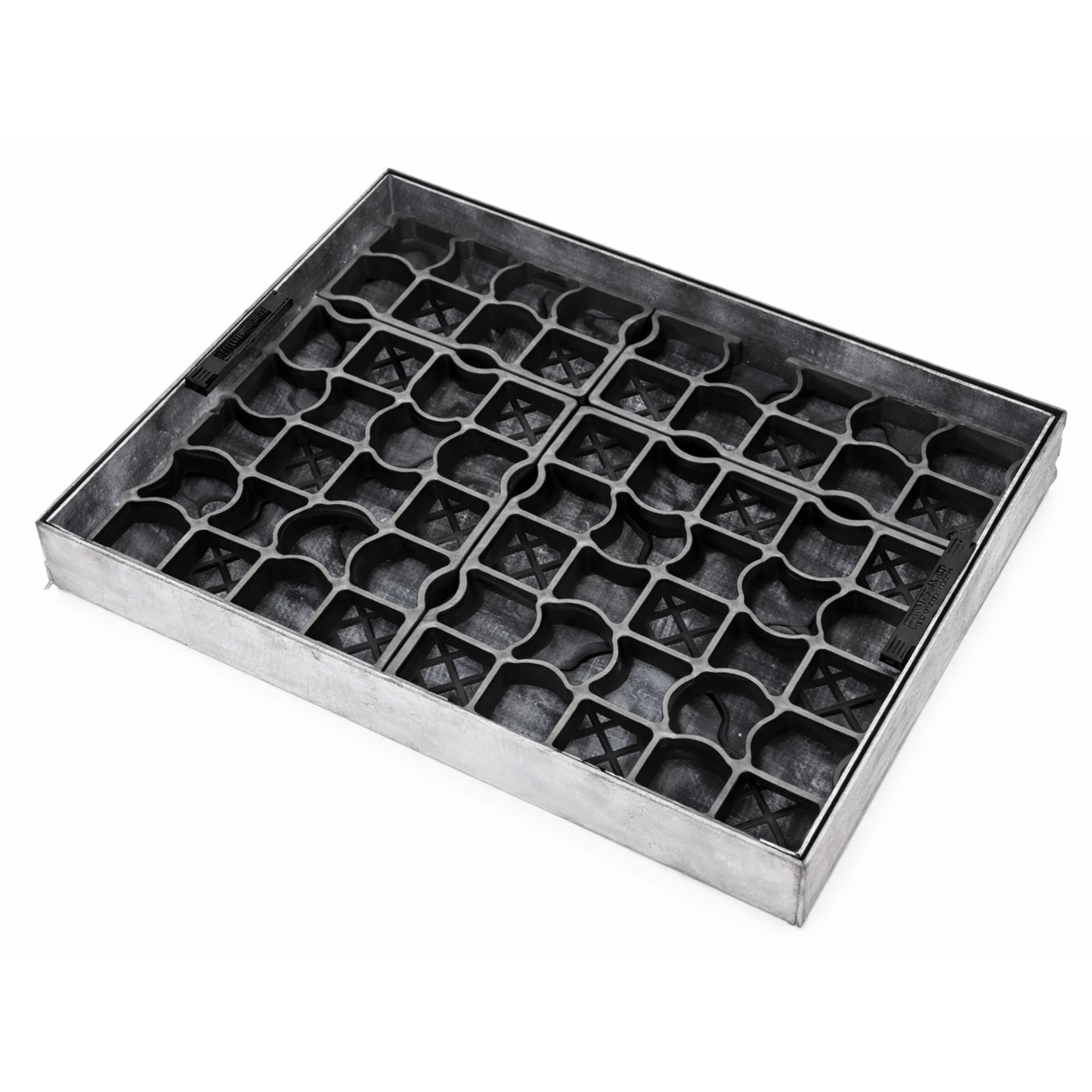

CD 790R/80/SF-GT-EG, Gravel Top, 600mm x 450mm clear opening, 650mm x 500mm overall frame size
