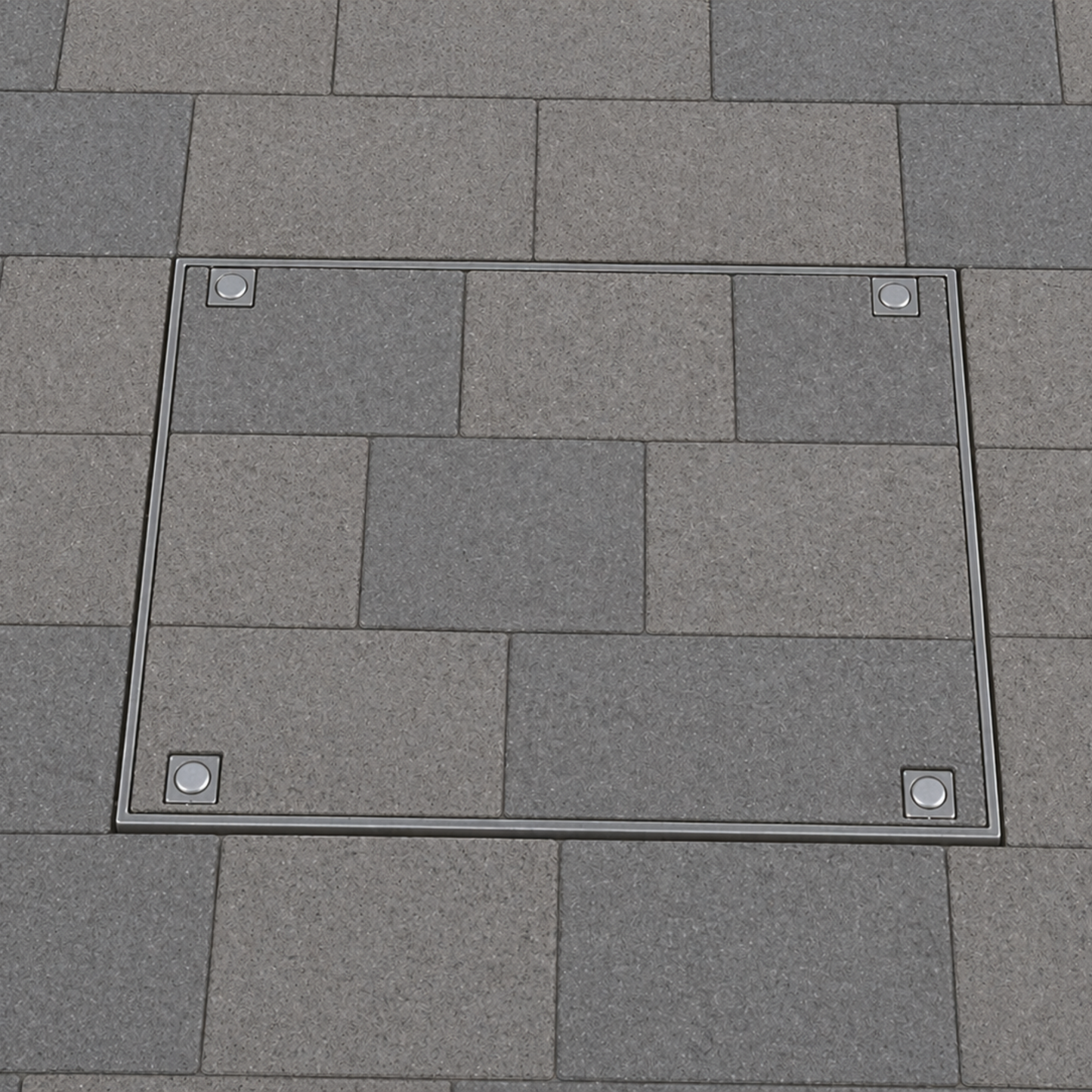

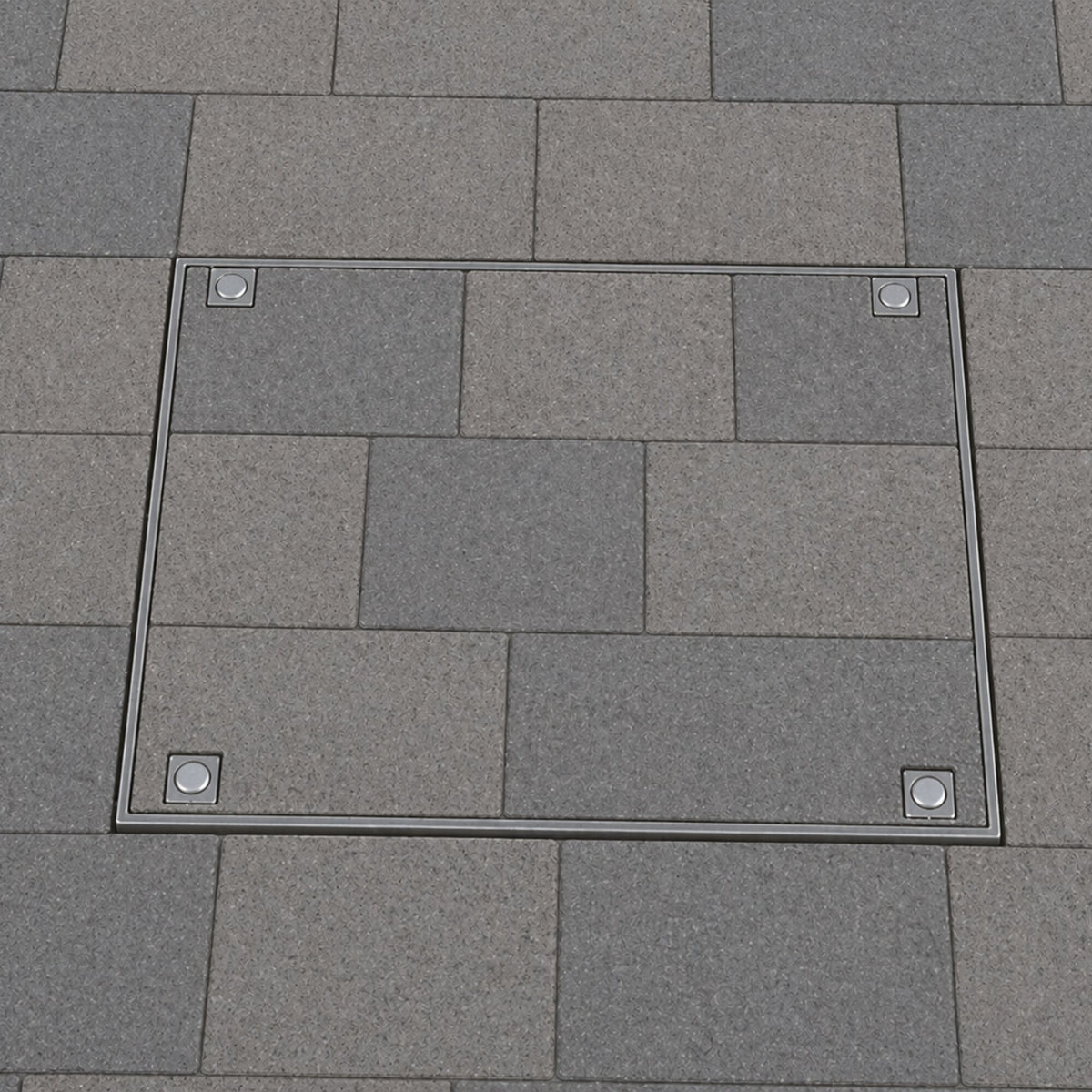

600 x 450mm Sealed & Locking Recessed Manhole Cover Galvanised Steel

The fully galvanised 600 x 450mm sealed and locking recessed manhole cover is designed for installations where both sealing performance and material durability are required. Unlike standard recessed covers that use a polypropylene frame, this unit is manufactured entirely from galvanised steel, providing a more rigid and robust structure.

It is typically used in internal environments such as kitchens, basements and utility areas, where odour control is required. The factory fitted rubber gasket works with the screw locking system to compress the cover onto the frame, helping to reduce odour escape from the drainage system.

Externally, it can be installed in pedestrian areas such as patios, where its galvanised construction provides improved resistance to general wear. However, it is not suitable for trafficked areas due to its 5 tonne load rating.

A common issue with lighter covers is frame movement or long term wear in the bedding. The steel frame construction helps reduce this risk, providing a more stable installation, particularly in screed or concrete floors.

• Fully galvanised steel construction improves rigidity and durability
• 600 x 450mm clear opening suits standard rectangular chambers
• Rubber gasket seal helps prevent odours escaping in internal environments
• Four screw locking system secures the cover and improves sealing performance
• Recessed tray accepts concrete or screed for a flush finish
• 5 tonne load rating suitable for pedestrian areas and light external use
• Tapered steel frame improves bedding and installation stability
• Lifting points require lifting keys for safe removal

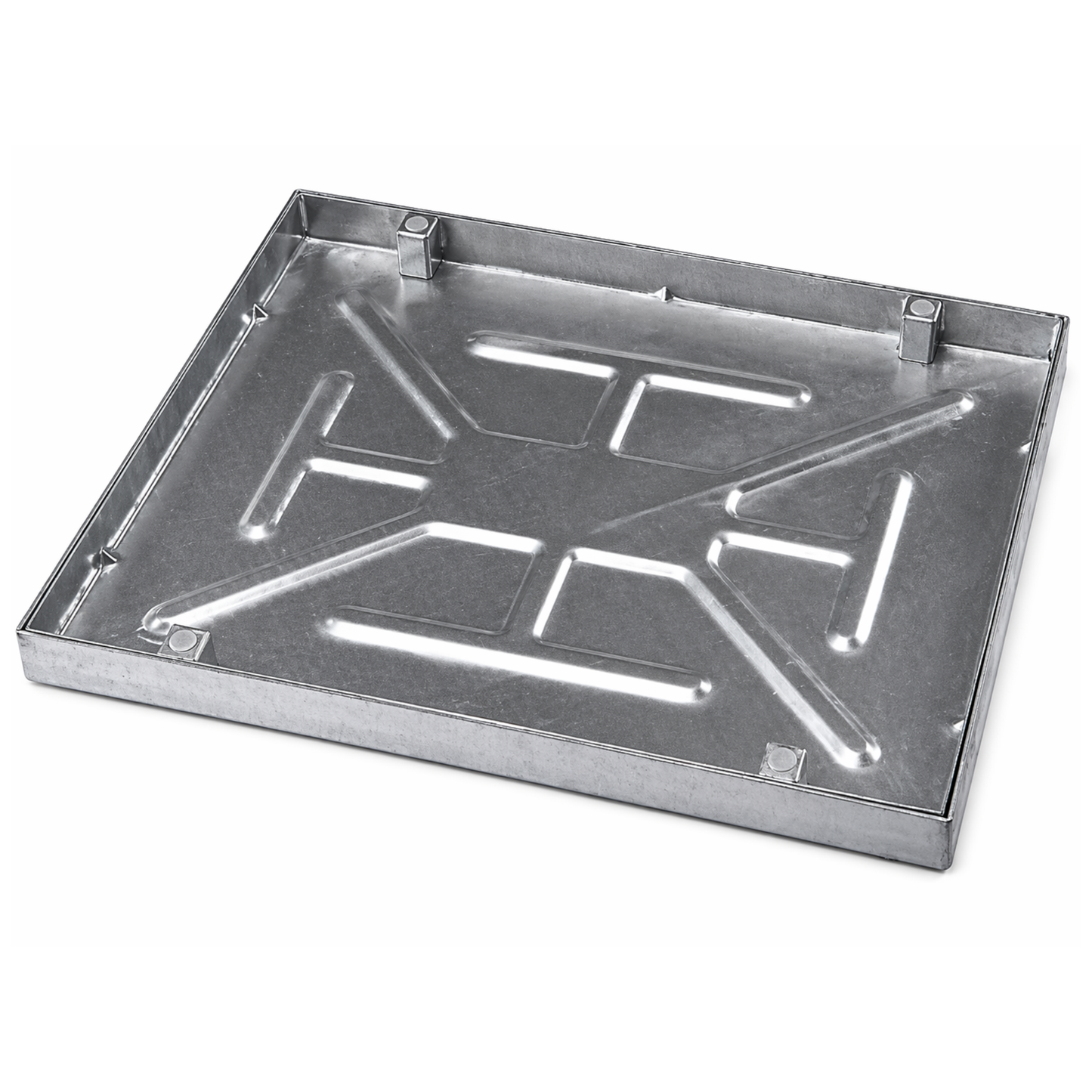

This cover is manufactured entirely from galvanised mild steel, including both the tray and frame. The galvanising process provides protection against general corrosion, while the steel construction increases rigidity compared to polypropylene framed covers. This makes it better suited to installations where frame stability is a concern.

Product type: Sealed and locking recessed manhole cover
Suitable location: Internal and external pedestrian areas
Clear opening: 600mm x 450mm
Overall frame size: 700mm x 550mm
Tray depth (recess depth): 43.5mm
Frame depth: 65mm
Material: Galvanised steel (tray and frame)
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Lifting key required
Fixings supplied: Not specified
Weight: 15kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3
Options: Compatible lifting keys available separately
