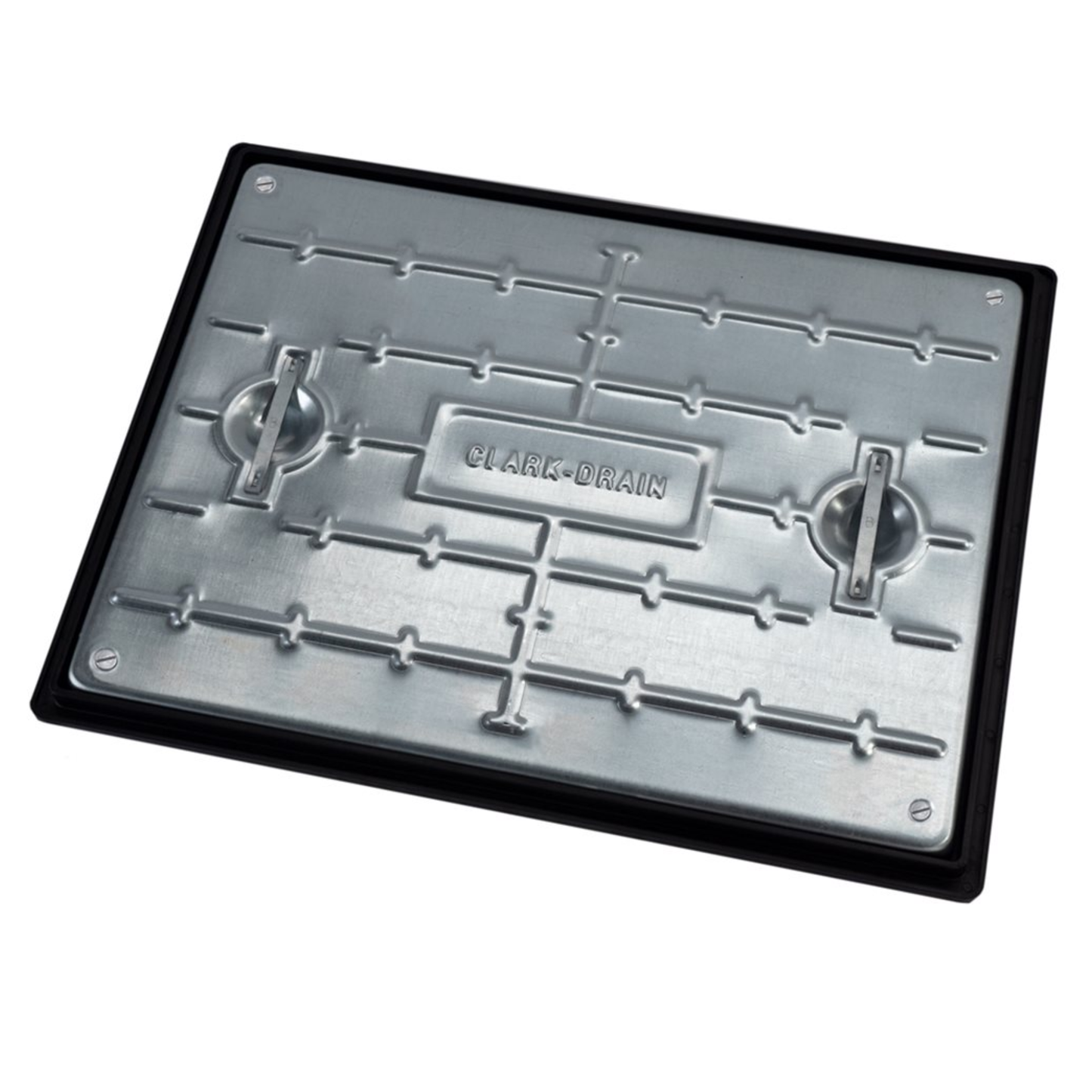

600 x 450mm Sealed & Locking Solid Top Manhole Cover, 5 Tonne

This 600 x 450mm sealed and locking solid top manhole cover is designed for installations where a standard plain seated cover does not provide enough control. It combines a galvanised steel lid with a polypropylene frame, sealing gasket and locking screws to help restrict odours, debris and unwanted lid movement.

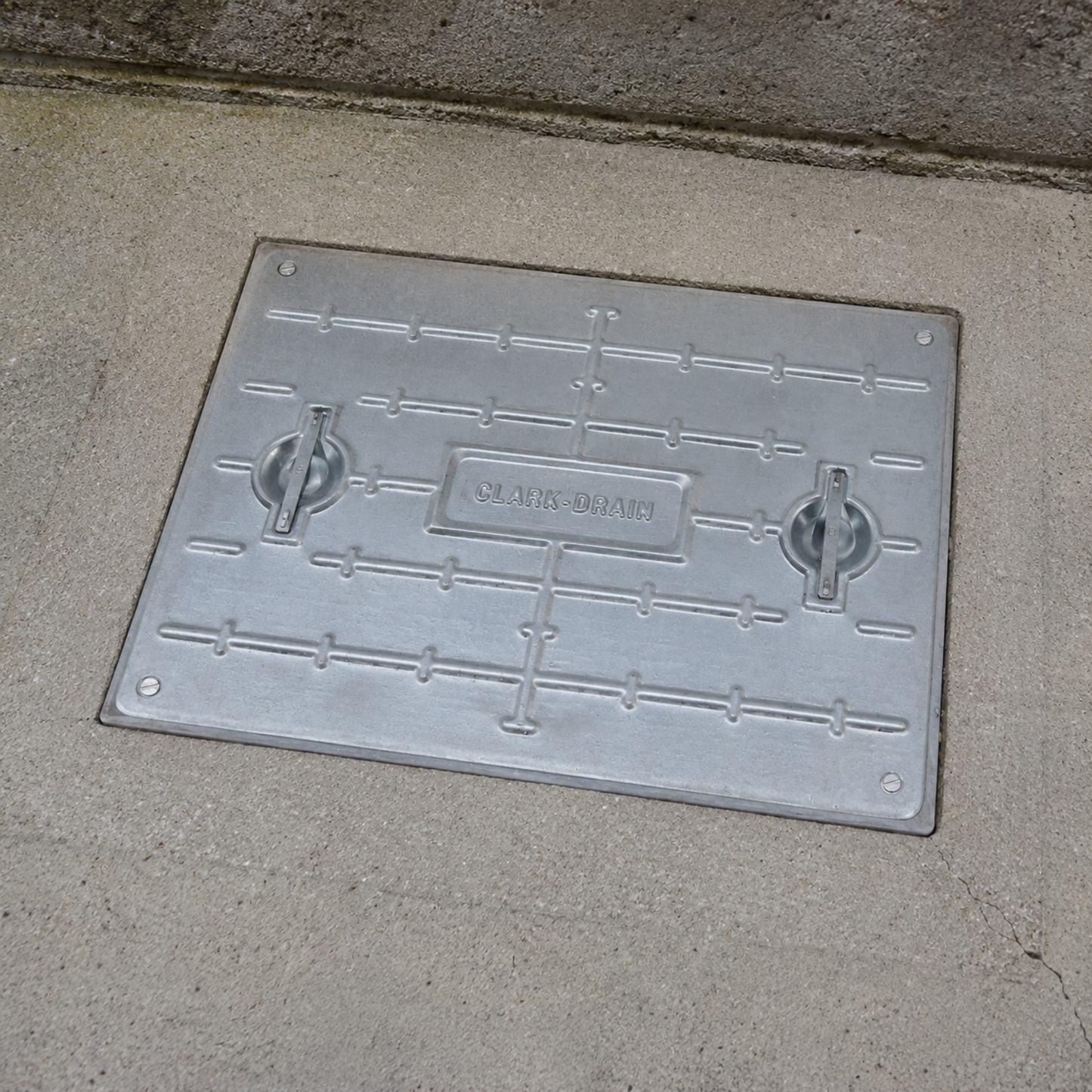

Unlike a recessed cover, the lid remains visible after installation and does not accept infill materials. The shallow 30mm overall depth makes this model useful where paving or floor build-up is limited, or where an existing shallow cover is being replaced.

The galvanised steel lid provides durable load-bearing performance, while the polypropylene frame helps reduce weight and offers corrosion resistance in normal service conditions. Integrated lifting handles allow straightforward removal for maintenance without needing separate lifting keys.

This model has a fixed 5 Tonne gross plated weight rating and is intended for domestic driveways, cars and similar light vehicles in private settings. It can also suit internal service areas where the loading and floor construction are appropriate.

A common mistake is assuming a sealed cover will solve every drainage odour issue. The gasket helps restrict smells escaping through the lid, but the chamber and drainage system must also be functioning correctly.

• Sealing gasket helps restrict odours, debris and surface contamination
• Locking screws secure the lid to the frame and reduce movement in service
• 5 Tonne load rating suitable for domestic driveways and light vehicles
• Shallow 30mm overall depth suits restricted build-up areas
• Galvanised steel lid provides durable load-bearing performance
• Polypropylene frame offers corrosion resistance and reduced handling weight
• Integrated lifting handles allow access without separate lifting keys
• 600mm x 450mm clear opening suits many drainage and utility chambers
• Visible solid top lid provides quick access point identification
• Moulded grouting flange assists frame bedding during installation

Manufactured with a mild steel cover and polypropylene Grade AP9 frame. The steel lid provides structural strength and is galvanised to BS EN 1461:2018, while the polypropylene frame helps resist corrosion and keeps weight lower than all-steel alternatives.

Product type: Sealed and locking solid top manhole cover
Suitable location: Internal or external
Clear opening: 600mm x 450mm
Overall frame size: 663mm x 513mm
Overall depth: 30mm
Material: Mild steel cover, polypropylene frame
Finish: Galvanised steel lid to BS EN 1461:2018
Seal type: Sealing gasket
Locking: M8 x 20 Pozi countersunk locking screws
Load rating: 5 Tonne GPW
Lifting method: Integrated lifting handles
Fixings supplied: Integrated locking screws
Weight: 6.5kg
Standards: FACTA Clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: PC6BG3, 600mm x 450mm clear opening, 663mm x 513mm overall frame size
