600 x 450mm Stainless Steel 316 Recessed Manhole Cover

This recessed manhole cover is manufactured from grade 316 stainless steel for installations where corrosion resistance is required. It is typically specified in internal wet areas such as plant rooms, commercial kitchens and changing facilities, as well as external environments exposed to regular cleaning or harsh conditions.

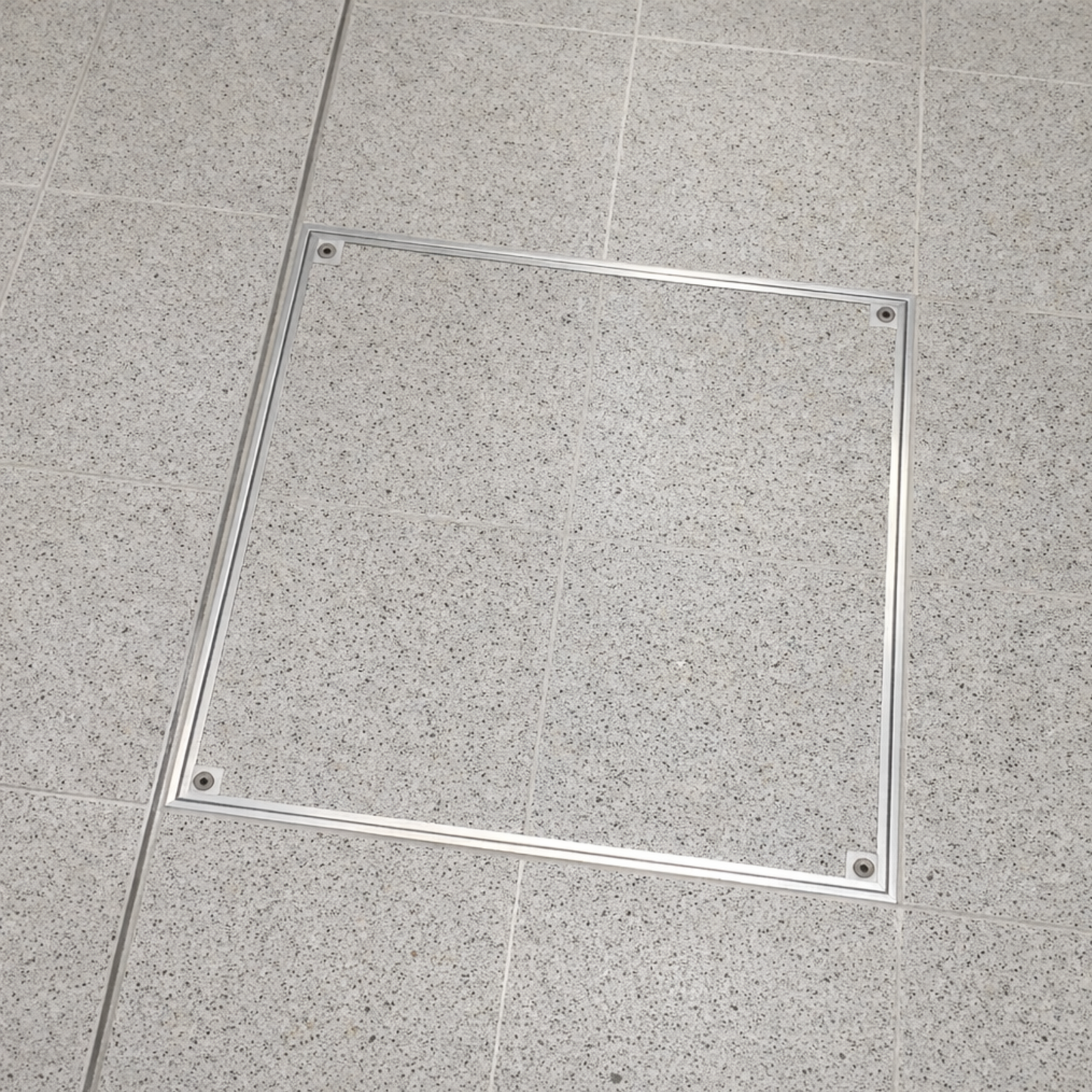

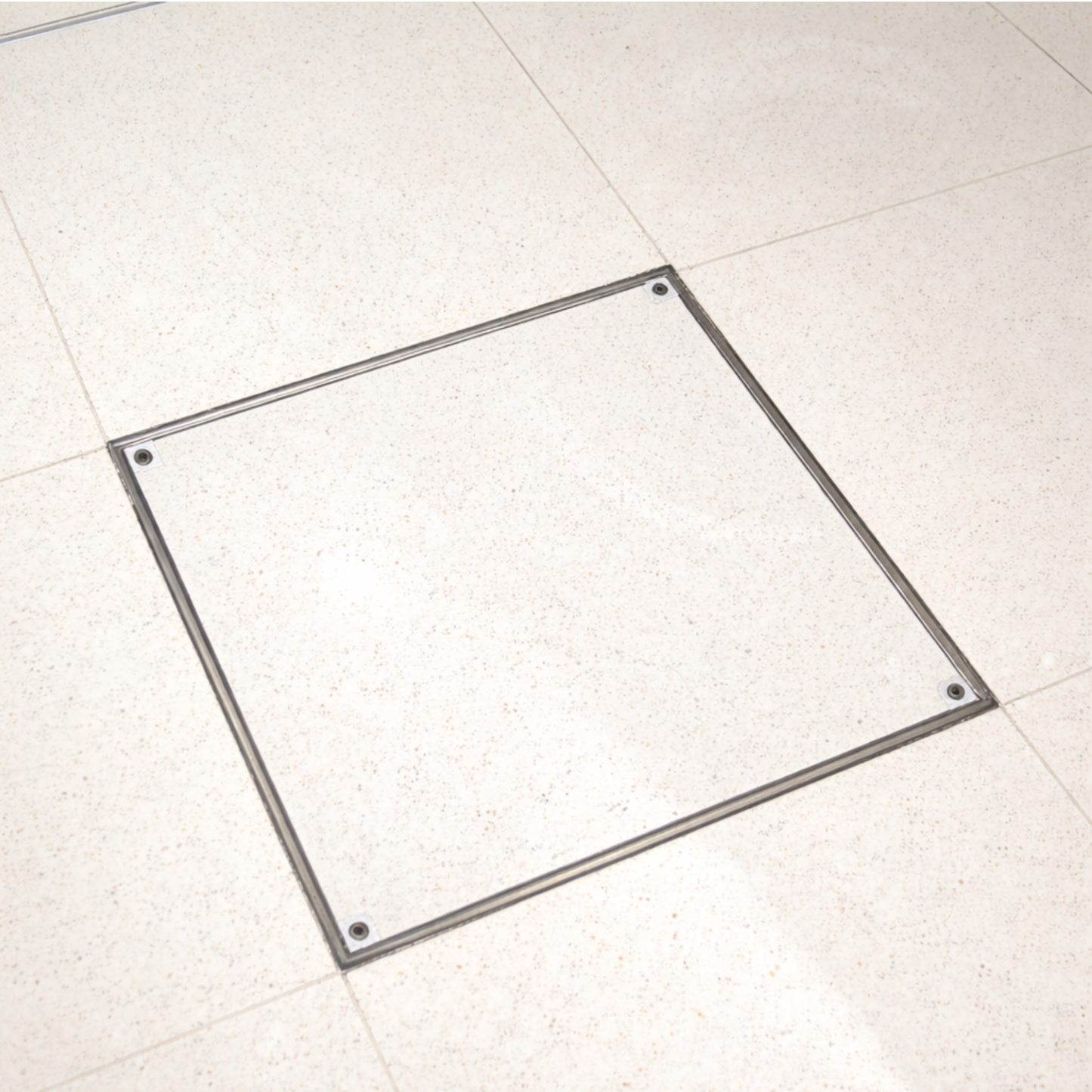

The recessed tray allows tiles, stone or resin finishes to be installed within the lid so the cover sits flush with the surrounding floor. The 32mm tray depth is suited to thinner floor build-ups, helping avoid issues where deeper covers would conflict with finished floor levels.

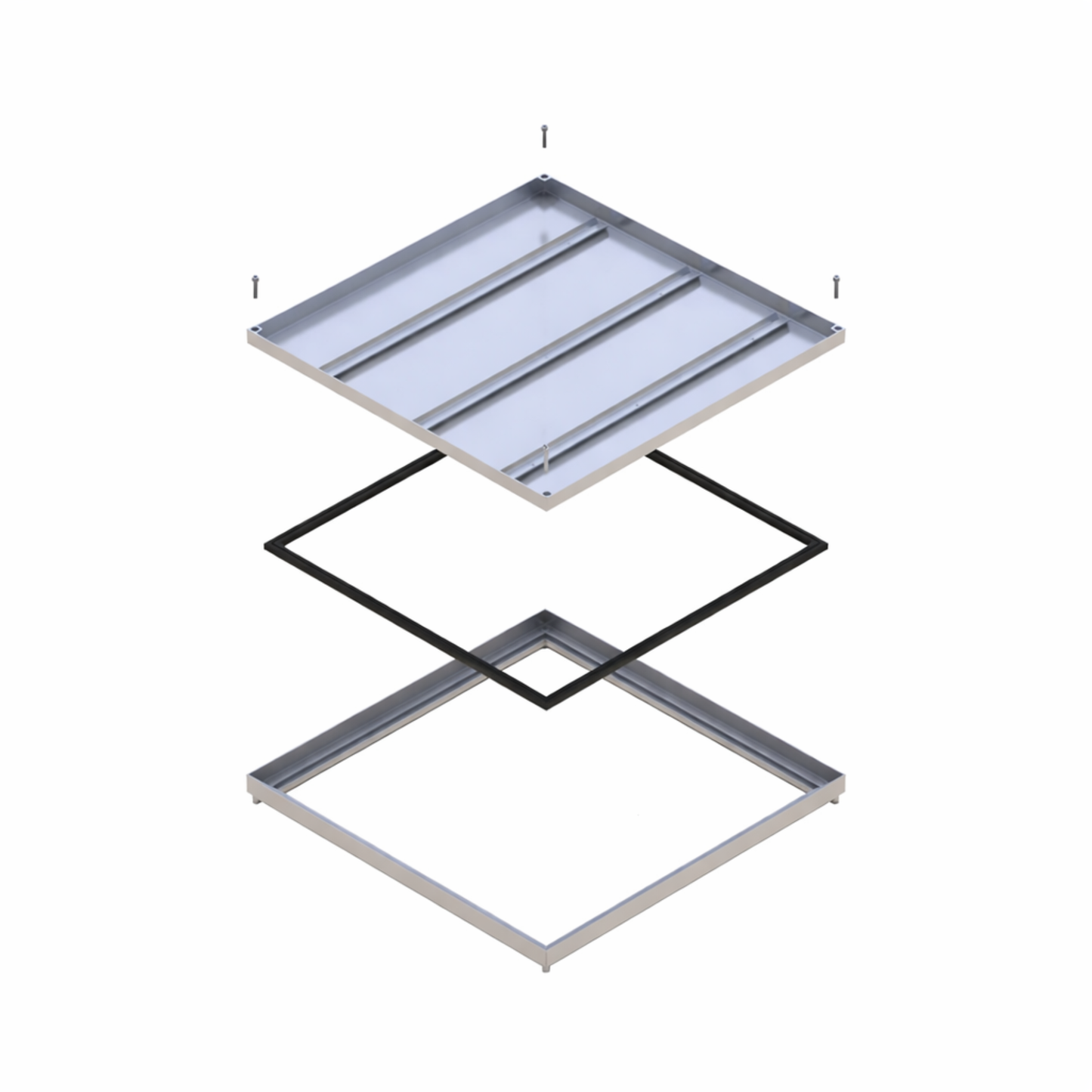

A double seal system provides resistance to odours and minor surface water movement from below, making it suitable for foul water chambers and internal drainage access points. The four point locking arrangement secures the cover to the frame, maintaining seal compression and reducing movement under foot traffic.

This cover is designed for pedestrian use only and should not be used in areas subject to vehicle loading. As shown in the technical drawing, correct installation and infill are required to achieve the stated performance .

Grade 316 stainless steel, resists corrosion in wet and chemically exposed environments

Double seal system, helps prevent odour and surface water transfer

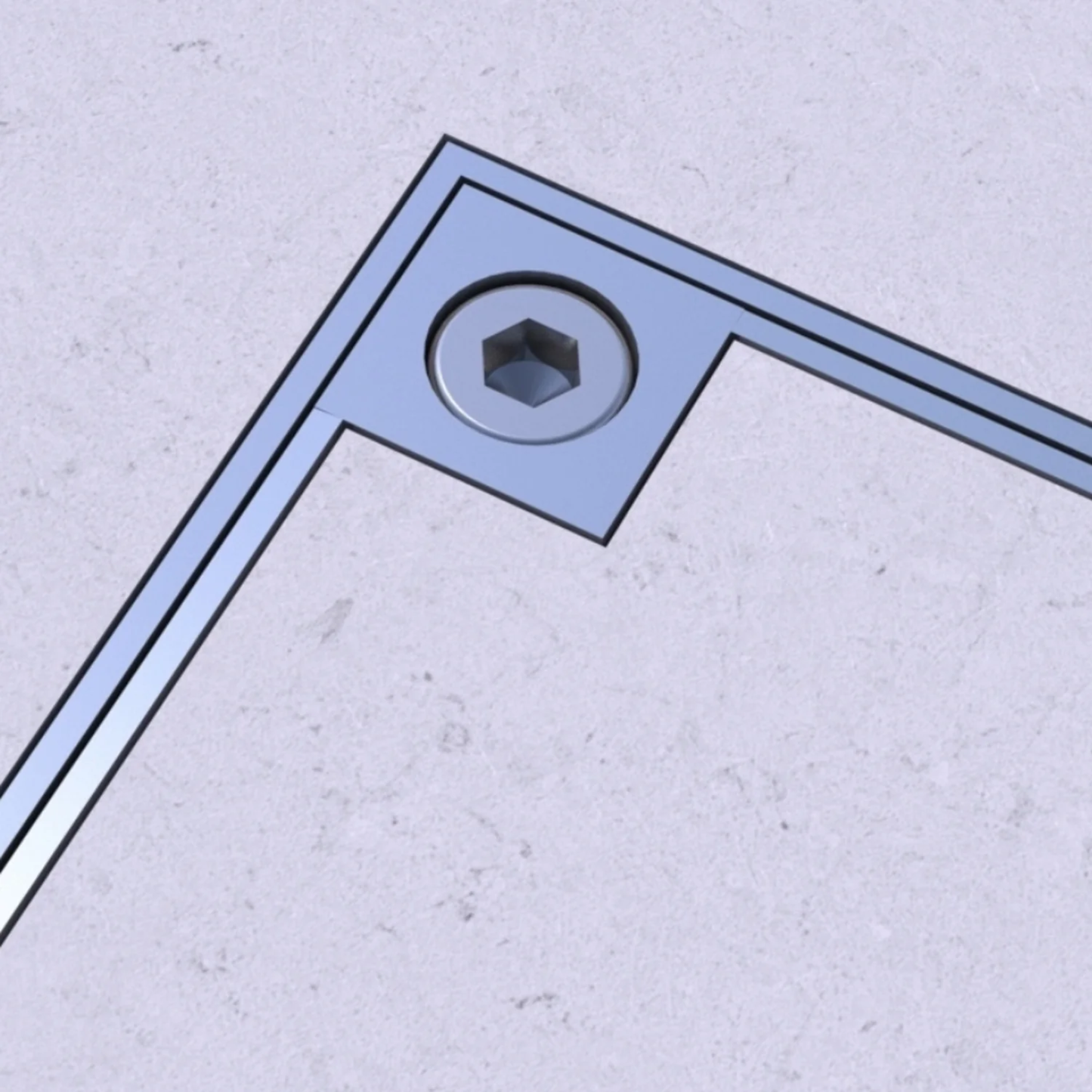

Four point locking mechanism, secures the cover and maintains seal contact

32mm tray depth, suited to tile and thin floor finishes

Recessed design, allows a continuous floor finish across the cover

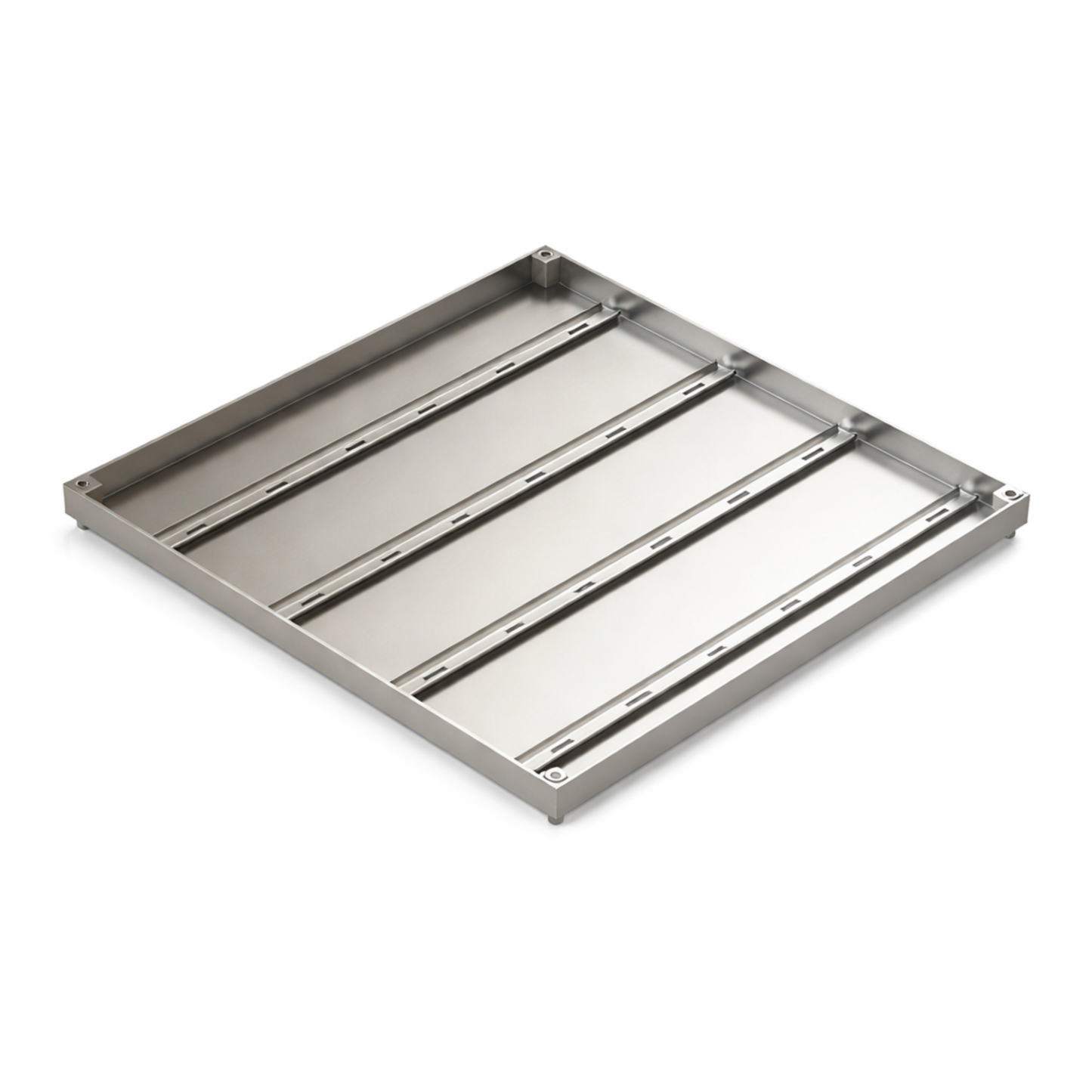

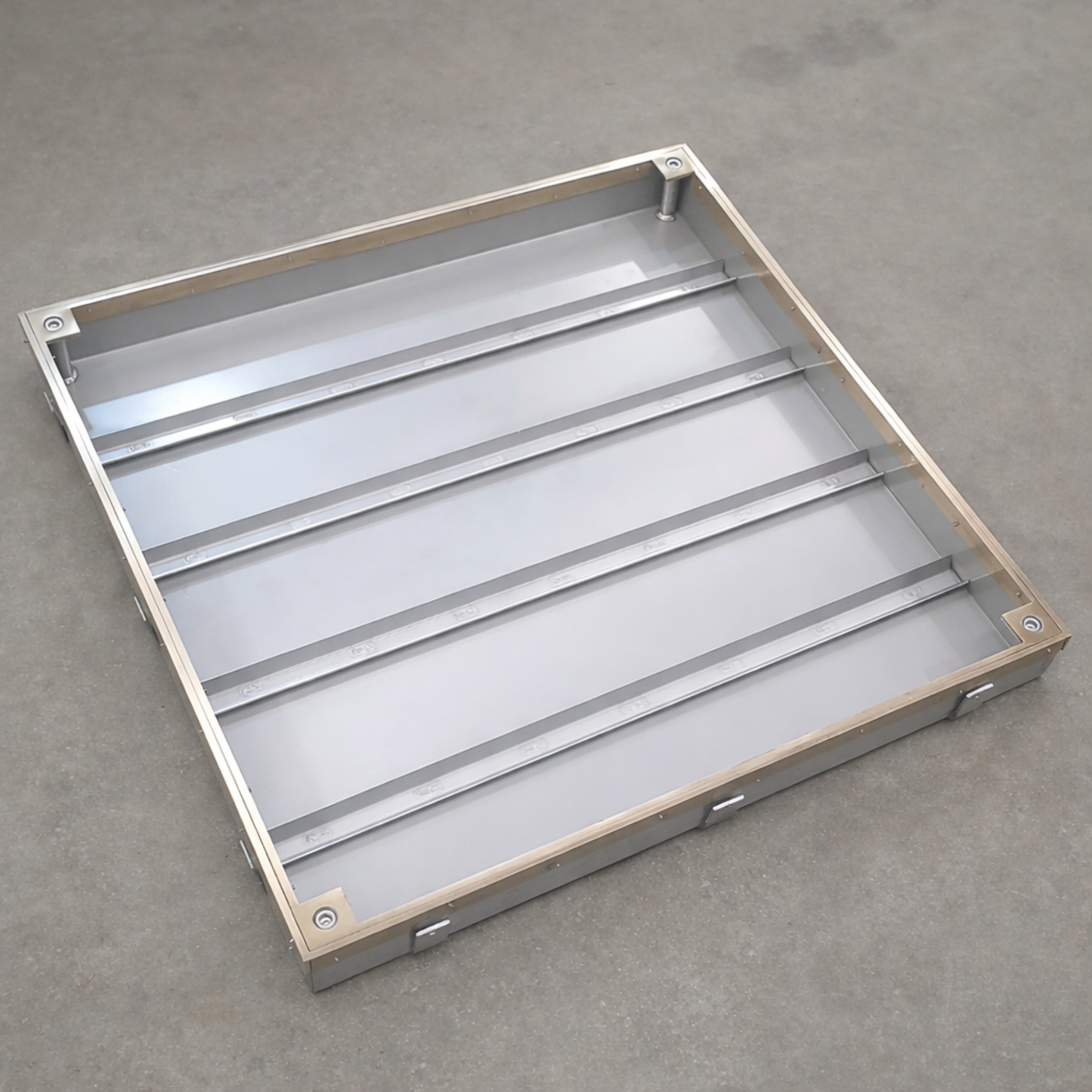

Screed grip mesh, improves bonding of infill material within the tray

Shallow overall depth, suitable where floor build-up is limited

Polished edge detail, provides a clean visible perimeter once installed

Manufactured from grade 316 stainless steel. This provides increased resistance to corrosion compared to standard steels, making it suitable for installations exposed to moisture, cleaning chemicals or chlorinated environments.

Product type: Recessed manhole cover double sealed and locking
Suitable location: Internal and external pedestrian areas
Clear opening: 600mm x 450mm
Overall frame size: 712mm x 562mm
Tray depth (recess depth): 32mm
Frame depth: 50mm
Material: Stainless steel grade 316
Finish: Natural stainless steel with polished edge
Seal type: Double seal
Locking: 4 point locking system
Load rating: FACTA A pedestrian only
Lifting method: Lifting keys (sold separately)
Fixings supplied: No
Weight: 14.58kg
Standards: FACTA A, BS EN1253 Class K3
