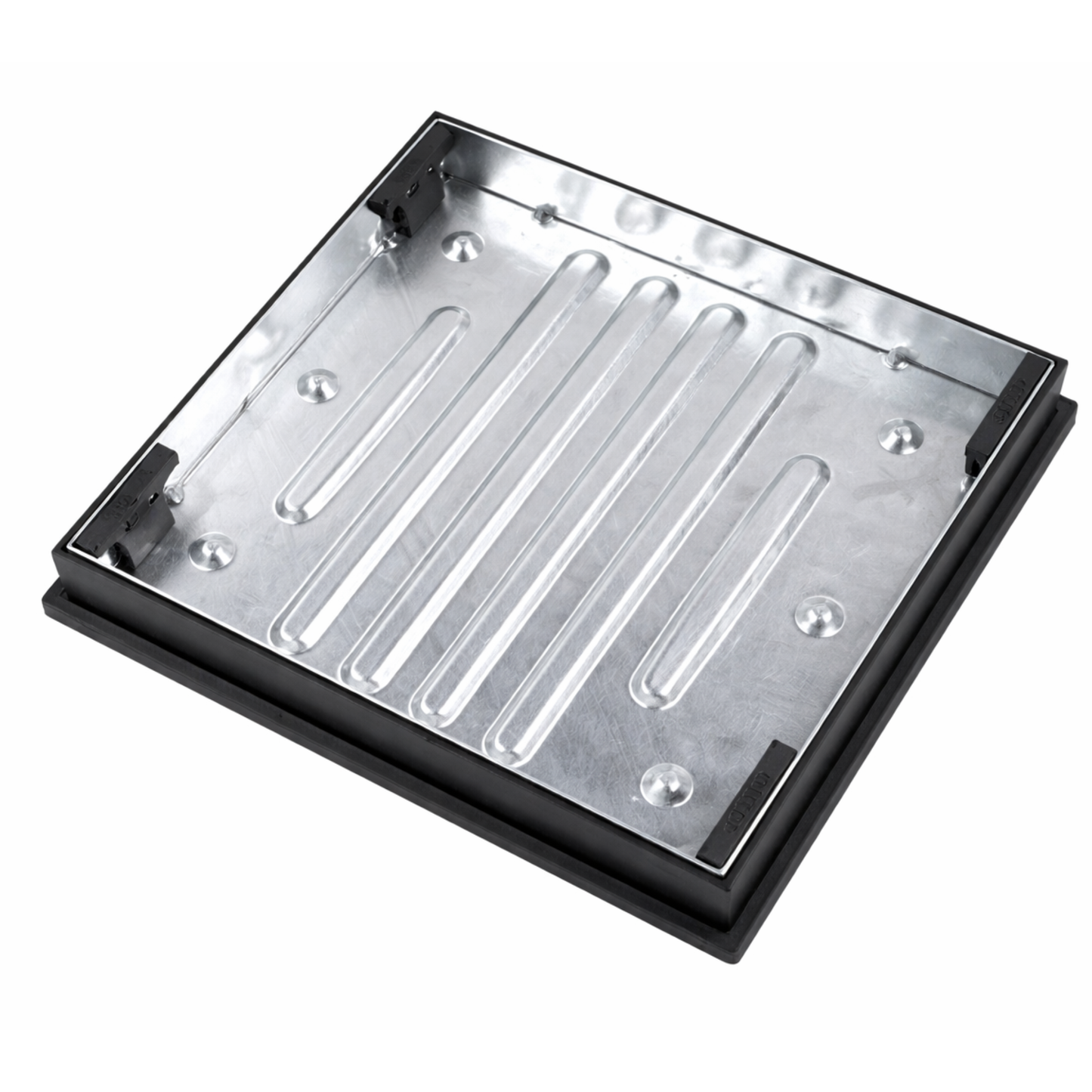

600 x 600mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 600mm Block Paving Recessed Manhole Cover 10 Tonne

Clear Opening: 600mm x 600mm
Tray Depth: 80mm
External Dimensions: 690mm x 690mm x 96mm

Recessed manhole cover designed for block paving, slabs and standard paving build-ups. Suitable for patios, driveways and paved areas where a flush finish is required.

The 80mm tray depth supports typical paving construction while maintaining a consistent surface across the installation.

£78.37
£78.37
Tax included. Shipping calculated at checkout.

Hurry up! Only 7 items in stock.

CD 791R

Expected delivery date:
30 May Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

600 x 600mm Block Paving Recessed Manhole Cover 10 Tonne

600 x 600mm Block Paving Recessed Manhole Cover 10 Tonne

Description

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains level and consistent. It is commonly used over inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel tray provides structural strength, while the frame transfers load into the surrounding ground rather than through the infill material.

The 80mm tray depth is suited to standard paving build-ups, including block paving and slabs with typical bedding layers. This helps ensure the infill is properly supported and the finished surface aligns with surrounding levels.

The cover combines a galvanised steel tray with a polypropylene frame, reducing weight while maintaining durability in external conditions. It is non-sealed and intended for external use.

Key Features

  • 10 tonne load rating suitable for domestic driveways and light vehicle traffic
  • 80mm tray depth supports standard block paving and slab build-ups
  • 600 x 600mm clear opening allows improved access to larger chambers
  • Recessed lid allows paving to continue without visible interruption
  • Galvanised steel tray provides strength under load
  • Polypropylene frame reduces weight and improves corrosion resistance
  • Frame transfers load into surrounding structure, not through the infill
  • Integral lifting keys allow safe and straightforward access

Material Composition

The cover uses a galvanised steel tray for structural strength combined with a polypropylene frame (Grade AP9) to reduce weight and improve corrosion resistance in external installations.

Product Specifications

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 600mm x 600mm
Overall frame size: 690mm x 690mm
Tray depth (recess depth): 80mm
Frame depth: 96mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised / black polypropylene
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Integral lifting keys
Fixings supplied: No
Weight: 21kg
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: None

Block Paving Recessed Manhole Covers

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

Is a 600 x 600mm clear opening suitable for most chambers?

Yes. It is a common size for inspection chambers and provides good access for maintenance.

Is this suitable for driveway use?

Yes. It is rated to 10 tonnes and suitable for domestic driveways with light vehicle traffic.

What paving depth does an 80mm tray suit?

It suits standard block paving or slab installations with typical bedding layers.

Does the infill material carry any load?

No. The load is carried by the frame and transferred into the surrounding structure. The infill is only for the surface finish.

Is this cover sealed?

No. It is not sealed and is intended for external use only.
