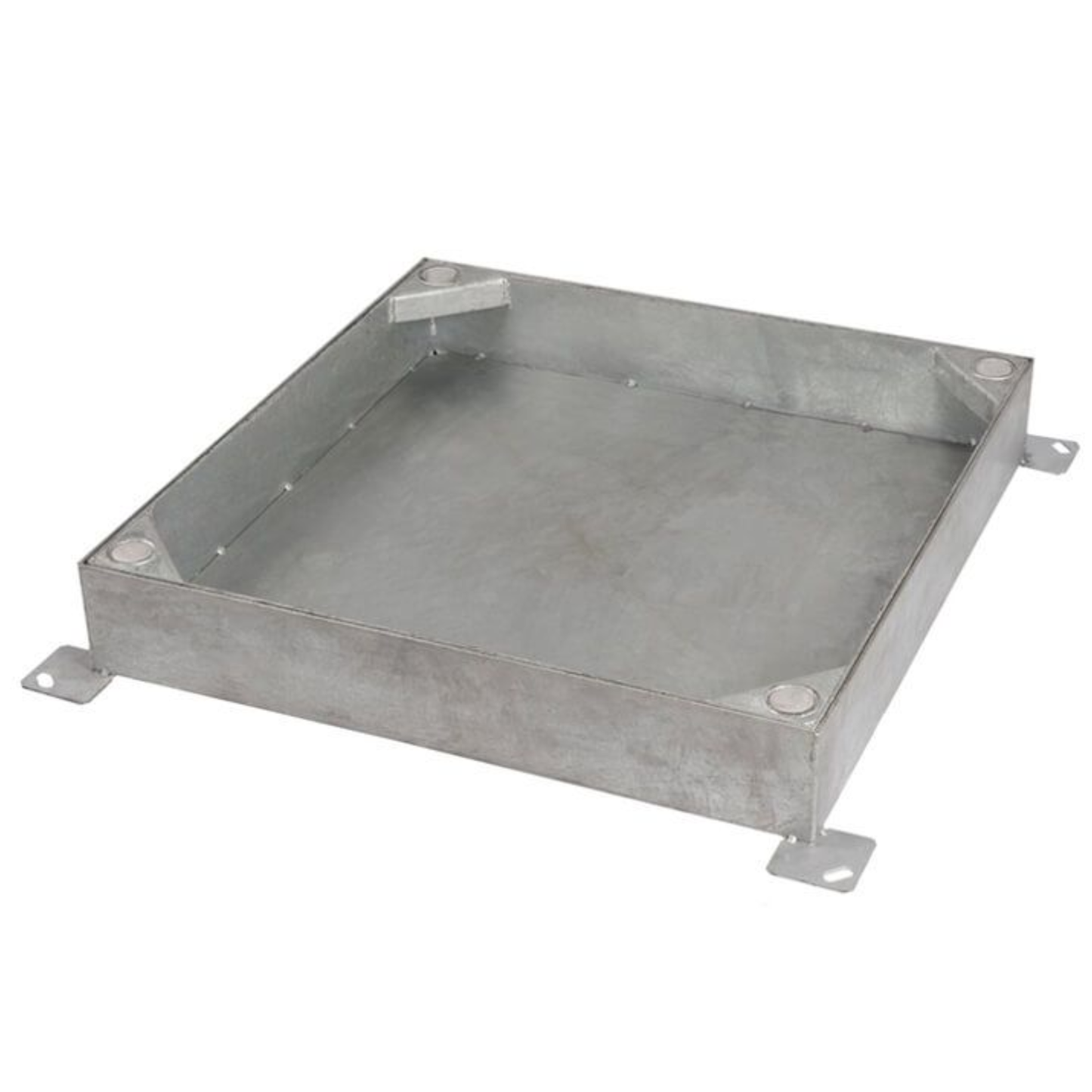

600 x 600mm Block Paving Recessed Manhole Cover 38 Tonne Heavy Duty

Name: 600 x 600mm Block Paving Recessed Manhole Cover 38 Tonne Heavy Duty
Brand: Clark Drain
SKU: CD 791R/HD100
Availability:  InStock

Clear Opening: 600mm x 600mm
Tray Depth: 100mm
External Dimensions: 800mm x 800mm x 110mm

Heavy duty recessed manhole cover designed for block paving, slabs and deep construction build-ups. Suitable for driveways, service yards and trafficked areas where a flush finish is required.

The 100mm tray depth accommodates thicker paving and structural build-ups, supporting installations subject to higher loading conditions.

£0.00

Tax included. Shipping calculated at checkout.

SKU:CD 791R/HD100

Request pricing

600 x 600mm Block Paving Recessed Manhole Cover 38 Tonne Heavy Duty

Description

This heavy duty block paving recessed manhole cover is designed for installations where both a concealed finish and high load capacity are required. The recessed tray allows paving materials to be installed within the lid so the finished surface remains level and continuous.

With a 38 tonne load rating, it is suitable for heavy vehicle traffic, including commercial yards, access roads and industrial environments. This makes it a different specification category to standard domestic driveway covers and must be installed within a suitable structural surround to achieve its rated performance.

The 100mm tray depth is intended for deeper paving build-ups, including thicker slabs and reinforced bedding layers. This ensures the infill is properly supported and remains flush with surrounding surfaces under load.

The fully galvanised steel construction provides the rigidity required for higher load classes. Corner pads are incorporated to improve bedding and load transfer into the surrounding structure.

This cover is non-sealed and intended for external applications only.

Key Features

38 tonne load rating suitable for heavy vehicle and industrial applications

100mm tray depth supports deep paving and reinforced build-ups

Recessed lid allows paving to continue without visible interruption

Fully galvanised steel construction provides high structural strength

Corner pads improve bedding stability and load transfer

Designed for commercial yards, access roads and trafficked areas

Compatible with CD 553 lifting keys for safe handling

Frame transfers load into surrounding structure, not through the infill

Material Composition

Manufactured from galvanised steel to provide the rigidity and strength required for heavy duty loading conditions. Suitable for external use but not for aggressive or chemically exposed environments.

Product Specifications

Product type: Block paving recessed manhole cover
Suitable location: External
Clear opening: 600mm x 600mm
Overall frame size: 800mm x 800mm
Tray depth (recess depth): 100mm
Frame depth: 110mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 38 tonne
Lifting method: Lifting key points (CD 553 compatible)
Fixings supplied: No
Weight: Not specified
Standards: FACTA clauses 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3
Options: Price on application

About this collection

Block Paving Recessed Manhole Covers

Block paving manhole covers are recessed access covers designed so block paving or patio slabs can be installed within the lid. They provide a flush finish and are commonly used over inspection chambers in patios, driveways and paved areas.

View Collection

FAQs

See All

Is this suitable for heavy vehicle traffic?

Yes. It is rated to 38 tonnes and designed for commercial and industrial applications, including service yards and access roads.

Can this be used on a domestic driveway?

It can, but it is typically over-specified for domestic use. A 10 tonne cover is usually sufficient for standard driveways.

Why is structural installation important for this cover?

Heavy duty covers rely on correct installation into a suitable surround. Without proper support, the load rating cannot be achieved.

What type of paving suits a 100mm tray depth?

Thicker slabs, reinforced bedding layers or deep build-ups used in heavy duty applications.

Is this cover sealed?

No. It is not sealed and is intended for external use only.
