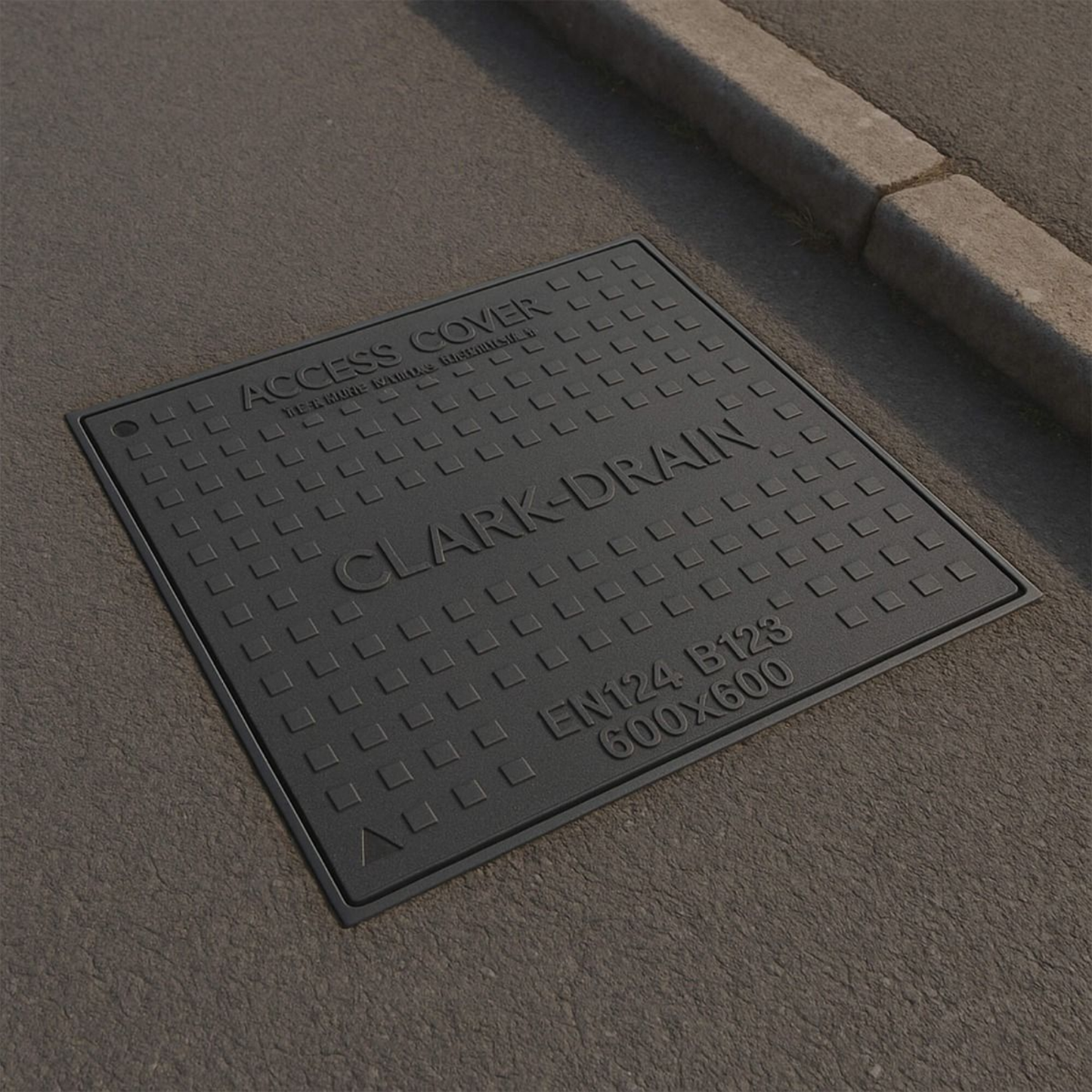

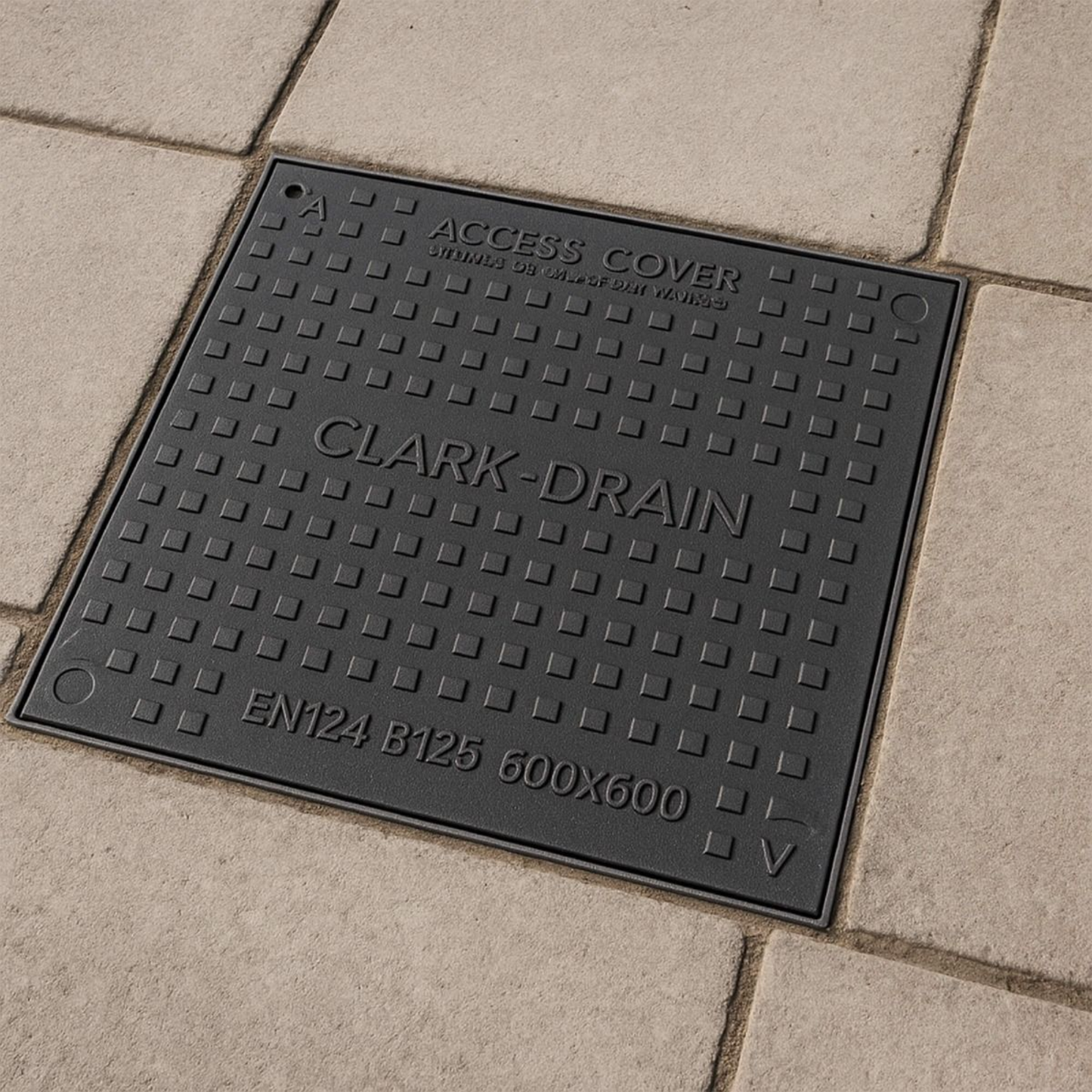

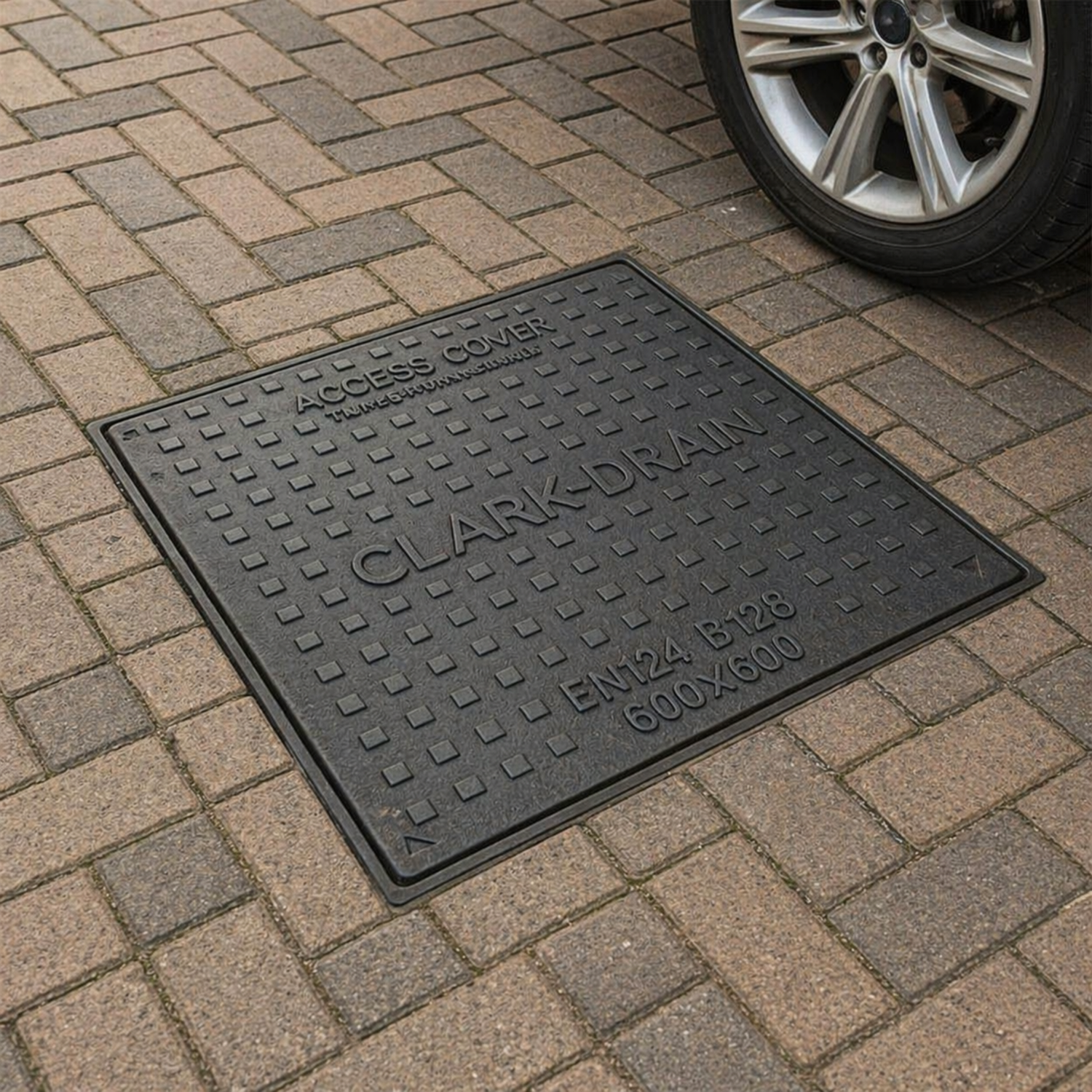

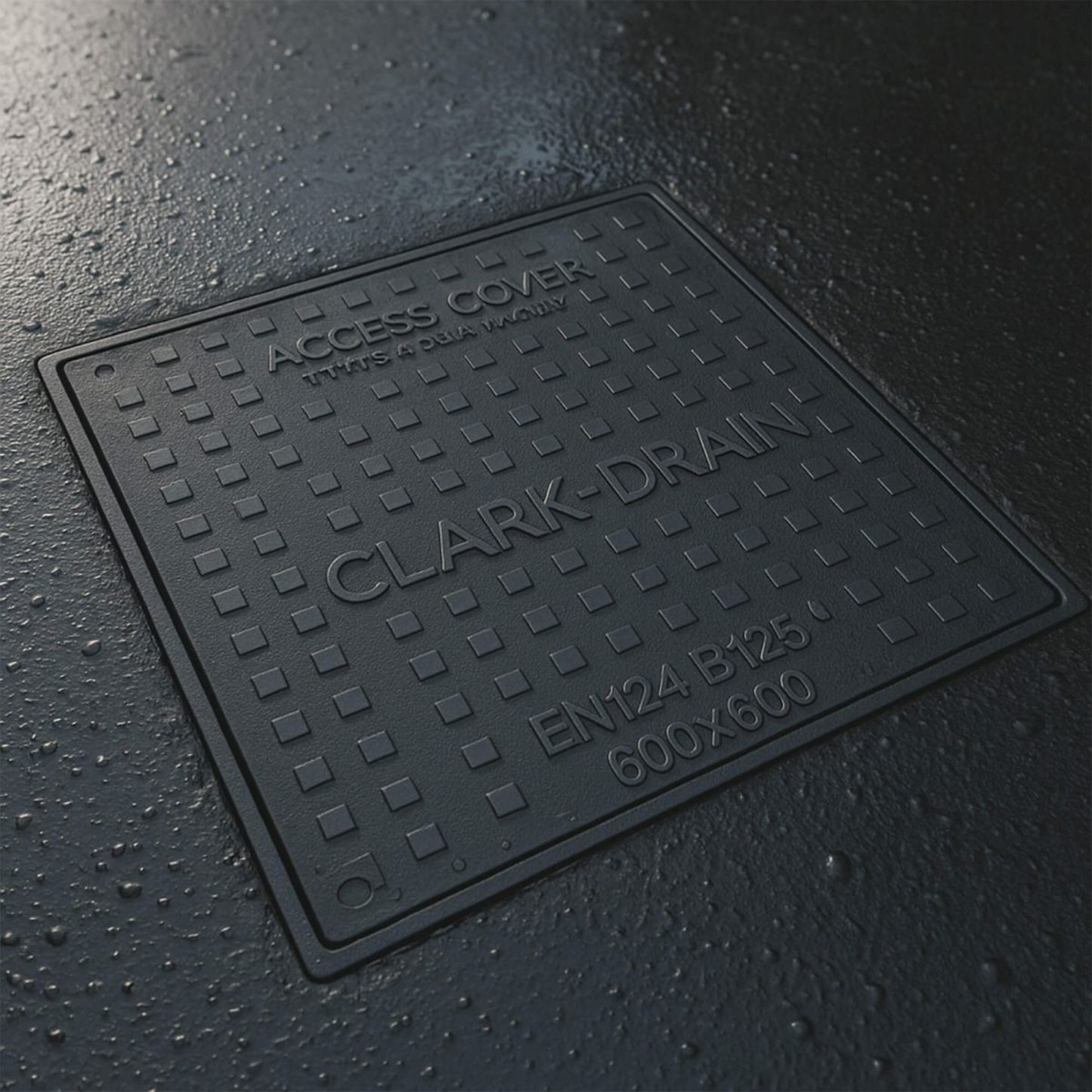

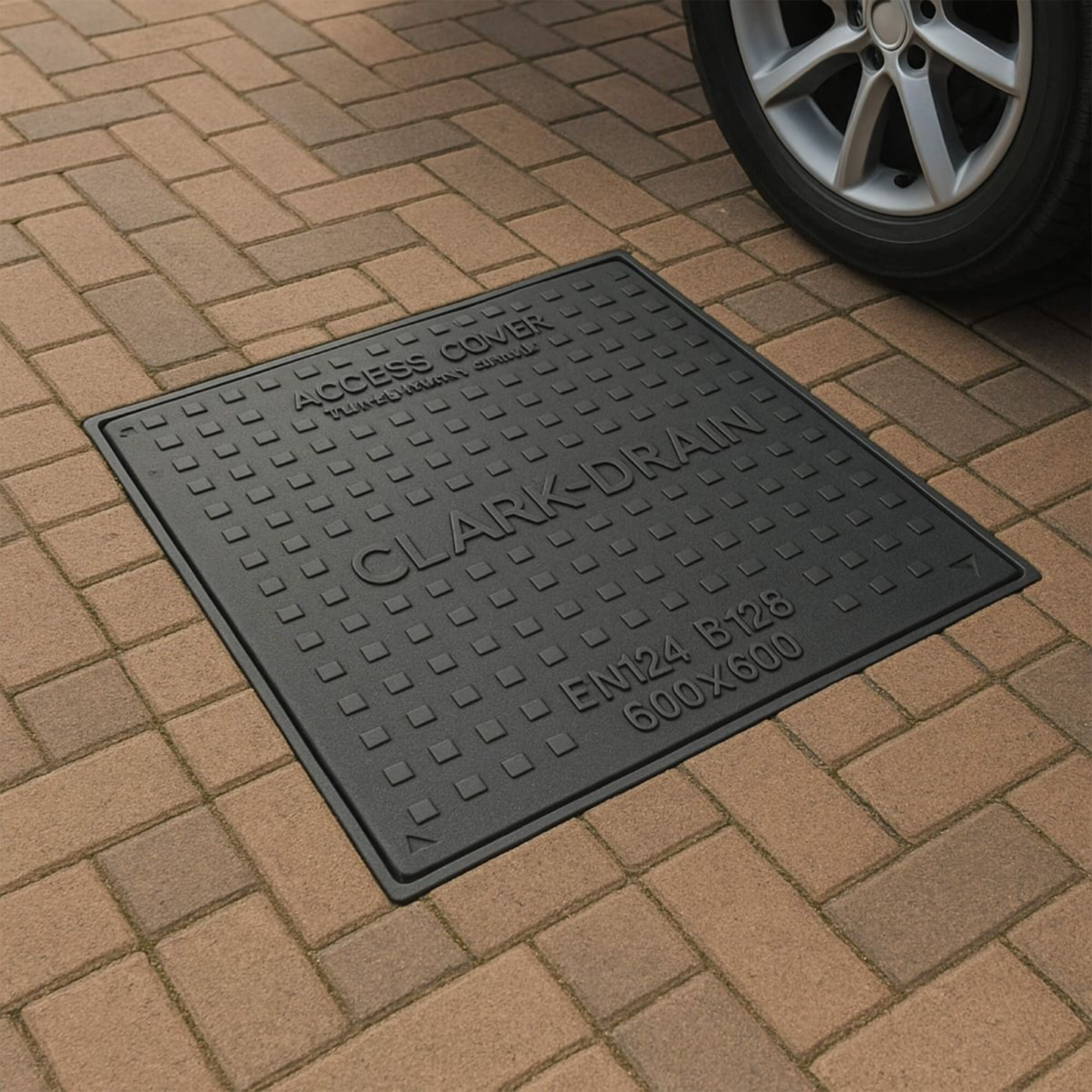

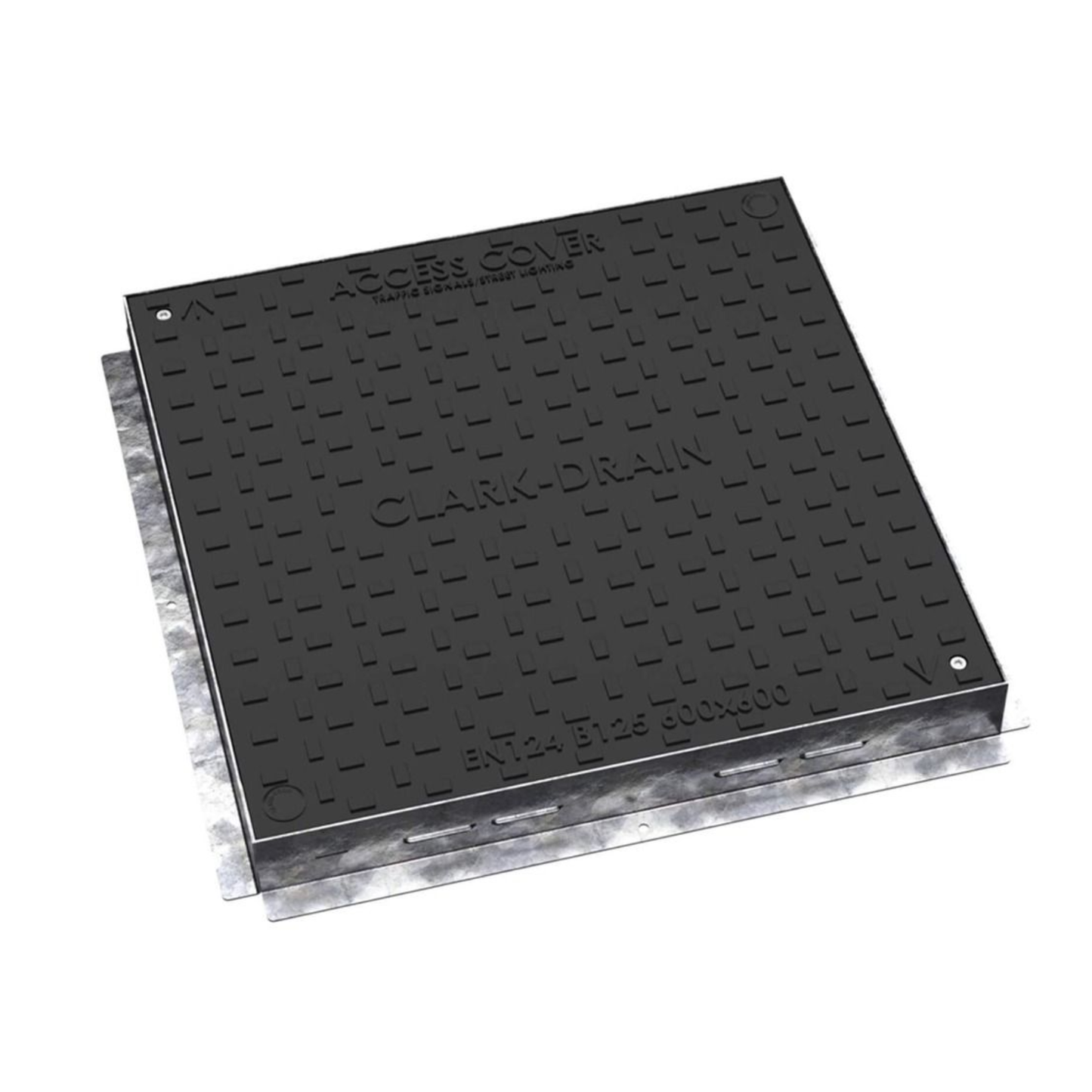

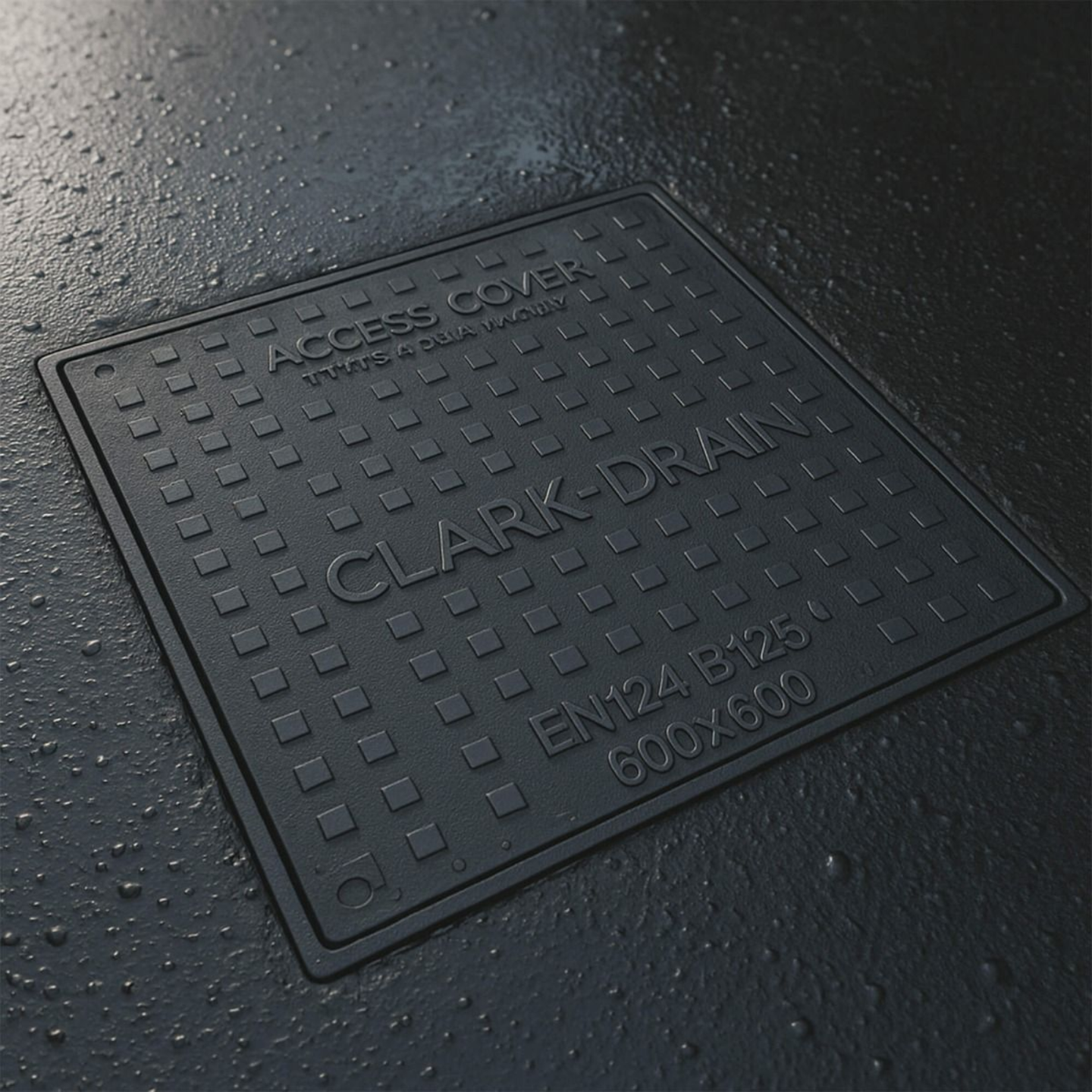

600 x 600mm Composite B125 Solid Top Manhole Cover

The Clark Drain CD 265/SF is a 600 x 600mm composite solid top manhole cover supplied with a galvanised steel frame. It is designed for chambers serving street lighting, traffic signals and similar utility networks where a durable non-metallic cover is preferred.

The composite lid offers lower weight than comparable metal covers, helping with handling during installation and maintenance. It is also resistant to rust, corrosion, chemicals and deformation, making it suitable for exposed outdoor environments and damp ground conditions.

This model is rated to B125 and tested to BS EN 124-1:2015, making it suitable for pedestrian areas and light vehicle traffic locations where the specification permits. The galvanised steel frame provides structural support and long-term durability in paved, concrete, tarmac or verge installations.

Integrated lifting keyholes accept Clark Drain CD 553 or CD 553L lifting keys, while fitted stainless steel locking screws help secure the lid in position. Debris-reducing keyhole caps are included to keep access points cleaner in service.

A common mistake is selecting composite covers by size alone. Always confirm the required loading class, chamber opening and site application before ordering.

• B125 load rating for pedestrian and light vehicle areas
• Composite lid reduces weight compared with metal covers
• Resistant to rust, corrosion, chemicals and deformation
• Galvanised steel frame adds structural strength
• 600mm x 600mm clear opening suits utility chamber access
• Stainless steel locking screws help secure the lid
• Integral lifting keyholes for CD 553 or CD 553L keys
• Anti-slip composite surface for safer foot traffic areas
• Suitable for tarmac, paving, concrete and verge installations
• Marked for traffic signals and street lighting use

The lid is manufactured from SMC composite, a reinforced material chosen for strength, corrosion resistance and reduced weight. The frame is mild steel with galvanised protection to provide rigid support in ground installations.

Product type: Composite solid top manhole cover with frame
Suitable location: External
Clear opening: 600mm x 600mm
Overall frame size: 705mm x 705mm
Overall depth: 68mm
Frame depth: 68mm
Material: SMC composite lid with mild steel frame
Finish: Black composite lid, galvanised steel frame
Seal type: None stated
Locking: Stainless steel locking screws
Load rating: B125
Lifting method: Integral lifting keyholes for CD 553 / CD 553L keys
Fixings supplied: Factory fitted locking screws
Weight: Product 17kg, lid 13kg

Standards: BS EN 124-1:2015 tested

Options: CD 265/SF, 600mm x 600mm clear opening, 705mm x 705mm overall frame size
