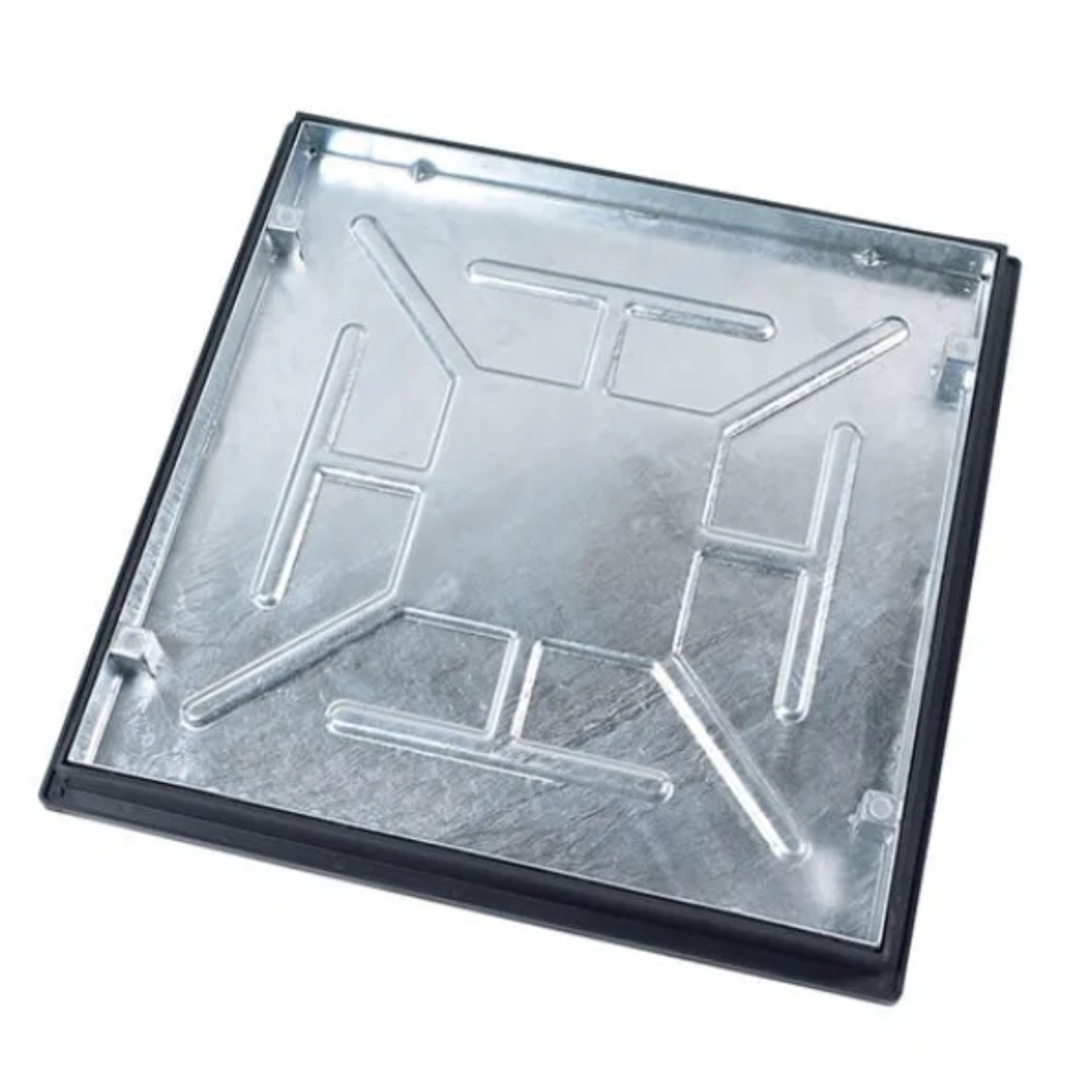

600 x 600mm Sealed & Locking Recessed Manhole Cover

The 600 x 600mm sealed and locking recessed manhole cover is designed for installations where improved sealing is required over a standard recessed tray. It combines a galvanised steel recessed tray with a polypropylene frame, providing a balance of strength and corrosion resistance.

This cover is typically used in internal environments such as kitchens, basements and utility areas, where drainage odours need to be contained. The factory fitted rubber gasket works in combination with the screw locking system to compress the lid onto the frame, helping reduce odour escape into occupied spaces.

It can also be used externally in pedestrian areas such as patios, where it helps limit debris and surface water entering the chamber. It is not suitable for trafficked areas due to its 5 tonne load rating.

Incorrect specification often occurs where non-sealed covers are installed internally. This design addresses that by combining a defined clear opening with a sealing system, ensuring consistent fit and performance.

• 600 x 600mm clear opening suits standard square inspection chambers
• Rubber gasket seal helps prevent odours escaping in internal installations
• Four screw locking system secures the cover and improves sealing performance

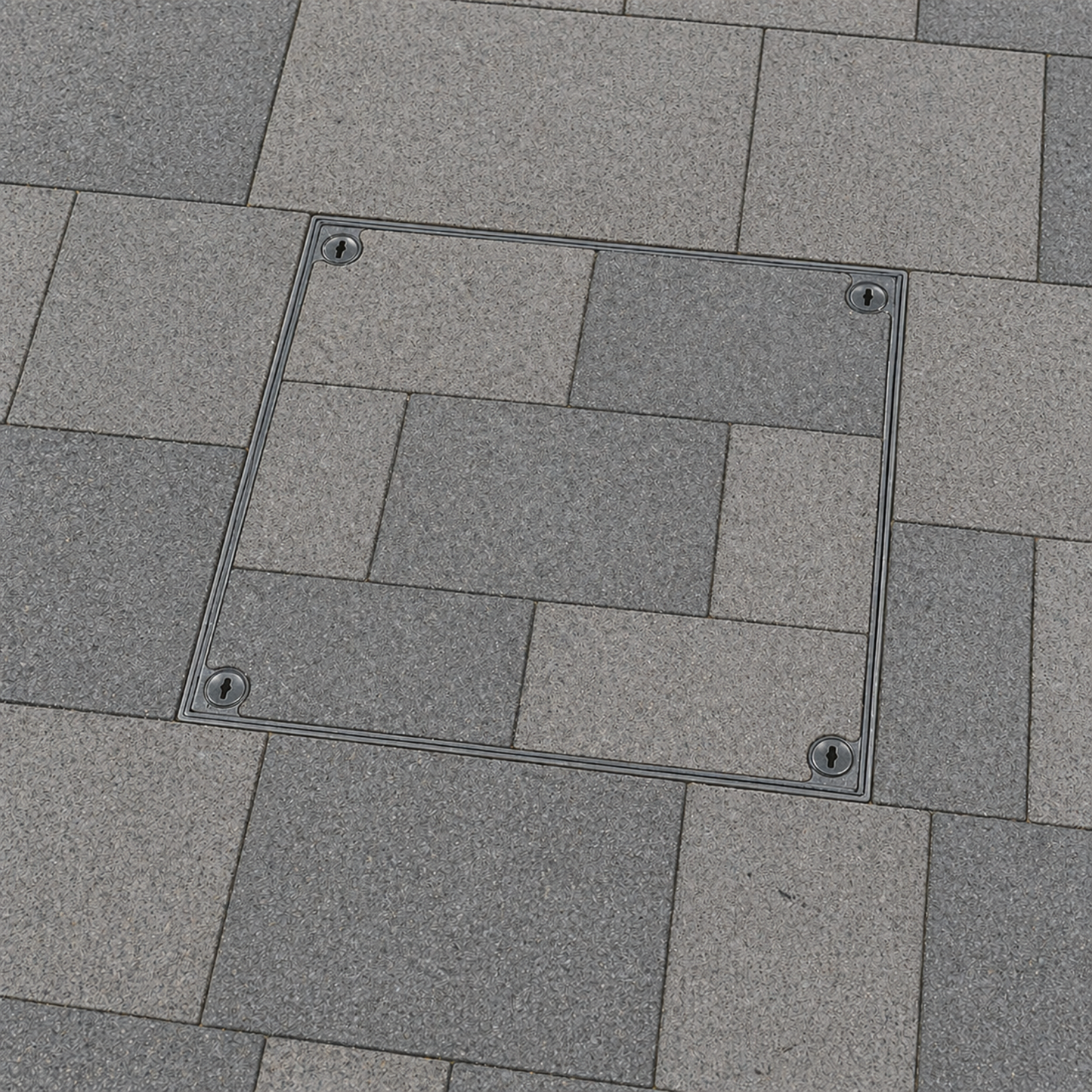

• Recessed tray accepts concrete or screed for a flush finish
• 5 tonne load rating suitable for pedestrian areas and light external use
• Polypropylene frame resists corrosion in damp or ground conditions
• Integrated lifting key holes allow safe removal using lifting keys
• Moulded grouting flange helps secure the frame during installation

The tray is manufactured from galvanised mild steel, providing strength and resistance to general corrosion. The frame is made from polypropylene, which is lightweight, non-corrosive and stable in damp environments. This combination provides durability while keeping handling weight manageable.

Product type: Sealed and locking recessed manhole cover
Suitable location: Internal and external pedestrian areas
Clear opening: 600mm x 600mm
Overall frame size: 740mm x 740mm
Tray depth (recess depth): 43.5mm
Frame depth: 58mm
Material: Galvanised steel tray with polypropylene frame
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Lifting keys required
Fixings supplied: Not specified
Weight: 17kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: Compatible with CD 776 lifting keys
