600 x 600mm Stainless Steel 316 Recessed Manhole Cover 50mm

This stainless steel recessed manhole cover is manufactured from grade 316 stainless steel for installations where corrosion resistance and increased tray depth are required. It is suited to internal wet areas, plant rooms, commercial environments and external locations exposed to regular cleaning or aggressive conditions.

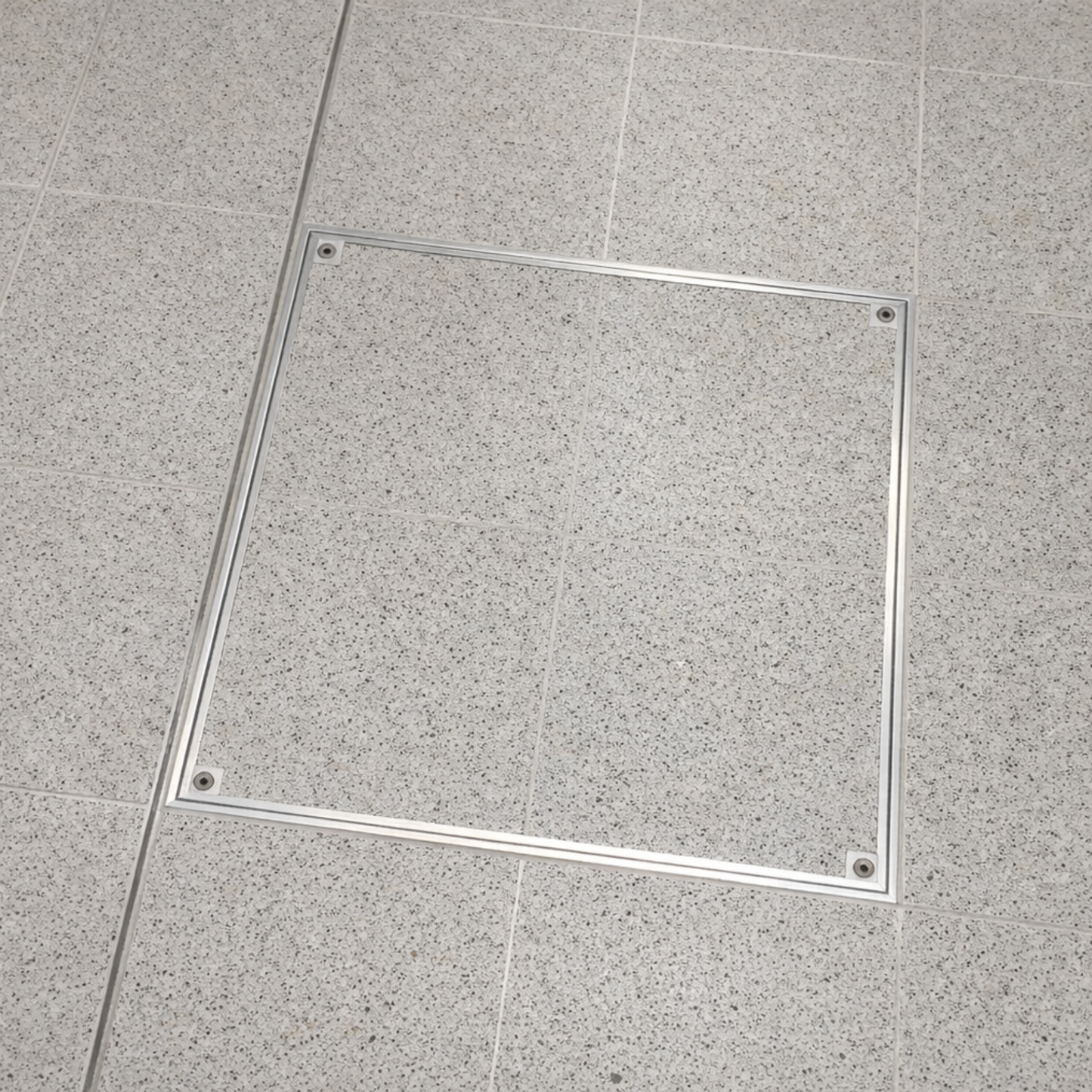

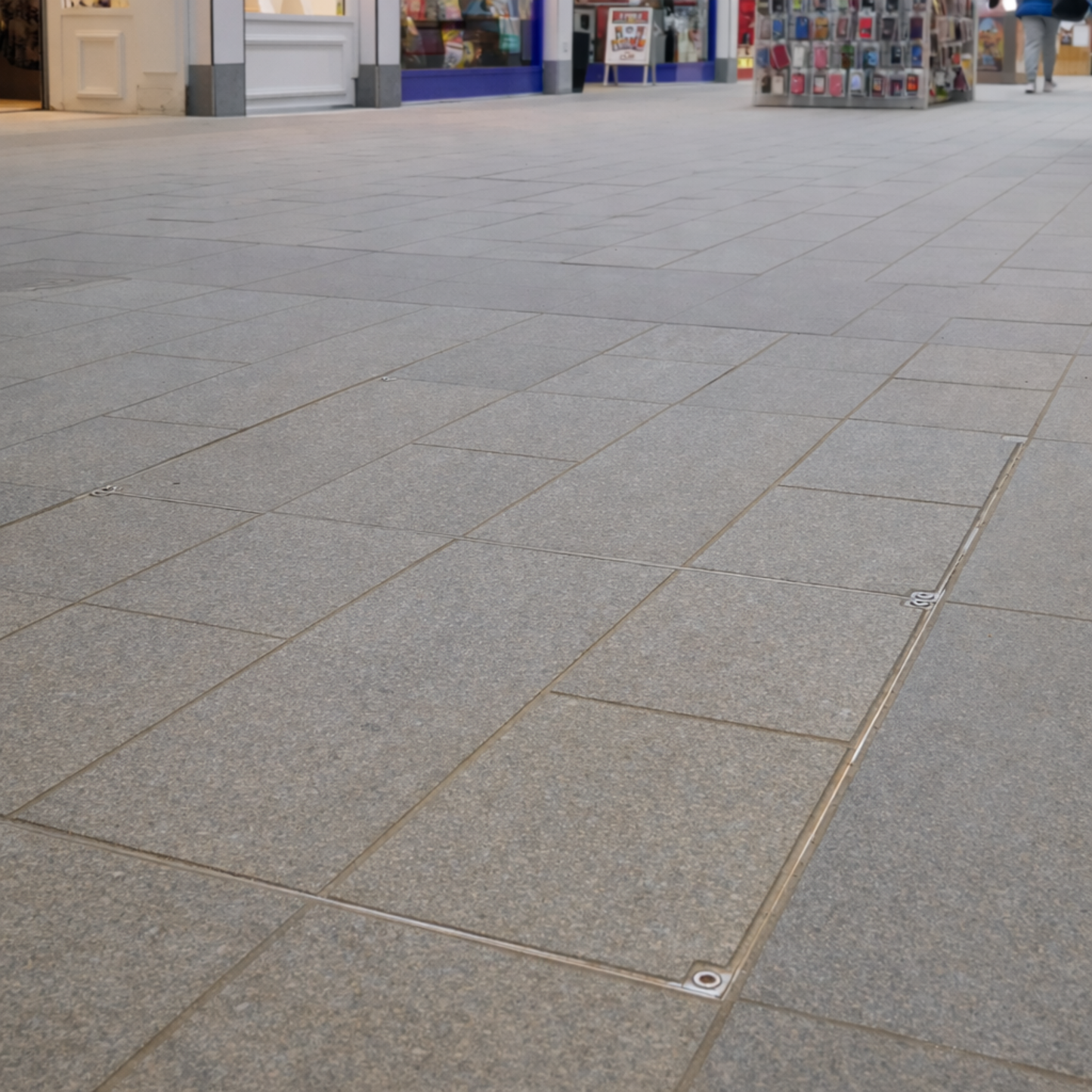

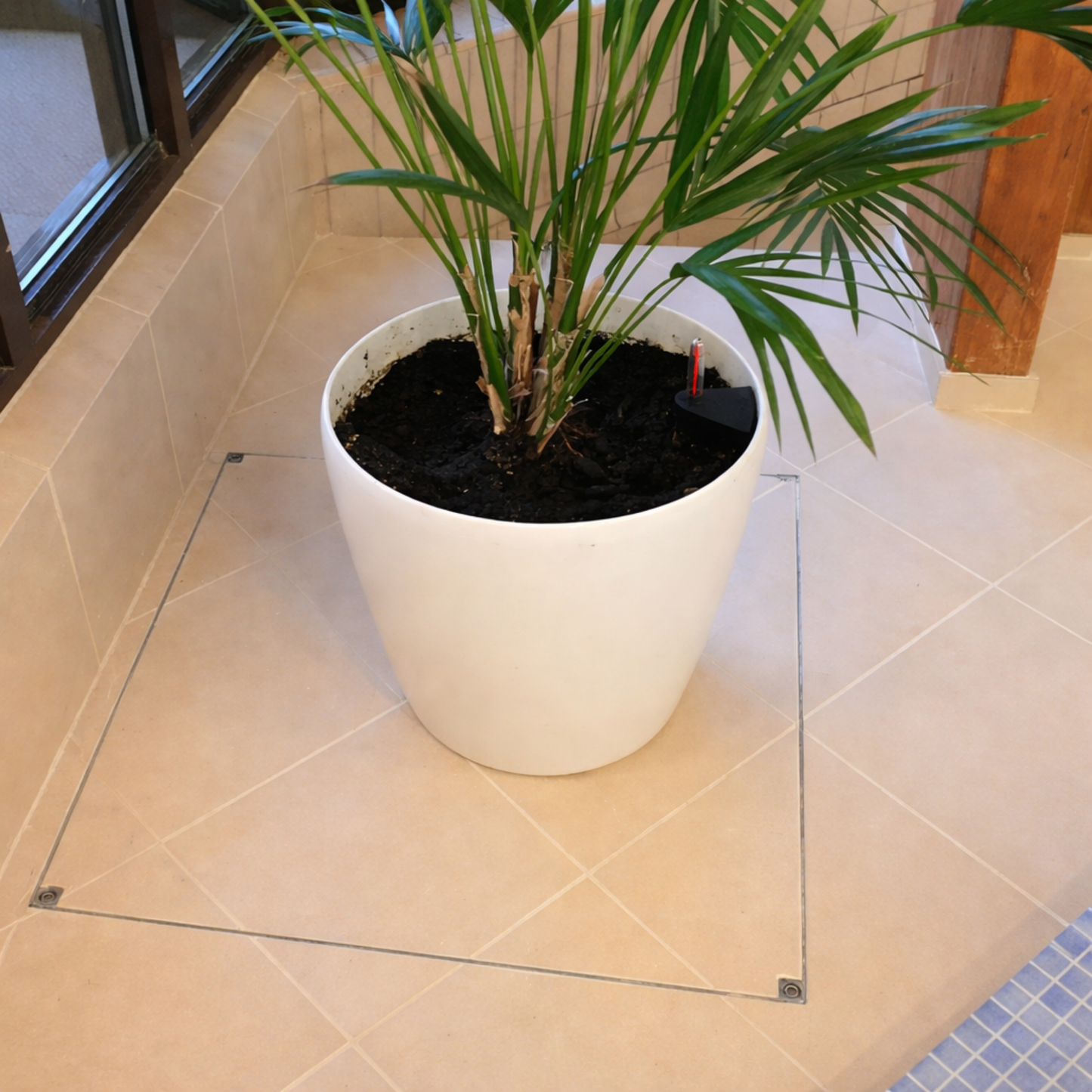

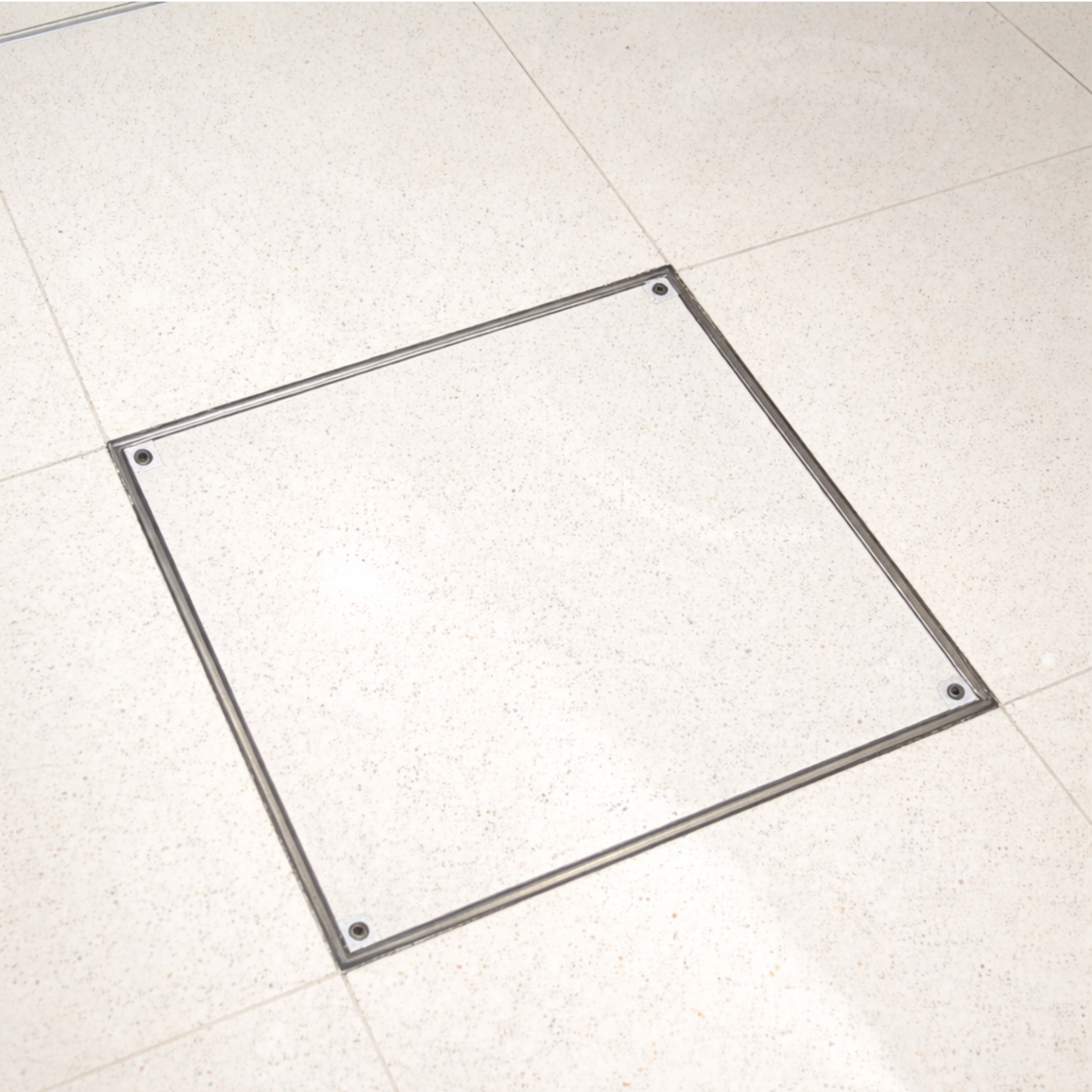

The recessed tray allows tiles, concrete or resin finishes to be installed within the lid so the cover sits flush with the surrounding floor. The 50mm tray depth is designed for thicker floor build-ups, avoiding the common issue of specifying a shallow cover where greater structural infill is needed.

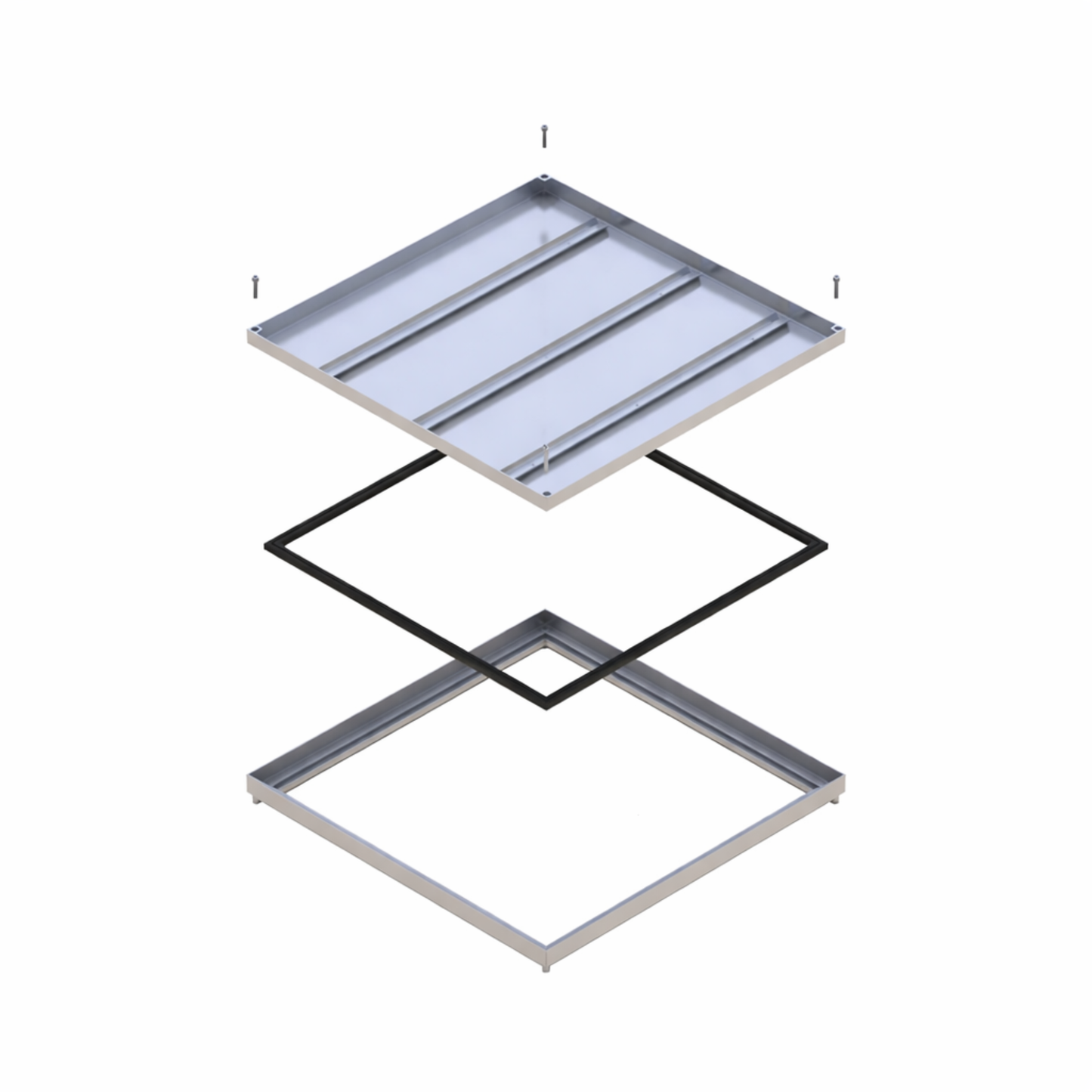

A double seal arrangement helps restrict odours and surface water movement from below, making it suitable for foul water chambers and internal drainage access. The four point locking system secures the cover to the frame, maintaining seal compression and reducing movement under load.

This cover achieves FACTA AA loading when filled correctly with fibre reinforced concrete to the specified level. As shown in the technical drawing, correct infill and installation are required to achieve this performance .

• Grade 316 stainless steel, resists corrosion in wet and chemically exposed environments
• Double seal system, helps prevent odour and surface water transfer

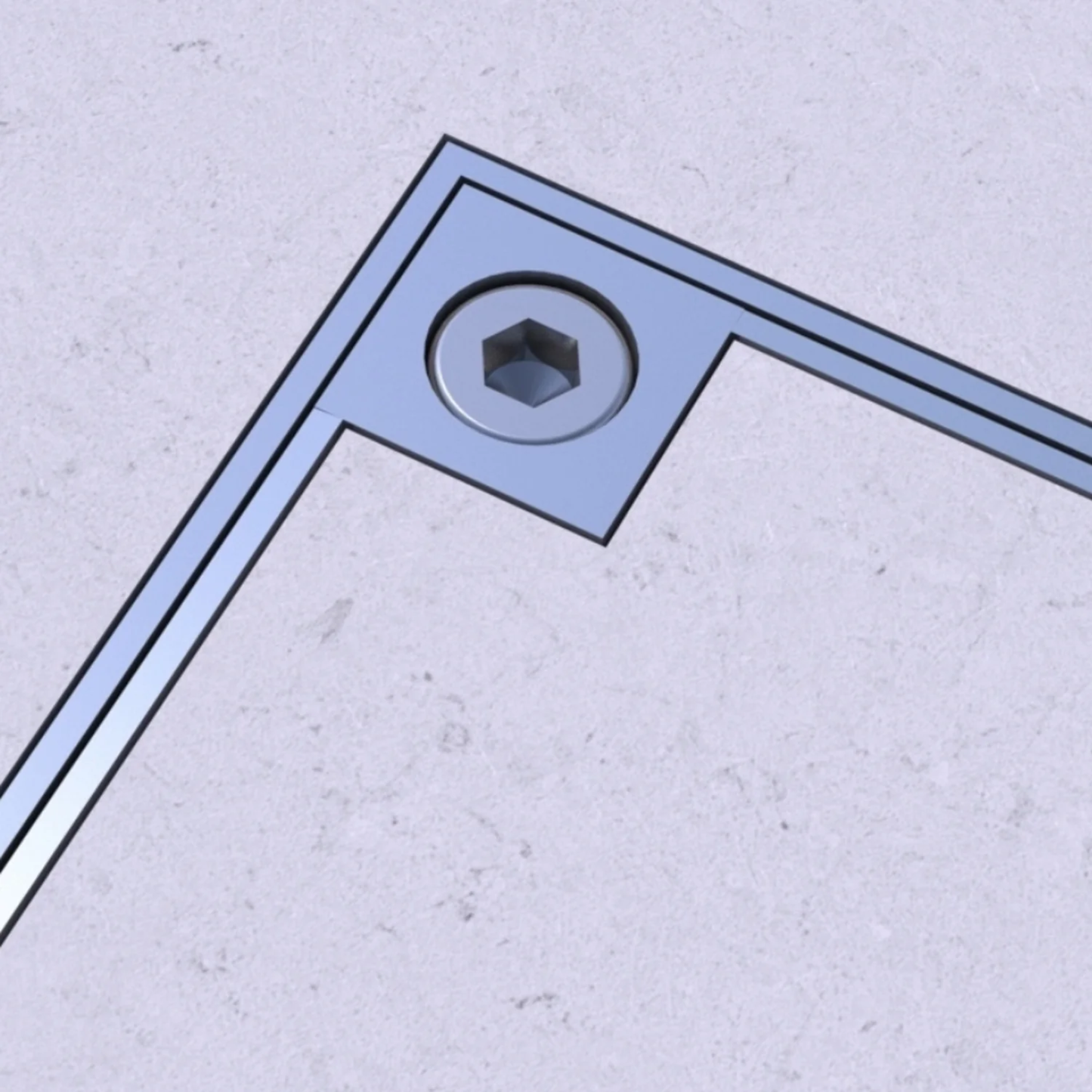

• Four point locking mechanism, secures the cover and maintains seal performance
• 50mm tray depth, suited to thicker floor finishes and increased load requirements
• Recessed design, allows a continuous floor finish across the cover

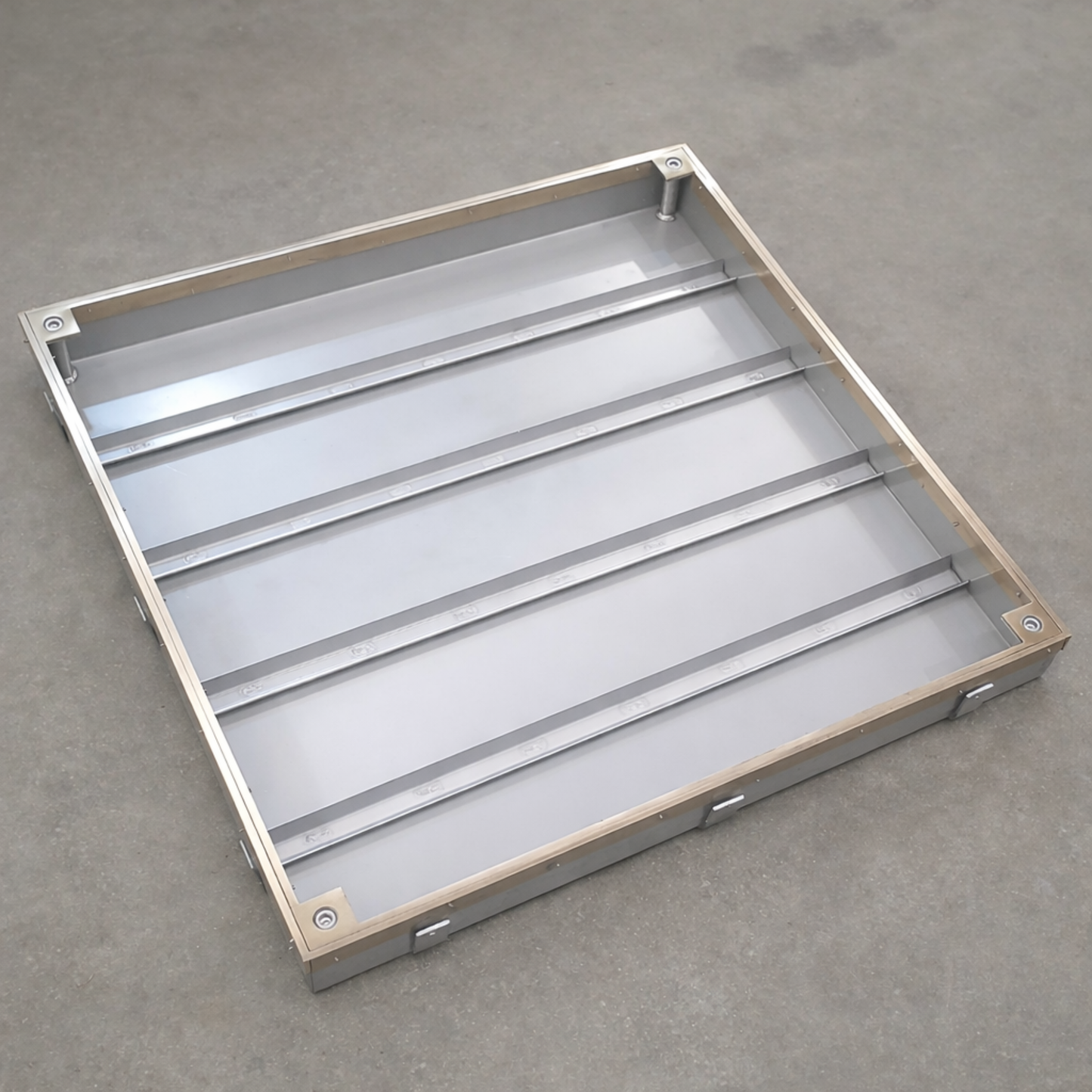

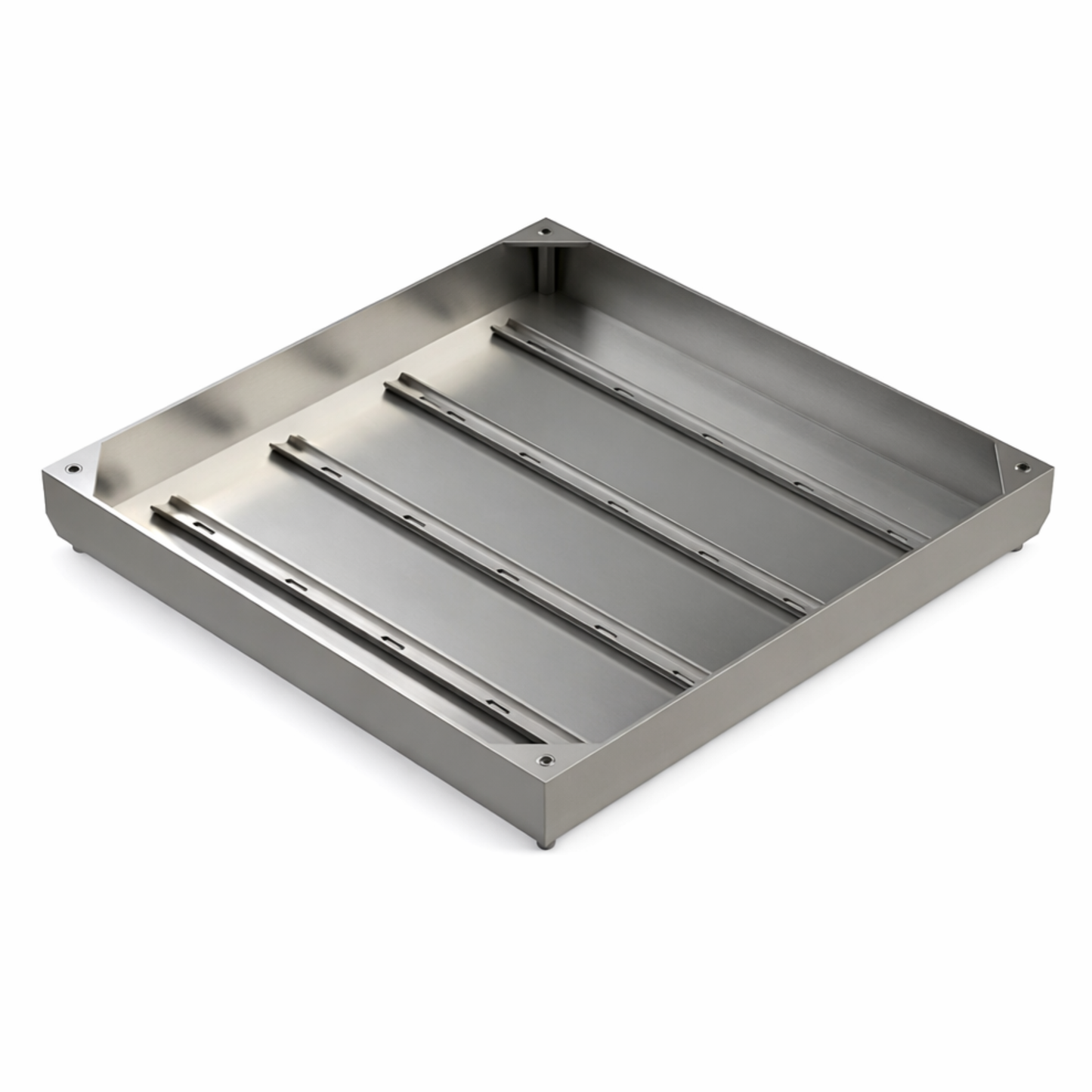

• Screed grip channels, improve bonding of infill material within the tray
• Deeper construction, supports higher load class when correctly filled
• Polished edge detail, provides a clean visible perimeter after installation

Manufactured from grade 316 stainless steel. This provides increased resistance to corrosion compared to standard steels, making it suitable for installations exposed to moisture, cleaning chemicals or chlorinated environments.

Product type: Recessed manhole cover double sealed and locking
Suitable location: Internal and external pedestrian and light duty areas
Clear opening: 600mm x 600mm
Overall frame size: 738mm x 738mm
Tray depth (recess depth): 50mm
Frame depth: 70mm
Material: Stainless steel grade 316
Finish: Natural stainless steel with polished edge
Seal type: Double seal
Locking: 4 point locking system
Load rating: FACTA AA (when correctly filled)
Lifting method: Lifting keys (sold separately)
Fixings supplied: No
Weight: 20.18kgStandards: FACTA AA
