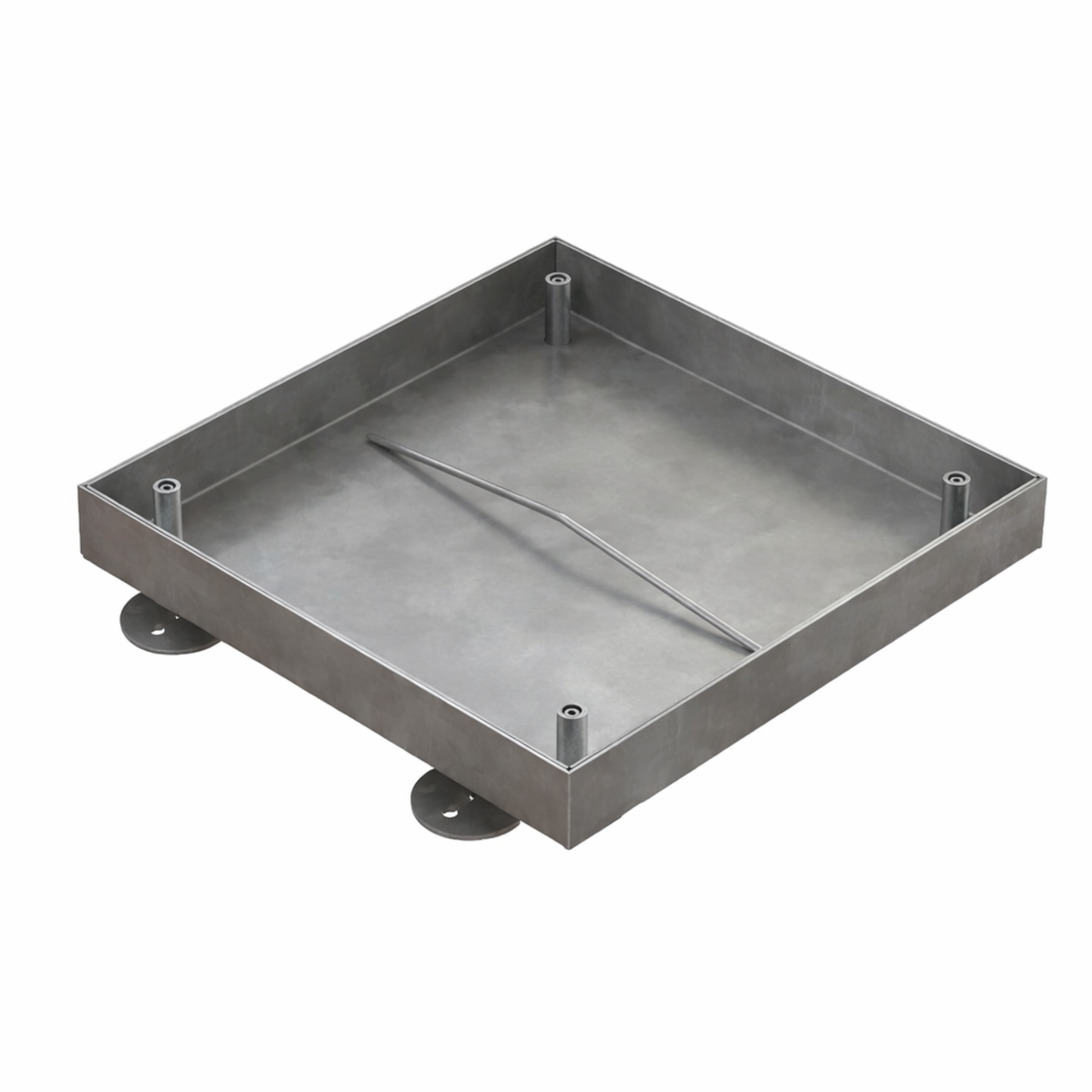

600 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

600 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

Clear Opening: 494mm x 494mm
Tray Depth: 70mm
External Dimensions: 600mm x 600mm x 78mm

Tile insert recessed manhole cover designed to align with 600mm tile layouts. The recessed tray allows a full tile to be installed within the lid, maintaining consistent grout lines across the floor or paved surface. Double sealed and screw locked, this cover is suited to internal tiled floors and external porcelain patios where appearance and odour control both matter.

£192.50
£192.50
Tax included. Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

EG-SL/6060OTF

Expected delivery date:
07 Jun Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

600 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

600 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

Description

This tile insert recessed manhole cover is designed to provide concealed access within tiled floors and paved areas. The 600mm x 600mm overall frame matches standard tile formats, allowing the surrounding layout to continue without disruption.

The recessed tray accepts tile, adhesive and bedding build-up to achieve a flush finish. This avoids the need to cut tiles around the opening, which is a common cause of poor visual results and weak edges. The clear opening of 494mm x 494mm relates to the chamber access below and must always be checked against site requirements.

A double neoprene seal and screw locking system help prevent odours escaping in internal environments such as bathrooms, kitchens and utility areas. This type of sealing is also suitable for external use where surface water ingress needs to be controlled.

Galvanised steel construction provides strength for domestic driveway loading up to 10 tonnes. For areas exposed to chlorinated water or aggressive conditions, stainless steel alternatives should be specified.

Key Features

600mm x 600mm frame matches tile size, keeps grout lines consistent

Recessed tray accepts full tile build-up, avoids cutting tiles around the cover

494mm x 494mm clear opening provides practical access to the chamber below

Double neoprene seal reduces odour escape in internal applications

Screw locking system secures the lid and prevents movement under load

Galvanised steel construction supports up to 10 tonne loading for domestic vehicles

Discreet barrel lifting points allow access without visible handles

Suitable for internal tiled floors and external porcelain patios

Compatible with standard lifting keys for safe removal

Material Composition

Manufactured from galvanised steel to provide structural strength and corrosion resistance in typical ground conditions. The galvanised finish protects against general moisture exposure but is not suitable for aggressive or chlorinated environments, where stainless steel should be used.

Product Specifications

Product type: Tile insert recessed manhole cover
Suitable location: Internal and external
Clear opening: 494mm x 494mm
Overall frame size: 600mm x 600mm
Tray depth (recess depth): 70mm
Frame depth: 78mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Double neoprene seal
Locking: Screw locking (4 bolts)
Load rating: 10 tonne
Lifting method: Discreet barrel lifting points (lifting keys required)
Fixings supplied: Yes
Weight: 20kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3

Tile Insert Recessed Manhole Covers

About this collection

Tile Insert Recessed Manhole Covers

Tile insert manhole covers are recessed access covers designed so full tiles can be installed within the lid. They are used to provide discreet inspection chamber access in tiled floors and paved areas without cutting surrounding tiles.

View Collection

FAQs

See All

Does this cover take a full 600mm tile?

No. The frame is sized to match a 600mm tile layout, but the tile must be slightly trimmed to fit within the tray and allow for lifting points.

What does the clear opening refer to?

The clear opening (494mm x 494mm) is the size of the access hole below. This must match or exceed your chamber opening.

Is this suitable for internal tiled floors?

Yes. The double seal and screw locking system help prevent odours, making it suitable for bathrooms, kitchens and utility areas.

Can this be used on a driveway?

Yes, for domestic vehicle use. The 10 tonne load rating is suitable for cars and light vehicles, but not for frequent heavy traffic.

Do lifting keys come with the cover?

No. Compatible lifting keys are required and must be purchased separately to safely remove the lid.
