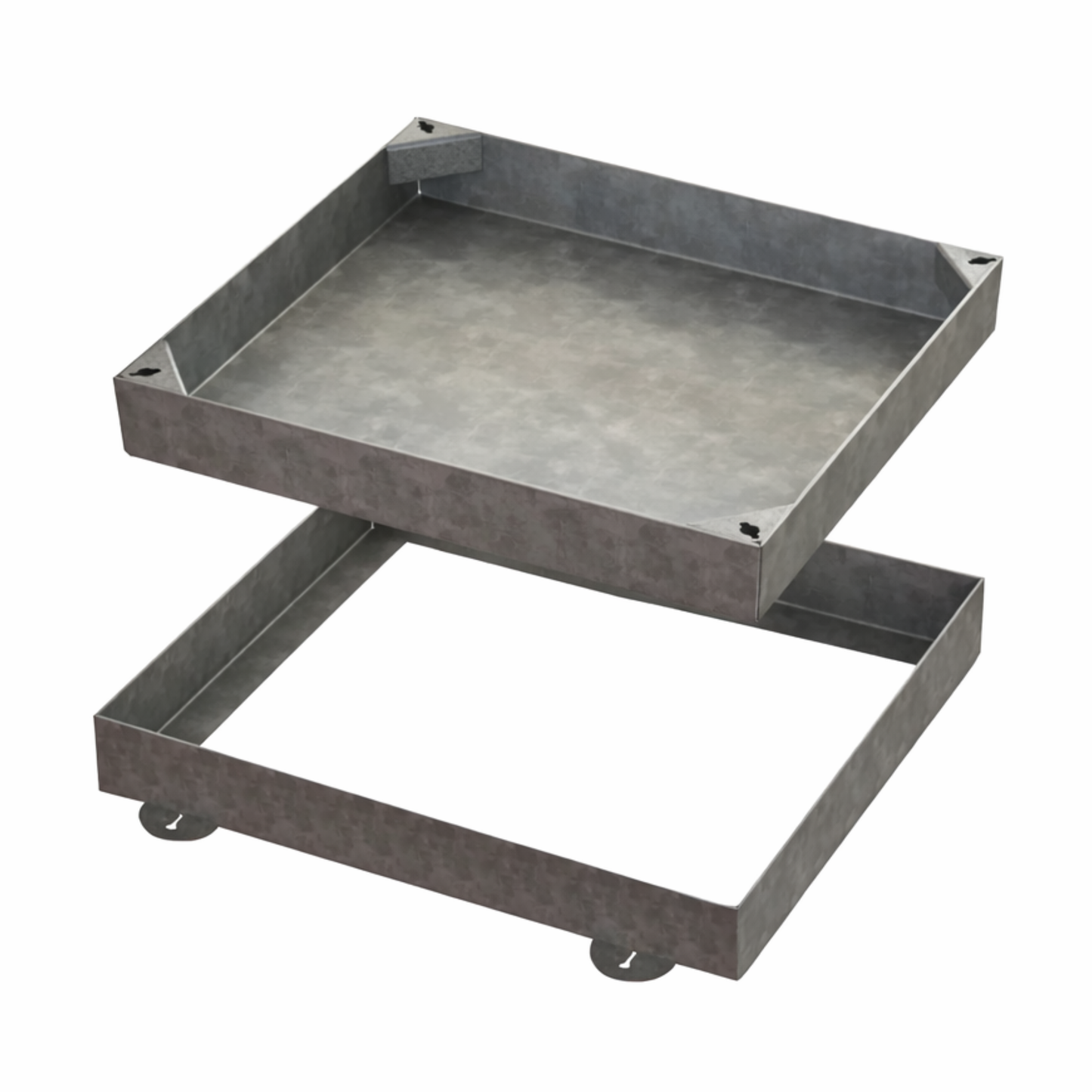

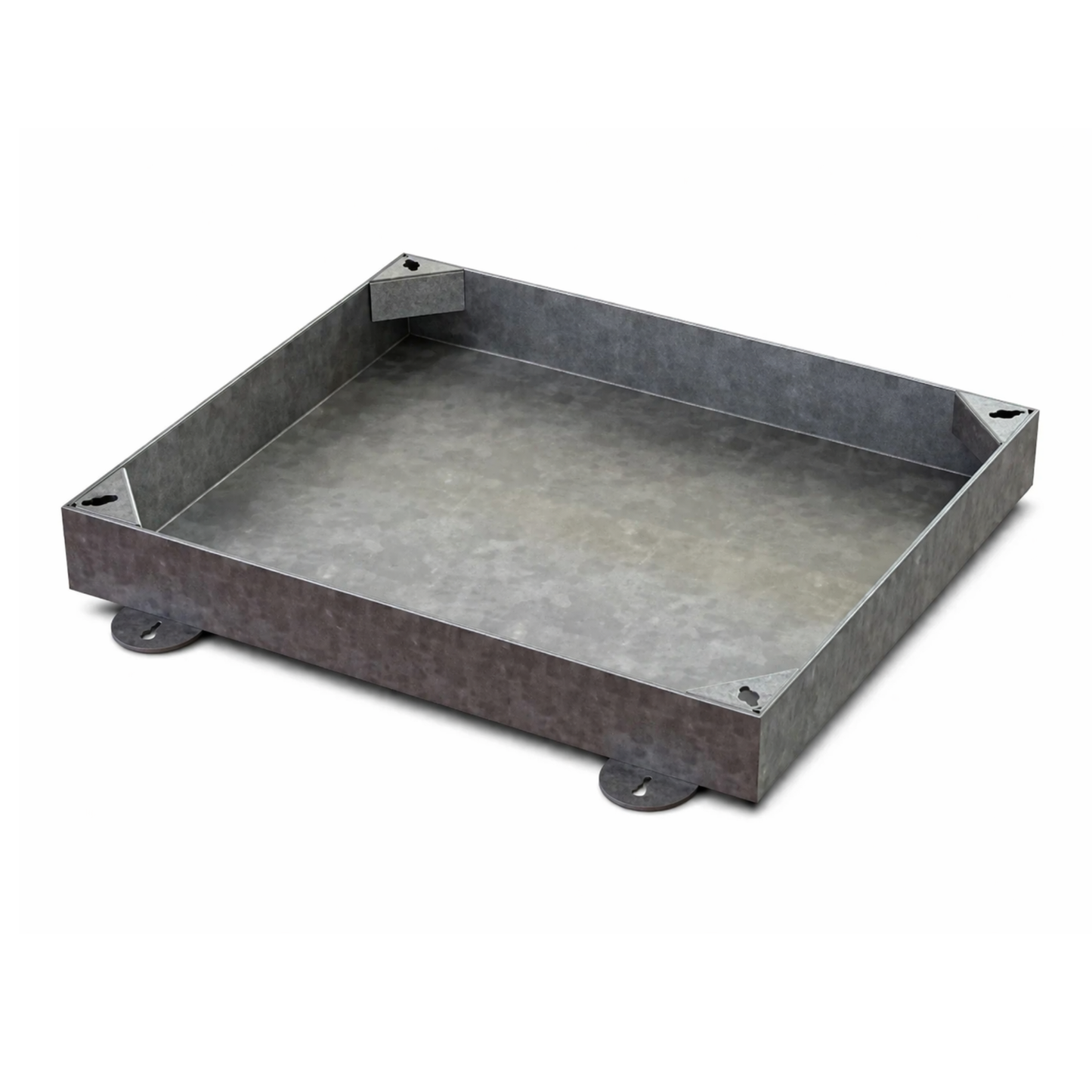

750 x 600mm Block Paving Recessed Manhole Cover 10 Tonne

This block paving recessed manhole cover is designed to allow paving materials to be installed within the lid so the finished surface remains level and consistent. It is commonly used over larger inspection chambers in patios, driveways and landscaped areas.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel construction provides structural strength, while the frame transfers load into the surrounding ground rather than through the infill material.

The larger 750 x 600mm clear opening provides increased access compared to standard sizes, which is useful for deeper chambers or where more working space is required for maintenance.

The 100mm tray depth is intended for deeper paving build-ups, including thicker slabs or increased bedding layers. This helps ensure the infill is properly supported and the finished surface aligns with surrounding levels.

This cover is non-sealed and intended for external use only.

10 tonne load rating suitable for domestic driveways and light vehicle traffic

100mm tray depth supports deep paving and construction build-ups

Larger 750 x 600mm clear opening improves access to chambers

Recessed lid allows paving to continue without visible interruption

Galvanised steel construction provides strength in external environments

Frame transfers load into surrounding structure, not through the infill

Compatible with standard lifting keys for safe removal

Suitable for patios, driveways and general paved areas

Manufactured from galvanised steel to provide structural strength and resistance to corrosion in typical external ground conditions. Suitable for general outdoor use but not for aggressive or chemically exposed environments.

Product type: Block paving recessed manhole cover
Suitable location: External

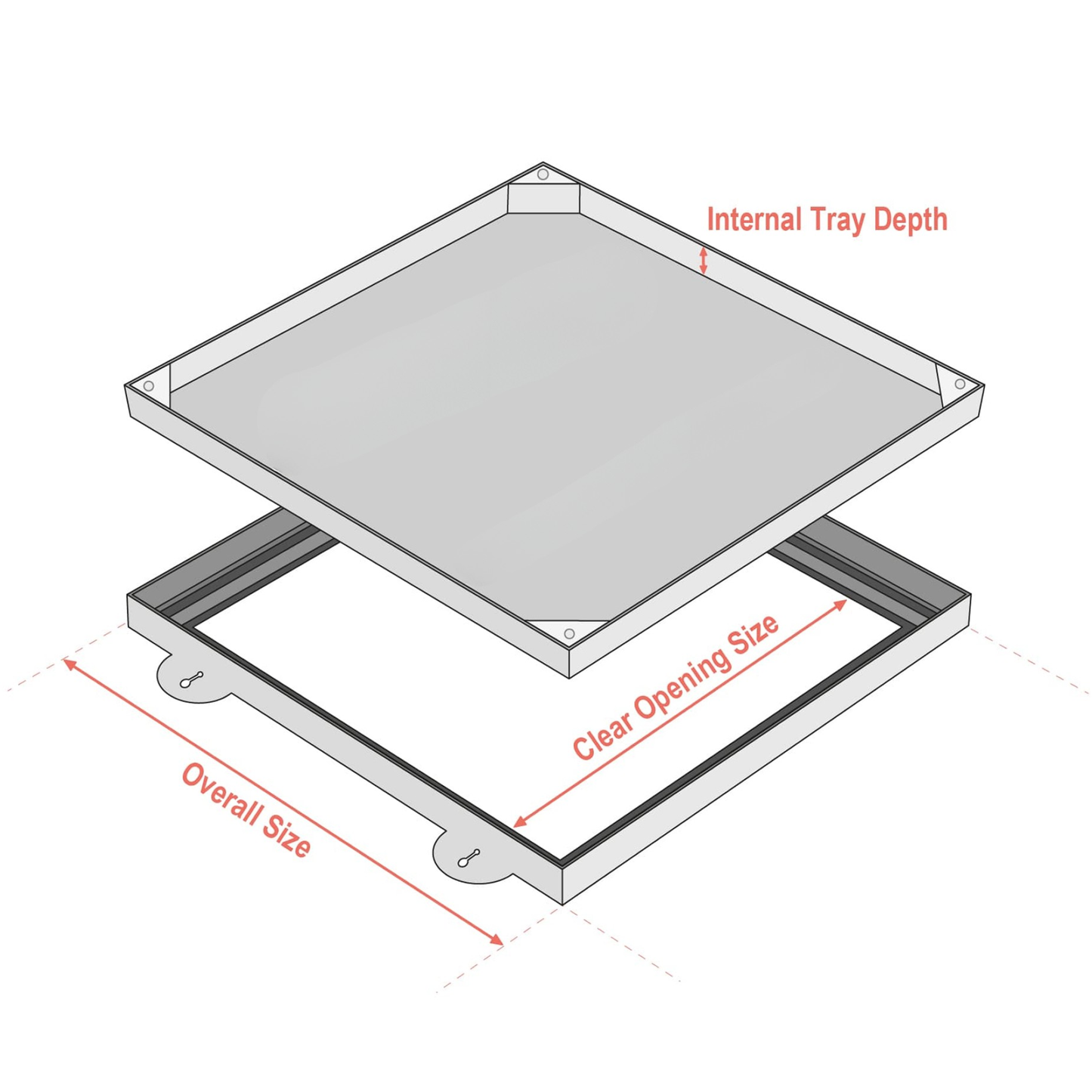

Clear opening: 750mm x 600mm
Overall frame size: 856mm x 706mm
Tray depth (recess depth): 100mm
Frame depth: 106mm (excluding fixing lugs)
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Not specified
Standards: FACTA AAA, BS EN material and galvanising references
Options: Bespoke sizes available
