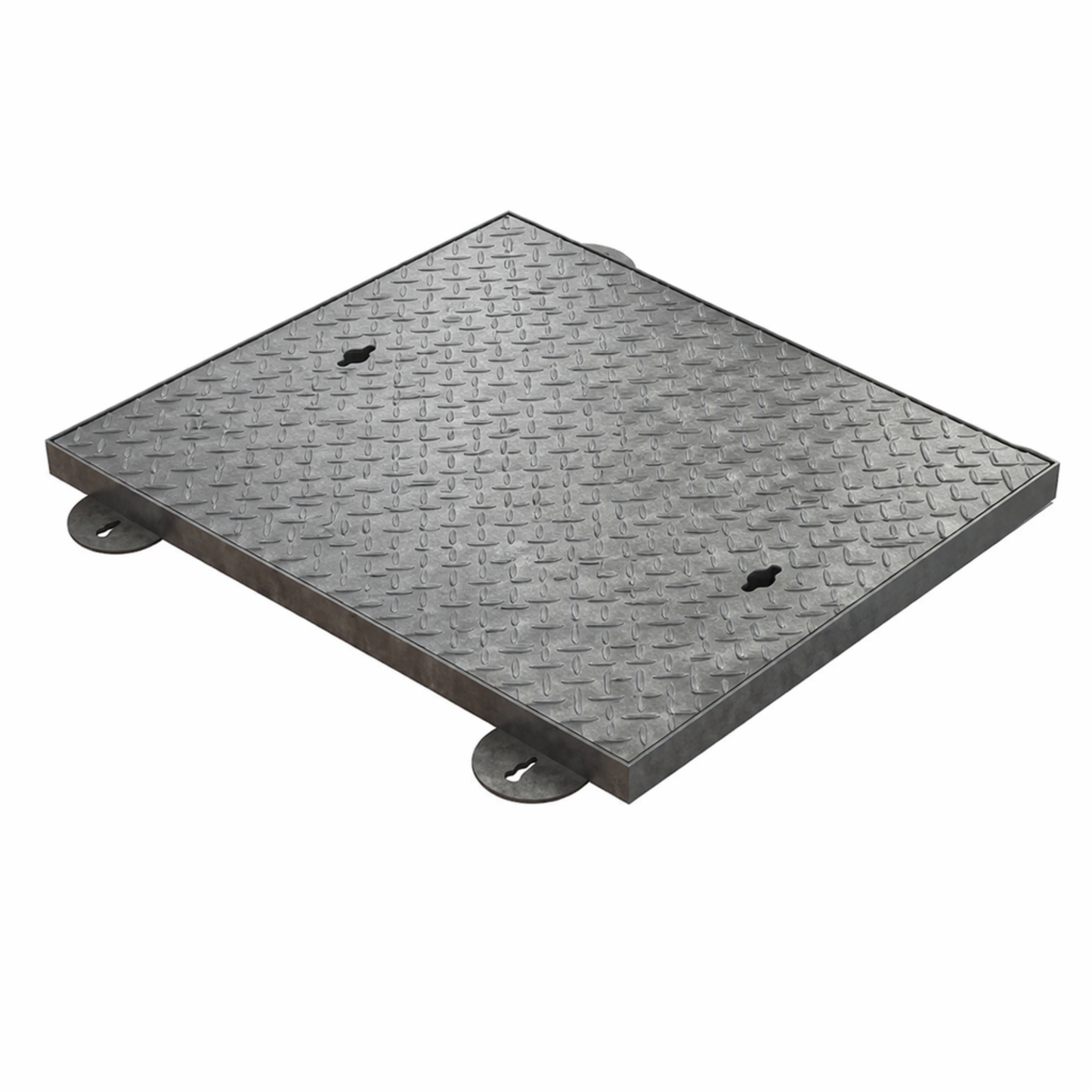

750 x 600mm Plain Seated Solid Top Manhole Cover

This 750 x 600 plain seated solid top manhole cover is designed for larger chambers and access points where direct access, visible location and dependable load performance are the priority. Unlike a recessed cover, the lid remains exposed after installation and does not require paving, concrete or tile infill.

Manufactured from galvanised mild steel, the cover provides a durable steel lid and frame assembly with a generous rectangular clear opening suited to drainage chambers, utility access points and inspection areas where additional working space is beneficial. The shallow 40mm overall depth can also assist where installation depth is limited or when replacing older shallow frame covers.

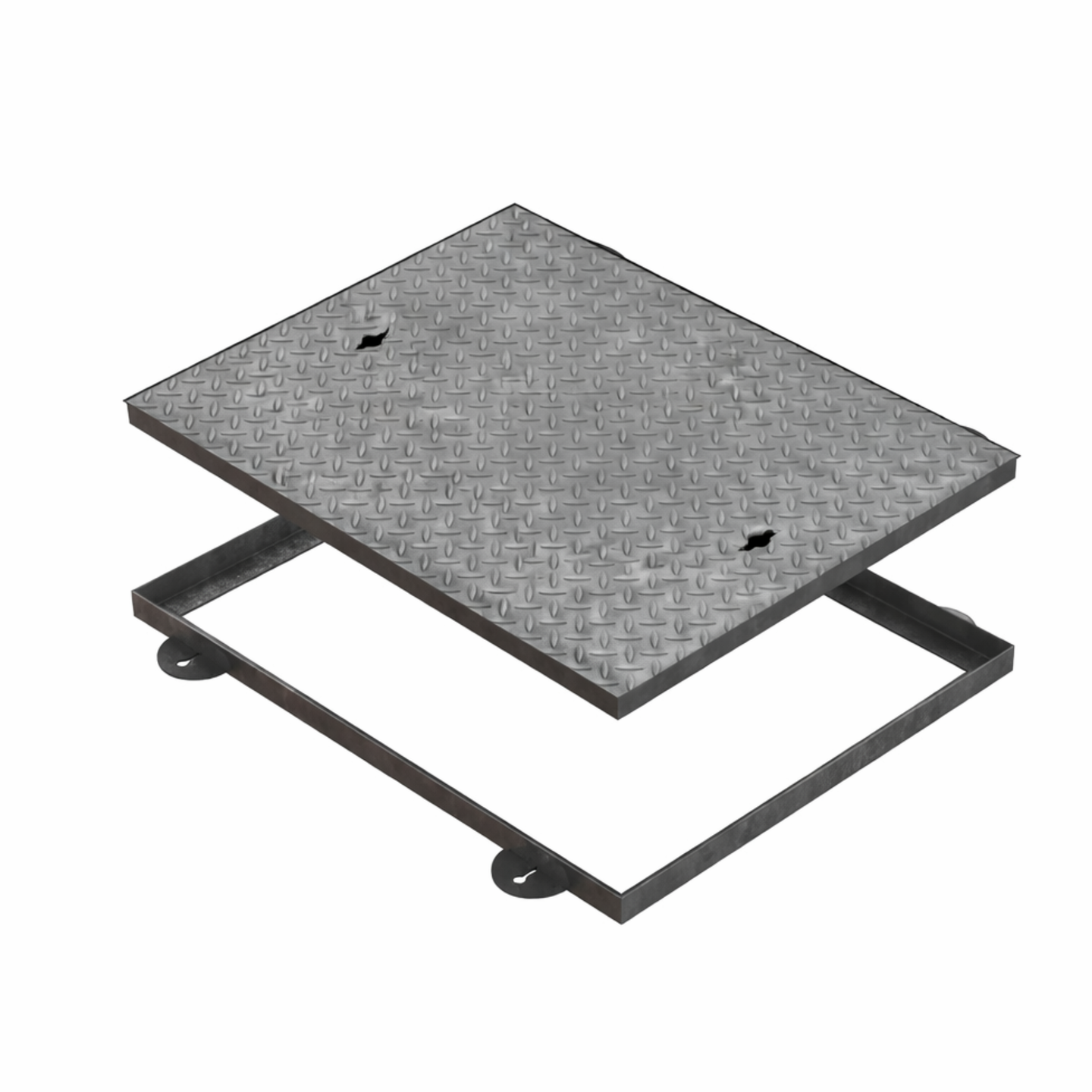

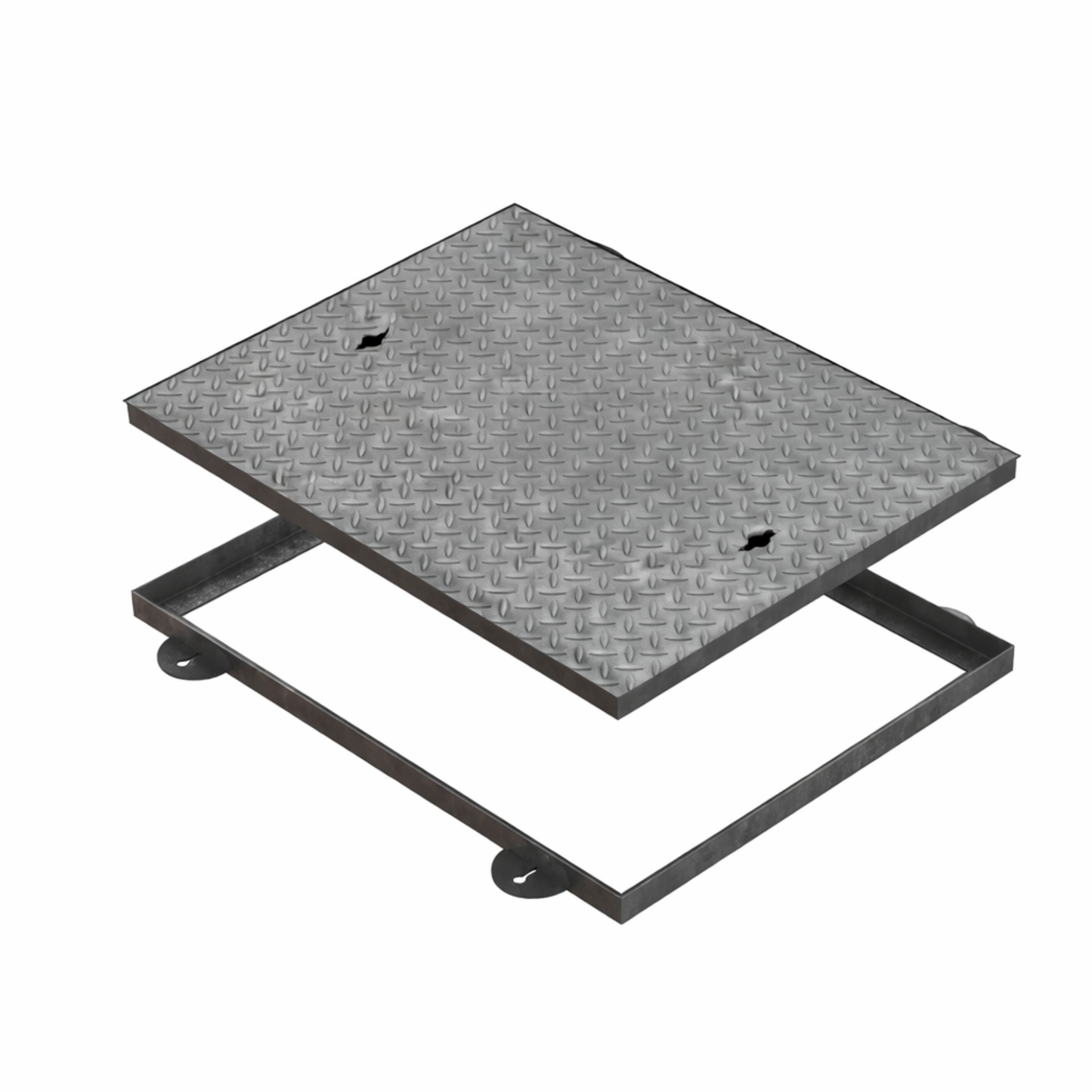

The lid is secured with four fixing screws to help minimise movement in service and maintain a stable fit within the frame. Integrated lifting keyholes allow removal when routine inspection, rodding or maintenance access is required.

This multi-option listing allows the correct load rating to be selected for site conditions. The 5 Tonne option is commonly used on domestic driveways and occasional light vehicle areas. The 10 Tonne option is suited to more demanding private access areas, service yards and regular light commercial traffic.

A common mistake is selecting by size alone. The clear opening must suit the chamber access, but the load rating must also reflect the real traffic using the cover.

• Solid top visible lid allows quick chamber identification and future access
• Plain seated design offers a straightforward and robust alternative to recessed covers
• 5 Tonne and 10 Tonne variants suit different loading requirements
• Galvanised steel construction provides strength with corrosion protection for external use
• Four screw fixing lid helps minimise movement and improves cover security
• Lifting keyholes allow safe removal using suitable lifting keys
• Shallow 40mm overall depth can suit restricted depth installations
• 750mm x 600mm rectangular clear opening provides generous access space
• Flush lid profile gives a neat finish within paved and hard landscaped areas
• Suitable where durability and access matter more than concealed appearance

Manufactured from mild steel with a hot dip galvanised finish. Steel provides good structural strength and rigidity, while galvanising helps protect exposed metal surfaces in normal external environments. Aggressive chemical or chlorinated environments should use a more suitable material grade.

Product type: Plain seated solid top manhole cover
Suitable location: External
Clear opening: 750mm x 600mm
Overall frame size: 830mm x 680mm
Overall depth: 40mm
Material: Mild steel
Finish: Hot dip galvanised
Seal type: Plain seated
Locking: Four screw fixing lid
Load rating: 5 Tonne / 10 Tonne (variant dependent)
Lifting method: Keyhole lifting points, keys sold separately
Fixings supplied: Integrated screw fixings
Weight: Approx. 32kg
Standards: FACTA stated on original product data
Options:
EG-ST-7560L, 5 Tonne, 750mm x 600mm clear opening, 830mm x 680mm overall frame size
EG-ST-7560M, 10 Tonne, 750mm x 600mm clear opening, 830mm x 680mm overall frame size
