750 x 750mm Plain Seated Solid Top Manhole Cover, 5 Tonne

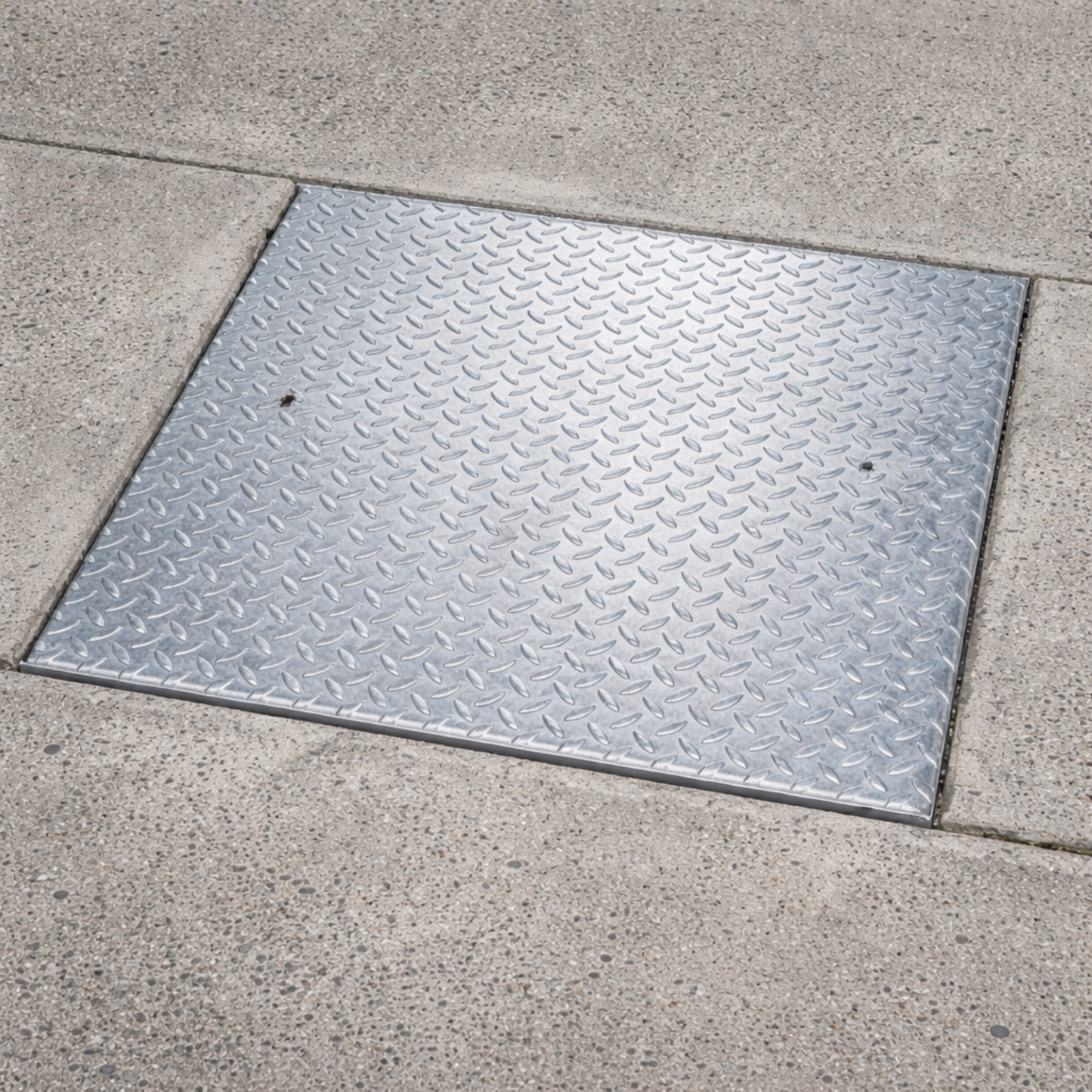

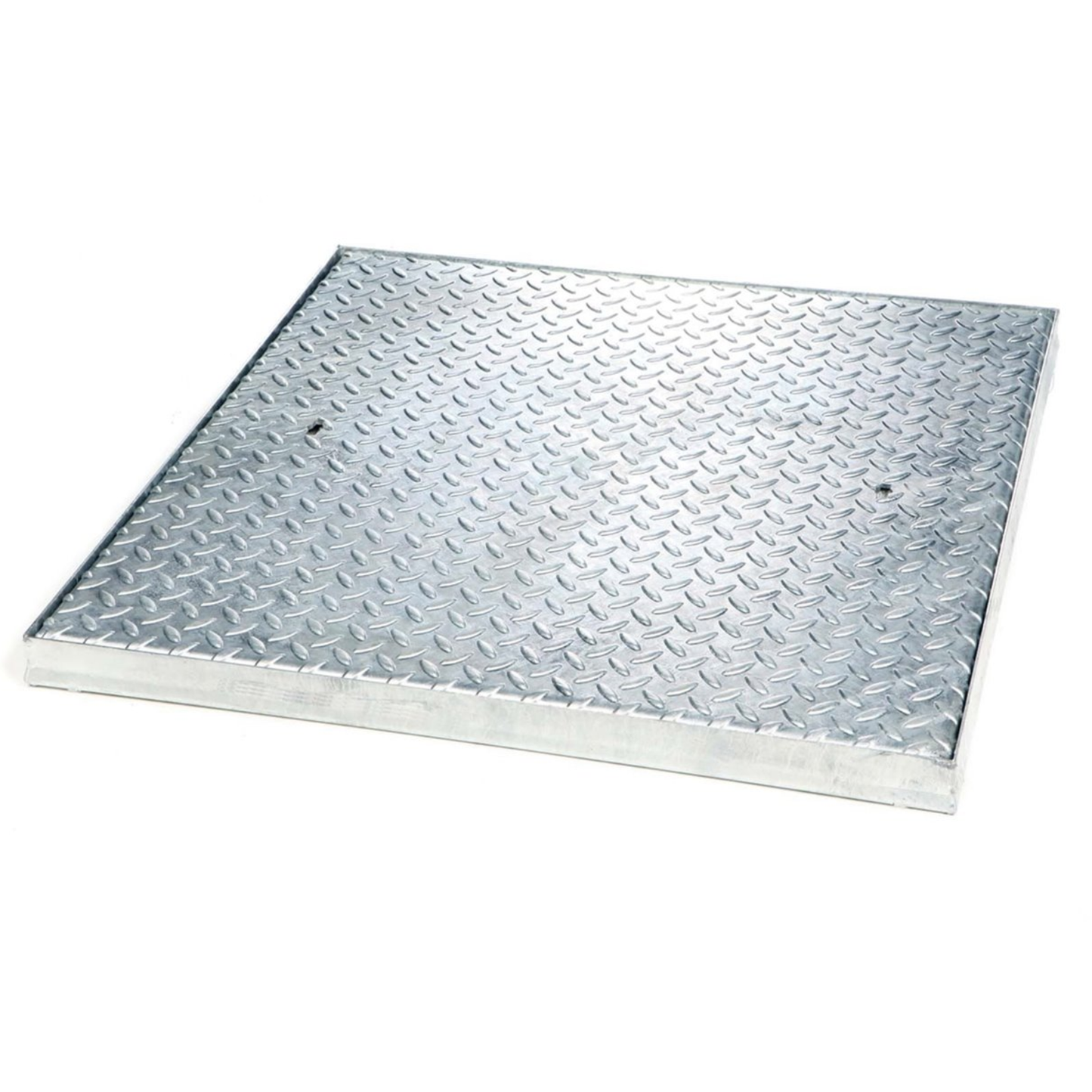

This 750 x 750mm plain seated solid top manhole cover is designed for driveway and private access installations where reliable vehicle loading, visible access and durable steel construction are required. Unlike a recessed cover, the lid remains exposed after installation and does not require paving, concrete or tile infill.

Manufactured from mild steel, the cover and frame are hot dip galvanised to help resist corrosion in normal external environments. The lid features a raised tread pattern to improve grip underfoot and provide a practical finish for regularly used access points.

The square clear opening provides generous working space for drainage chambers, utility access points and inspection areas where improved access is required. The 50mm overall depth can assist where a deeper frame is preferred for bedding and replacement work.

This model has a fixed 5 Tonne gross plated weight rating and is intended for domestic driveways, cars and similar light vehicle traffic in private settings. It is not intended for public highways or heavy commercial traffic.

Integrated lifting keyholes are provided for removal using two CD 553 or CD 556 lifting keys, available separately.

Solid top visible lid allows quick chamber identification and future access

Raised tread surface improves grip underfoot and in wet conditions

5 Tonne load rating suitable for domestic driveways and light vehicles

Galvanised steel construction provides strength with corrosion protection

750mm x 750mm clear opening gives generous chamber access space

50mm overall depth suits many new build and replacement installations

Plain seated design offers a straightforward and robust cover arrangement

Integrated lifting keyholes allow controlled removal for maintenance access

Suitable for private paved areas where durability matters more than concealed appearance

Made in Britain according to manufacturer data sheet

Manufactured from mild steel for both cover and frame, then galvanised to BS EN 1461:2009. Steel provides structural strength, while galvanising helps protect exposed metal surfaces in standard outdoor environments.

Product type: Plain seated solid top manhole cover
Suitable location: External
Clear opening: 750mm x 750mm
Overall frame size: 810mm x 810mm
Overall depth: 50mm
Material: Mild steel
Finish: Hot dip galvanised to BS EN 1461:2009
Seal type: Plain seated
Locking: None
Load rating: 5 Tonne GPW
Lifting method: Requires 2 x CD 553 or CD 556 lifting keys
Fixings supplied: No
Weight: 22kg
Standards: FACTA Clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: C10BG, 750mm x 750mm clear opening, 810mm x 810mm overall frame size
