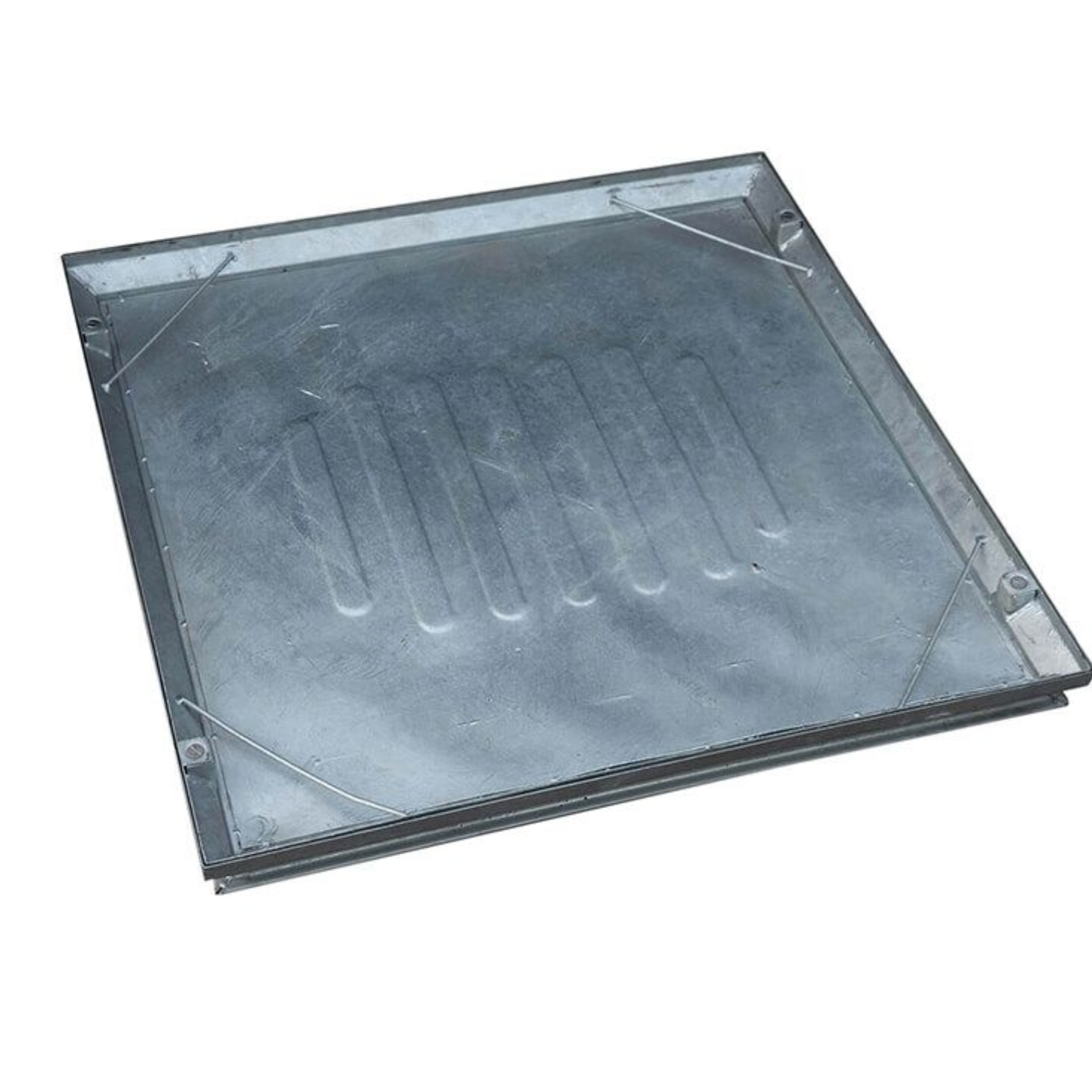

750 x 750mm Sealed & Locking Recessed Manhole Cover

The 750 x 750mm sealed and locking recessed manhole cover is designed for installations where a larger square access opening is required while maintaining sealing performance. Manufactured from galvanised steel, both the tray and frame provide a rigid and stable structure suited to internal floor construction.

This cover is typically used in internal environments such as plant rooms, basements and service areas, where access is required but odour control remains important. The factory fitted sealing gasket works with the screw locking system to compress the lid onto the frame, helping reduce odour escape from the chamber.

The recessed tray allows for concrete or screed infill so the finished surface remains flush with the surrounding floor. It can also be used externally in pedestrian areas such as patios, but it is not suitable for trafficked locations due to its 5 tonne load rating.

Larger format covers can be prone to movement if not properly bedded. The profiled steel frame helps improve stability within the surrounding material, reducing long term movement and maintaining a consistent seal.

• 750 x 750mm clear opening suits larger square inspection chambers
• Fully galvanised steel construction improves rigidity and durability
• Rubber sealing gasket helps prevent odours escaping in internal environments

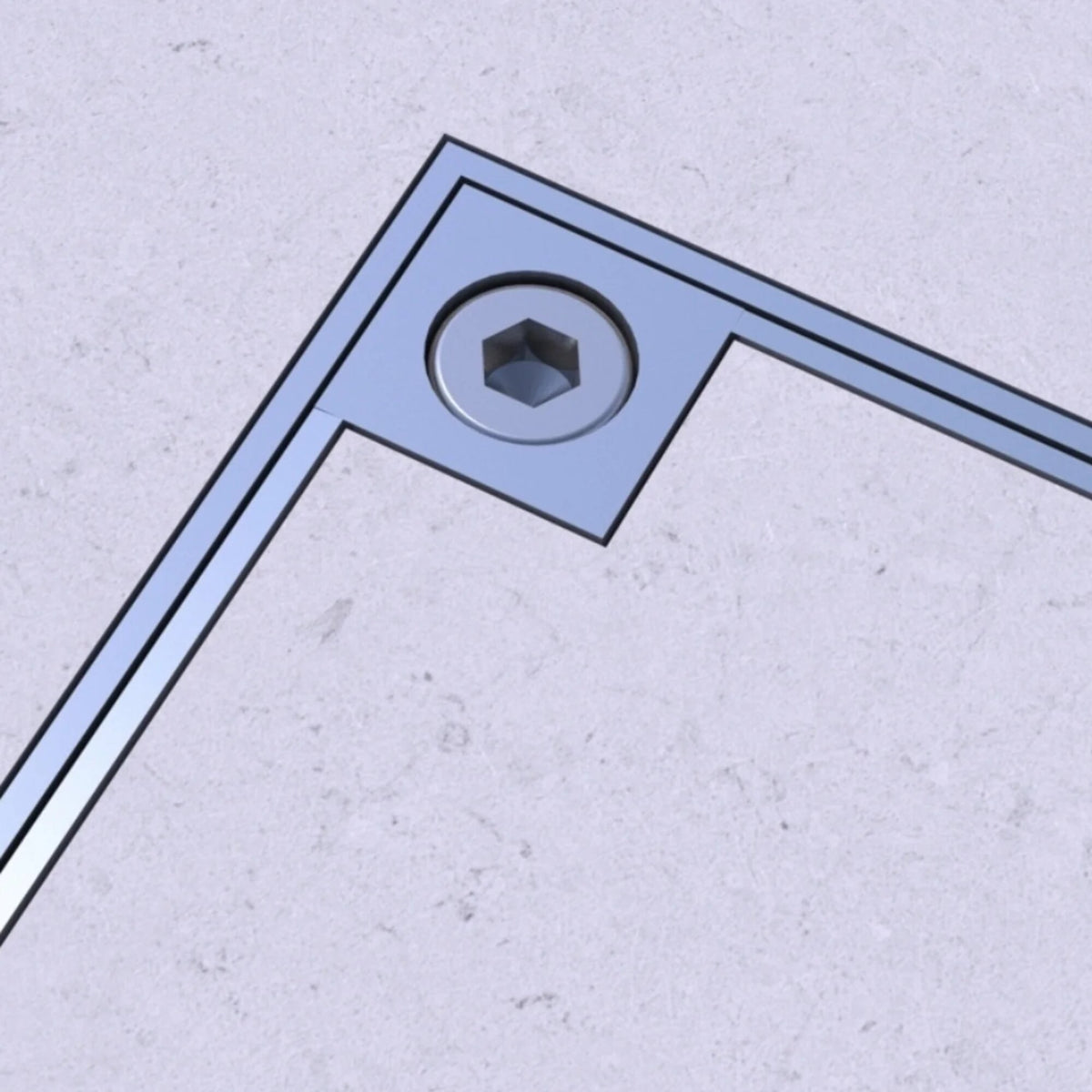

• Four screw locking system secures the cover and improves sealing performance

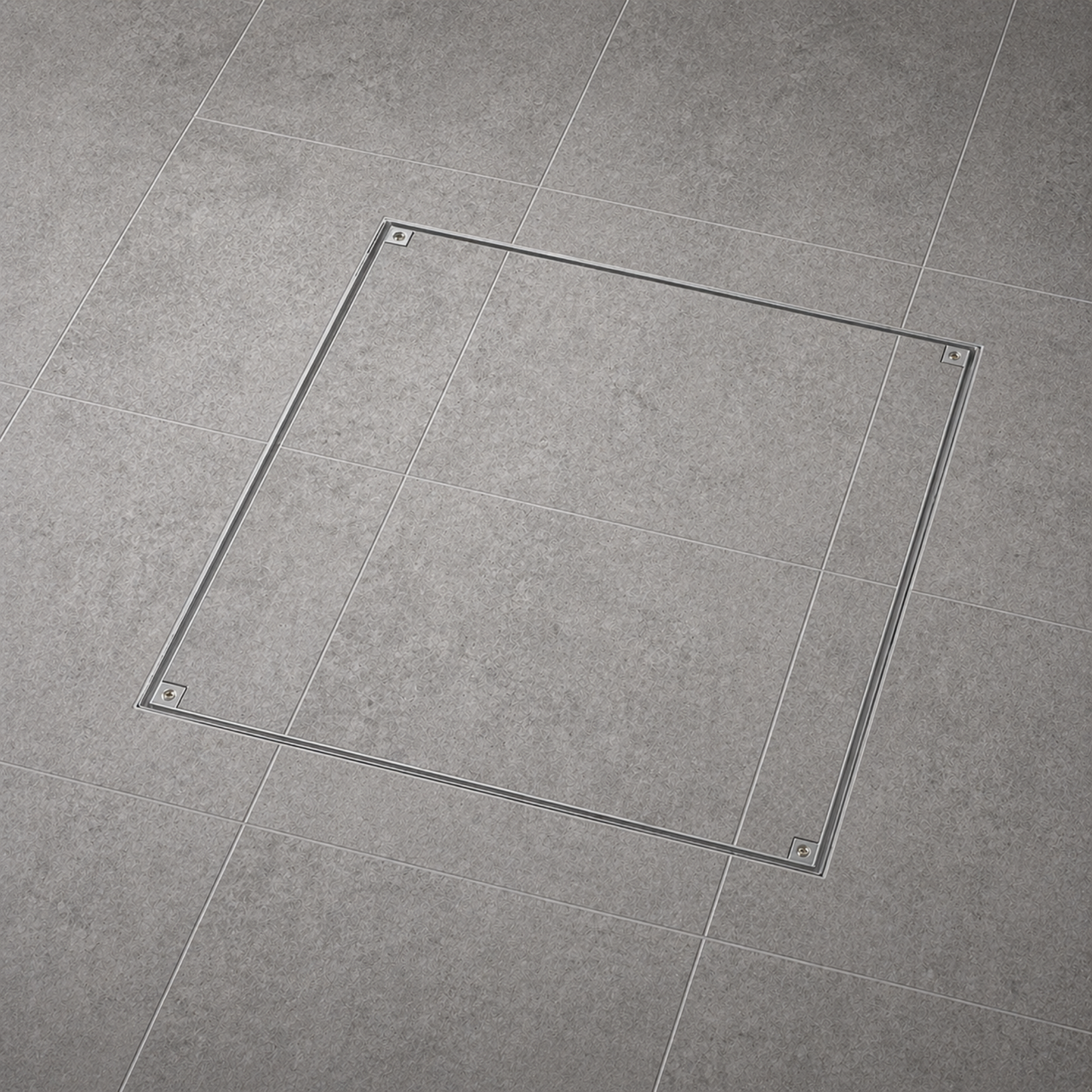

• Recessed tray accepts concrete or screed for a flush finish
• 5 tonne load rating suitable for pedestrian areas and light external use
• Tapered frame improves bedding and long term stability
• Integrated lifting key holes allow safe removal using lifting keys

This cover is manufactured from galvanised mild steel for both the tray and frame. The galvanised finish provides resistance to general corrosion, while the steel construction improves rigidity compared to lighter framed alternatives.

Product type: Sealed and locking recessed manhole cover
Suitable location: Internal and external pedestrian areas
Clear opening: 750mm x 750mm
Overall frame size: 856mm x 856mm
Tray depth (recess depth): 43.5mm
Frame depth: 51mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Rubber gasket seal
Locking: Four screw locking
Load rating: 5 tonne GPW
Lifting method: Lifting keys required
Fixings supplied: Not specified
Weight: 29kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3
Options: Compatible with CD 776 lifting keys
