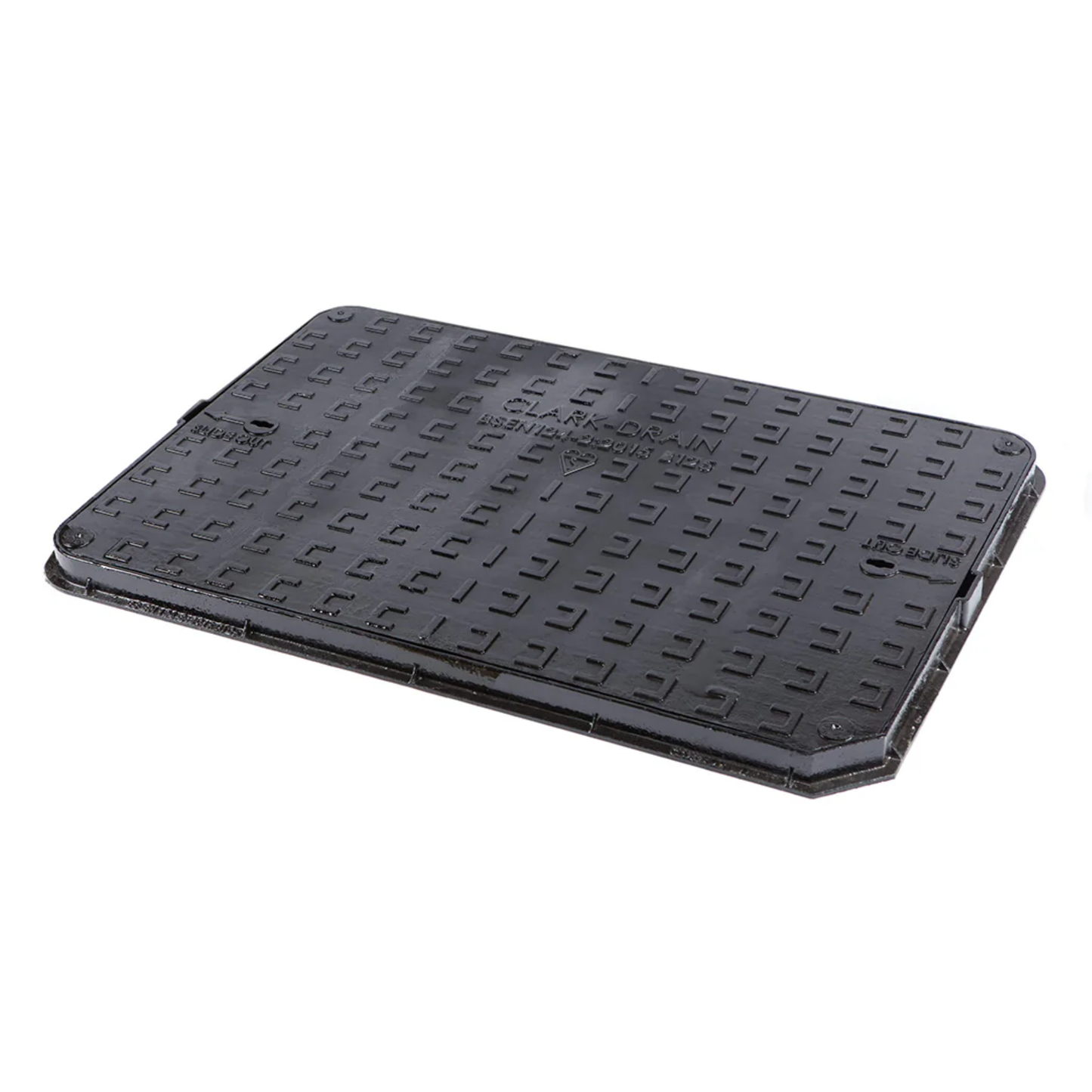

900 x 600mm Ductile Iron Manhole Cover and Frame B125

This 900 x 600mm ductile iron manhole cover and frame is a solid top B125 rated access cover built for external chamber openings in domestic and light commercial locations. It is regularly specified for private driveways, paved forecourts, pedestrian routes, parking bays and service areas where a robust visible lid is preferred.

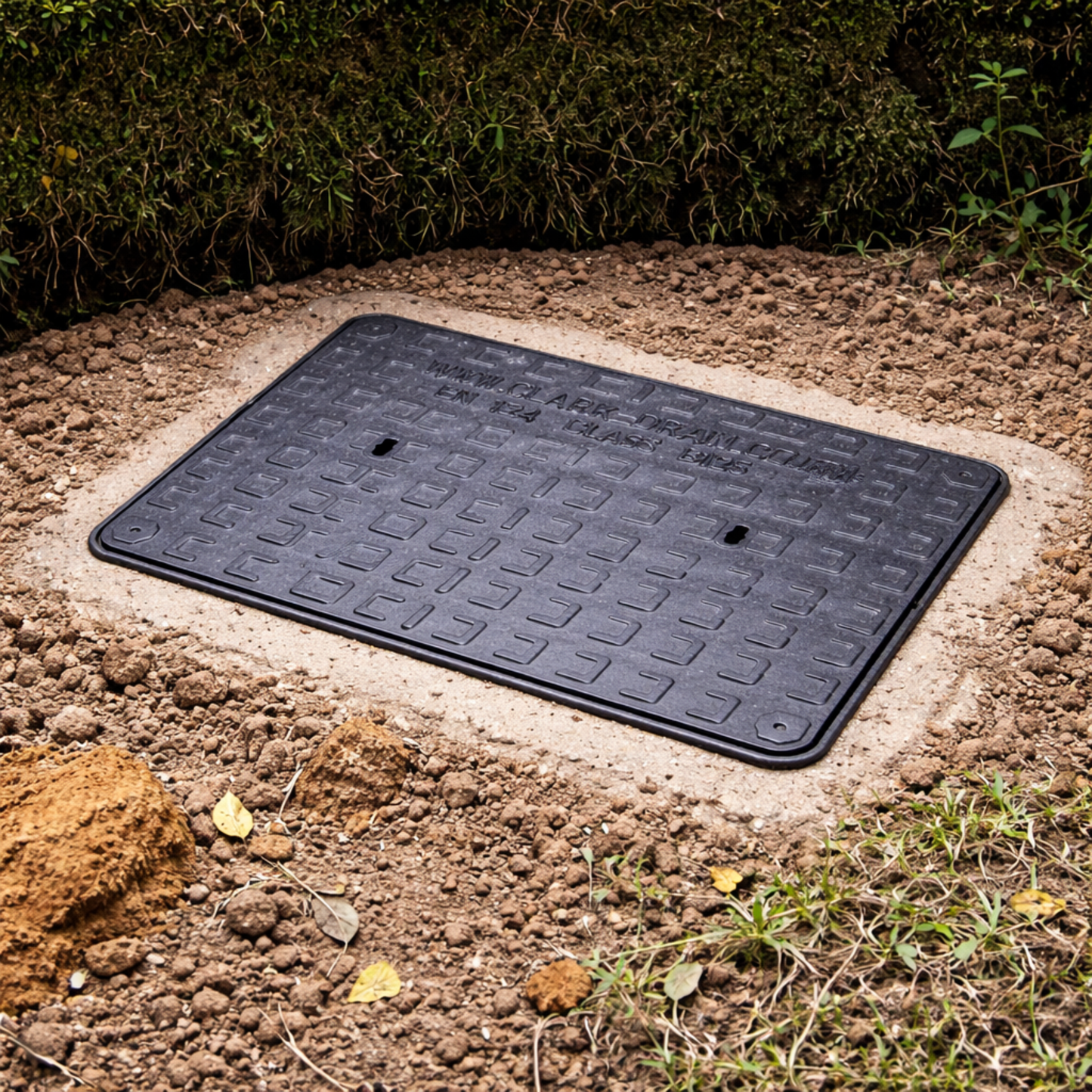

The solid top design leaves the cover exposed at finished surface level, making future access simple and avoiding the need to remove surrounding blocks, slabs or resin finishes. Where appearance is less important than strength and routine maintenance access, this style remains a dependable choice.

Manufactured from spheroidal graphite ductile iron, the CD 752 KMB provides stronger impact resistance and improved structural performance compared with older grey cast iron covers. Correctly bedded on a full mortar or concrete surround, it is well suited to repeated car and light van traffic.

The 900 x 600mm clear opening provides generous access for larger inspection chambers, pumping points, drainage runs and utility services. This size is often selected where smaller covers restrict maintenance access or where existing chamber dimensions already require a larger opening.

Integral lifting key holes are cast into the lid for controlled removal using compatible keys. The slide out cover design helps reduce awkward lifting movement during opening, useful where periodic inspection is required.

B125 loading is intended for BS EN 124 Group 2 applications including pedestrian areas and private locations with occasional vehicle use. It should not be used in carriageways, adopted roads or heavy commercial yards where D400 or above would normally be required.

When replacing an existing cover, always confirm the clear opening first, then check overall frame size and bedding depth before ordering.

• B125 rated for driveways, pavements and parking bays
• 900 x 600mm clear opening for larger chamber access
• Solid top visible lid for straightforward maintenance access
• Integral lifting key holes for safer removal
• Slide out design to reduce awkward handling
• Ductile iron construction for strength and long service life
• Black coated finish for external installations
• Complete cover and frame supplied

Manufactured from spheroidal graphite iron grade EN-GJS-500-7 to BS EN 1563:2011. This ductile iron grade is widely used for access covers because it combines high strength with improved flexibility and impact resistance under load.

Product code: CD 752 KMB
Clear opening: 900mm x 600mm
Overall frame size: 970mm x 670mm
Frame depth: 40mm
Product weight: 45kg
Cover weight: 35kg
Material: EN-GJS-500-7 ductile iron
Load class: B125
Standard: BS EN 124-2:2015
Frame pressure bearing area: 1.15 N/mm²
Cover type: Solid top cover and frame
Finish: Black surface coating
Application: Pedestrian and driveway
