900 x 600mm Grass & Gravel Recessed Manhole Cover 10 Tonne

This recessed manhole cover is designed to provide concealed access over larger inspection chambers within grass, landscaped and gravel surfaces. The rectangular tray allows infill to sit flush with the surrounding ground, maintaining a consistent finish while ensuring the chamber remains accessible.

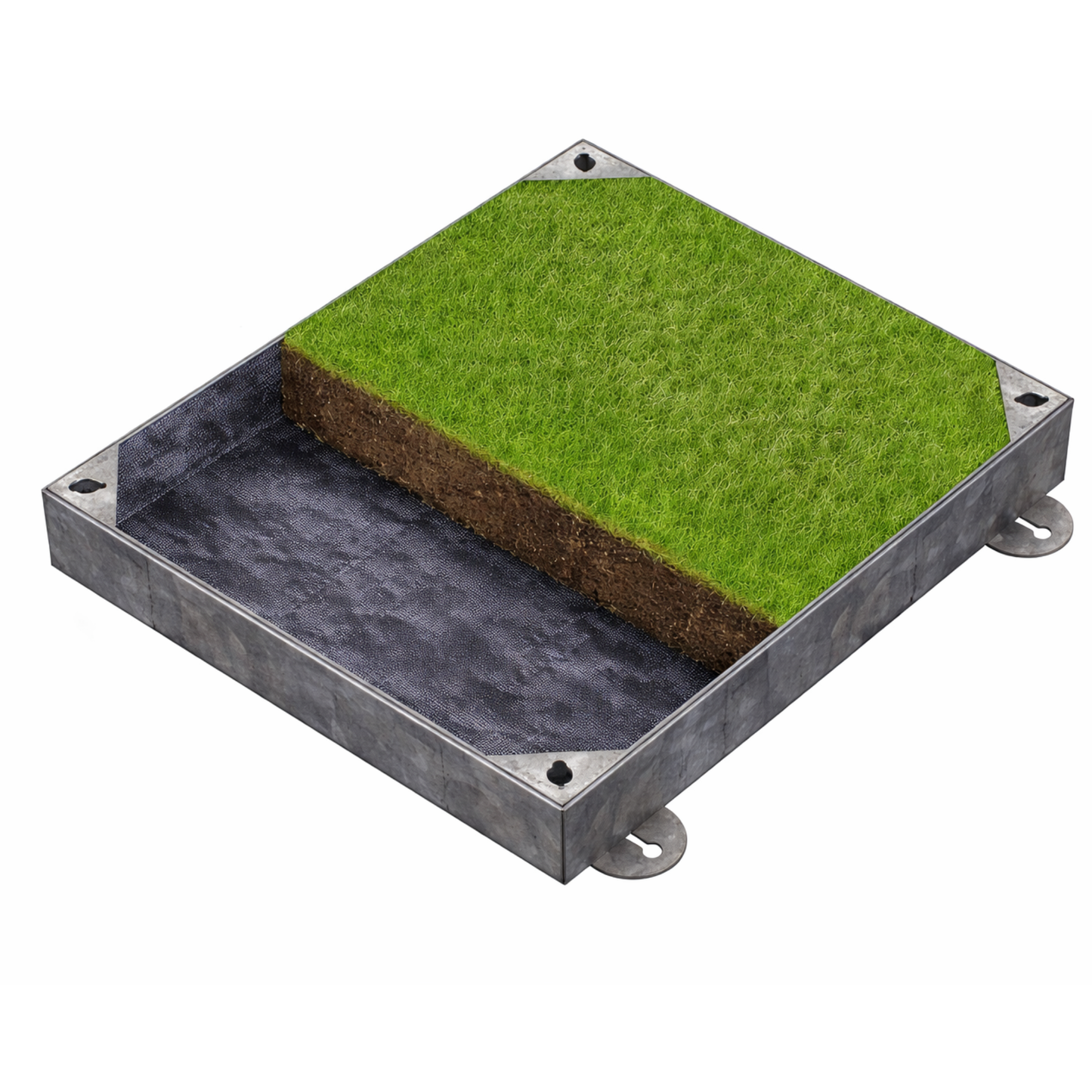

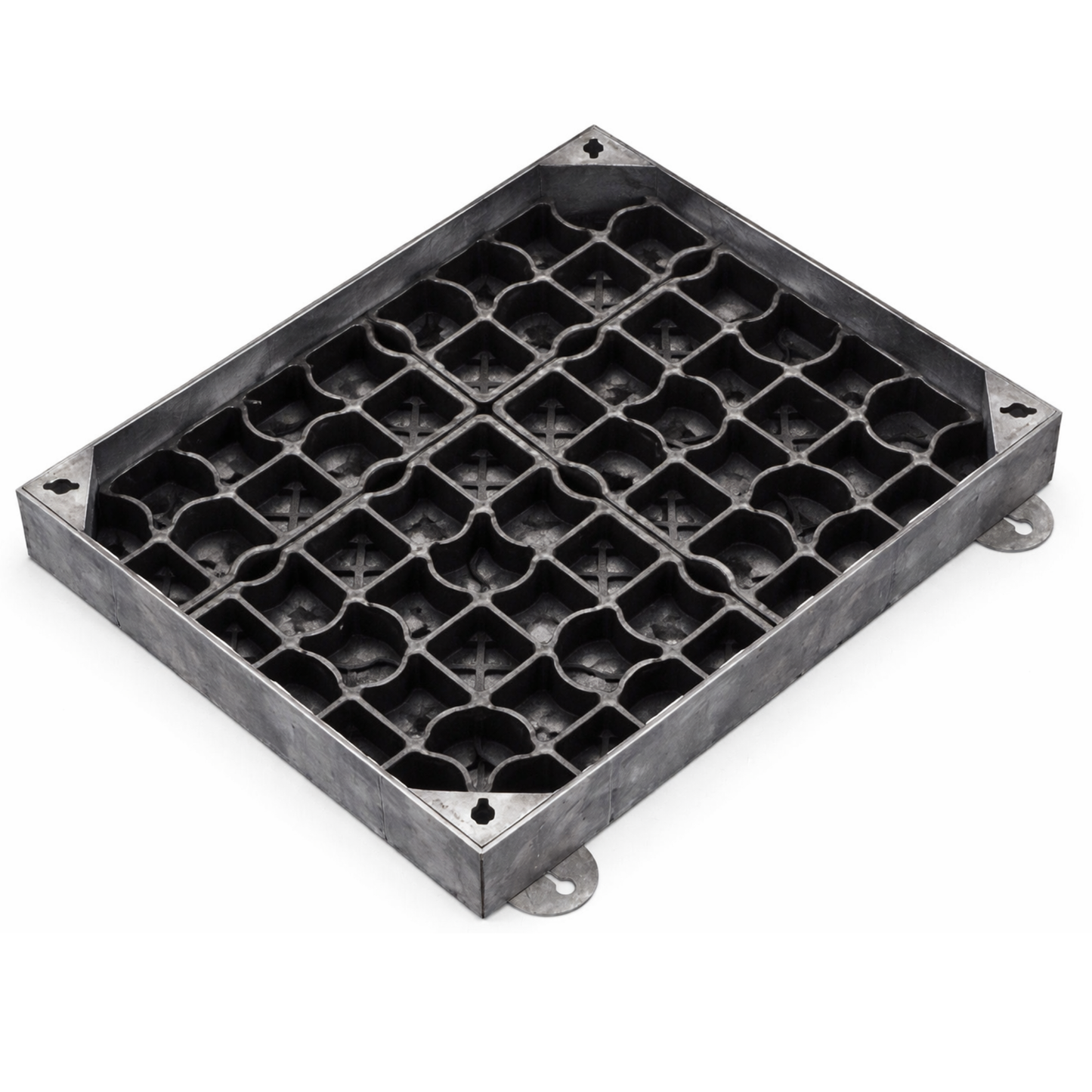

Two infill options are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and reduces movement under foot or light vehicle loading.

The 100mm tray depth is suited to deeper landscaping build-ups. It provides additional material depth compared to shallower trays, improving turf establishment and increasing stability for gravel installations, particularly across larger surface areas.

Manufactured from galvanised steel, the cover provides structural strength for external use. It is suitable for gardens, landscaped areas and domestic driveways with light vehicle traffic.

Selection should always be based on the clear opening of the chamber. The overall frame size is larger and should not be used for sizing.

900mm x 600mm clear opening suits larger rectangular chambers

100mm tray depth supports deeper turf or gravel installations

Choice of grass top or gravel top configurations

Gravel top option stabilises loose aggregate across larger areas

Galvanised steel construction provides structural strength

Drainage holes and membrane layers support water flow and turf growth

Suitable for landscaping and domestic driveway applications

Compatible with standard lifting keys for access

Manufactured from galvanised steel for strength and durability in external ground conditions. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 900mm x 600mm
Overall frame size: 1006mm x 706mm
Tray depth (recess depth): 100mm
Frame depth: 106mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:
EG9060/100-GT, Grass Top, 900mm x 600mm clear opening, 1006mm x 706mm overall frame size
EG9060/100-GT-EG, Gravel Top, 900mm x 600mm clear opening, 1006mm x 706mm overall frame size
