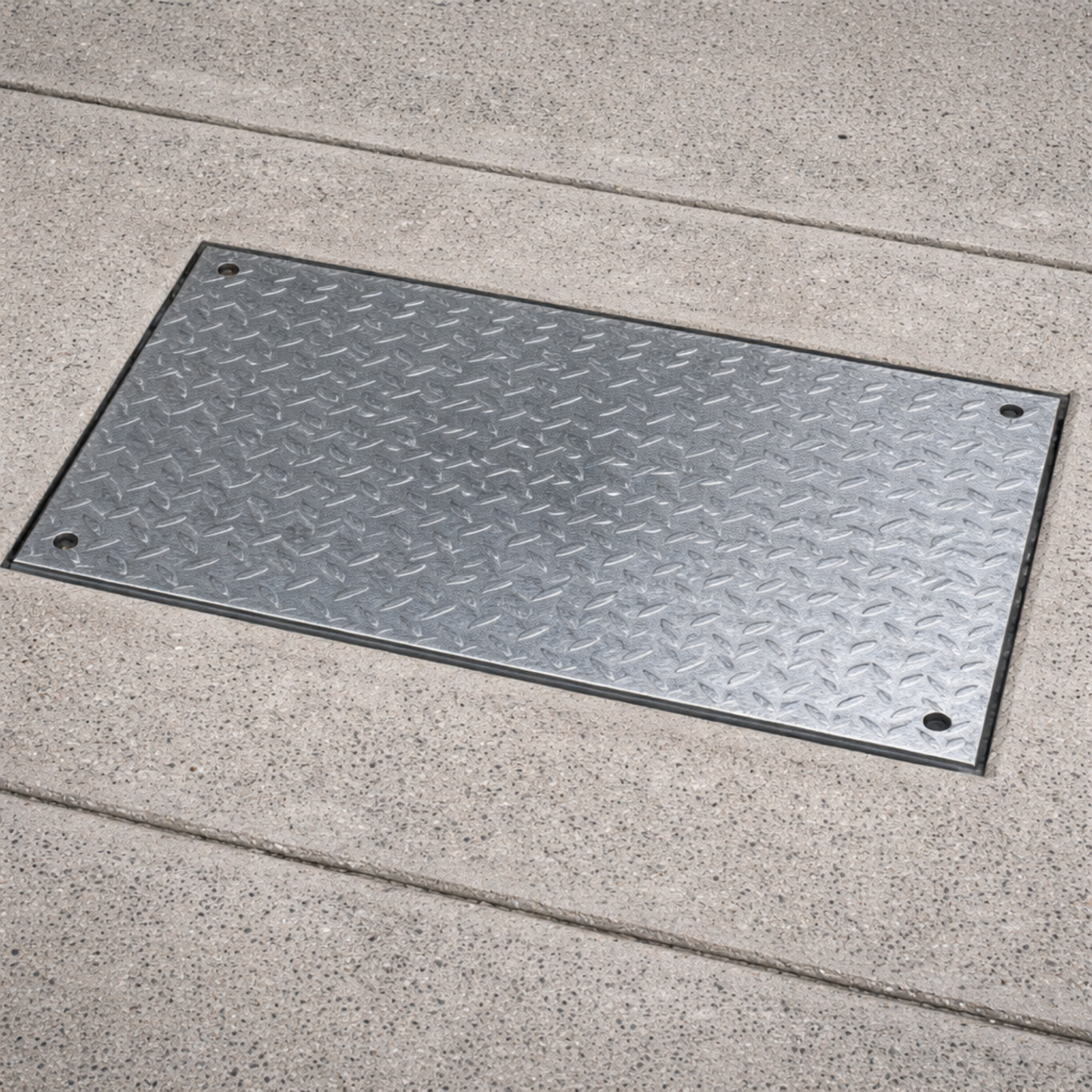

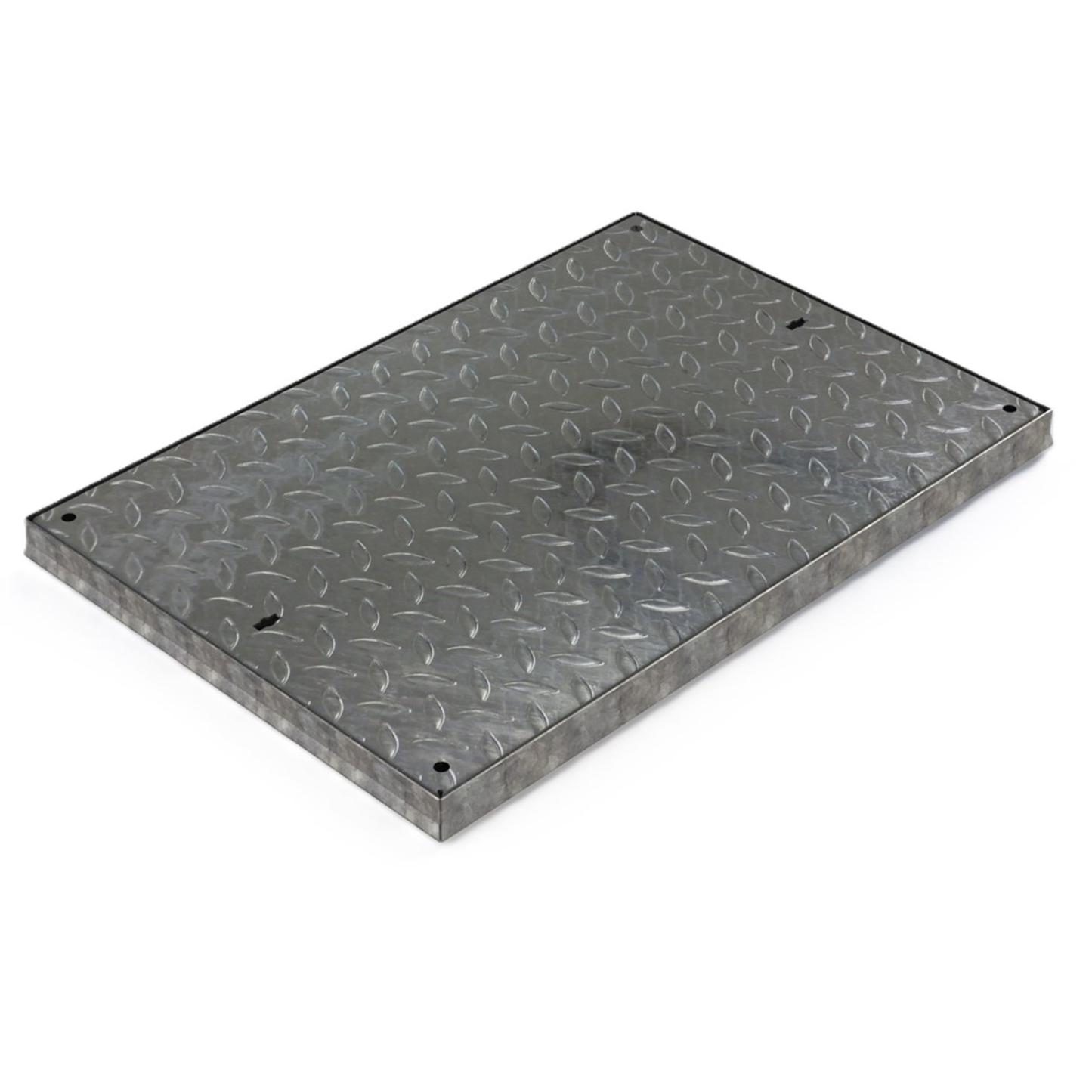

900 x 600mm Sealed & Locking Solid Top Manhole Cover, 5 Tonne

This 900 x 600mm sealed and locking solid top manhole cover is designed for installations where a standard plain seated cover does not provide enough control. It combines a galvanised steel lid and frame with a factory fitted sealing gasket and locking screws to help restrict odours, debris and unwanted lid movement.

Unlike a recessed cover, the lid remains visible after installation and does not accept infill materials. The raised tread top surface improves grip underfoot and provides a durable finish for regularly accessed areas.

Manufactured from galvanised steel, the cover offers robust load-bearing performance for domestic and light vehicle environments. The 50mm overall depth provides a practical frame depth for new installations and replacement work. Removal is by two CD 553 or CD 556 lifting keys, available separately.

This model has a fixed 5 Tonne gross plated weight rating and is intended for domestic driveways and similar private vehicle areas. The manufacturer also identifies garage thresholds, patios, gardens and play areas as suitable applications.

A common mistake is assuming a sealed cover will solve every drainage odour issue. The gasket helps restrict smells escaping through the lid, but the chamber and drainage system must also be functioning correctly.

• Sealing gasket helps restrict odours, debris and surface contamination
• Locking screws secure the lid to the frame and reduce movement in service
• 5 Tonne load rating suitable for domestic driveways and light vehicles
• Raised tread surface improves grip underfoot and wet weather footing
• Galvanised steel construction provides durable load-bearing performance
• 900mm x 600mm clear opening suits larger drainage and utility chambers
• 50mm overall depth suits many new build and replacement installations
• Removal by CD 553 or CD 556 lifting keys for controlled access
• Suitable for patios, gardens, garage thresholds and play areas
• Visible solid top lid provides quick access point identification

Manufactured from galvanised steel for both cover and frame. Steel provides structural strength, while galvanising to BS EN 1461:2009 helps protect exposed metal surfaces in standard outdoor environments.

Product type: Sealed and locking solid top manhole cover
Suitable location: Internal or external
Clear opening: 900mm x 600mm
Overall frame size: 960mm x 660mm
Overall depth: 50mm
Material: Galvanised steel
Finish: Galvanised to BS EN 1461:2009
Seal type: Factory fitted polyethylene seal
Locking: Locking screws
Load rating: 5 Tonne GPW
Lifting method: Requires 2 x CD 553 or CD 556 lifting keys
Fixings supplied: Integrated locking screws
Weight: 50kg
Standards: FACTA Clauses 7.0, 7.2, 7.2.1, 7.2.3
Options: C11BG3, 900mm x 600mm clear opening, 960mm x 660mm overall frame size
