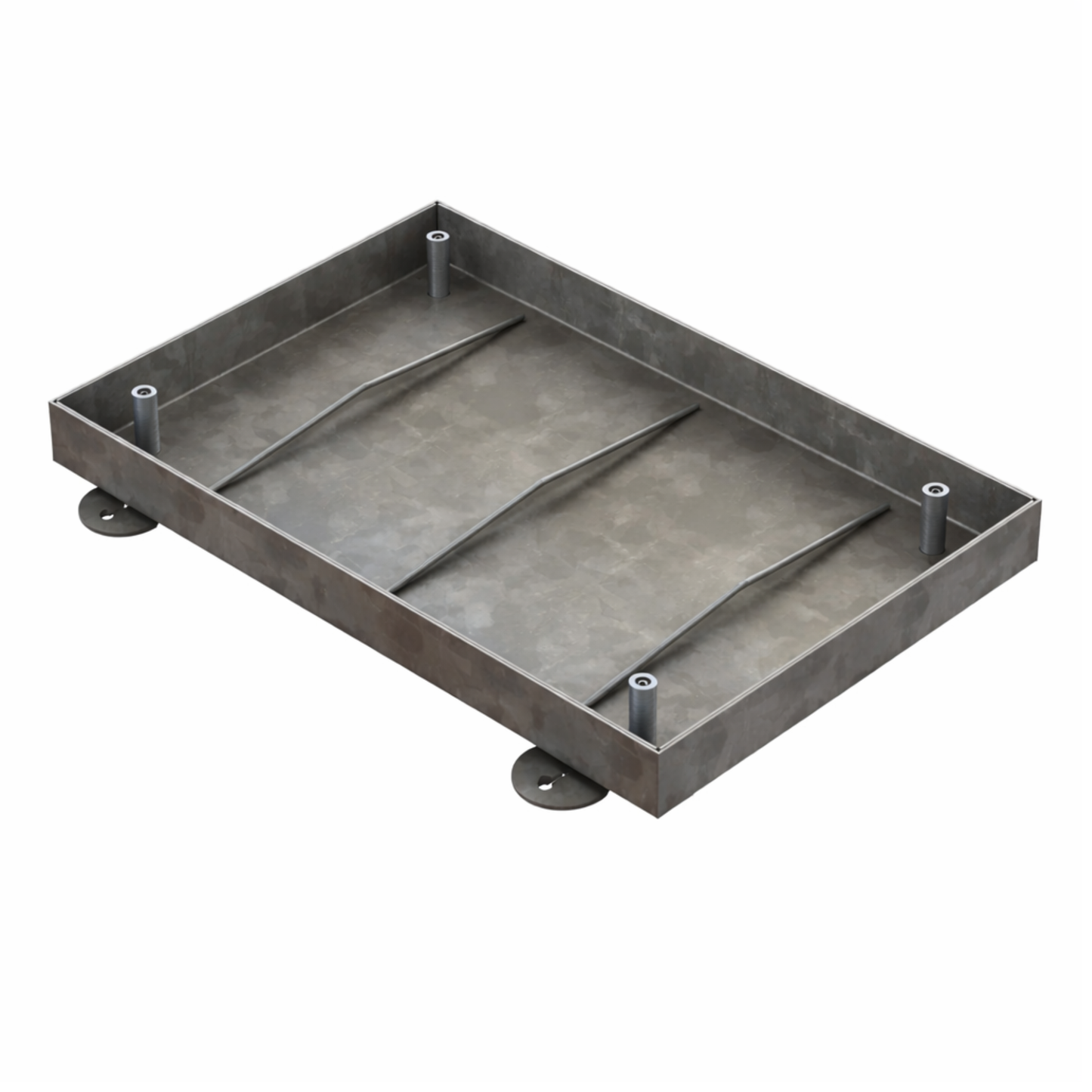

900 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

900 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

Clear Opening: 794mm x 494mm
Tray Depth: 70mm
External Dimensions: 900mm x 600mm x 78mm

Tile insert recessed manhole cover designed to align with 900mm x 600mm tile layouts. The recessed tray allows a full tile to be installed within the lid, maintaining consistent grout lines across the finished surface.

Double sealed and screw locked, this cover is suited to internal tiled floors and external porcelain patios where appearance and odour control both matter.

£218.74
£218.74
Tax included. Shipping calculated at checkout.

Hurry up! Only 3 items in stock.

EG-SL/9060OTF

Expected delivery date:
07 Jun Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

900 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

900 x 600mm Tile Insert Recessed Manhole Cover 10 Tonne

Description

This tile insert recessed manhole cover is designed to provide concealed access within tiled floors and paved areas. The 900mm x 600mm overall frame aligns with standard large format tiles, allowing the layout to continue without breaks or irregular cuts.

The recessed tray is sized to accept tile, adhesive and bedding build-up, creating a flush and consistent finish. This avoids cutting tiles around the opening, which often leads to poor alignment and weak edges. The clear opening of 794mm x 494mm relates to the chamber below and should always be confirmed on site before selection.

A double neoprene sealing system combined with screw locking helps contain odours in internal environments such as kitchens, bathrooms and utility areas. It also reduces water ingress from above in external installations.

Manufactured from galvanised steel, the cover is suitable for domestic driveway use up to 10 tonnes. For installations exposed to chlorinated water or aggressive conditions, stainless steel alternatives should be specified.

Key Features

  • 900mm x 600mm frame aligns with large format tiles for consistent layout
  • Recessed tray accepts full tile build-up, avoiding visible cuts around the cover
  • 794mm x 494mm clear opening provides practical access to the chamber below
  • Double neoprene seal helps prevent odour escape in internal installations
  • Screw locking system secures the cover and limits movement under load
  • Galvanised steel construction supports up to 10 tonne domestic loading
  • Discreet barrel lifting points maintain a clean tiled appearance
  • Suitable for internal tiled floors and external porcelain or paved areas
  • Compatible with standard lifting keys for safe removal

Material Composition

Manufactured from galvanised steel to provide structural strength and resistance to general ground moisture. The galvanised finish is suitable for typical installations but should not be used in aggressive or chlorinated environments, where stainless steel is required.

Product Specifications

Product type: Tile insert recessed manhole cover
Suitable location: Internal and external
Clear opening: 794mm x 494mm
Overall frame size: 900mm x 600mm
Tray depth (recess depth): 70mm
Frame depth: 78mm
Material: Galvanised steel
Finish: Galvanised
Seal type: Double neoprene seal
Locking: Screw locking (4 bolts)
Load rating: 10 tonne
Lifting method: Discreet barrel lifting points (lifting keys required)
Fixings supplied: Yes
Weight: 28kg
Standards: FACTA 7.0, 7.2, 7.2.1, 7.2.3, 7.3.3

Tile Insert Recessed Manhole Covers

About this collection

Tile Insert Recessed Manhole Covers

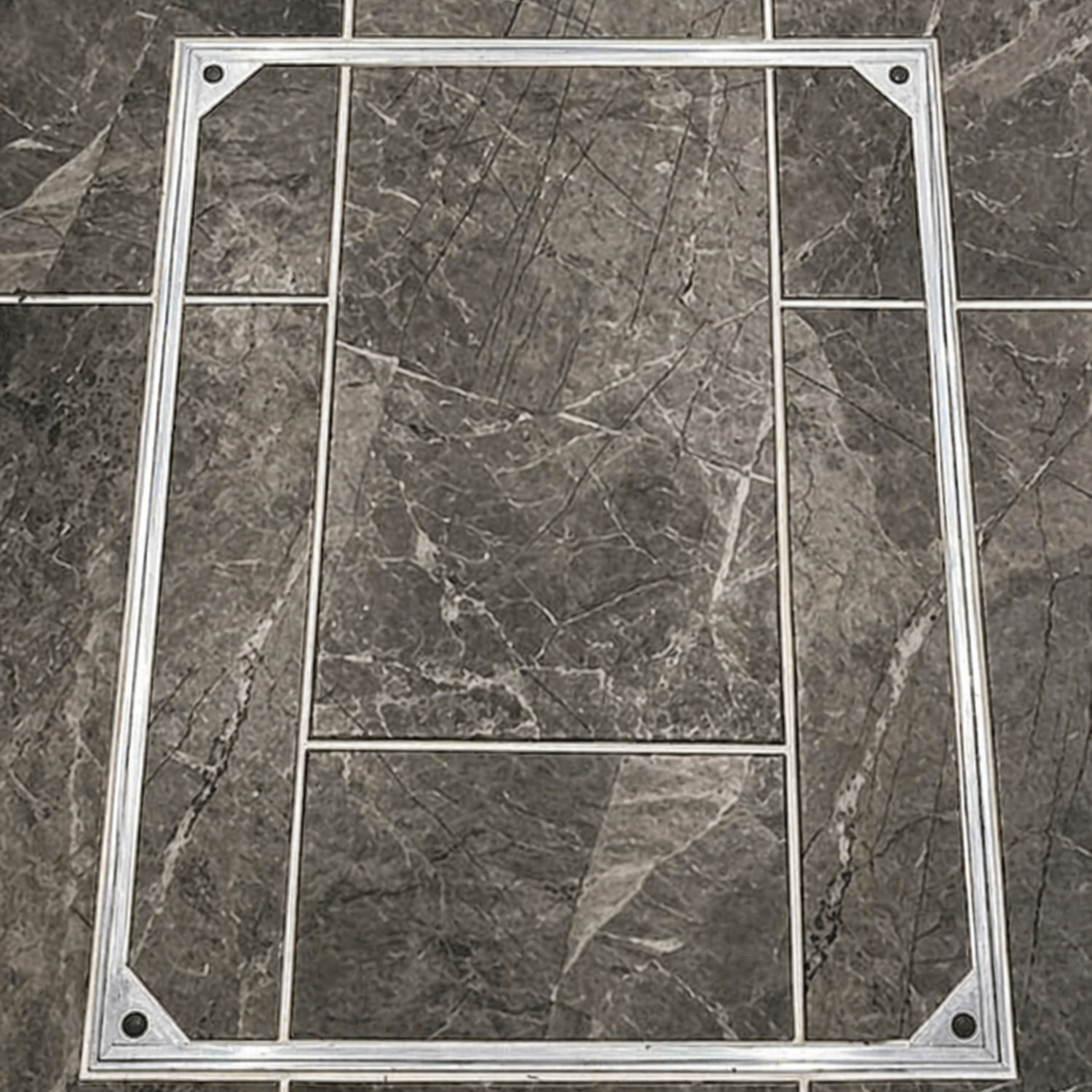

Tile insert manhole covers are recessed access covers designed so full tiles can be installed within the lid. They are used to provide discreet inspection chamber access in tiled floors and paved areas without cutting surrounding tiles.

View Collection

FAQs

See All

Does this cover fit a full 900mm x 600mm tile?

No. The frame matches the tile format, but the tile needs to be trimmed slightly to fit within the recessed tray and allow for lifting points.

What does the clear opening size mean?

The clear opening (794mm x 494mm) is the access size of the chamber below. This must match your structural opening, not the tile size.

Is this suitable for internal tiled floors?

Yes. The double seal and screw locking system help prevent odours, making it suitable for bathrooms, kitchens and utility areas.

Can this be used on a driveway?

Yes, for domestic vehicle use. The 10 tonne load rating is suitable for cars and light vehicles, but not for frequent heavy traffic.

Are lifting keys included?

No. Lifting keys are required for safe removal and are sold separately.
