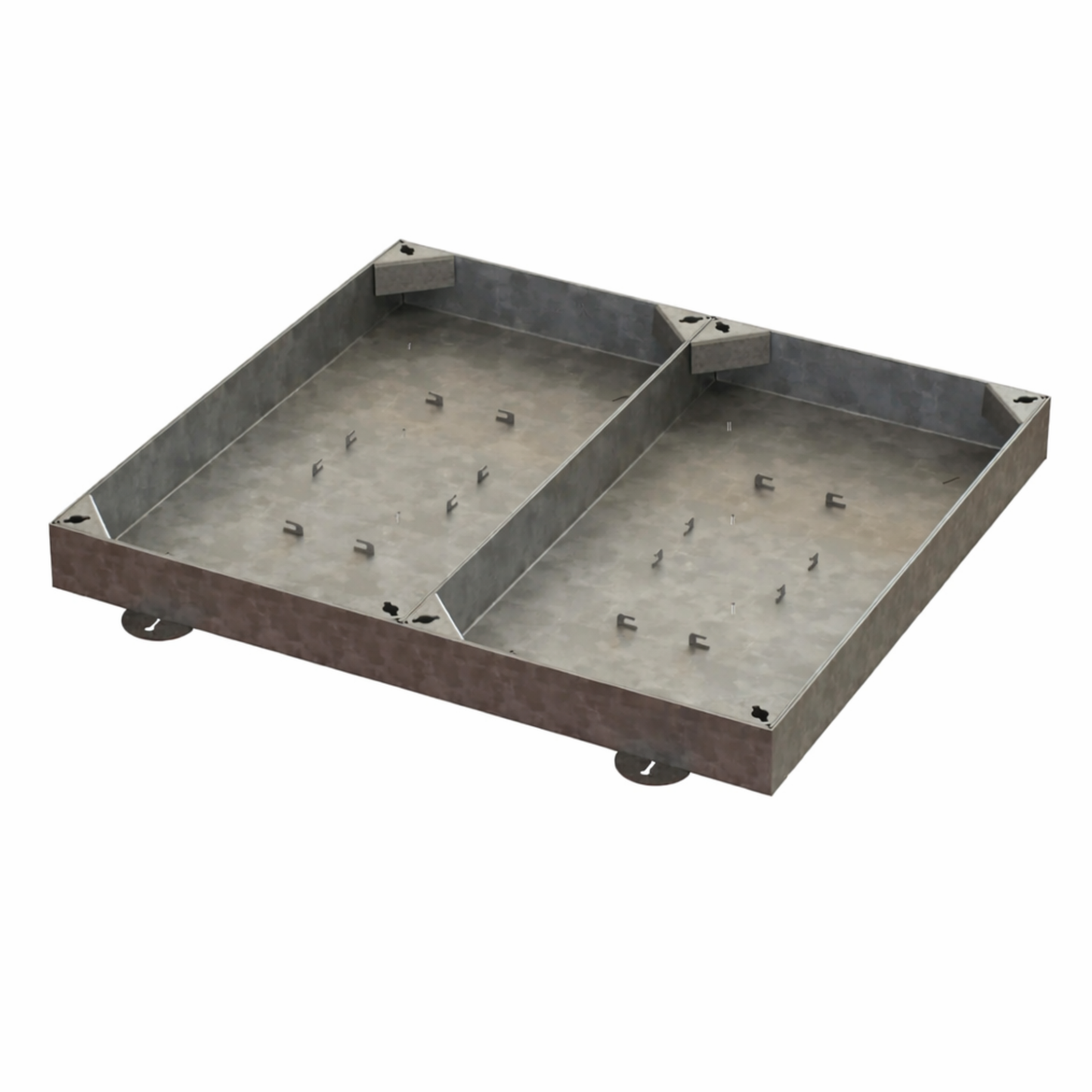

900 x 900mm Block Paving Recessed Manhole Cover 10 Tonne 2 Part

This block paving recessed manhole cover is designed for larger inspection chambers where both access size and safe handling are key considerations. The recessed trays allow paving materials to be installed within the lid so the finished surface remains level and consistent.

With a 10 tonne load rating, it is suitable for domestic driveways and areas subject to light vehicle traffic. The galvanised steel construction provides structural strength, while the frame transfers load into the surrounding ground rather than through the infill material.

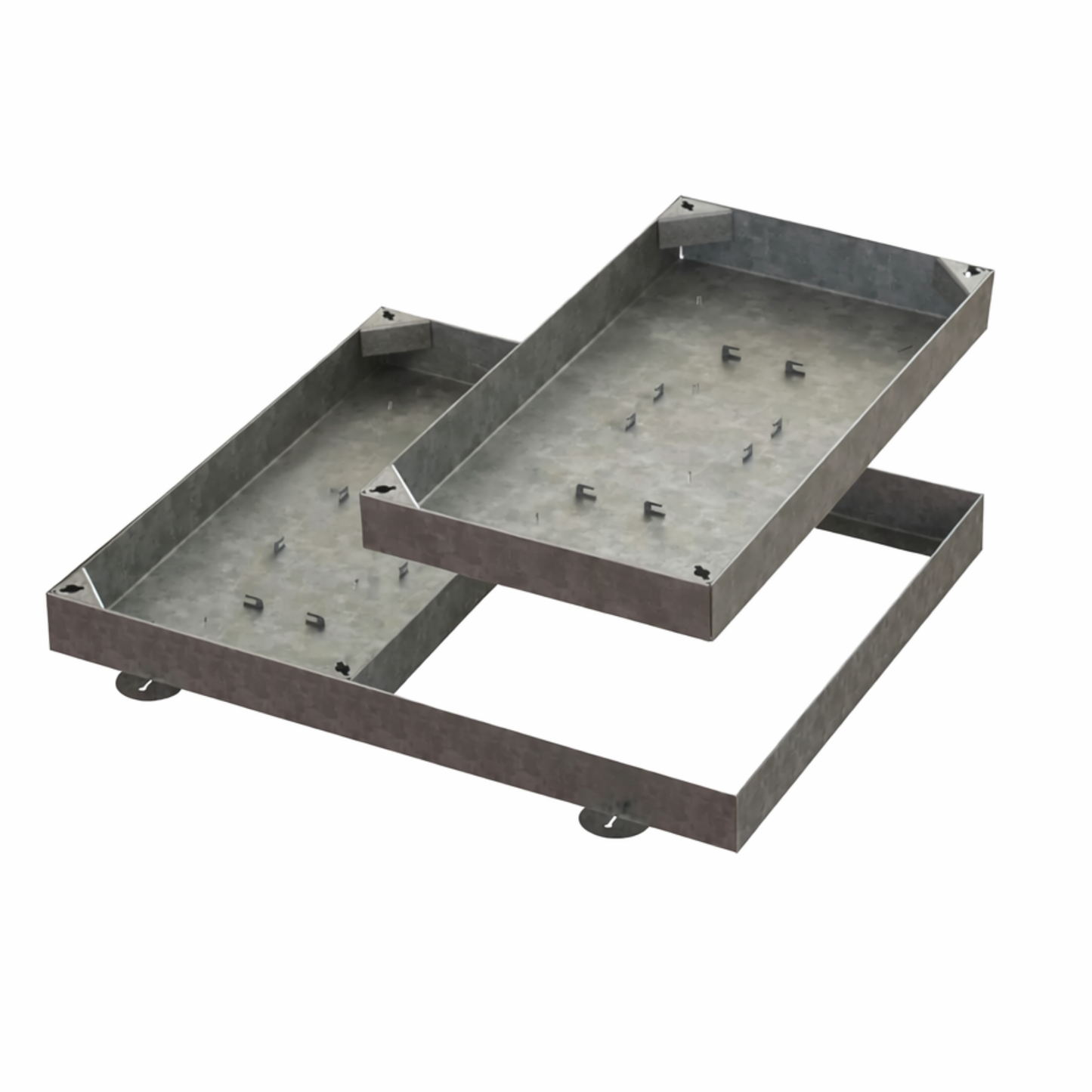

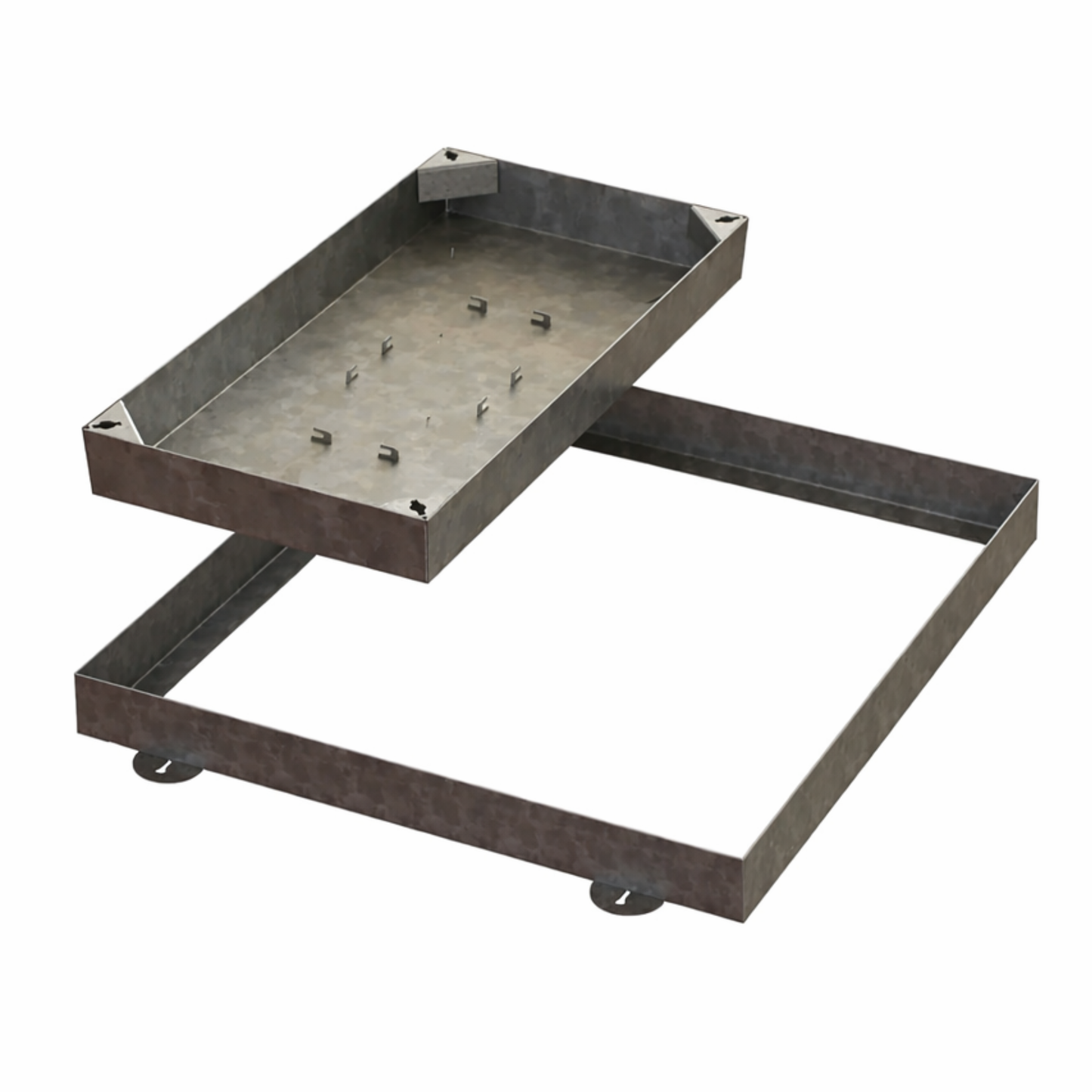

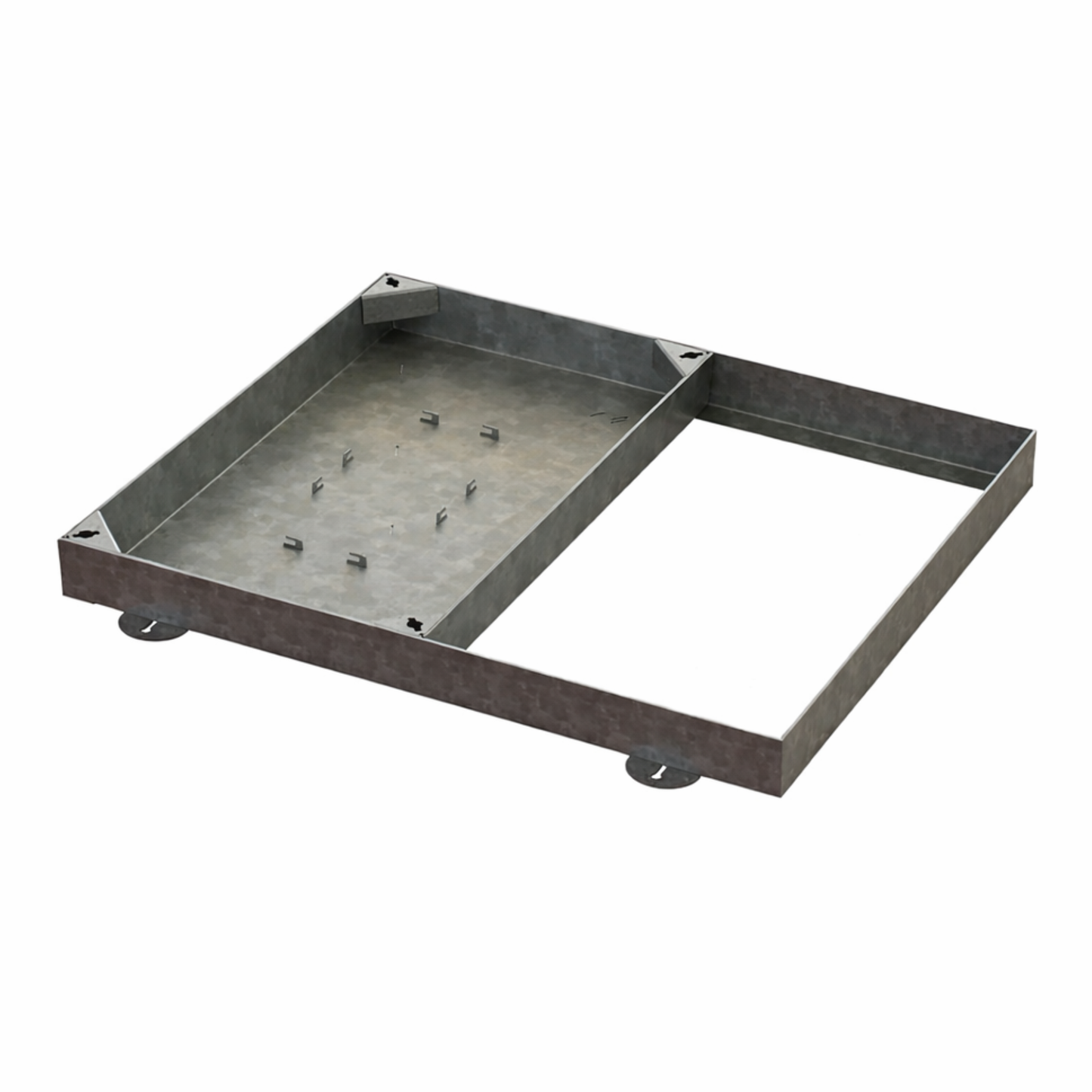

The 900 x 900mm clear opening provides substantial access for maintenance and inspection. Due to the size, this unit is manufactured as a 2 part cover, allowing each section to be lifted individually. This reduces manual handling weight and improves on-site safety.

The 100mm tray depth is intended for deeper paving build-ups, including thicker slabs or increased bedding layers. This ensures the infill is properly supported and remains flush with surrounding surfaces.

This cover is non-sealed and intended for external use only.

10 tonne load rating suitable for domestic driveways and light vehicle traffic

2 part cover design allows safer lifting and handling on larger openings

100mm tray depth supports deep paving and construction build-ups

Large 900 x 900mm clear opening provides maximum access to chambers

Recessed lids allow paving to continue without visible interruption

Galvanised steel construction provides strength in external environments

Frame transfers load into surrounding structure, not through the infill

Compatible with standard lifting keys for safe removal

Manufactured from galvanised steel to provide structural strength and resistance to corrosion in typical external ground conditions. Suitable for general outdoor use but not for aggressive or chemically exposed environments.

Product type: Block paving recessed manhole cover (2 part)
Suitable location: External
Clear opening: 900mm x 900mm
Overall frame size: 1006mm x 1006mm
Tray depth (recess depth): 100mm
Frame depth: 106mm (excluding fixing lugs)
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points
Fixings supplied: No
Weight: Not specified
Standards: FACTA AAA 2 part loading, BS EN material and galvanising references
Options: Bespoke sizes available
