900 x 900mm Grass & Gravel Recessed Manhole Cover 10 Tonne

This large format recessed manhole cover is designed to provide concealed access over wide inspection chambers within grass, landscaped and gravel surfaces. The two part tray design allows each section to be lifted separately, reducing handling weight and making routine access more practical on larger covers.

Two infill options are available. The grass top version is intended for soil and turf, using drainage holes and membrane layers to support water movement and grass growth. The gravel top version incorporates an EcoGrid reinforcement layer, which stabilises loose aggregate and reduces movement under foot or light vehicle loading.

The 100mm tray depth is suited to deeper landscaping build-ups. It provides sufficient depth for turf establishment and improves stability for gravel finishes across larger surface areas where movement is more likely.

Manufactured from galvanised steel, the cover provides structural strength for external use. It is suitable for gardens, landscaped areas and domestic driveways with light vehicle traffic.

Selection should always be based on the clear opening of the chamber. The overall frame size is larger and should not be used for sizing.

• 900mm x 900mm clear opening suits large inspection chambers
• Two part tray design allows safer and easier lifting
• 100mm tray depth supports deeper turf or gravel installations
• Choice of grass top or gravel top configurations
• EcoGrid option stabilises loose aggregate across larger areas
• Galvanised steel construction provides structural strength
• Drainage holes and membrane layers support water flow and turf growth
• Suitable for landscaping and domestic driveway applications

Manufactured from galvanised steel for strength and durability in external ground conditions. Grass top variants include drainage holes and membrane layers, while gravel top versions incorporate an EcoGrid reinforcement layer to stabilise loose infill materials.

Product type: Grass and gravel recessed manhole cover
Suitable location: External
Clear opening: 900mm x 900mm
Overall frame size: 1006mm x 1006mm
Tray depth (recess depth): 100mm
Frame depth: 106mm
Material: Galvanised steel
Finish: Galvanised
Seal type: None
Locking: No
Load rating: 10 tonne
Lifting method: Lifting key points (two part trays)
Fixings supplied: No
Weight: Varies by option
Standards: Not stated
Options:

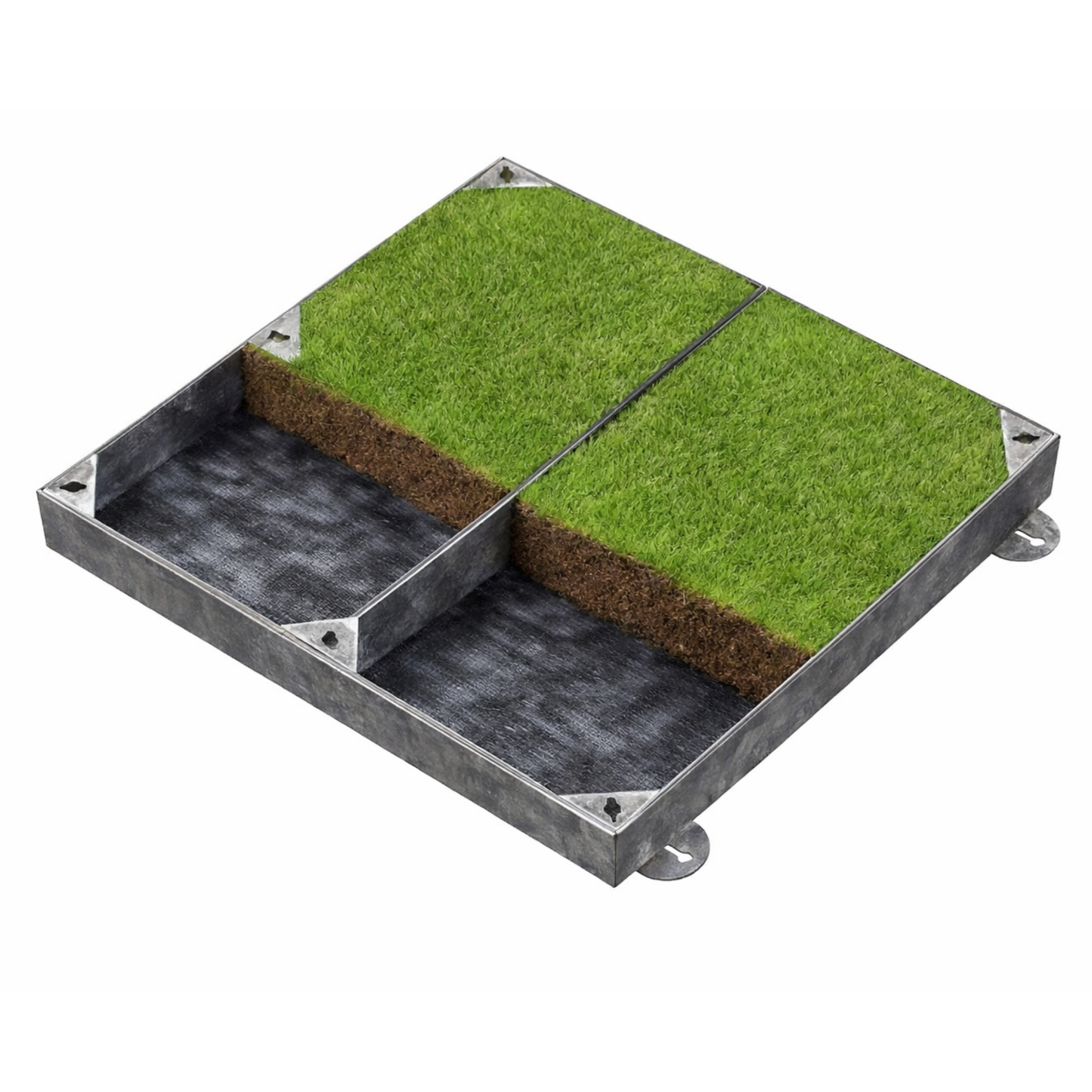

EG9090/100-GT, Grass Top, 900mm x 900mm clear opening, 1006mm x 1006mm overall frame size

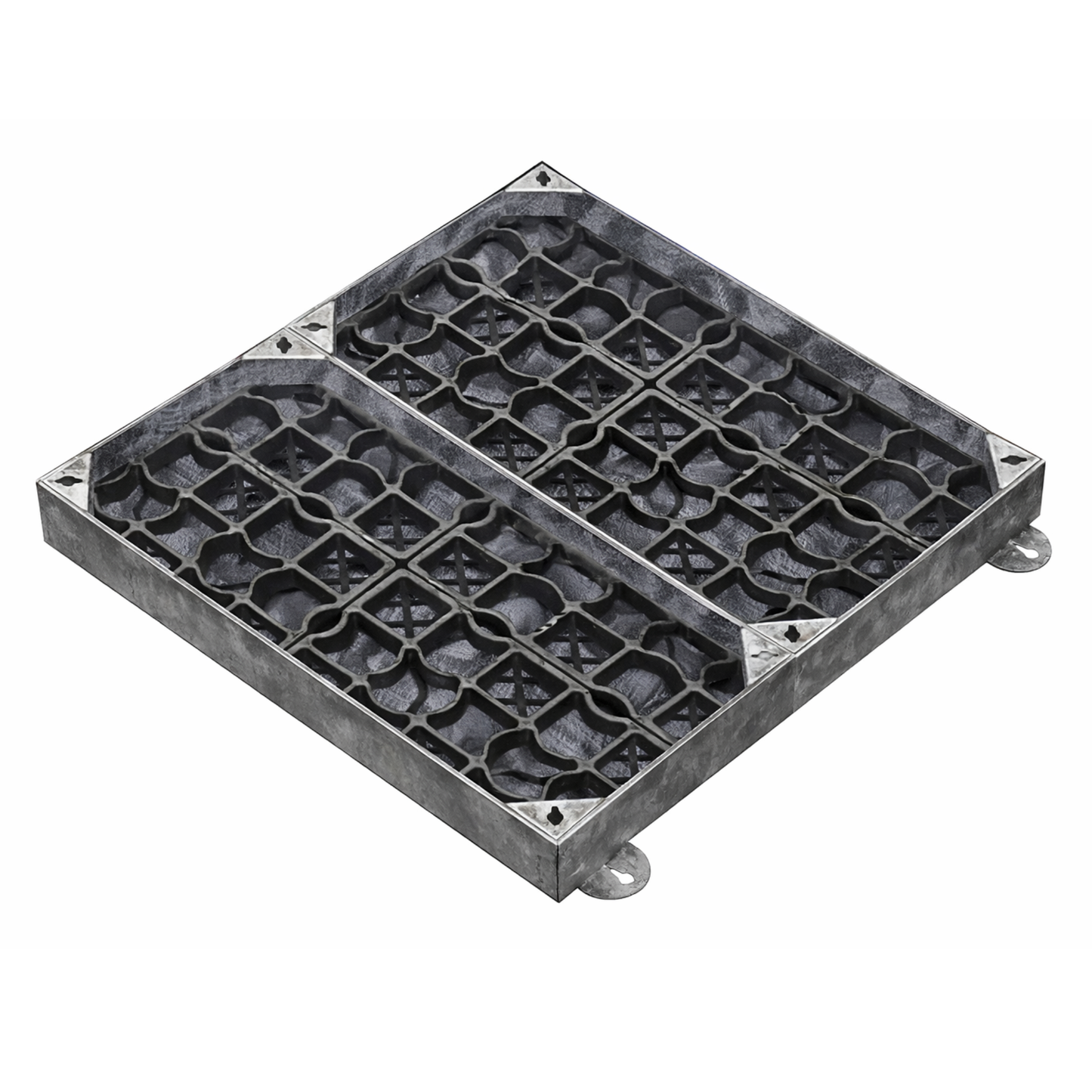

EG9090/100-GT-EG, Gravel Top, 900mm x 900mm clear opening, 1006mm x 1006mm overall frame size
