Build-In Step Iron for Manhole Chambers

The Build-In Step Iron for Manhole Chambers is designed to be built into chamber walls during construction, creating a permanent foothold for pedestrian access into inspection chambers, drainage systems and underground utility structures.

Manufactured from galvanised ductile iron, these steps provide a strong and durable access solution with corrosion protection for long service life in below-ground environments. The treaded anti-slip step surface helps improve grip when entering or exiting chambers in damp conditions.

These chamber step irons are commonly specified for new inspection chamber builds, utility chambers, service pits and drainage access structures where safe ladder-style entry points are required. They are intended for pedestrian access use only.

Two sizes are available to suit different wall thicknesses and embedment requirements. The 115mm option is typically used where a shorter tail length is suitable, while the 230mm option allows deeper build-in fixing into thicker chamber walls or masonry construction.

Designed, manufactured and tested to EN13101:2002, these steps provide a recognised specification standard for access chamber components. Always install during chamber construction using suitable spacing, alignment and structural support. These products are not intended for retrofit bolt-on use.

Permanent build-in step for chamber wall construction

Suitable for inspection chambers and drainage access points

Galvanised ductile iron for long service life

Slip-resistant treaded step end

Available in 115mm and 230mm sizes

Designed for pedestrian access use only

Manufactured from spheroid graphite iron grade EN-GJS-500-7 to BS EN 1563:2011 and galvanised to EN ISO 1461 for corrosion resistance. This provides strength with long-term durability in underground environments.

Product type: Build-in step iron
Application: Chamber wall access step
Loading: Pedestrian use
Certification: EN13101:2002
CE certified
Material: Spheroid Graphite Iron Grade EN-GJS-500-7
Galvanising standard: EN ISO 1461

115mm Build-In Step (CD 212)
Overall length: 240 mm
Width: 150 mm
Tail length: 115 mm
Weight: 1.25 kg

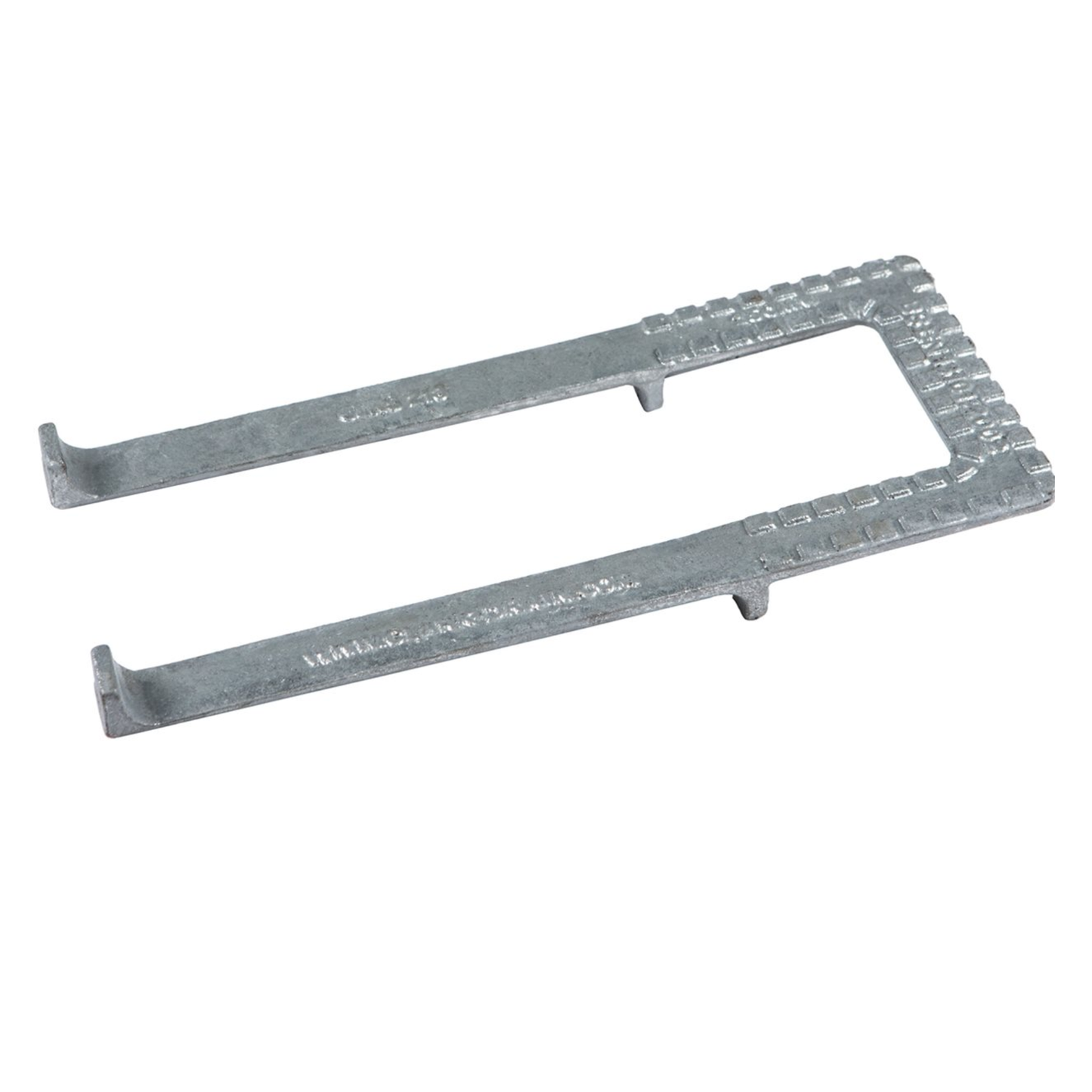

230mm Build-In Step (CD 213)
Overall length: 350 mm
Width: 150 mm
Tail length: 230 mm
Weight: 1.75 kg
