Clearance - Damaged Double Sealed Aluminium Recessed Manhole Cover 60mm Depth (Multiple Sizes)

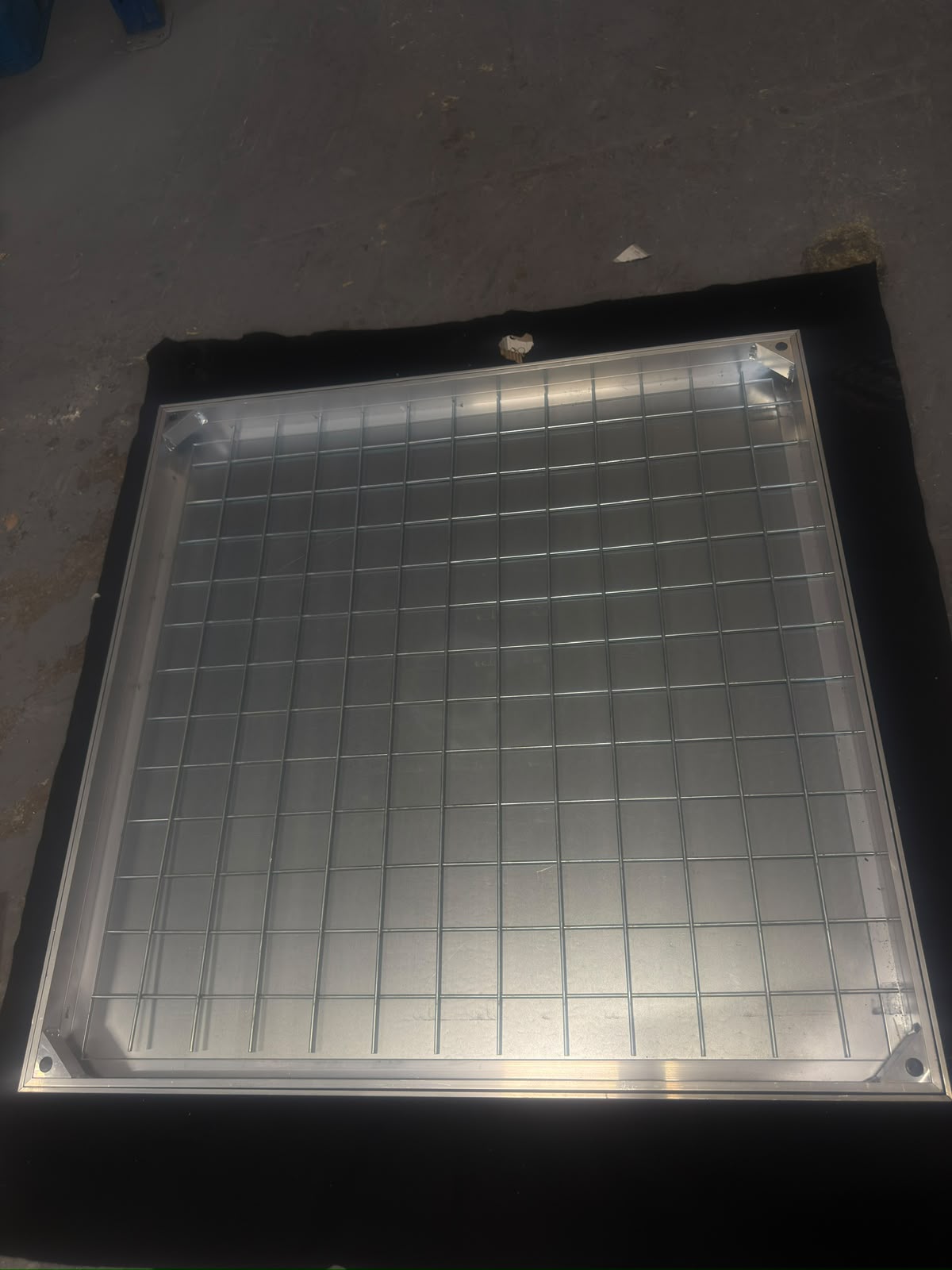

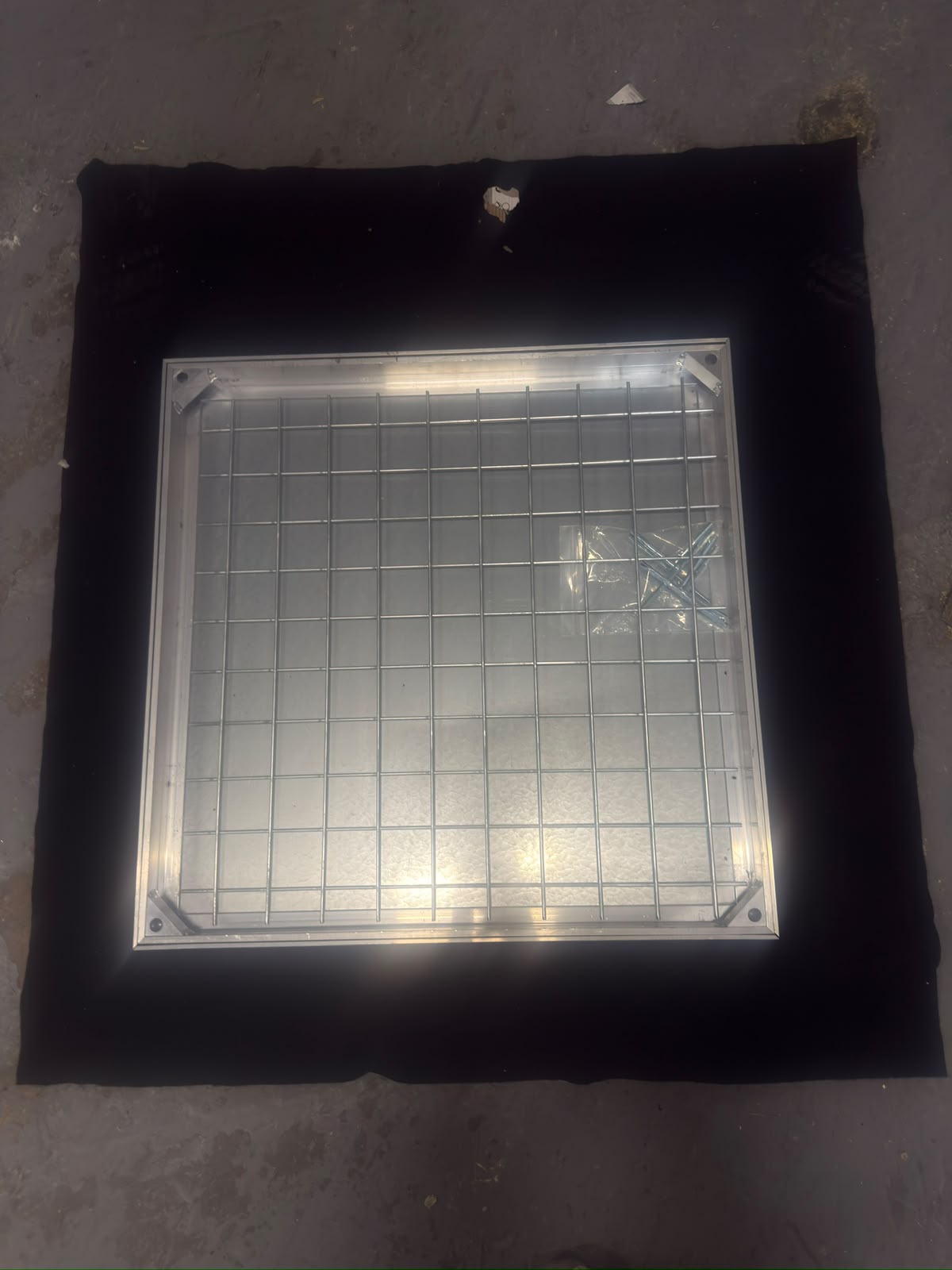

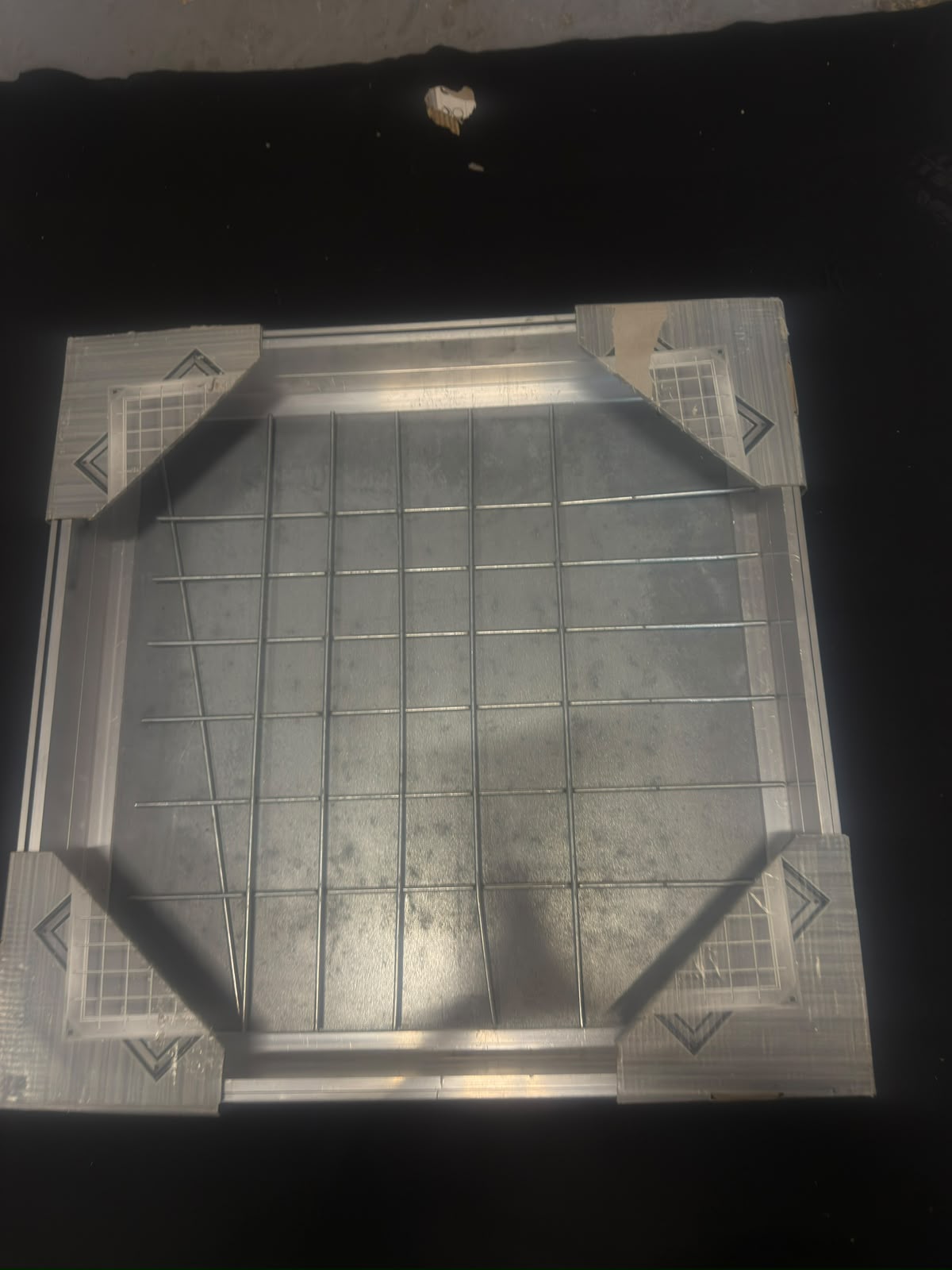

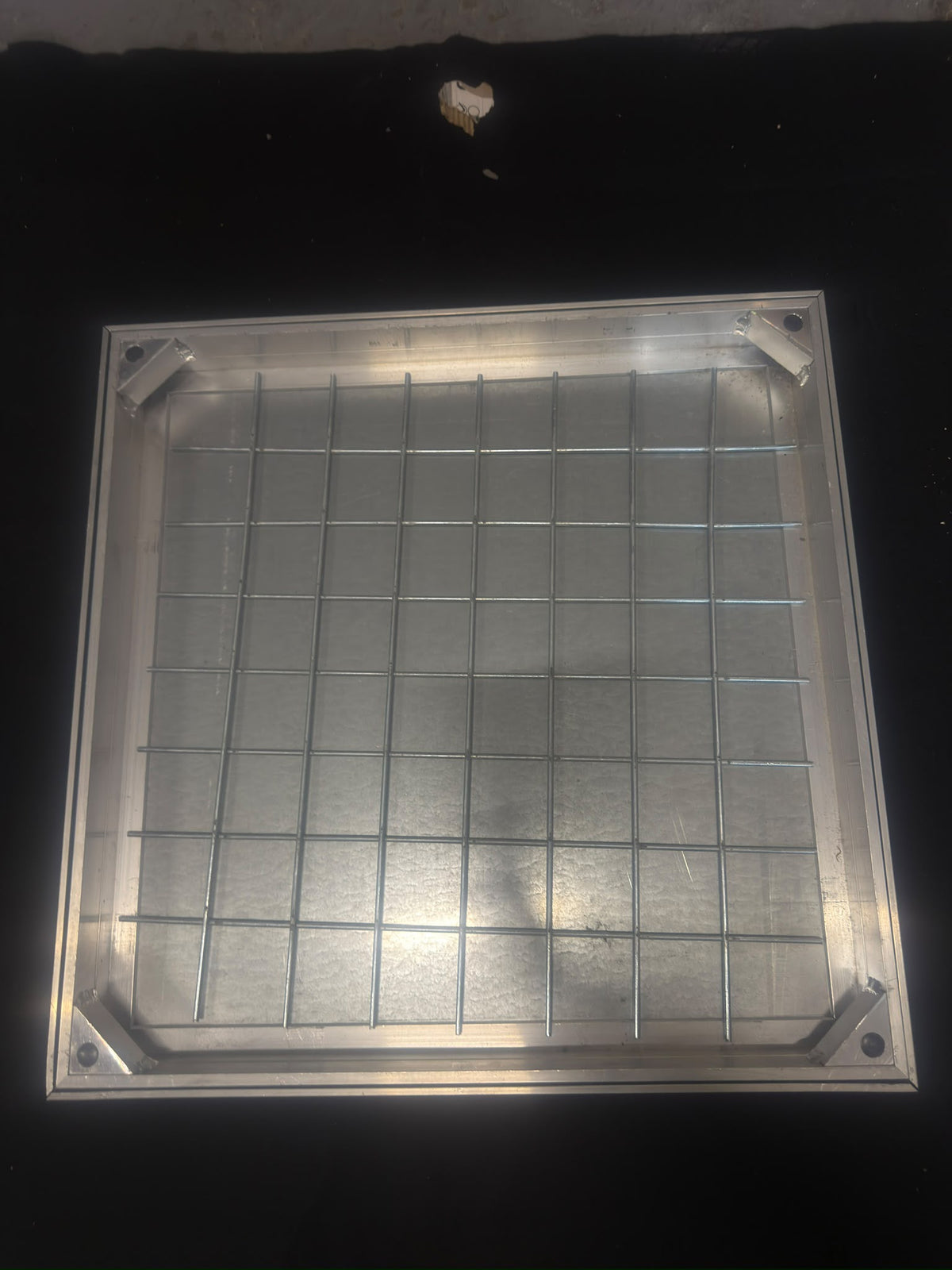

The DS-Line 60mm range is a double sealed aluminium recessed manhole cover system designed for installations where appearance, clean edges and improved sealing matter. Each cover uses an extruded aluminium frame and tray with a galvanised steel bottom plate and reinforcement mesh, allowing block paving, screed or similar finishes to be installed within the recess.

This range is typically used in external paved areas and other finished surfaces where a flush, less visible access point is required. The double sealed design uses one base seal and one T-rubber side seal. This helps reduce odours, limit water ingress and prevent dirt collecting between the cover and frame, which also supports easier removal over time.

The key specification point in this range is load class by size. Smaller DS-60 covers are rated to B125, while larger sizes move to A15 only. That means these covers should not be grouped under one generic loading claim. Selection must be based on both clear opening and the actual duty of the area.

This cover is not screw locked. Where a locked internal cover is required, a triple sealed locking cover is the better specification.

Important Information – Clearance Stock

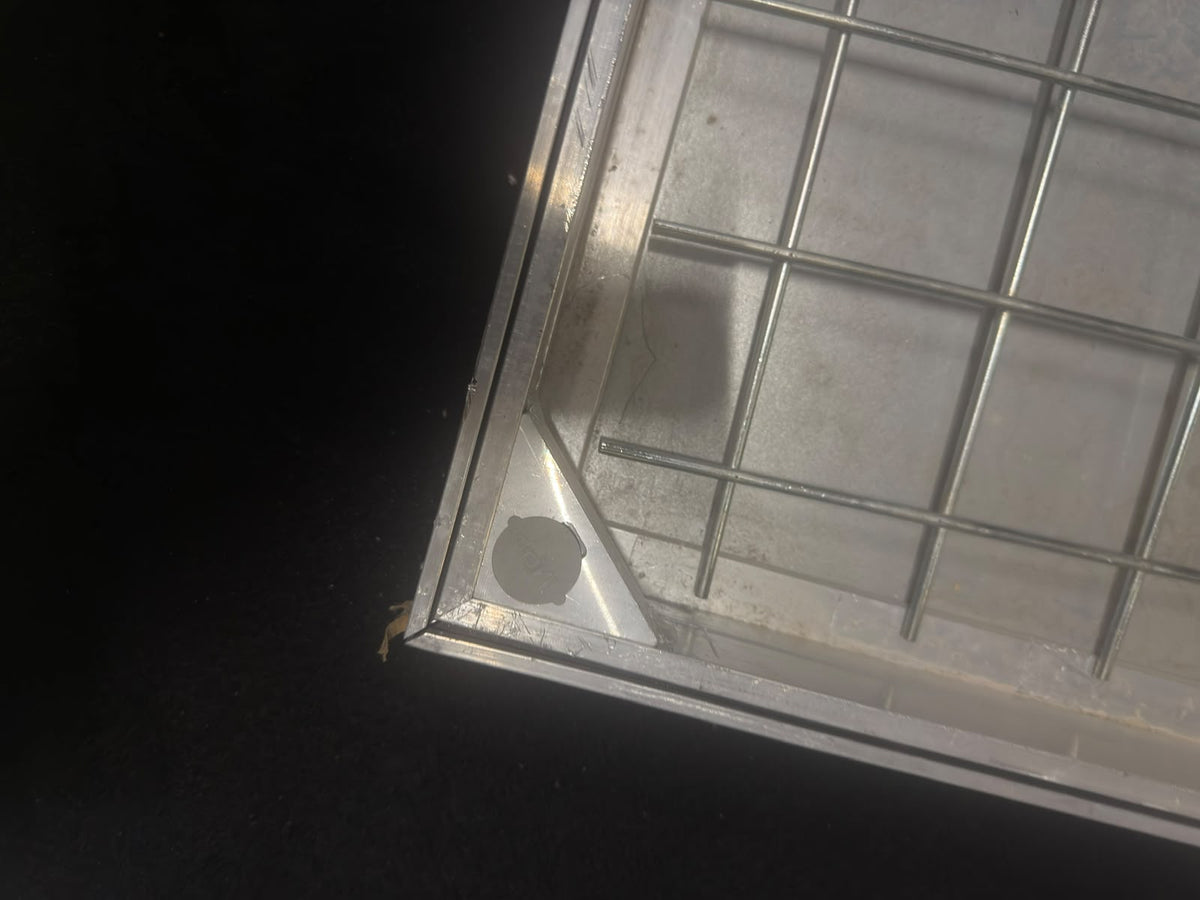

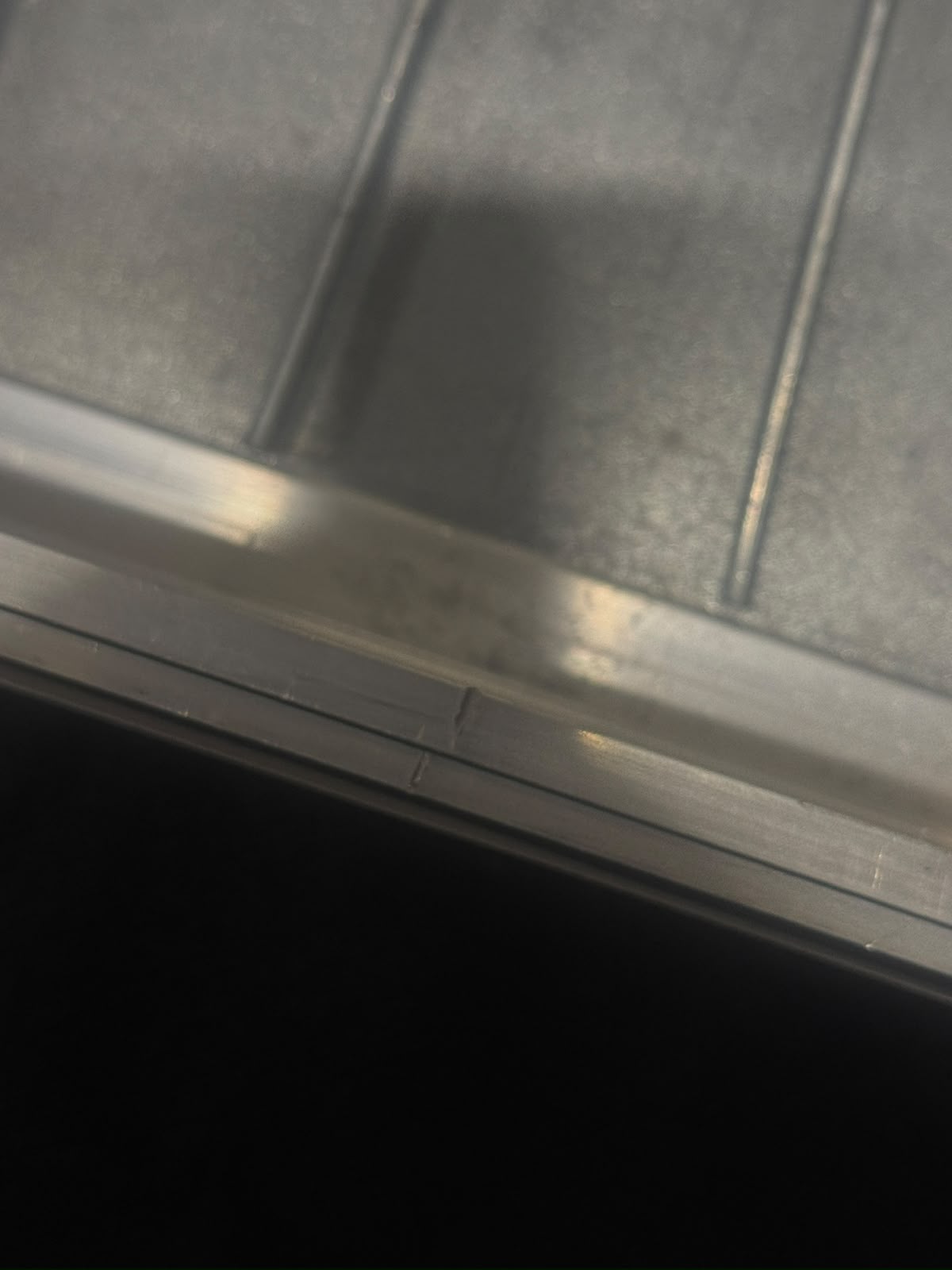

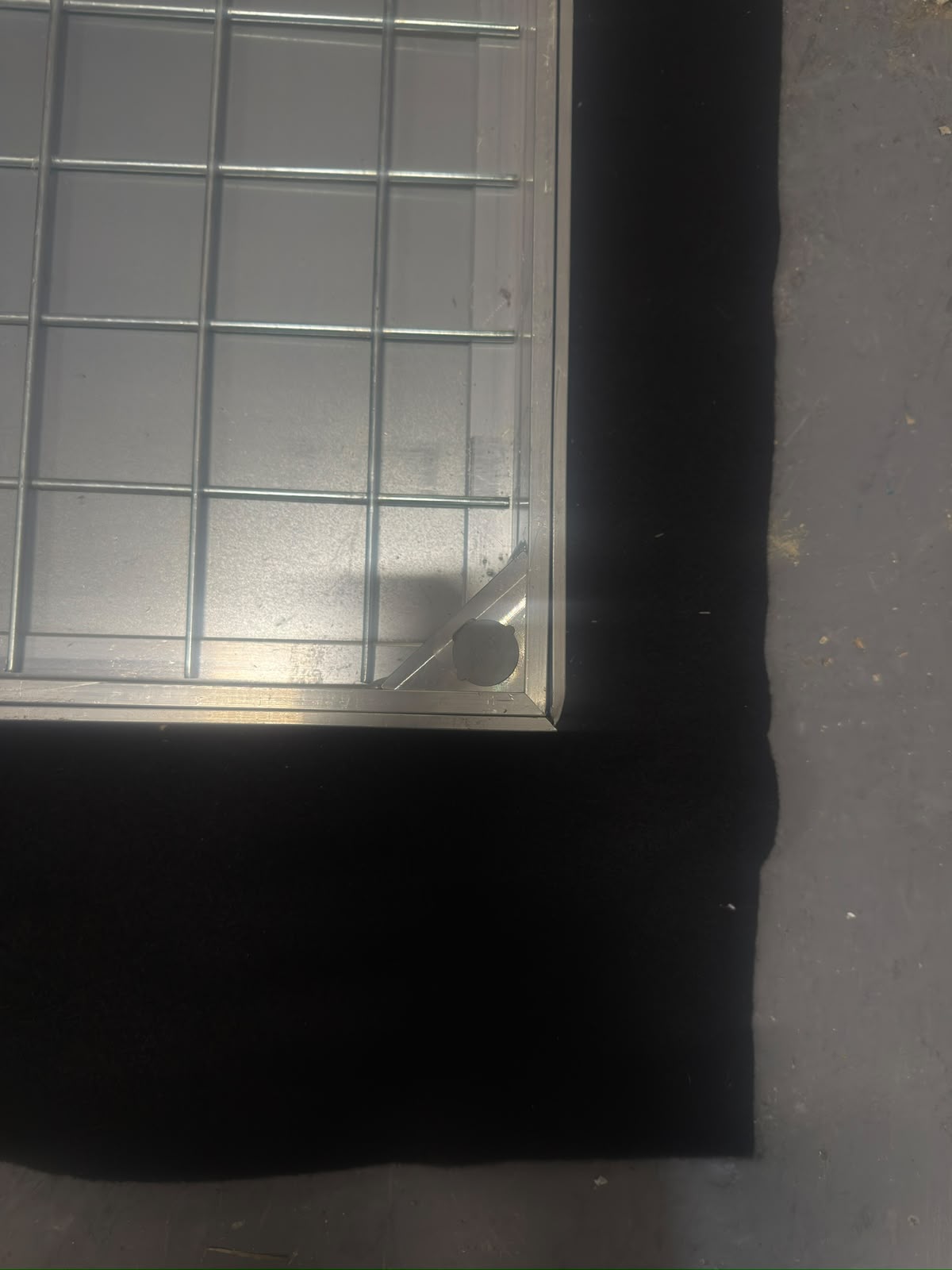

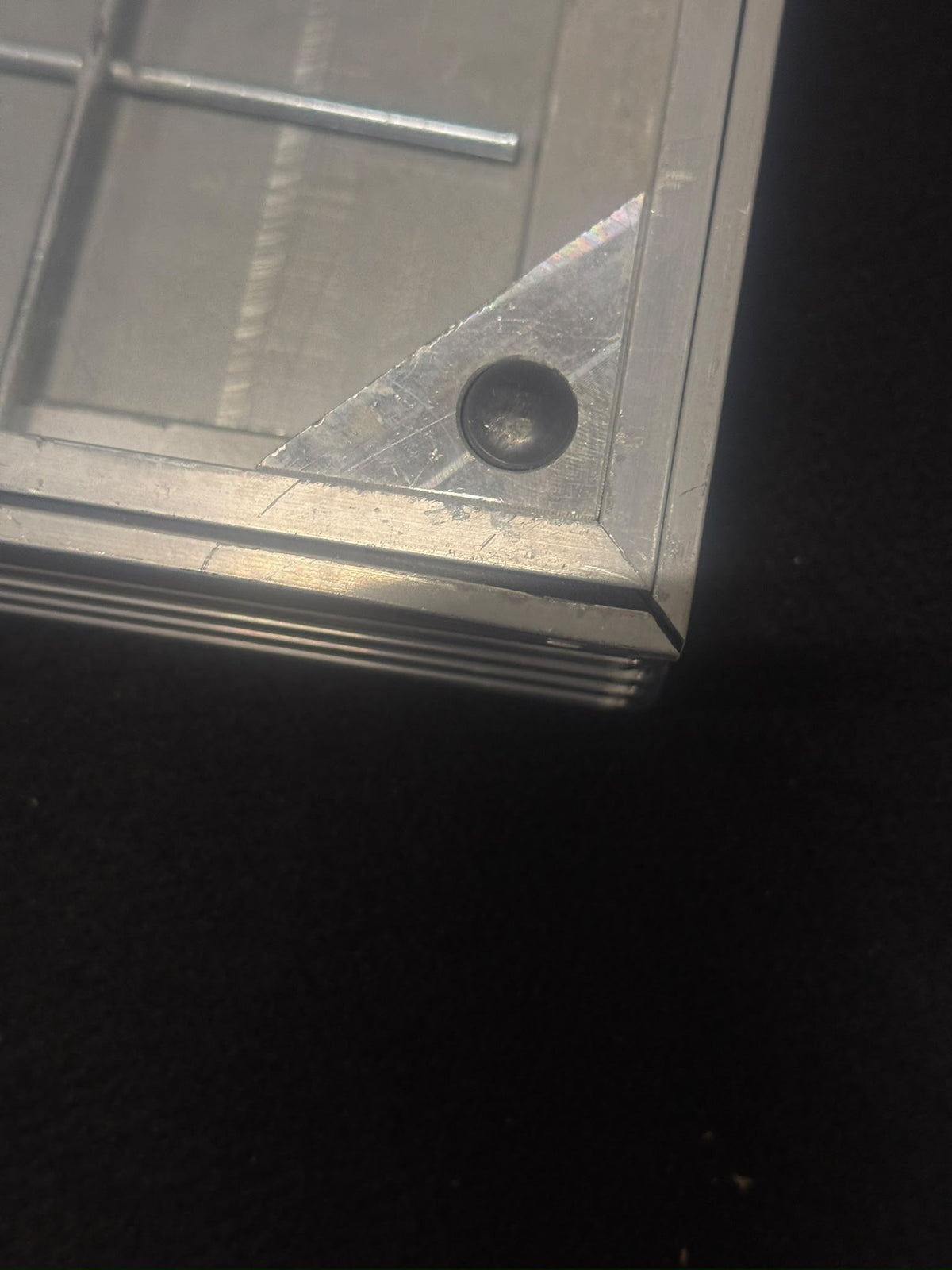

These covers are being sold as damaged or imperfect stock and are not being offered as new, undamaged products. The type and extent of damage may vary between individual items.

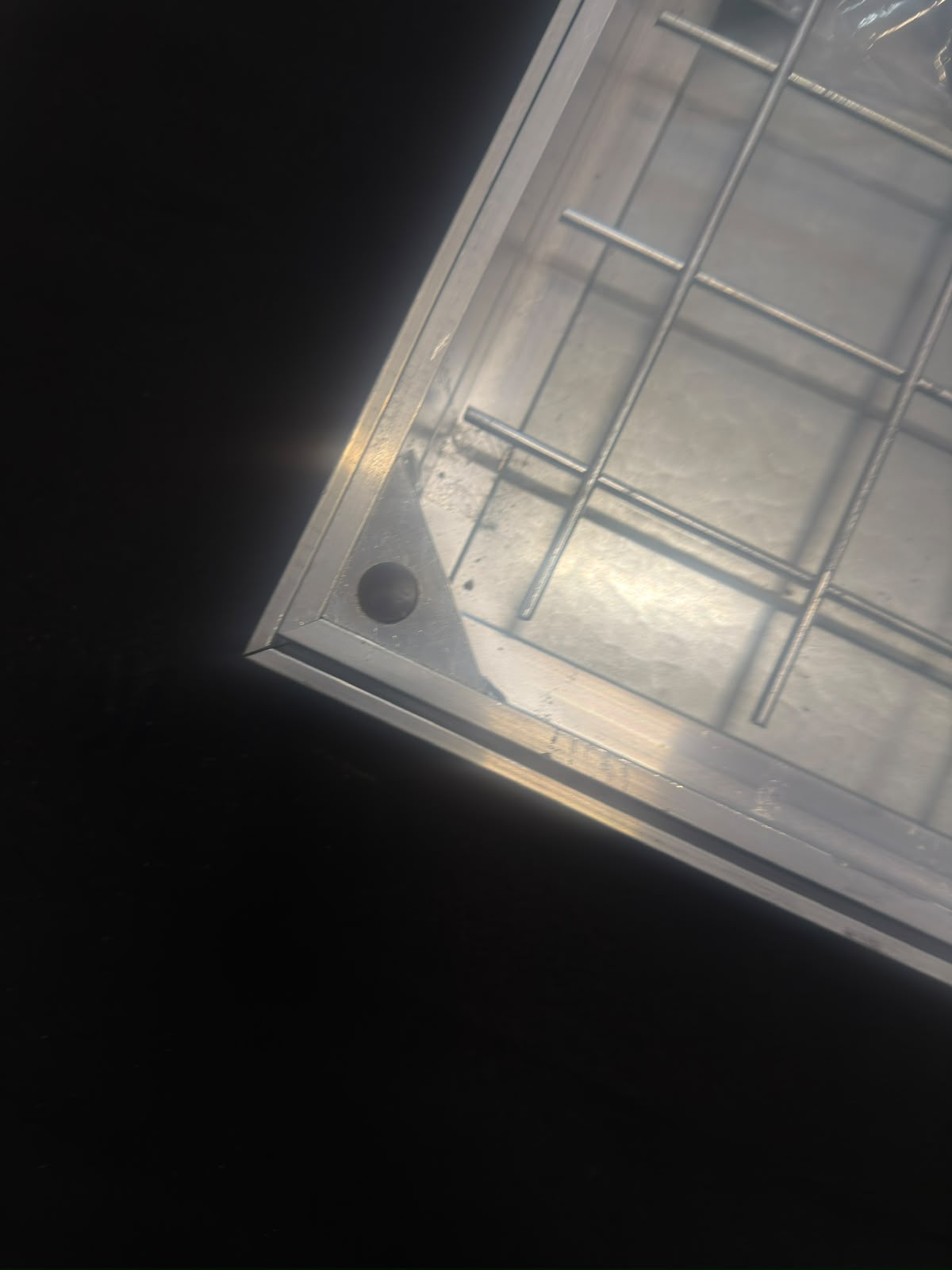

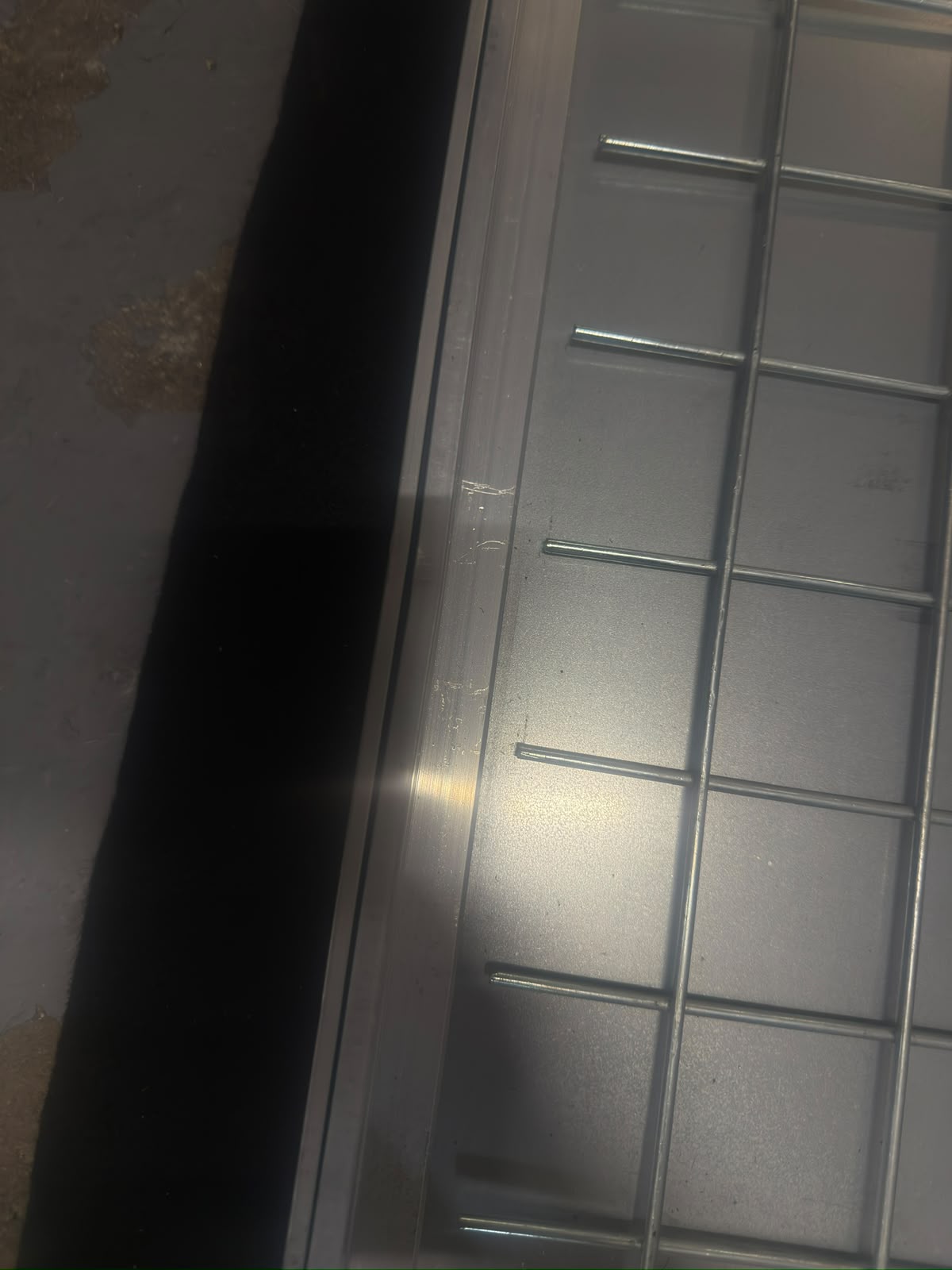

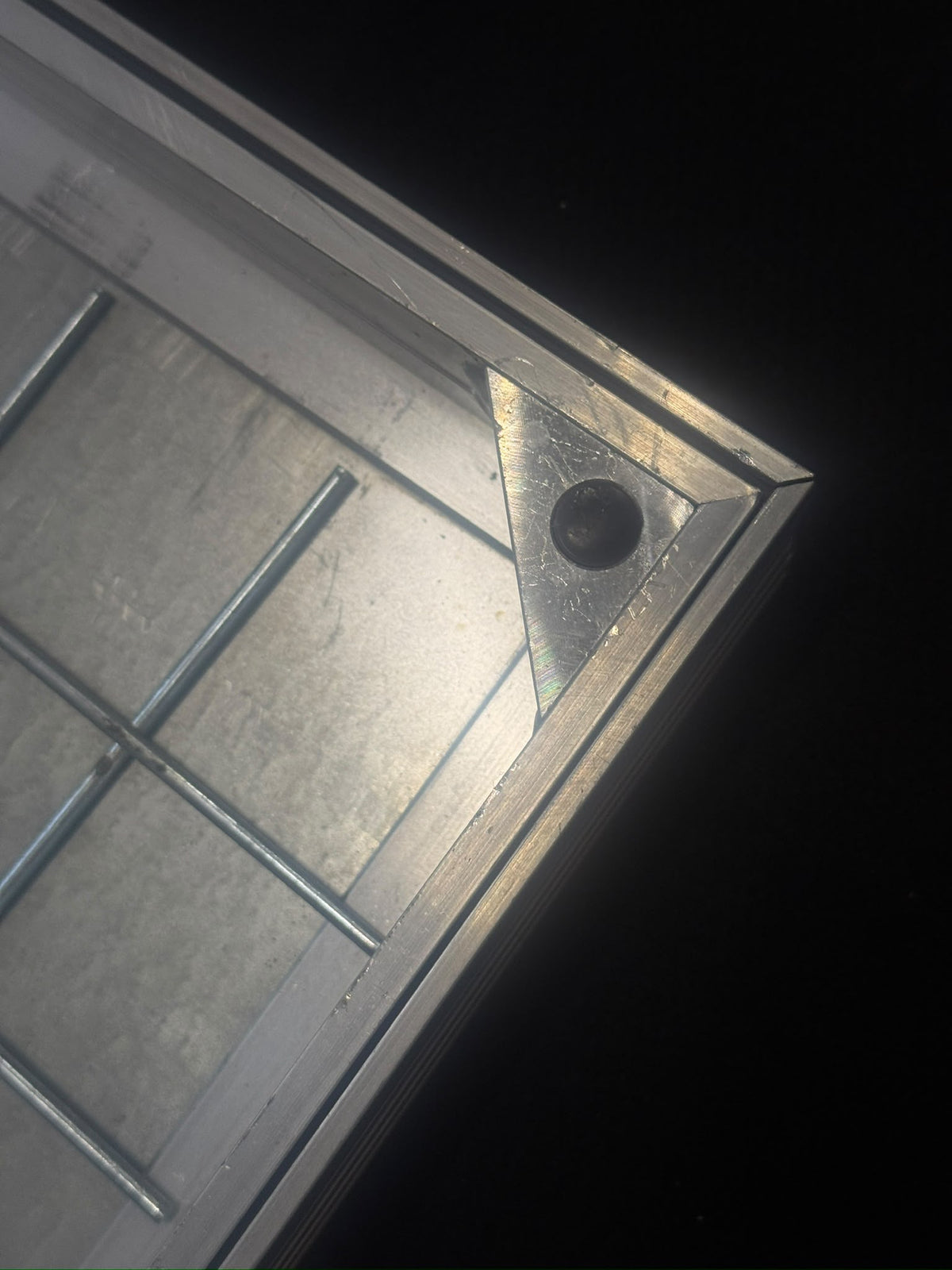

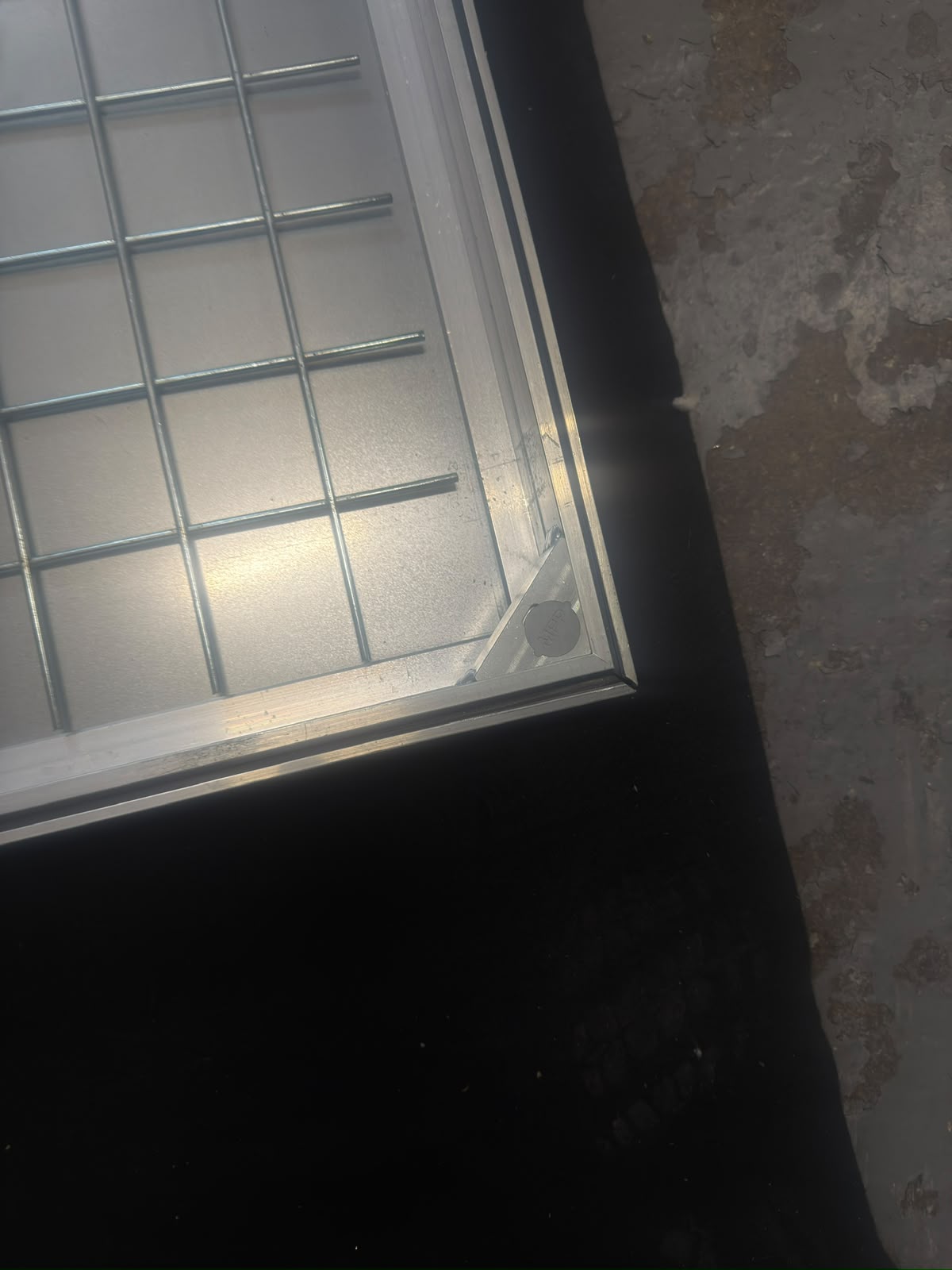

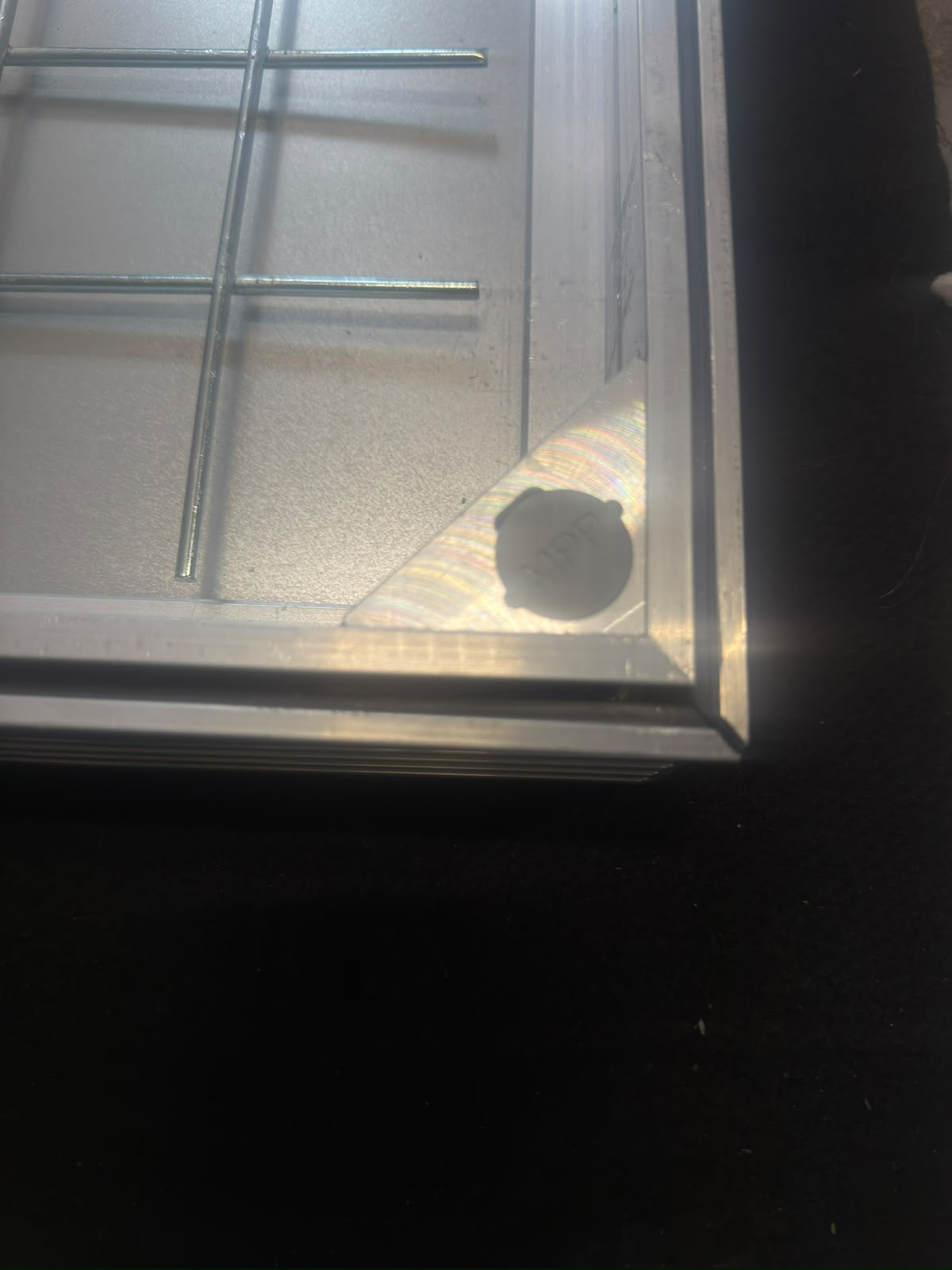

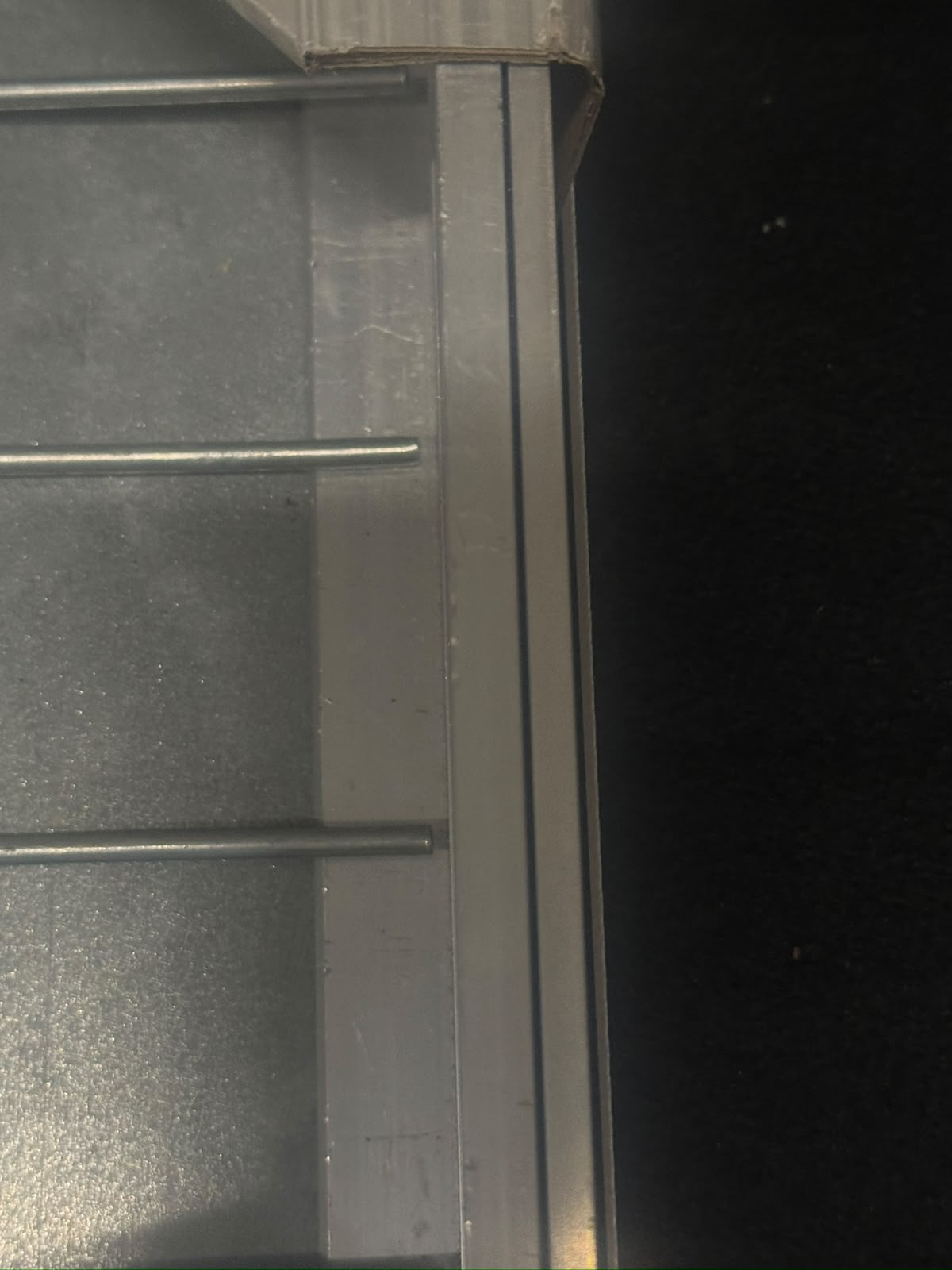

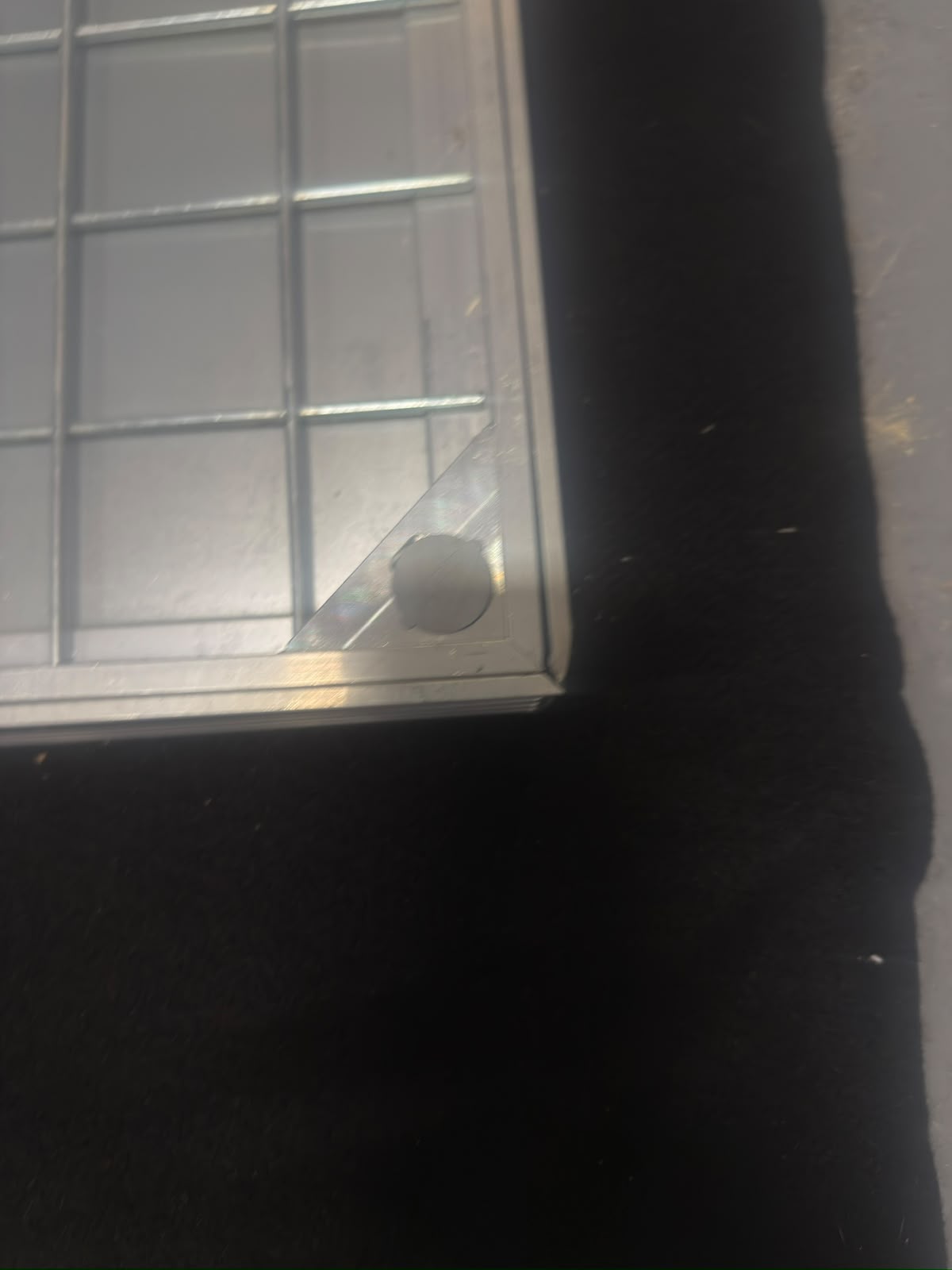

Please review the product photographs and any condition notes carefully before purchasing. Confirm that the selected cover's dimensions, condition and verified load rating are appropriate for your intended application.

As this is clearance stock, availability is limited to the sizes and quantities currently listed.

Need help choosing a size? Contact our team before ordering if you need assistance checking dimensions or suitability for your project.

• Clearance Pricing: Reduced prices on selected damaged or imperfect stock covers.
• Recessed Design: Allows compatible paving or other suitable finishing materials to be installed within the cover.
• Double-sealed construction: Incorporates a base seal and a side T-rubber seal to help reduce odours and water ingress.
• Aluminium Frame: Extruded aluminium construction for a neat, discreet finish.
• Reinforced Tray: Galvanised steel base plate and reinforcement mesh support the infill material.
• Multiple Sizes: Select from the available clearance stock options

The frame and cover are manufactured from extruded aluminium for a cleaner architectural finish and reduced corrosion risk in normal external environments. The tray includes a galvanised steel bottom plate and reinforcement mesh to support the infill material. Sealing is provided by an EPDM type base seal combined with a side T-rubber seal.

Product type: Double sealed aluminium recessed manhole cover
Suitable location: External and finished floor areas, subject to load class
Clear opening: Multiple sizes
Overall frame size: Varies by size
Tray depth (recess depth): 48mm
Frame depth: 60mm
Material: Extruded aluminium frame and cover with galvanised steel bottom plate
Finish: Aluminium
Seal type: Double seal, base seal and side T-rubber seal
Locking: No
Load rating: Varies by size, see options below
Lifting method: Four lifting points, lifting keys supplied
Fixings supplied: No
Weight: Varies by size
Standards: Load classes updated by manufacturer sheet, based on quality concrete infill

Product Specifications

DS-60-6045 600mm x 450mm ( 660mm x 510mm overall frame size)
DS-60-6060 600mm x 600mm ( 660mm x 660mm overall frame size)
DS-60-7560 750mm x 600mm ( 810mm x 660mm overall frame size)
DS-60-7575 750mm x 750mm (810mm x 810mm overall frame size)
