Double Sealed Aluminium Recessed Manhole Cover 60mm Multiple Sizes

Double Sealed Aluminium Recessed Manhole Cover 60mm Multiple Sizes

Clear Opening: Multiple sizes from 300mm x 300mm to 1000mm x 1000mm
Tray Depth: 48mm
External Dimensions: Vary by size, see Product Specifications

Double sealed aluminium recessed manhole cover for paved and finished floor areas where a neater appearance and improved sealing are required. This DS-Line range uses an extruded aluminium frame with a galvanised steel bottom plate and reinforcement mesh.

The cover seals through a base seal and side T-rubber seal, helping limit odours, water ingress and dirt build-up around the tray. Load class varies by size, so the selected clear opening must be matched to the application.
£96.71
£96.71
Tax included. Shipping calculated at checkout.

200 in stock

DS-60-3030

Expected delivery date:
08 Oct Estimated arrival via standard delivery within 2–3 working days. Express delivery 1–2 working days available.

Double Sealed Aluminium Recessed Manhole Cover 60mm Multiple Sizes

Double Sealed Aluminium Recessed Manhole Cover 60mm Multiple Sizes

Description

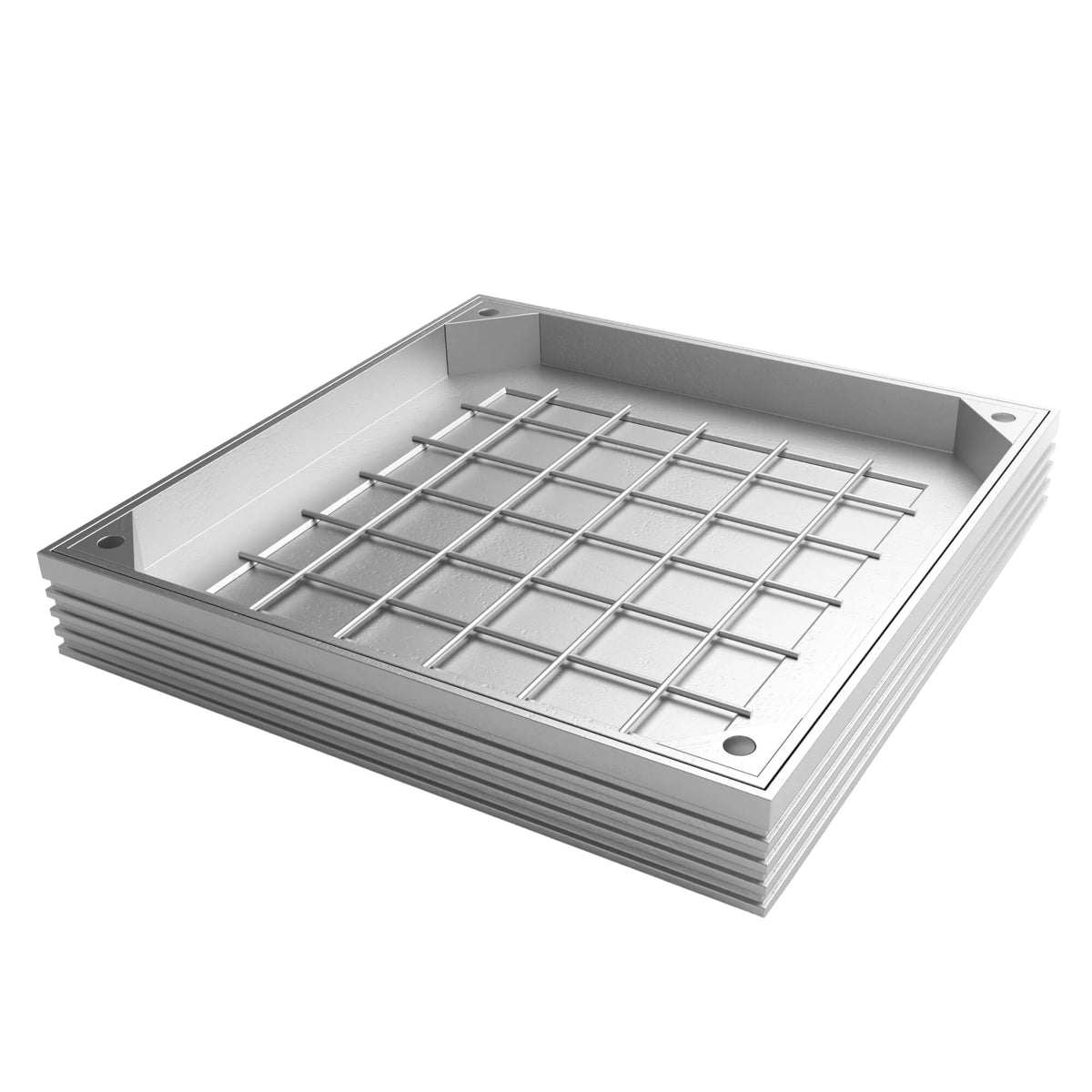

The DS-Line 60mm range is a double sealed aluminium recessed manhole cover system designed for installations where appearance, clean edges and improved sealing matter. Each cover uses an extruded aluminium frame and tray with a galvanised steel bottom plate and reinforcement mesh, allowing block paving, screed or similar finishes to be installed within the recess.

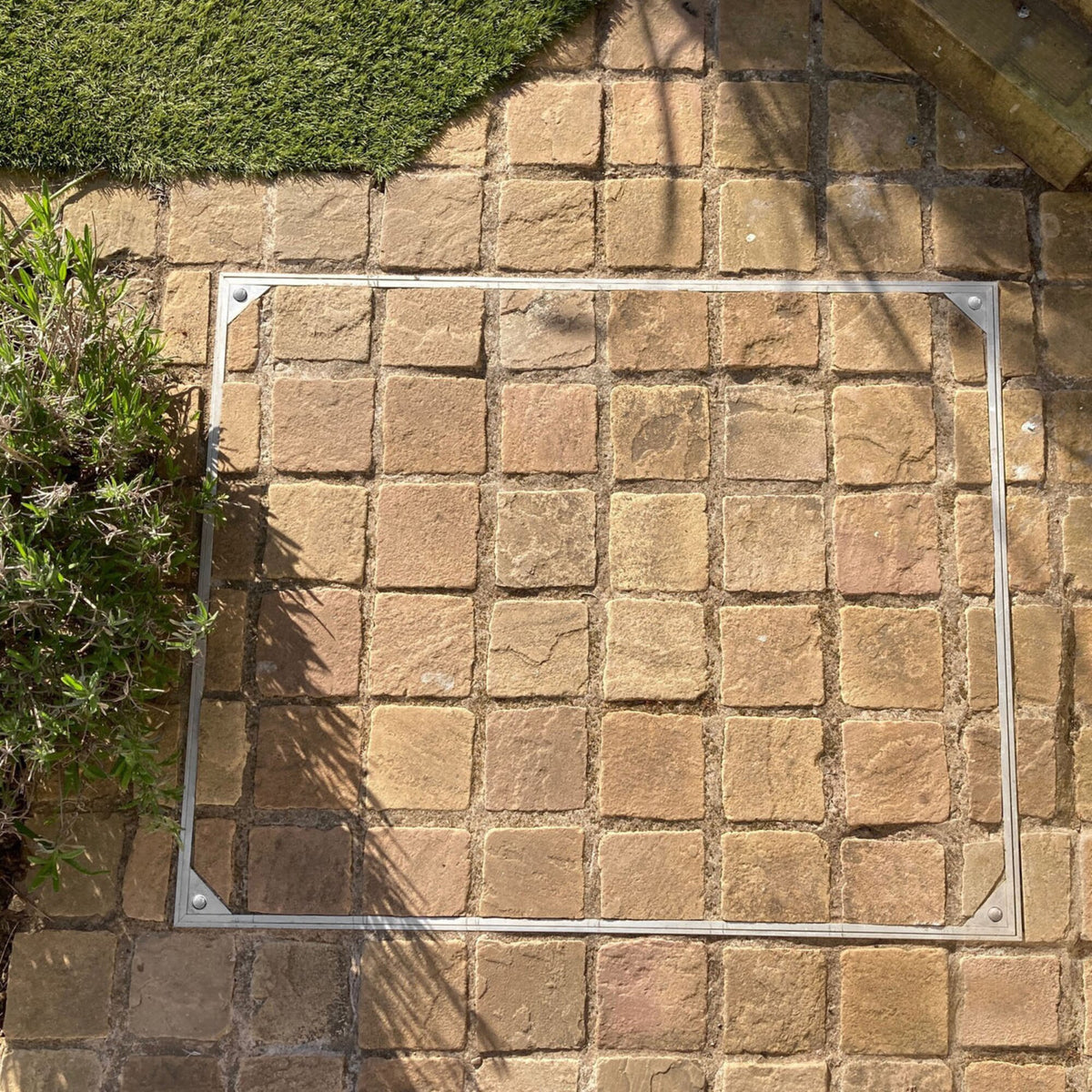

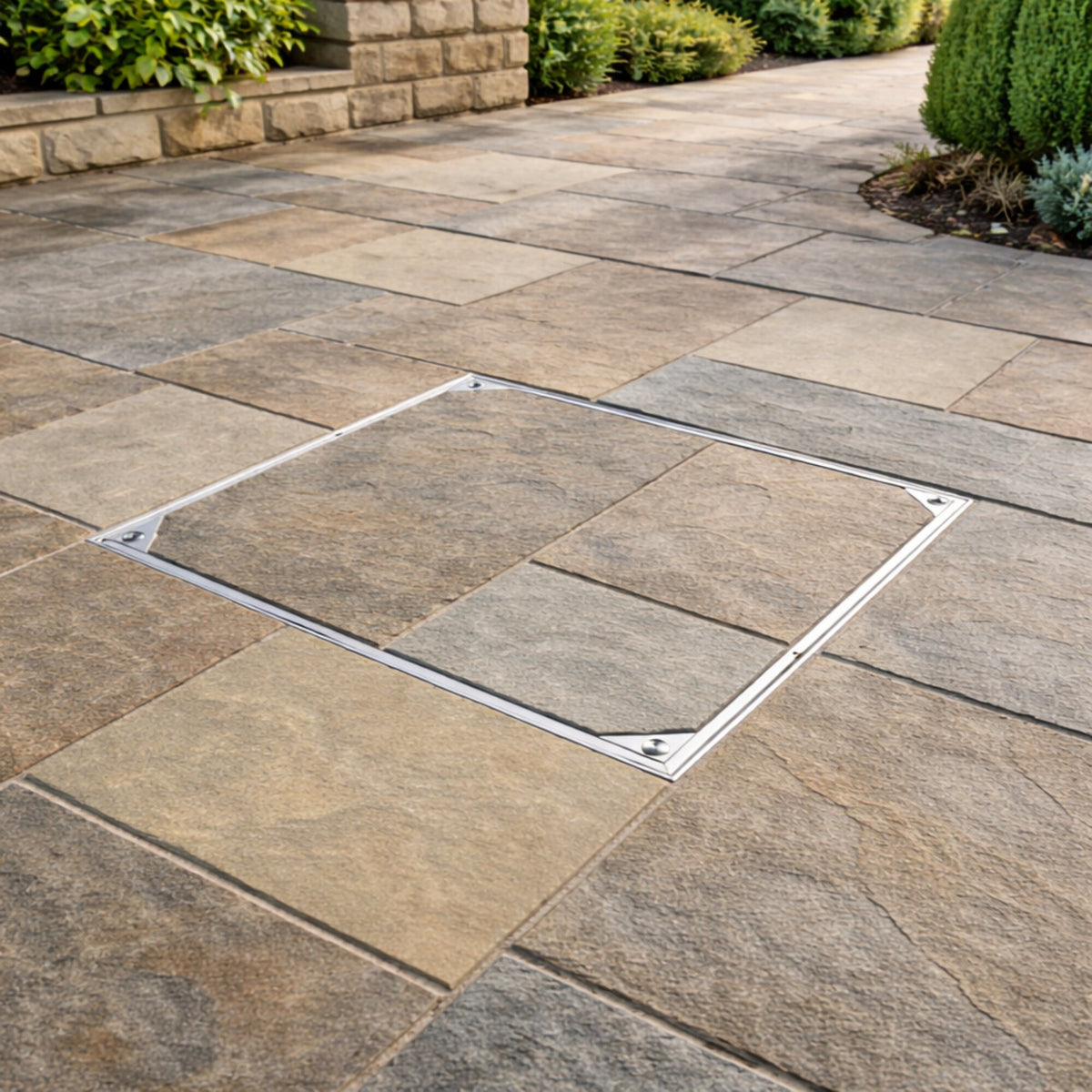

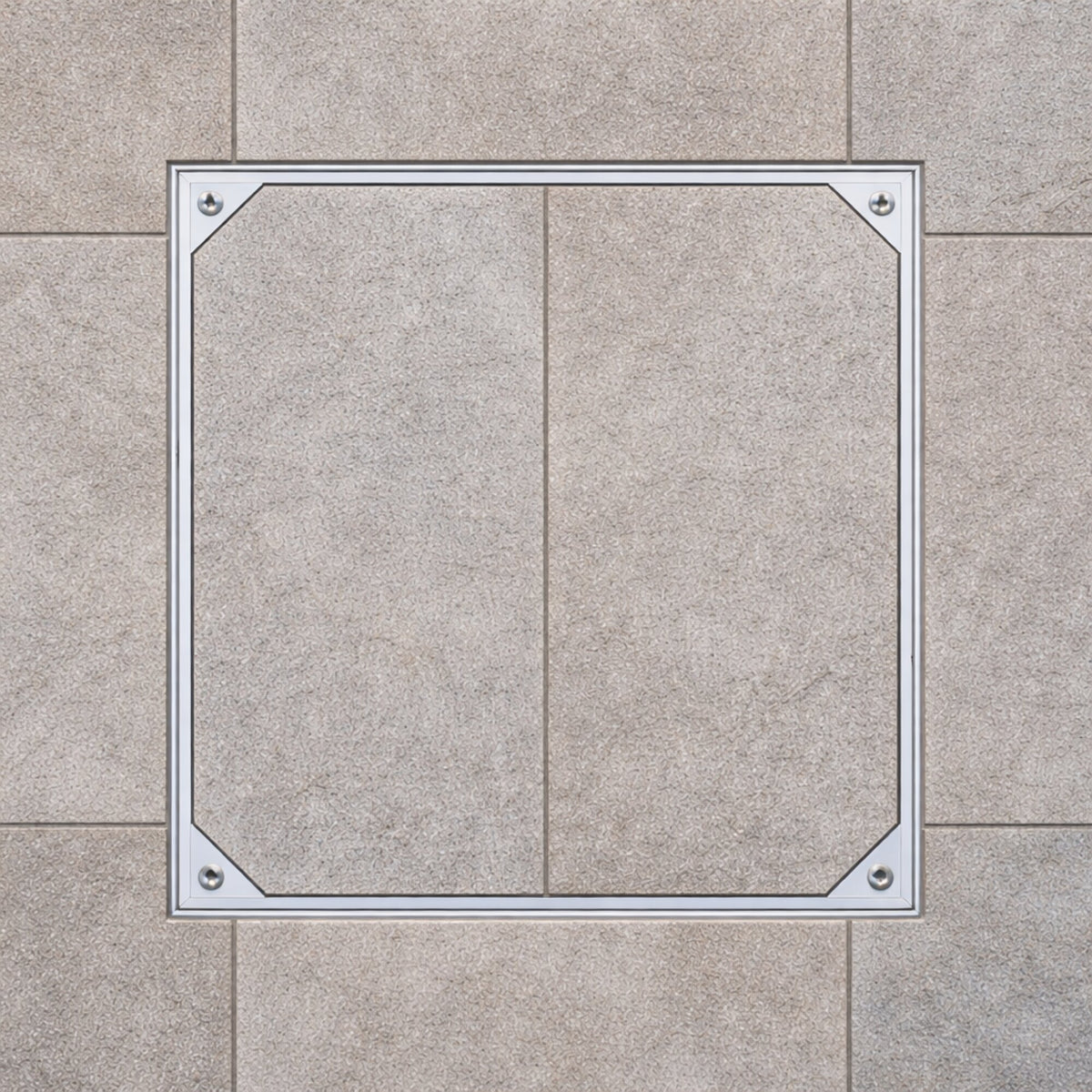

This range is typically used in external paved areas and other finished surfaces where a flush, less visible access point is required. The double sealed design uses one base seal and one T-rubber side seal. This helps reduce odours, limit water ingress and prevent dirt collecting between the cover and frame, which also supports easier removal over time.

The key specification point in this range is load class by size. Smaller DS-60 covers are rated to B125, while larger sizes move to A15 only. That means these covers should not be grouped under one generic loading claim. Selection must be based on both clear opening and the actual duty of the area.

This cover is not screw locked. Where a locked internal cover is required, a triple sealed locking cover is the better specification.

Key Features

  • Available in multiple clear opening sizes from 300 x 300mm up to 1000 x 1000mm
  • Double sealed design uses a base seal and side T-rubber seal for improved sealing performance
  • Extruded aluminium frame gives a cleaner and more discreet finished appearance
  • 48mm tray depth suits screed, paving and similar shallow finish build-ups
  • Reinforcement mesh helps support the infill within the recessed tray
  • Galvanised steel bottom plate improves rigidity beneath the infill
  • Four lifting points allow the cover to be removed with supplied lifting keys
  • Dirt is less likely to bind the tray due to the side seal design
  • Load class varies by size, allowing the right cover to be selected for the duty required

Material Composition

The frame and cover are manufactured from extruded aluminium for a cleaner architectural finish and reduced corrosion risk in normal external environments. The tray includes a galvanised steel bottom plate and reinforcement mesh to support the infill material. Sealing is provided by an EPDM type base seal combined with a side T-rubber seal.

Product Specifications

Product type: Double sealed aluminium recessed manhole cover
Suitable location: External and finished floor areas, subject to load class
Clear opening: Multiple sizes
Overall frame size: Varies by size
Tray depth (recess depth): 48mm
Frame depth: 60mm
Material: Extruded aluminium frame and cover with galvanised steel bottom plate
Finish: Aluminium
Seal type: Double seal, base seal and side T-rubber seal
Locking: No
Load rating: Varies by size, see options below
Lifting method: Four lifting points, lifting keys supplied
Fixings supplied: No
Weight: Varies by size
Standards: Load classes updated by manufacturer sheet, based on quality concrete infill
Options:
DS-60-3030, 300mm x 300mm clear opening, 360mm x 360mm overall frame size, B125
DS-60-4545, 450mm x 450mm clear opening, 510mm x 510mm overall frame size, B125
DS-60-6045, 600mm x 450mm clear opening, 660mm x 510mm overall frame size, B125
DS-60-6060, 600mm x 600mm clear opening, 660mm x 660mm overall frame size, B125
DS-60-7560, 750mm x 600mm clear opening, 810mm x 660mm overall frame size, A15
DS-60-7575, 750mm x 750mm clear opening, 810mm x 810mm overall frame size, A15
DS-60-9060, 900mm x 600mm clear opening, 960mm x 660mm overall frame size, A15
DS-60-9090, 900mm x 900mm clear opening, 960mm x 960mm overall frame size, A15
DS-60-1000, 1000mm x 1000mm clear opening, 1060mm x 1060mm overall frame size, A15

  • 5 stars: 51 (88%)
  • 4 stars: 6 (10%)
  • 3 stars: 1 (2%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Michael R.
Great Company To Deal With

Great company to deal with

P
Paul
Love this product

Love the product, this is the third that I have ordered. The only slightly negative comment would be that on one of the deliveries the lifting keys were missing and likely slipped out of the packaging. I have two other sets so no problem for me.

P
P M.
Nice look aluminium

Neat and tidy , far nicer look than the plastic frame options available at your local builders merchants.

V
Vivian B.
Very Fast Shipping

Very fast shipping

J
Joe S.
Wrong Cover Received

Returned item for refund due to being sent the wrong cover. Ordered internal cover, was sent external cover. No problem with the refund.

M
Martin G.
Great Thanks A+A+A+

Thank you very much

H
Harry J.
Good Price

Good product good price

W
Walter B.
Prompt Service

Many thanks a pleasure to deal with

E
Ellis
Brilliant Service, Quick Delivery

Excellent

T
Thomas G.
Quick Delivery, Item As Described

Great patient and reliable thank you amazing love it

L
Lee C.
Quick Delivery, Exactly as Described

Great , thank you.

O
O. L.
Fast Delivery, Great Item

Top product

J
Julie
Fantastic Service, Will Use Again

Fantastic service provider. Highly recommend. Will use again.

C
Connor
Fantastic Service Provider

Fantastic service provider. Highly recommend and will use again.

J
Jordan L.
Great Service and Quality

Great service and quality. Would highly recommend this . 5*****

M
Matthew R.
Super Quick Delivery, Happy Purchase

Super quick delivery and really happy with my purchase

K
Keith H.
Lovely, Just as Described

Lovely just as described Thankyou excellent service

A
Arthur S.
Very Fast

Excellent . Very fast. Quality bit of kit. Thank you

D
Daniel D.
High Quality, Very Fast Delivery

High quality, very fast delivery happily deal.with again and plan to in future

W
Wendy B.
Well Wrapped, Arrived Quickly

Arrived well wrapped and quickly thank you

B
Bradley Y.
Fast Delivery, Good Communication

ITEM AS DESCRIBED .DELIVERED VERY QUICKLY .

N
Neil C.
Thank You, 5 Stars

Just as described fast delivery

W
Warren W.
Quickly Arrived

New manhole cover exactly as described. Securely packaged and very quickly sent.

K
K. H.
My builder wanted to know where I purchased this - he loved it

Great quality recessed manhole cover. not to deep. and metal +++

H
Henry L.
Quality

Great item.

S
Samuel
Just the Job

Exactly what I was looking for and had cable ties, cool.

H
Harrison
Great All-Round

great all round

N
Nicholas W.
Quick Delivery

Turned up really quick, I could complete the job in time.

P
Peter G.
Excellent Service, Great Quality

Great service, great product

M
Michael E.
Superfast Service, Great Item

Excellent service thankyou

A
Antony R.
Good Communication, As Described

As described great. Thanks

L
Lee
Great Service, Many Thanks

Fast delivery of a quality item thank you.

M
Monica
Good Delivery

Recommended . Thanks

Sealed & Locking Recessed Manhole Covers

About this collection

Sealed & Locking Recessed Manhole Covers

Sealed and locking manhole covers are recessed access covers designed to restrict odours, surface water and debris entering or escaping the chamber. They are commonly used in internal floors, patios and enclosed areas where a standard recessed cover is not sufficient.

View Collection

FAQs

See All

Are all sizes in this DS-Line 60mm range the same load class?

No. The smaller sizes are rated to B125, while the larger sizes are rated to A15. The selected size must match the duty of the installation area.

Is this cover locking?

No. This is a double sealed cover, not a locking cover. It is held by the tray and seal arrangement rather than screw locking.

What finish can be installed in the tray?

The 48mm tray depth is suitable for screed, block paving and similar finishes that fit within the recess depth.

Can this be used indoors?

It can be used in finished floor areas, but where a locked internal access cover is required, a triple sealed locking cover is usually the better choice.

Are lifting keys included?

Yes. Lifting keys are supplied for removal of the cover.
