Double Sealed Aluminium Recessed Manhole Cover 80mm Multiple Sizes

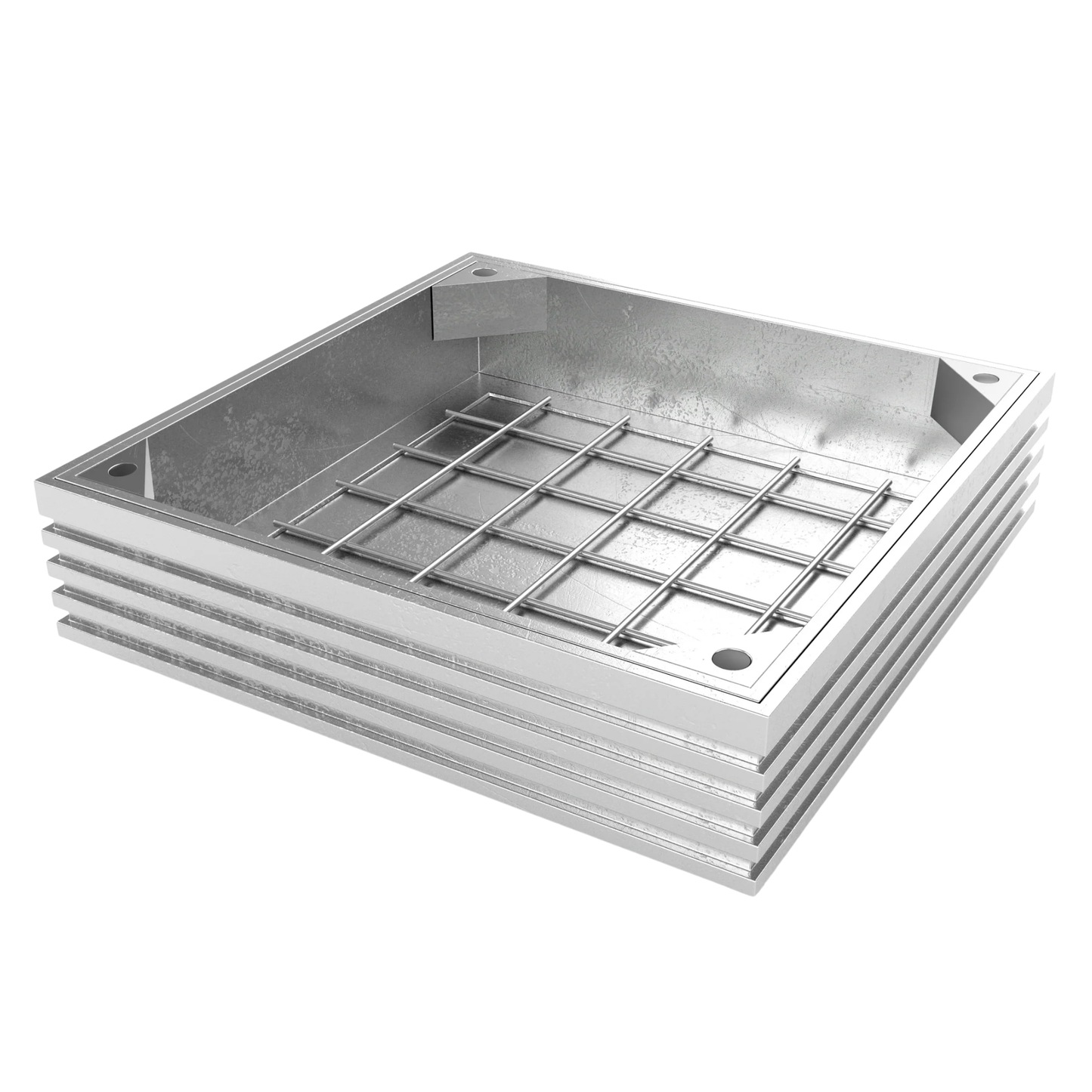

The DS-Line 80mm range is a double sealed aluminium recessed manhole cover system designed for installations where a deeper tray is needed for the finished surface build-up. Each cover uses an extruded aluminium frame and tray with a galvanised steel bottom plate and reinforcement mesh, allowing block paving and similar finishes to be installed within the recess.

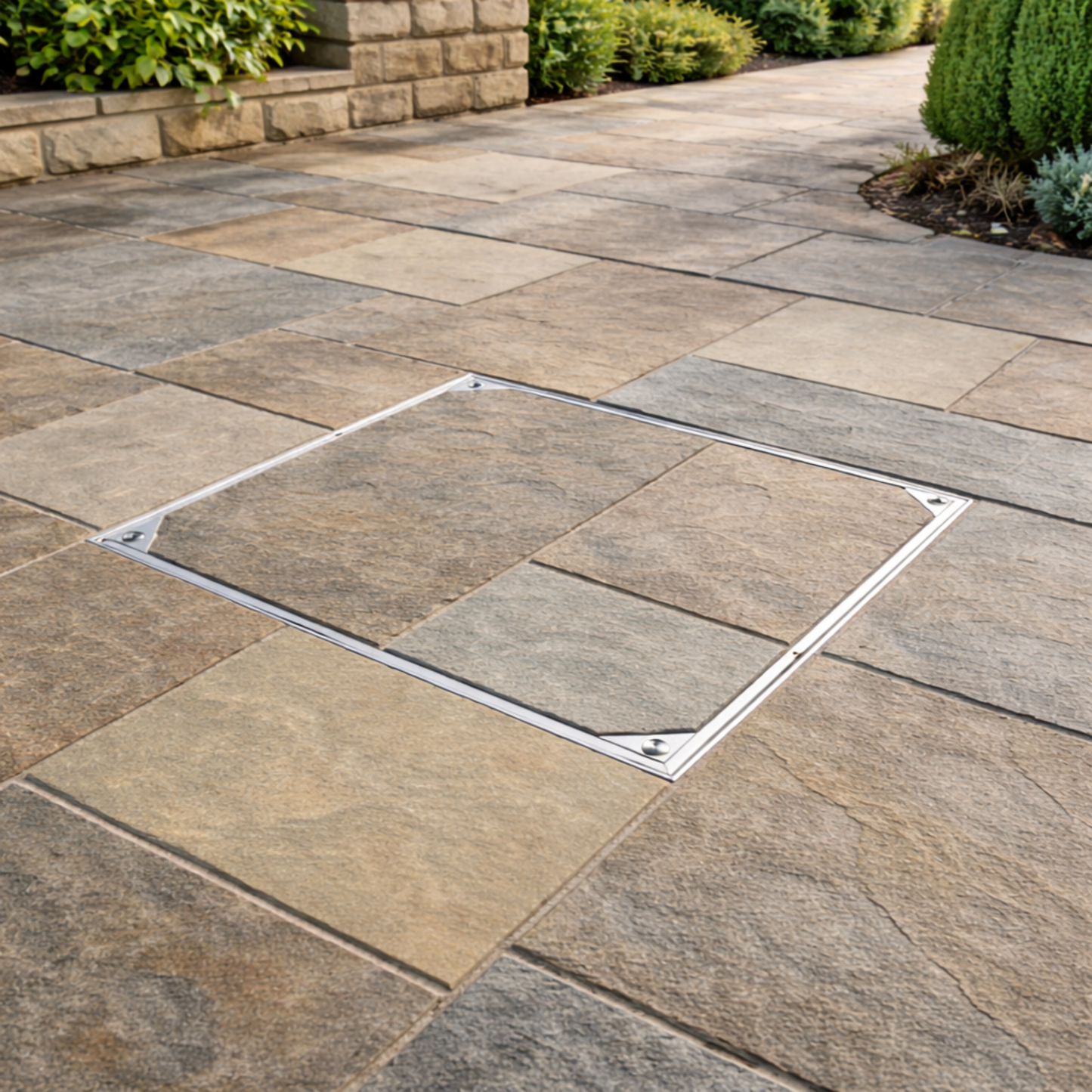

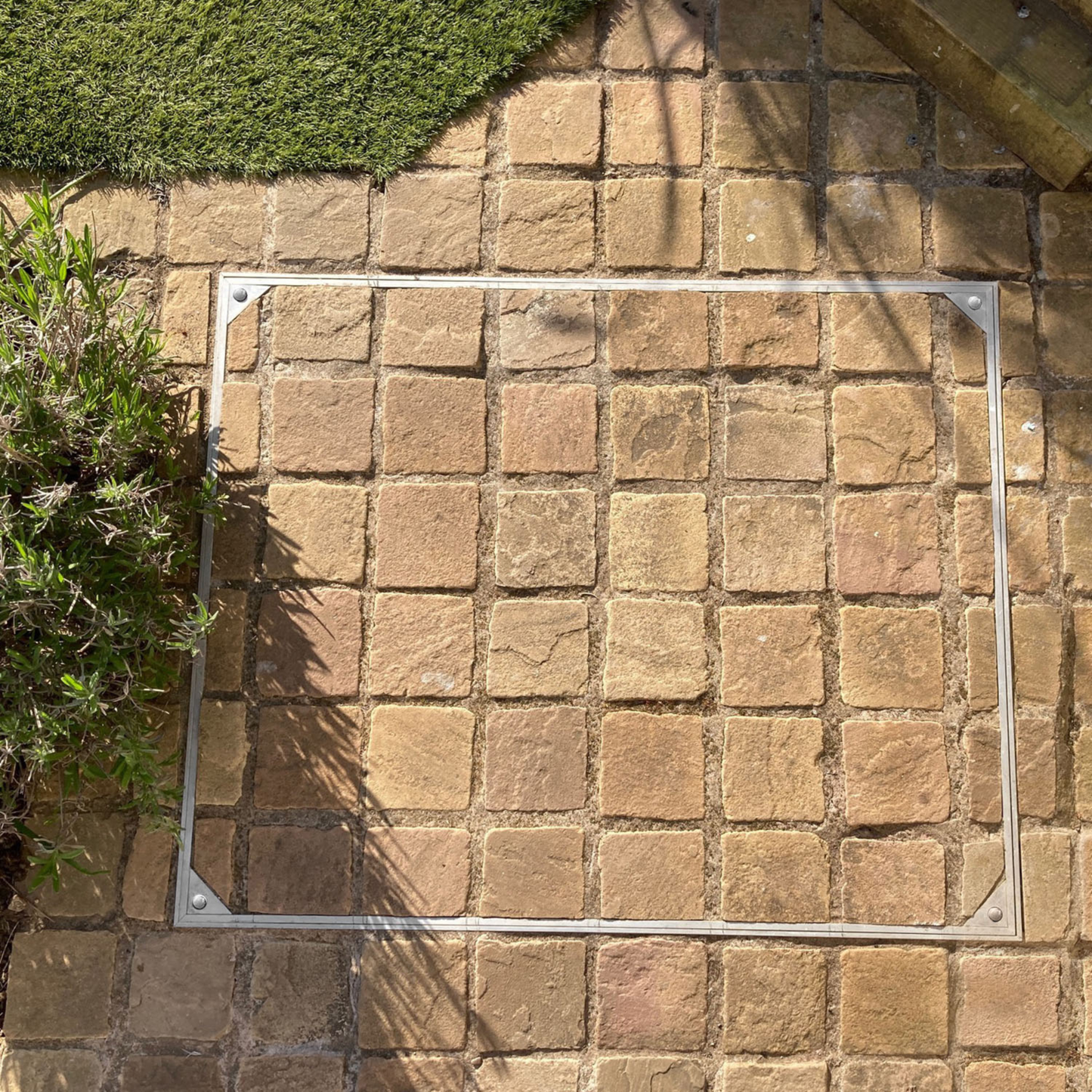

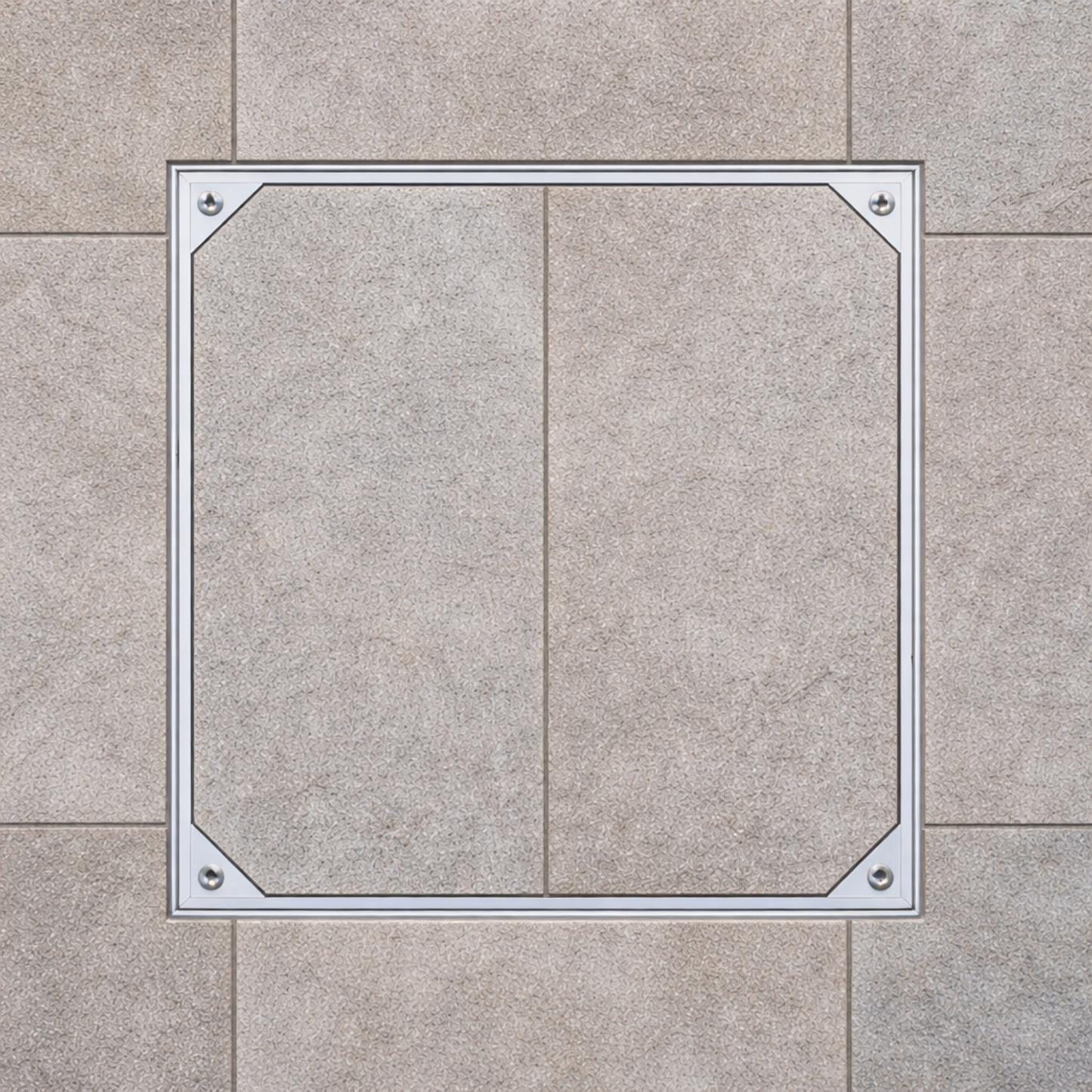

This range is typically used in external paved areas and other finished surfaces where a flush, more discreet access point is required. The double sealed design uses one base seal and one T-rubber side seal. This helps reduce odours, limit water ingress and prevent dirt collecting between the cover and frame, which also helps with long term removal.

The key specification point in this range is load class by size. Smaller and mid-size DS-80 covers reach B125, while the larger sizes reduce to A15 only. That means the correct cover must be selected by both clear opening and duty of the area, not by size alone.

This cover is not screw locked. Where a locked internal cover is required, a triple sealed locking cover is the better specification.

• Available in multiple clear opening sizes from 300 x 300mm up to 1000 x 1000mm
• 68mm tray depth suits deeper paving and finish build-ups
• Double sealed design uses a base seal and side T-rubber seal for improved sealing performance
• Extruded aluminium frame gives a cleaner and more discreet finished appearance
• Reinforcement mesh helps support the infill within the recessed tray
• Galvanised steel bottom plate improves rigidity beneath the infill
• Four lifting points allow the cover to be removed with supplied lifting keys
• Dirt is less likely to bind the tray due to the side seal design
• Load class varies by size, with B125 and A15 options across the range

The frame and cover are manufactured from extruded aluminium for a cleaner architectural finish and good corrosion resistance in normal external environments. The tray includes a galvanised steel bottom plate and reinforcement mesh to support the infill material. Sealing is provided by a base seal combined with a side T-rubber seal.

Product type: Double sealed aluminium recessed manhole cover
Suitable location: External and finished floor areas, subject to load class
Clear opening: Multiple sizes
Overall frame size: Varies by size
Tray depth (recess depth): 68mm
Frame depth: 80mm
Material: Extruded aluminium frame and cover with galvanised steel bottom plate
Finish: Aluminium
Seal type: Double seal, base seal and side T-rubber seal
Locking: No
Load rating: Varies by size, see options below
Lifting method: Four lifting points, lifting keys supplied
Fixings supplied: No
Weight: Varies by size
Standards: Load classes updated by manufacturer sheet, based on quality concrete infill
Options:
DS-80-3030, 300mm x 300mm clear opening, 360mm x 360mm overall frame size, B125
DS-80-4545, 450mm x 450mm clear opening, 510mm x 510mm overall frame size, B125
DS-80-6045, 600mm x 450mm clear opening, 660mm x 510mm overall frame size, B125
DS-80-6060, 600mm x 600mm clear opening, 660mm x 660mm overall frame size, B125
DS-80-7560, 750mm x 600mm clear opening, 810mm x 660mm overall frame size, B125
DS-80-7575, 750mm x 750mm clear opening, 810mm x 810mm overall frame size, A15
DS-80-9060, 900mm x 600mm clear opening, 960mm x 660mm overall frame size, A15
DS-80-9090, 900mm x 900mm clear opening, 960mm x 960mm overall frame size, A15
DS-80-1000, 1000mm x 1000mm clear opening, 1060mm x 1060mm overall frame size, A15
