Stainless Steel Recessed Manhole Covers Standard & Bespoke Sizes

This range of stainless steel recessed manhole covers provides both standard sizes and bespoke fabrication for projects where access requirements do not align with off the shelf products. Covers are manufactured to suit a wide range of internal and external applications, particularly where corrosion resistance is required.

The recessed tray allows the surrounding finish, such as tile, resin, stone or concrete, to be installed within the lid so the access point remains flush with the finished surface. Standard sizes cover common chamber openings, while bespoke options allow adjustment of clear opening, frame size and tray depth to suit specific site conditions.

Specification can include double sealed or plain seated designs depending on whether odour and water resistance is required. Load rating can also be defined to match the installation environment, from pedestrian areas through to heavier duty applications where deeper trays and reinforced construction are needed.

This range is typically used where standard covers do not align with tile layouts, structural openings or loading requirements. Bespoke manufacture avoids common site issues such as poor fit, incorrect recess depth or compromised finishes.

• Standard and bespoke sizing, allows accurate fit to existing or new openings
• Stainless steel construction, suitable for corrosion prone environments
• Recessed tray design, enables flush finish with surrounding surface materials
• Choice of seal types, supports both odour control and unsealed applications
• Configurable load ratings, allows correct specification for pedestrian or heavier use
• Multiple lifting options, including concealed and architectural lifting points
• Adjustable tray depths, accommodates different floor build-ups
• Manufactured to specification, reduces site modification and fitting issues

Manufactured from stainless steel, typically in grade 304 or grade 316 depending on the installation environment. Grade 316 is specified for areas exposed to moisture, cleaning chemicals or chlorinated conditions, while grade 304 is suited to general internal use.

Product type: Recessed manhole covers standard and bespoke
Suitable location: Internal and external

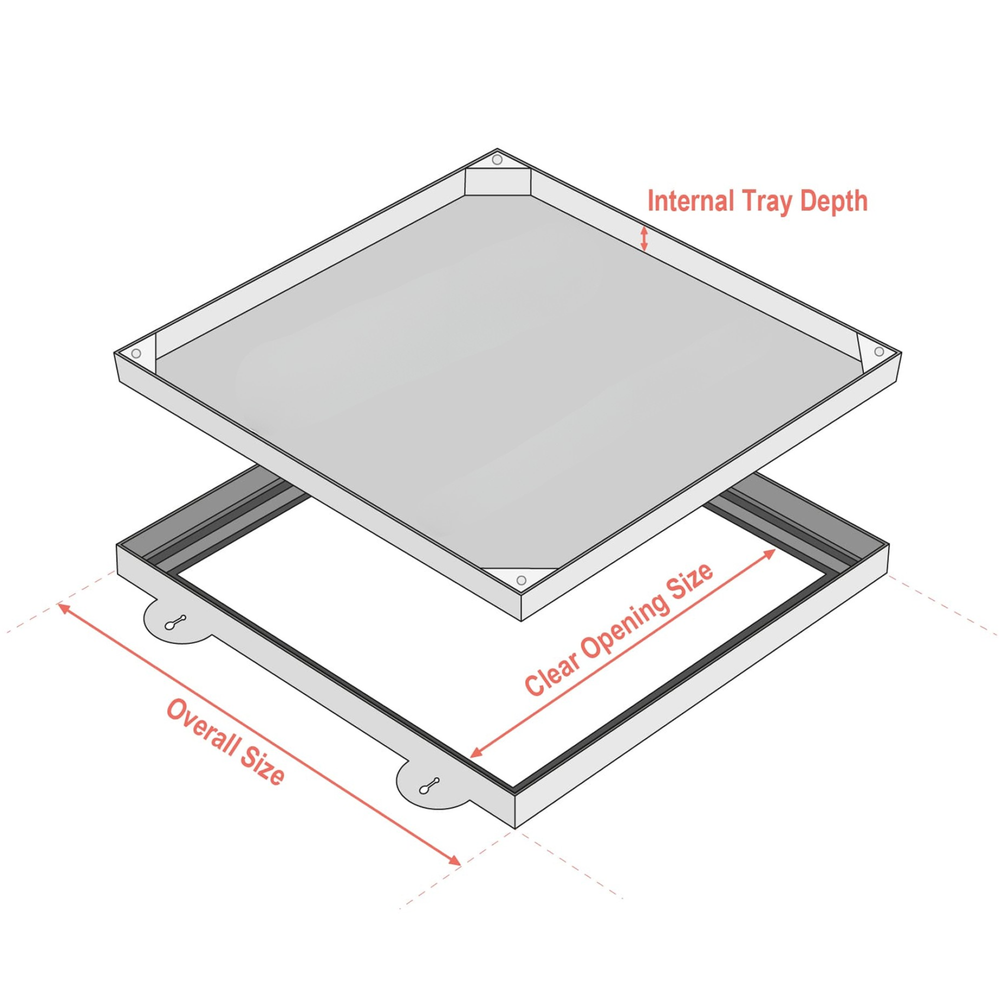

Clear opening: 300mm x 300mm up to 900mm x 900mm and bespoke sizes
Overall frame size: Dependent on specification
Tray depth (recess depth): Multiple options available
Frame depth: Dependent on design
Material: Stainless steel grade 304 or 316
Finish: Natural stainless steel with polished edge
Seal type: Double sealed or plain seated
Locking: Optional depending on specification
Load rating: Defined to project requirements
Lifting method: Multiple options including concealed and barrel lifting points
Fixings supplied: Dependent on specification
Weight: Dependent on size and build
Standards: Dependent on specification
Options: Bespoke sizes, depths, loading, lifting points and sealing options
