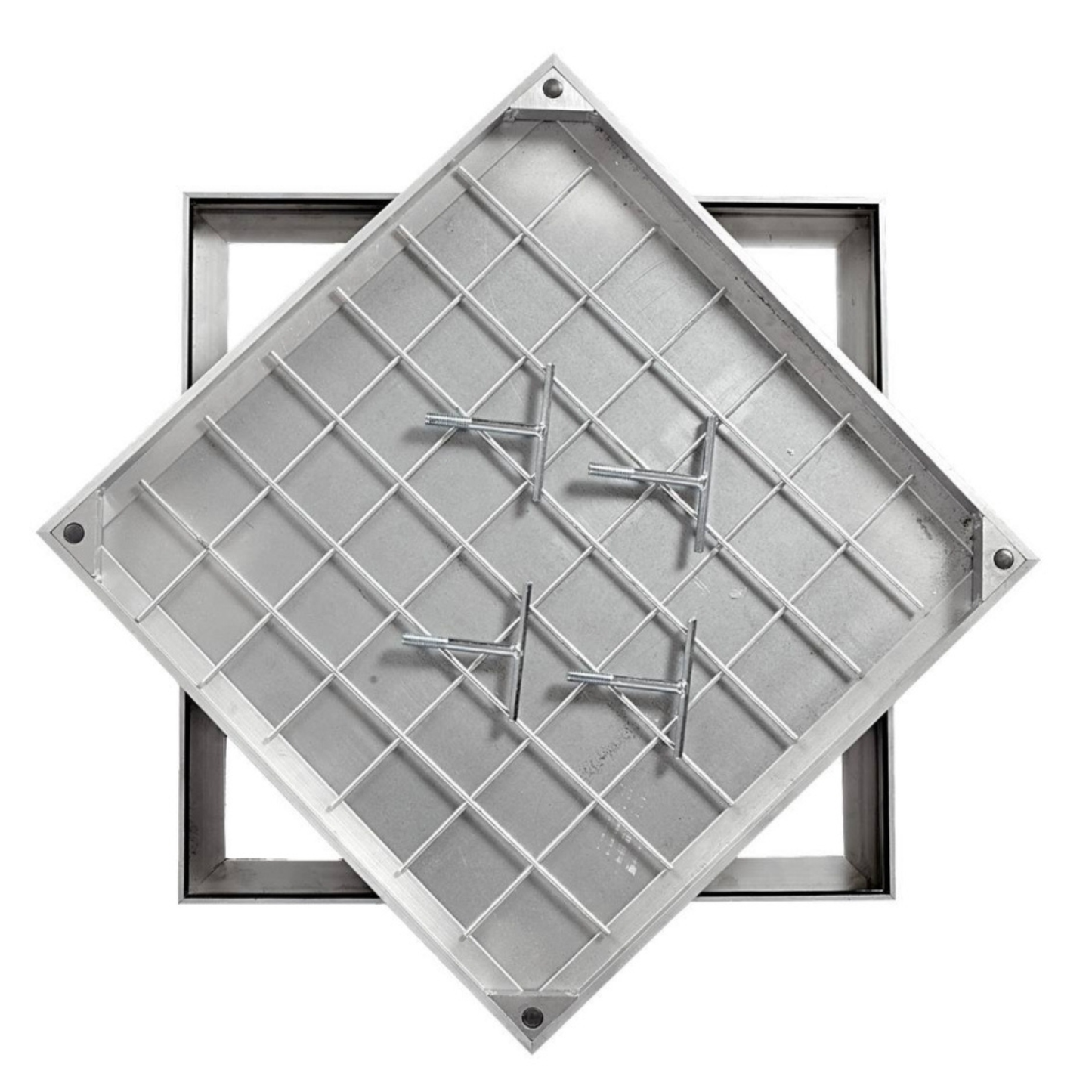

Triple Sealed Aluminium Recessed Manhole Cover 60mm Multiple Sizes

The TSL-Pro-Line 60mm range is a triple sealed and locking aluminium recessed manhole cover system designed for installations where both sealing performance and secure closure are required. The cover is recessed to accept tiles, paving or similar finishes, allowing the access point to sit flush within the surrounding surface.

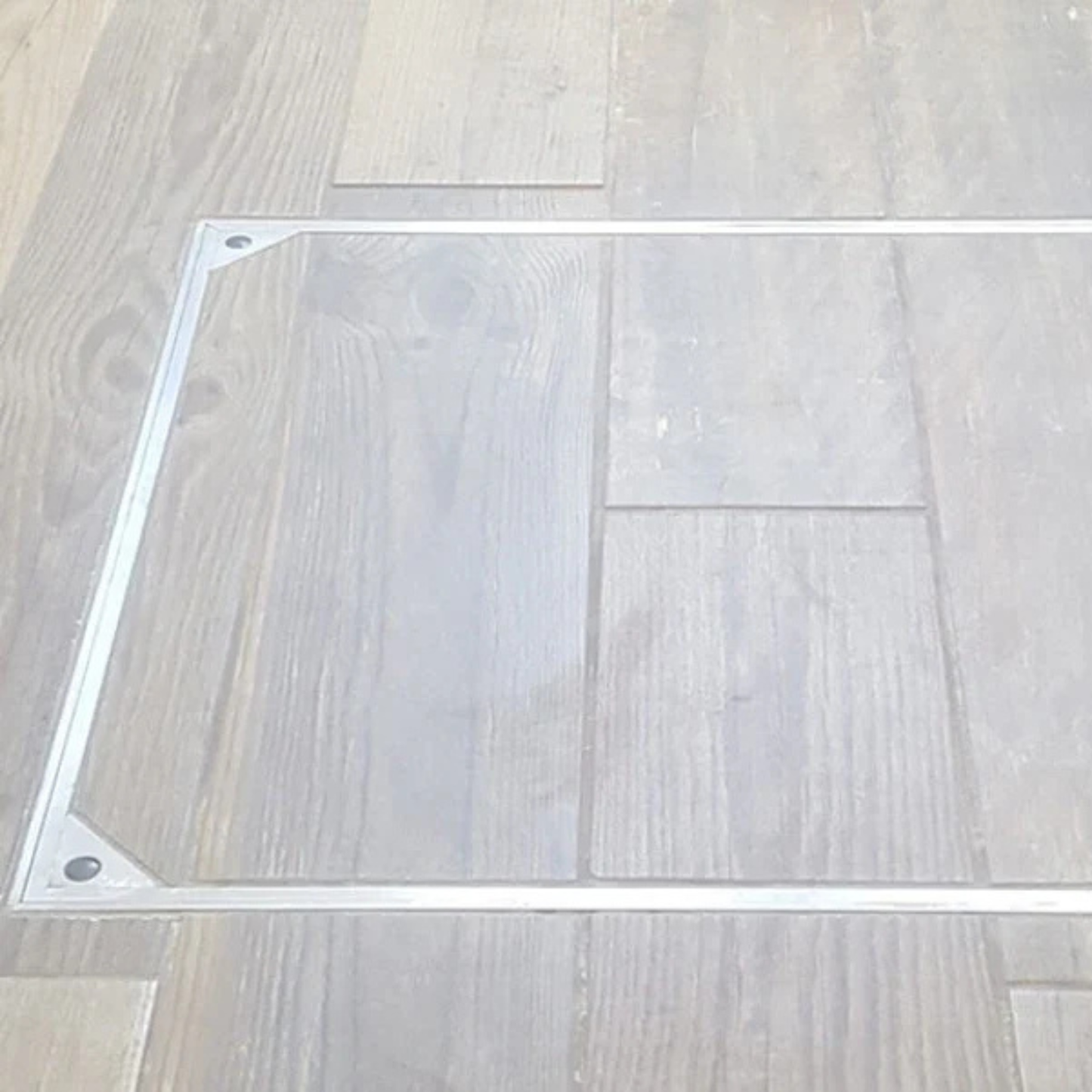

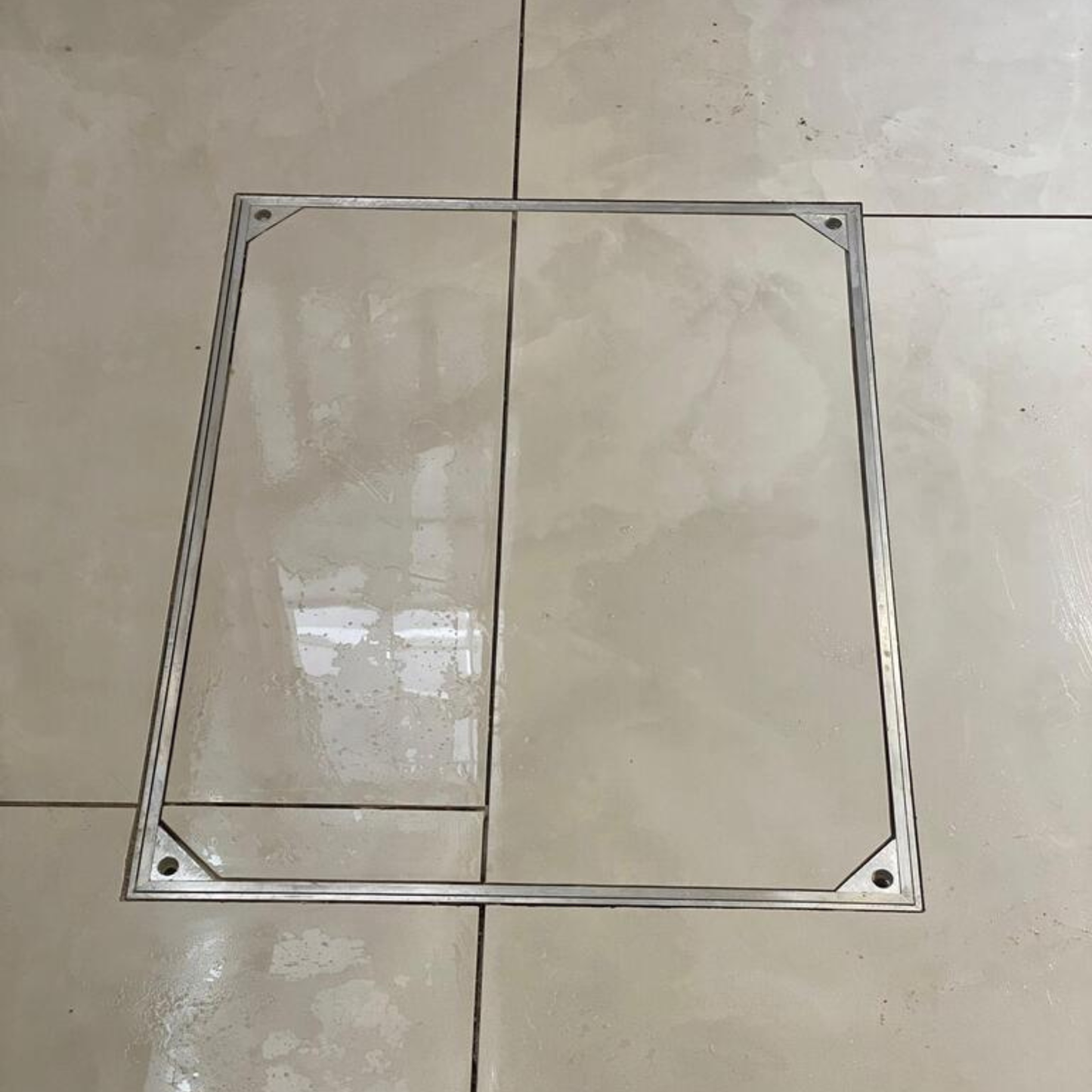

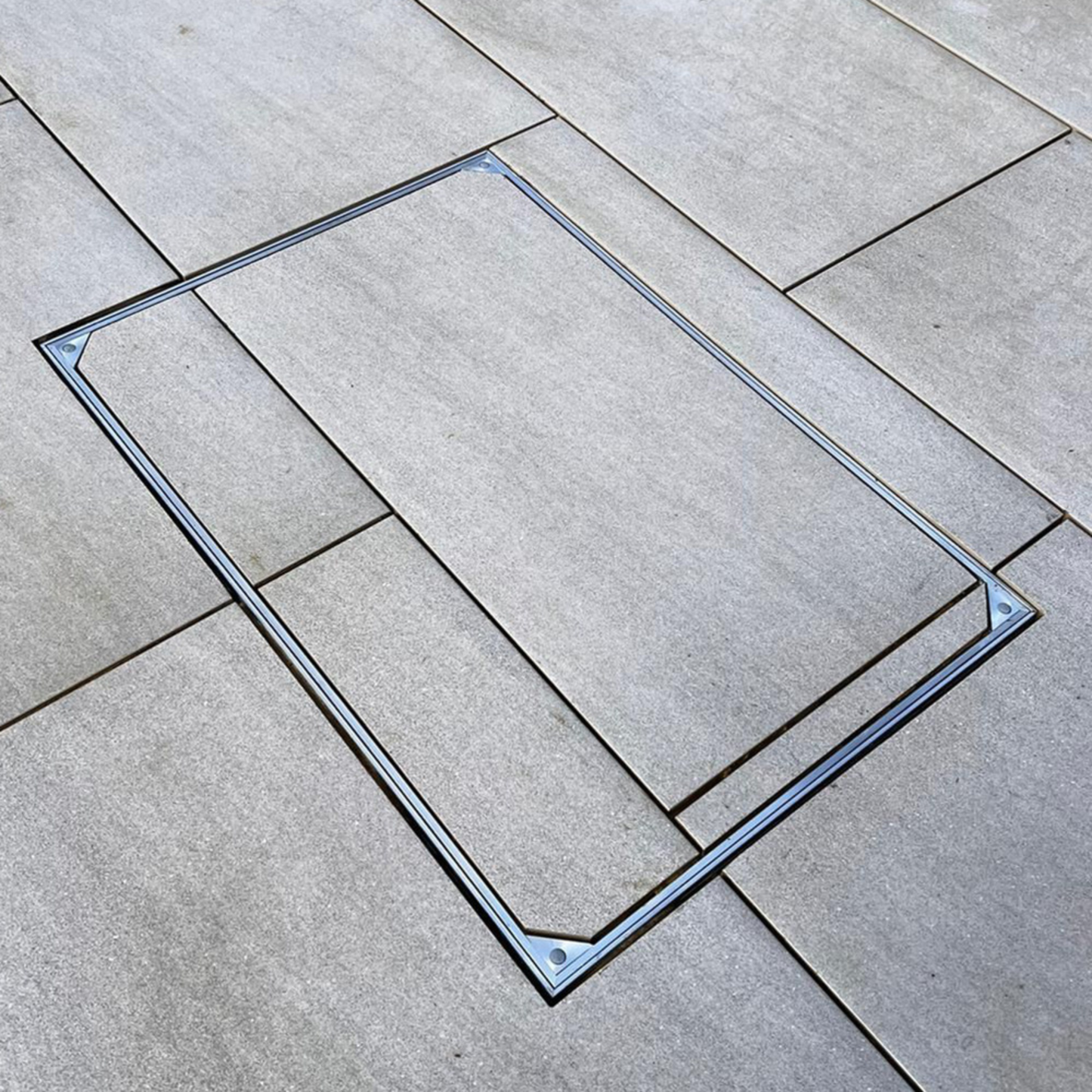

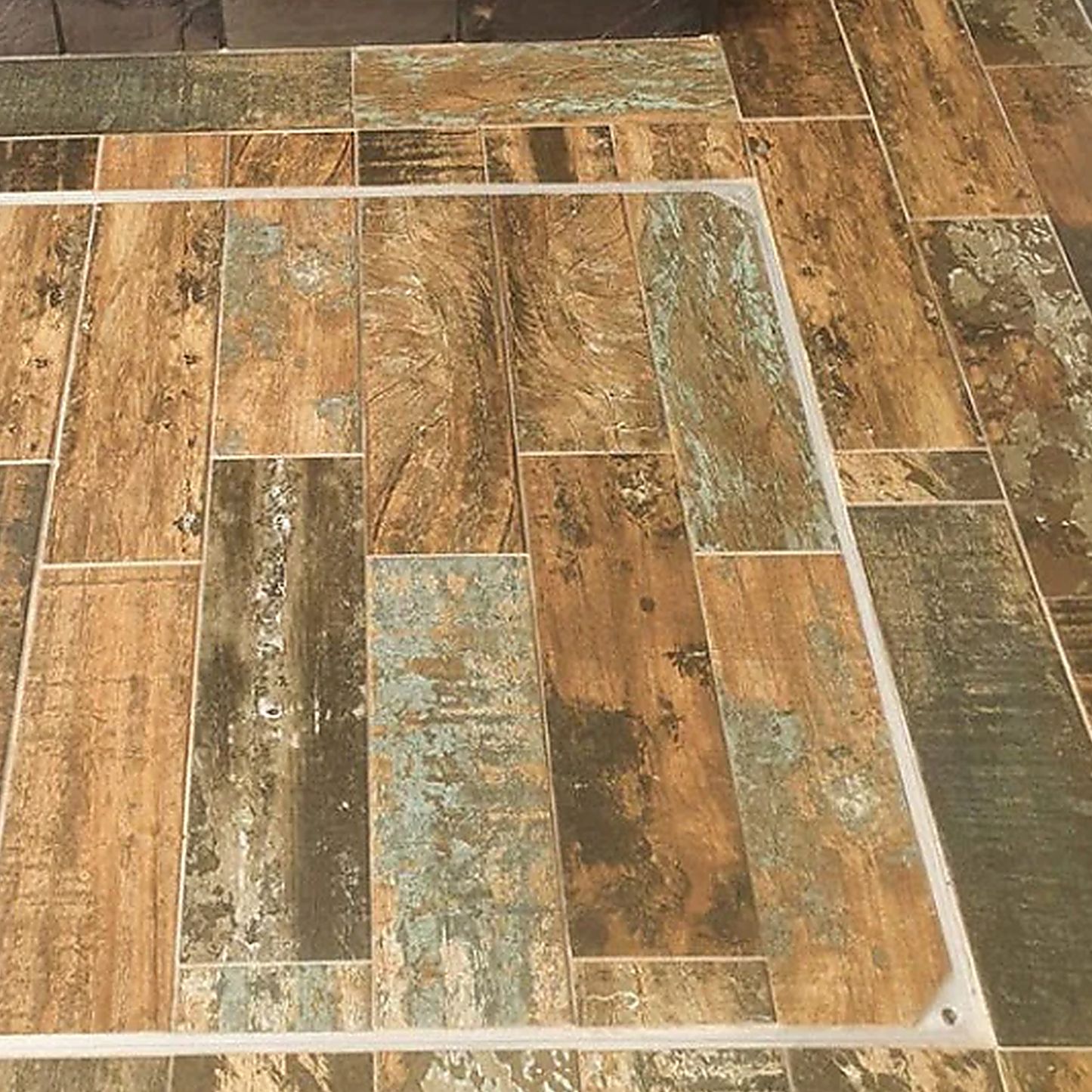

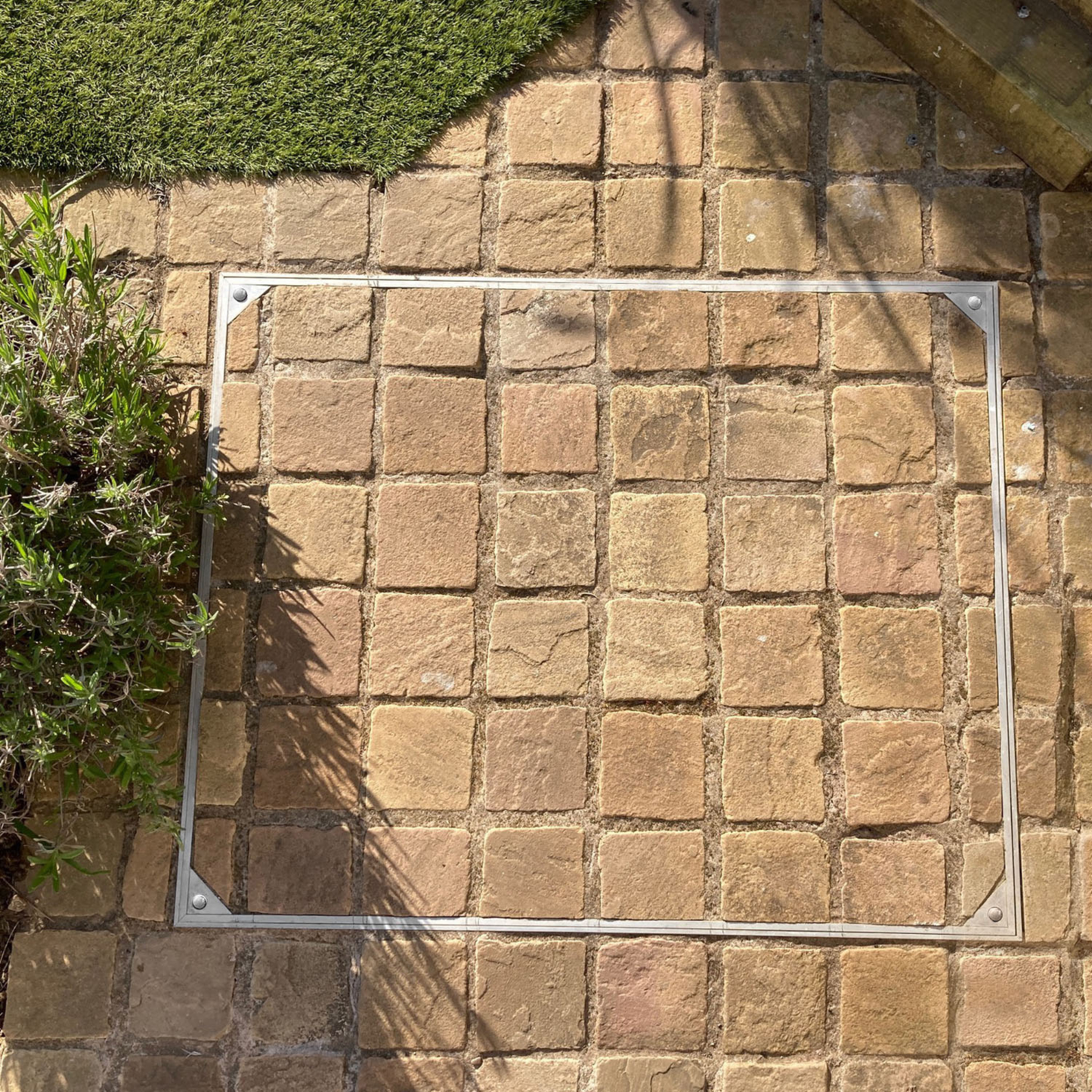

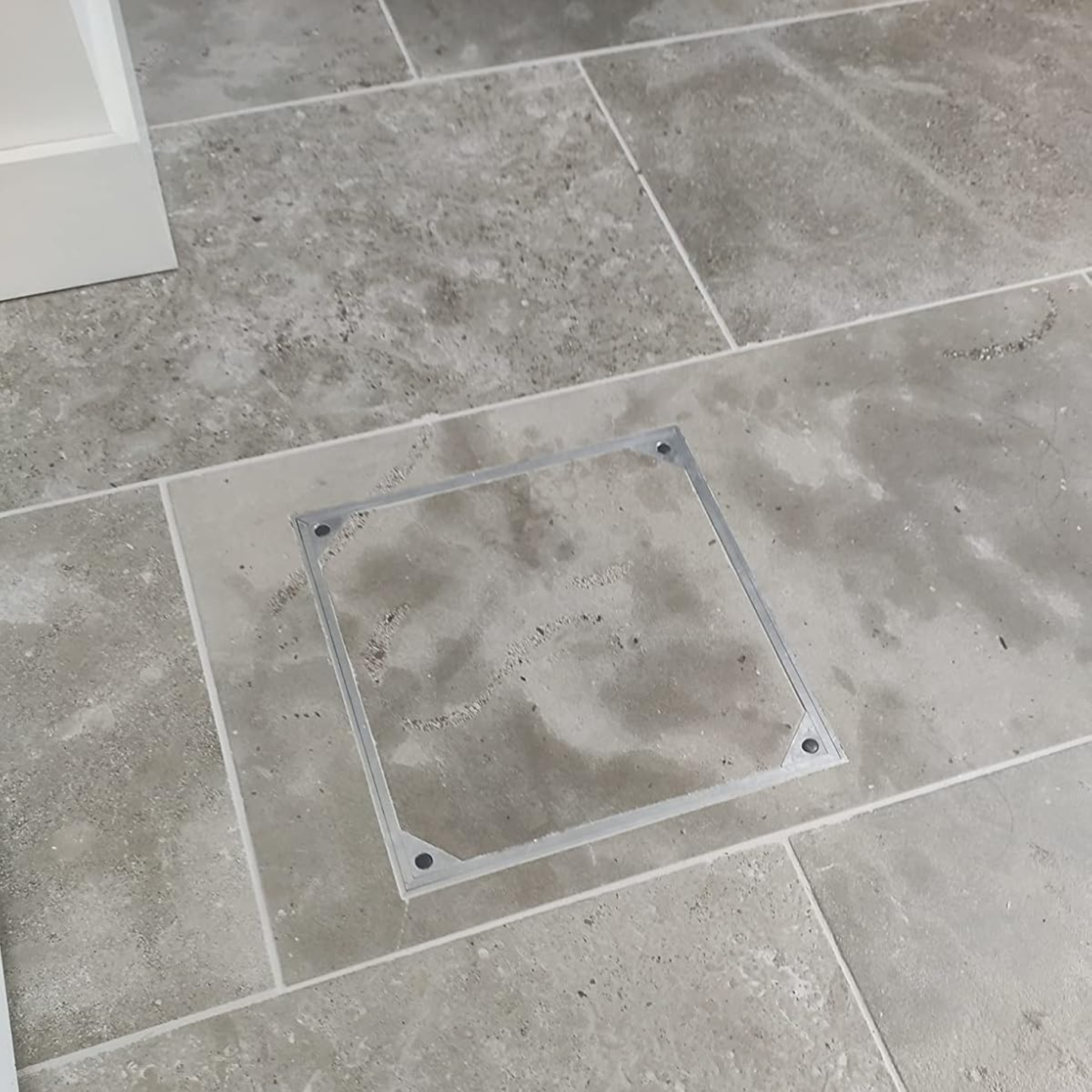

This range is typically used in internal floors such as bathrooms, plant rooms and utility areas, as well as external paved areas where odour control and water resistance are important. The screw locked lid and three seal arrangement provide a tighter seal than standard recessed covers, helping to limit odours, gases and surface water ingress.

The 41mm tray depth is suited to deeper finishes and bedding layers. This avoids the common issue of shallow trays being specified where the build-up cannot be accommodated, leading to weak or uneven infill.

Load performance varies across the size range. Smaller covers up to 600 x 600 are B125 rated for light vehicular use, while larger formats are limited to A15 pedestrian duty.

• Multiple clear opening sizes from 150 x 150mm up to 1000 x 1000mm
• Triple sealed design improves resistance to odours, gas and water ingress
• Screw locking lid provides a secure and stable closure in service
• 41mm tray depth suits deeper tile, screed and paving build-ups
• Extruded aluminium frame provides a clean and consistent finish
• Reinforcement mesh supports infill and reduces risk of cracking
• Galvanised steel base plate adds rigidity beneath the tray
• Suitable for internal and external finished surfaces
• Mixed load ratings across range allow correct specification by size
• Supplied with lifting keys for access and maintenance

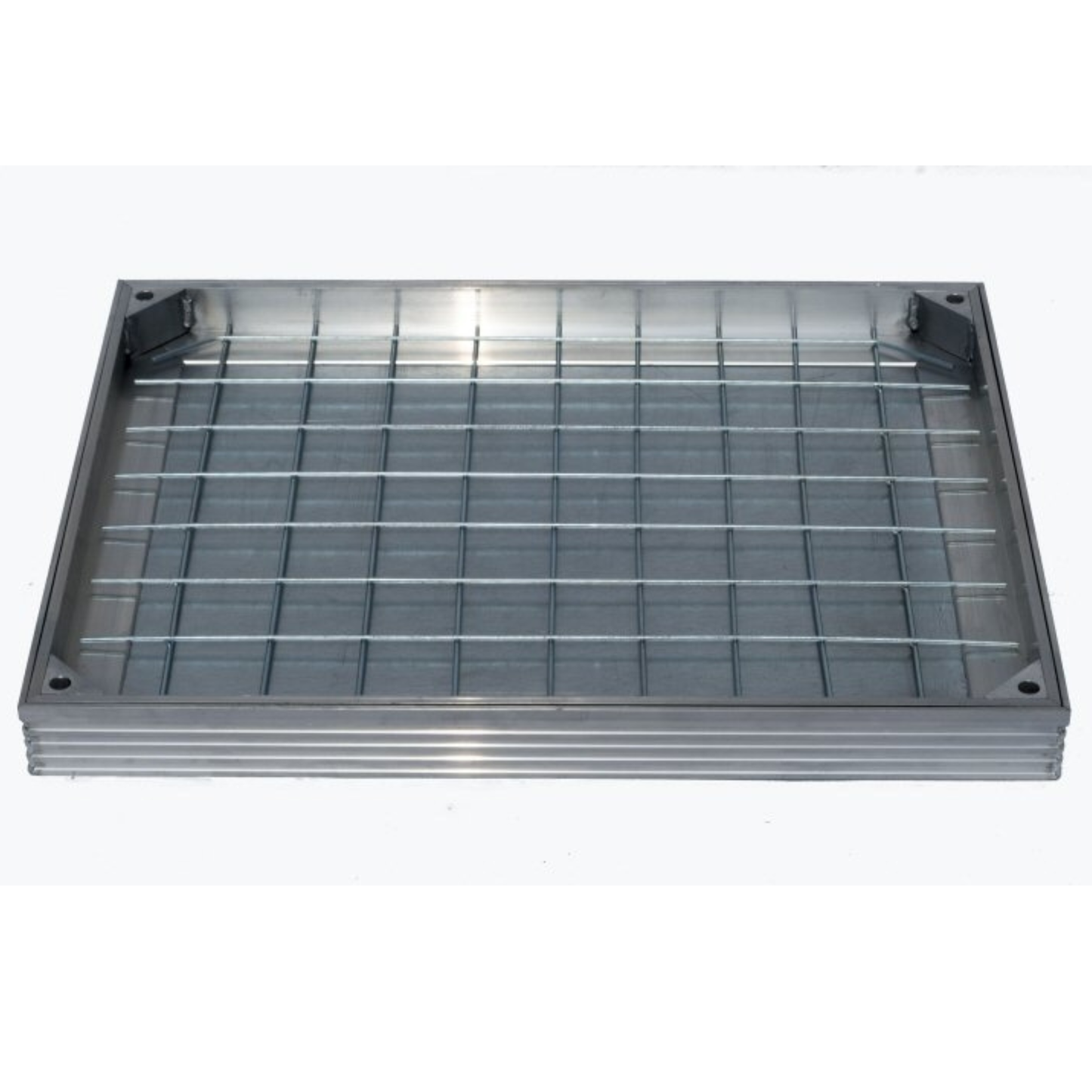

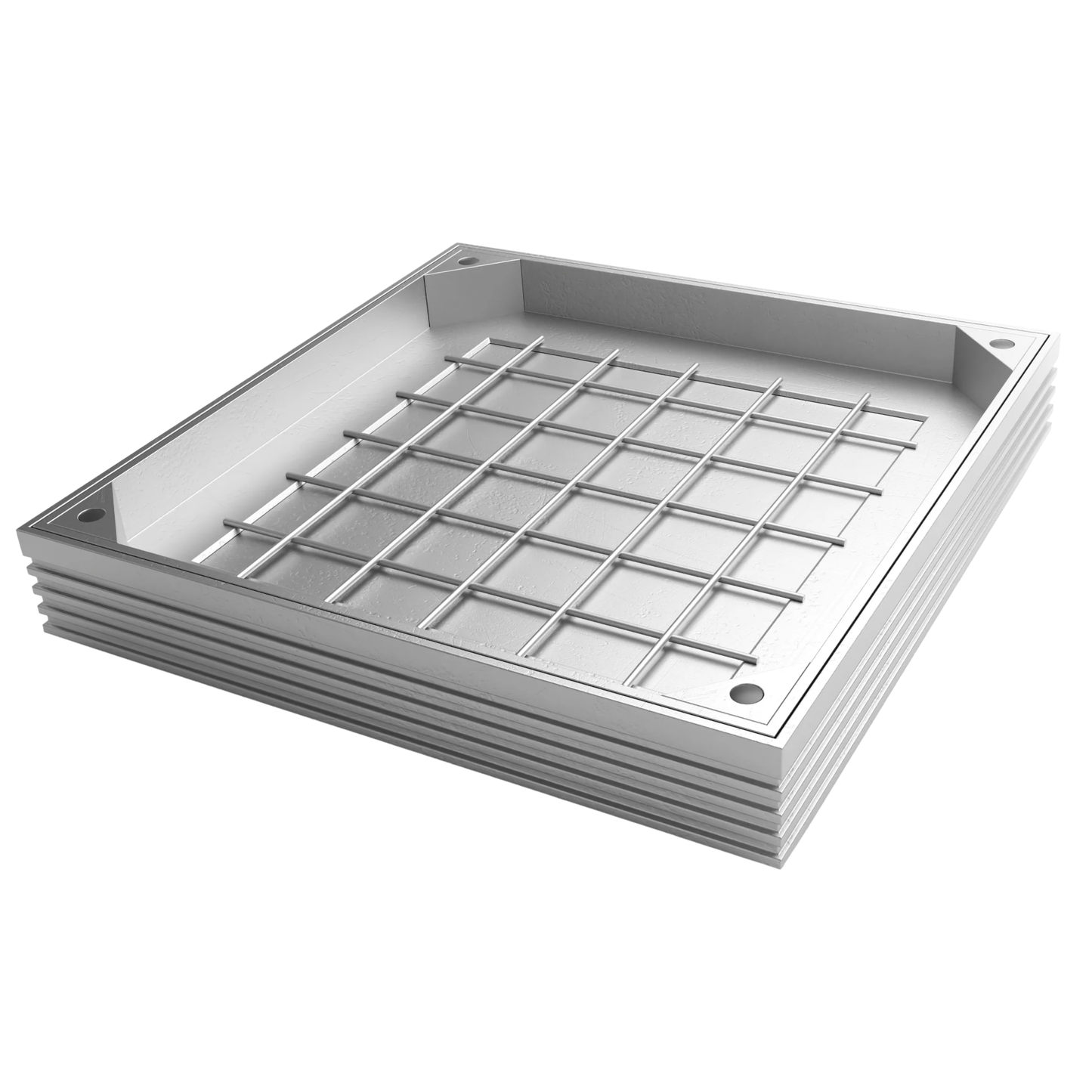

Manufactured from extruded aluminium for corrosion resistance and a clean architectural finish. The recessed tray incorporates a galvanised steel base plate and reinforcement mesh to support the infill material. Sealing is achieved through two base seals and an additional side T-rubber seal.

Product type: Triple sealed and locking aluminium recessed manhole cover
Suitable location: Internal and external finished floor areas, subject to load class
Clear opening: Multiple sizes
Overall frame size: Varies by size
Tray depth (recess depth): 41mm
Frame depth: 60mm
Material: Extruded aluminium with galvanised steel base plate
Finish: Aluminium
Seal type: Triple seal, two base seals and side T-rubber seal
Locking: Screw locked
Load rating: B125 on selected sizes, A15 on larger sizes
Lifting method: Lifting points with lifting keys supplied
Fixings supplied: No
Weight: Varies by size
Standards: EN 124 load class, based on quality concrete infill
Options:
TSL-60-1515, 150mm x 150mm clear opening, 240mm x 240mm overall frame size, B125
TSL-60-2020, 200mm x 200mm clear opening, 290mm x 290mm overall frame size, B125
TSL-60-3030, 300mm x 300mm clear opening, 390mm x 390mm overall frame size, B125
TSL-60-4040, 400mm x 400mm clear opening, 490mm x 490mm overall frame size, B125
TSL-60-4545, 450mm x 450mm clear opening, 540mm x 540mm overall frame size, B125
TSL-60-5050, 500mm x 500mm clear opening, 590mm x 590mm overall frame size, B125
TSL-60-6045, 600mm x 450mm clear opening, 690mm x 540mm overall frame size, B125
TSL-60-6060, 600mm x 600mm clear opening, 690mm x 690mm overall frame size, B125
TSL-60-6767, 670mm x 670mm clear opening, 760mm x 760mm overall frame size, A15
TSL-60-7560, 750mm x 600mm clear opening, 840mm x 690mm overall frame size, A15
TSL-60-7575, 750mm x 750mm clear opening, 840mm x 840mm overall frame size, A15
TSL-60-9060, 900mm x 600mm clear opening, 990mm x 690mm overall frame size, A15
TSL-60-9090, 900mm x 900mm clear opening, 990mm x 990mm overall frame size, A15
TSL-60-1000, 1000mm x 1000mm clear opening, 1090mm x 1090mm overall frame size, A15
